1604-1. Before driving
for a more safe trailer hookup, the trailer
ball setup must be the proper height for the
coupler on the trailer.
Coupler
Trailer ball
■Before towing
Check that the following conditions are
met:
●Ensure that your vehicle’s tires are prop-
erly inflated. ( P.436)
●Trailer tires are inflated according to the
trailer manufacturer’s recommendation.
●All trailer lights work as required by law.
●All lights work each time you connect
them.
●The trailer ball is set at the proper height
for the coupler on the trailer.
●The trailer is level when it is hitched.
Do not drive if the trailer is not level, and
check for improper tongue weight, over-
loading, worn suspension, or other possi-
ble causes.
●The trailer cargo is securely loaded.
●The rear view mirrors conform to all
applicable federal, state/provincial or local regulations. If
they do not, install
rear view mirrors appropriate for towing
purposes.
■Adaptive Variable Suspension System
(if equipped)
The suspension can be switched for
improvement in driveability. ( P.266)
■Break-in schedule
If your vehicle is new or equipped with any
new power train components (such as an
engine, transaxle, transfer [AWD models],
rear differential [AWD models] or wheel
bearing), Lexus recommends that you do
not tow a trailer until the vehicle has been
driven for over 500 miles (800 km).
After the vehicle has been driven for over
500 miles (800 km), you can start towing.
However, for the next 500 miles (800 km),
drive the vehicle at a speed of less than 50
mph (80 km/h) when towing a trailer, and
avoid full throttle acceleration.
■Maintenance
●If you tow a trailer, your vehicle will
require more frequent maintenance due
to the additional load. (See “Warranty
and Services Guide”, “Owner’s Manual
Supplement” or “Scheduled Mainte-
nance”.)
●Retighten the fixing bolts of the towing
ball and bracket after approximately 600
miles (1000 km) of trailer towing.
■If trailer sway occurs
One or more factors (crosswinds, passing
vehicles, rough roads, etc.) can adversely
affect handling of your vehicle and trailer,
causing instability.
●If trailer swaying occurs:
• Firmly grip the steering wheel. Steer straight ahead.
Do not try to control trailer swaying by
turning the steering wheel.
• Begin releasing th e accelerator pedal
immediately but very gradually to reduce
speed.
Do not increase speed. Do not apply
vehicle brakes.
If you make no extreme correction with the
steering or brakes, your vehicle and trailer
should stabilize. (if enabled, Trailer Sway
A
B

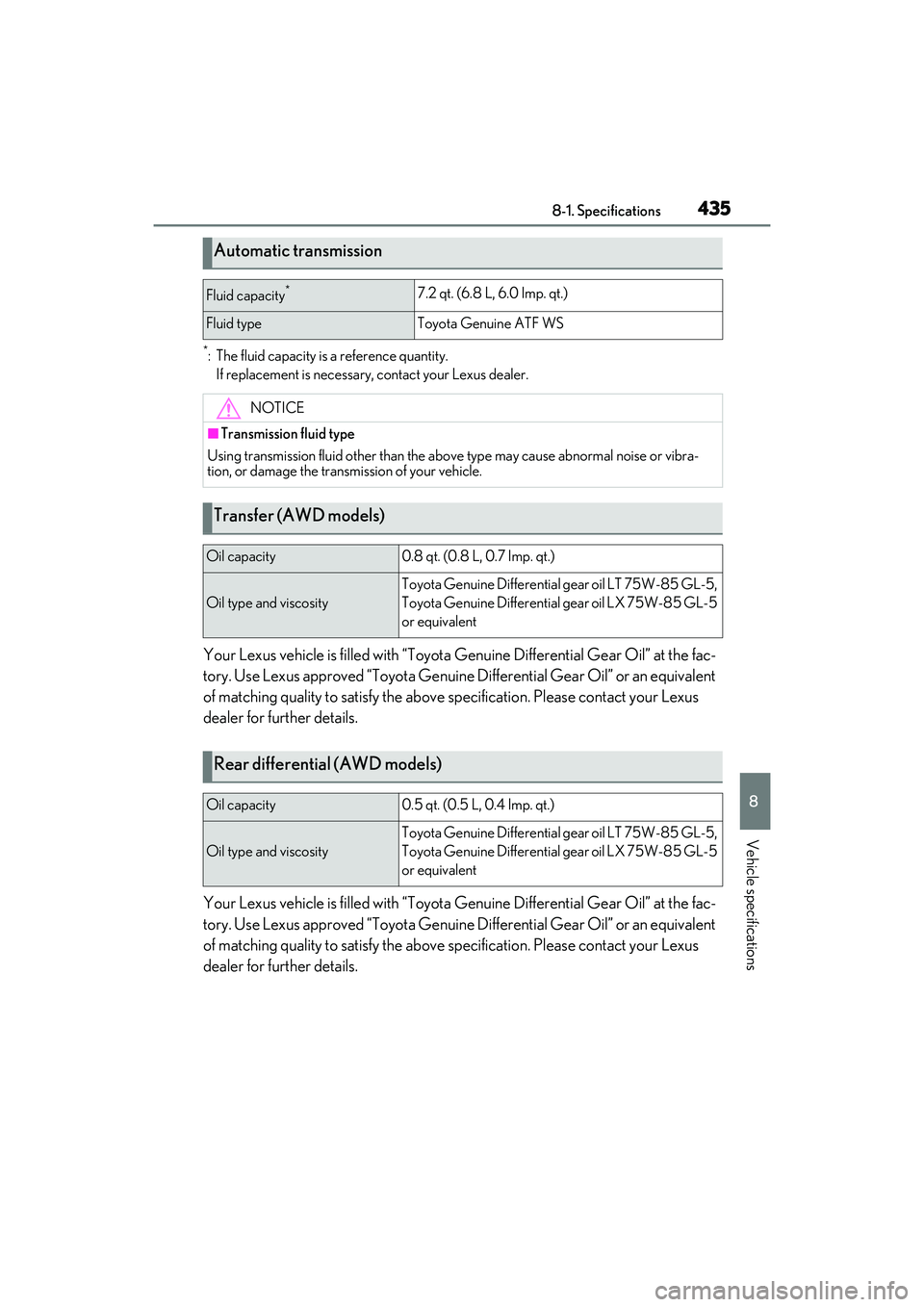

4358-1. Specifications
8
Vehicle specifications
*: The fluid capacity is a reference quantity.If replacement is necessary, contact your Lexus dealer.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Di fferential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory. Use Lexus approved “Toyota Genuine Di fferential Gear Oil” or an equivalent
of matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.
Automatic transmission
Fluid capacity*7.2 qt. (6.8 L, 6.0 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■Transmission fluid type
Using transmission fluid other than the abov e type may cause abnormal noise or vibra-
tion, or damage the transm ission of your vehicle.
Transfer (AWD models)
Oil capacity0.8 qt. (0.8 L, 0.7 Imp. qt.)
Oil type and viscosity
Toyota Genuine Differential gear oil LT 75W-85 GL-5,
Toyota Genuine Differential gear oil LX 75W-85 GL-5
or equivalent
Rear differential (AWD models)
Oil capacity0.5 qt. (0.5 L, 0.4 Imp. qt.)
Oil type and viscosity
Toyota Genuine Differential gear oil LT 75W-85 GL-5,
Toyota Genuine Differential gear oil LX 75W-85 GL-5
or equivalent
483Alphabetical Index
DifferentialRear differential oil .................................... 435
Dimension ...................................................... 430
Dinghy towing.................................................169
Display Center Display............................................280
Dynamic radar cruise control with full-speed range .......................................222
Head-up display ........................................... 86
Intuitive parking assist.............................. 238
LTA (Lane Tracing Assist)...................... 216
Multi-information display .......................... 79
RCTA .............................................................. 245
Warning message..................................... 402
Distance until next engine oil change .... 78
Do-it-yourself maintenance .................... 343
Door courtesy lights ...................................300 Wattage.......................................................... 437
Door lock Power back door.......................................... 101
Side doors ........................................................ 97
Smart access system with push-button start ................................................................... 113
Wireless remote control........................... 95
Door pockets ................................................ 307
Doors Automatic door lock ing and unlocking
system ........................................................... 100
Door glasses ................................................. 140
Door lock warning buzzer ...................... 98
Open door warning buzzer ................. 100
Outside rear view mirrors ...................... 137
Rear door child-protectors ................... 100
Side doors ........................................................ 97
Drive distance .................................................. 80
Driver’s seat position memory Driving position memory......................... 129
Memory recall function ............................. 131
Power easy access system ..................... 129
Drive-start control ......................................... 151
Driving Break-in tips .................................................... 151 Correct driving posture ............................ 25
Driving mode select switch .................. 262
Procedures .................................................... 150
Winter drive tips ........................................... 271
Driving assist system information ............ 83
Driving information display ........................ 80
Driving position memory............................129 Memory recall function.............................. 131
Power easy access system .....................129
Driving range ................................................... 80
Dynamic radar cruise control with full-speed range ........................................ 222 Warning message .....................................230
Dynamic Torque Control AWD system .......................................................................... 266
E
Eco Driving Indicator............................. 81, 90
Eco Driving Indicator Light ..........................81
EDR (Event data recorder) ........................... 8
Elapsed time ..................................................... 80
Electric Power Steering (EPS) .............. 266 Warning light .............................................. 395
Electronic key .................................................. 94 Battery-saving function.............................. 114
If the electronic key does not operate properly .........................................................421
Replacing the battery .............................. 369
Electronic sunshade Jam protection function ........................... 146
Operation ....................................................... 145
Emergency flashers .................................... 384
Emergency, in case of If a warning buzzer sounds...................393
If a warning light turns on.......................393
If a warning message is displayed.....402
If the battery is discharged .................... 423
If the electronic key does not operate properly .........................................................421
If the engine will not start......................... 418
If the fuel filler do or cannot be opened
..........................................................................420
487Alphabetical Index
Interior lights list......................................... 300
Rear interior lights .................................... 300
Rear personal lights................................... 301
Replacing light bulbs................................ 375
Turn signal lever ...........................................178
Vanity lights .................................................. 325
Wattage.......................................................... 437
Lock steering column ................................... 171
LTA (Lane Tracing Assist) Operation..........................................................211
Warning messages .................................... 219
Luggage cover .............................................. 310
M
Maintenance Do-it-yourself maintenance ................. 347
General maintenance ............................. 343
Maintenance data......................................430
Maintenance requirements .................. 342
Malfunction indicator lamp ..................... 394
Master warning light .................................. 399
Menu icons.........................................................79
Meter Clock .................................................................. 75
Indicators ...........................................................72
Instrument panel light control ................ 78
Meter control switches ..............................80
Meters ................................................................ 75
Multi-information display .......................... 79
Settings .............................................................. 83
Units .................................................................... 82
Warning lights............................................. 393
Warning message..................................... 402
Mirrors Inside rear view mirror..............................136
Outside rear view mirror defoggers286
Outside rear view mirrors ...................... 137
Vanity mirrors.............................................. 325
Moon roof Door lock linked moon roof operation...........................................................................143 Door lock linked panoramic moon roof
operation ..................................................... 146
Jam protection function ............................143
Operation ........................................................142
Multi-information display .............................79 Audio system-linked display ...................83
AWD Control ................................................. 81
Drive information ......................................... 80
Driving assist system information .........83
Driving information display ..................... 80
Dynamic radar cruise control with full-speed range ...................................... 222
Eco Driving Indicator................................... 81
G-force .............................................................. 82
LTA (Lane Tracing Assist) ......................216
Menu icons ...................................................... 79
Meter control switches ............................. 80
Navigation system-linked display ........83
Pop-up display ............................................... 79
Settings...............................................................83
Suggestion function .....................................84
Tire pressure ............................................... 359
Units..................................................................... 82
Warning message .....................................402
N
Navigation system-linked display... 83, 89
Noise from under vehicle ...............................6
O
“ODO TRIP” switch ...................................... 78
Odometer ......................................................... 78
Odometer and trip meter display Display items ................................................... 78
“ODO TRIP” switch .................................... 78
Pop-up display ............................................... 78
Oil Engine oil........................................................ 432
Rear differential oil.....................................435
Opener Fuel filler door ............................................... 195
