2915-3. Using the air conditioning system and defogger
5
Interior features
Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (P.292)
Select the air flow mode
Vehicles with 3-ZONE climate con-
trol
Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Adjust the right side seat tempera-
ture setting
Set cooling and dehumidification
function on/off
Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“3-ZONE” mode)
(  P.292)
Select the air flow mode
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice from
building up on the windshield and wiper
blades.
The windshield de-icer will automatically
turn off after a while.
1 Press the automatic mode switch or
select “AUTO” on the sub function
menu. ( P.288)
2 Press the outside/recirculated air
mode switch to switch to automatic
air intake mode. (if equipped)
The air conditioning system automatically
switches between outside air and recircu-
lated air modes.
3Adjust the temperature setting.
4 To stop the operation, press the off
switch or select “OFF” on the sub
function menu. ( P.288)
If the fan speed settin g or air flow modes
are operated, the automatic mode indica-
tor goes off. However, automatic mode for
functions other than that operated is main-
tained.
■Using automatic mode
Fan speed is adjusted automatically accord-
ing to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until
warm or cool air is ready to flow immedi-
ately after the automatic mode switch is
pressed or “AUTO” is selected.
Cool air may blow around the upper body
even when the heater is on due to sunlight.
■Automatic mode for air intake control (if
equipped)
In automatic mode, the system detects
exhaust gas and other pollutants and auto-
E
F
A
B
C
D
E
F
WARNING
■To prevent burns (vehicles with wind-
shield wiper de-icer)
Do not touch the glass at lower part of
the windshield or to the side of the front
pillars when the windshield wiper de-icer
is on.
Using automatic mode

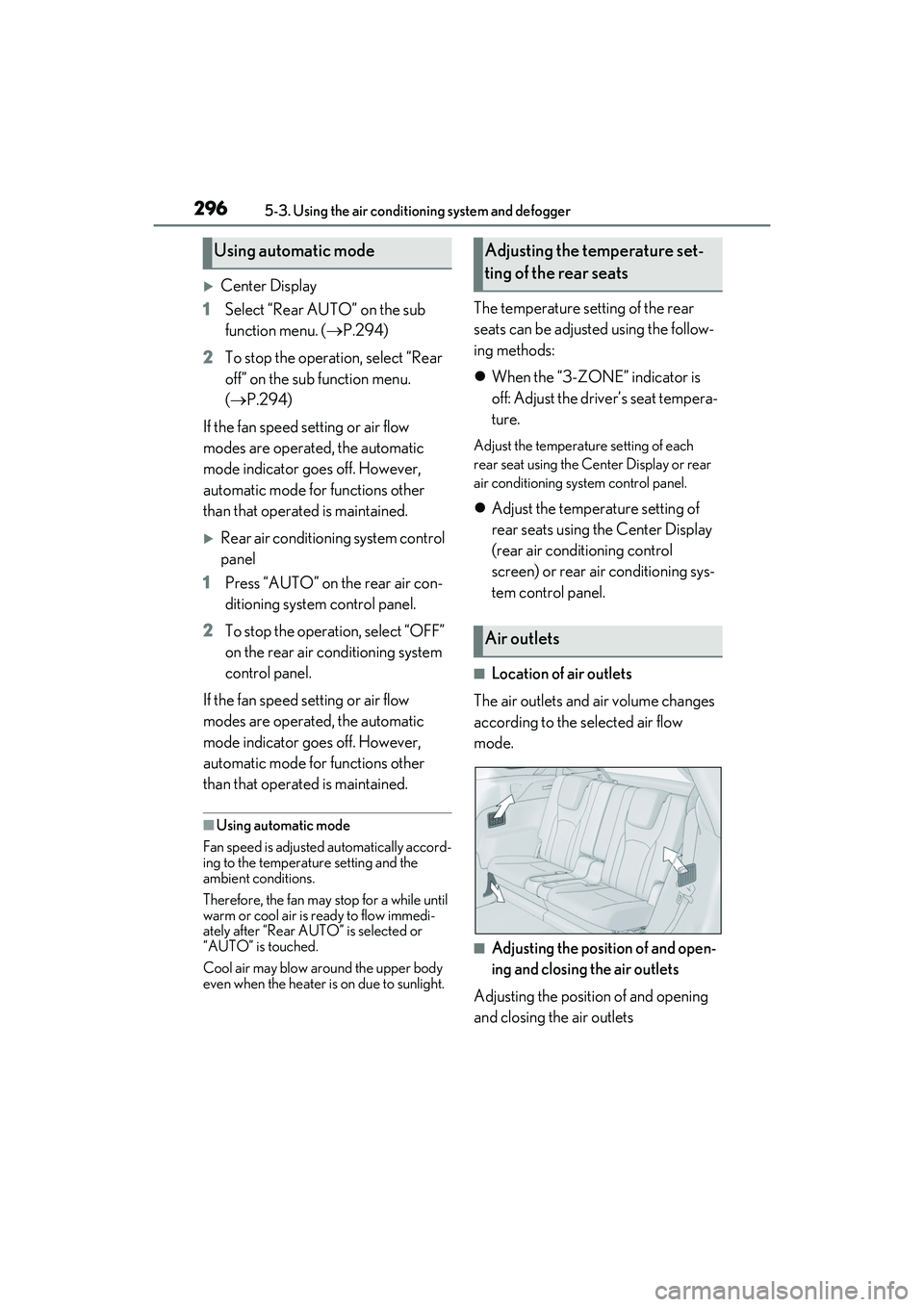

2965-3. Using the air conditioning system and defogger
Center Display
1 Select “Rear AUTO” on the sub
function menu. ( P.294)
2 To stop the operation, select “Rear
off” on the sub function menu.
( P.294)
If the fan speed setting or air flow
modes are operated , the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.
Rear air conditioning system control
panel
1 Press “AUTO” on the rear air con-
ditioning system control panel.
2 To stop the operation, select “OFF”
on the rear air conditioning system
control panel.
If the fan speed setting or air flow
modes are operated , the automatic
mode indicator goes off. However,
automatic mode for functions other
than that operated is maintained.
■Using automatic mode
Fan speed is adjusted automatically accord-
ing to the temperature setting and the
ambient conditions.
Therefore, the fan may stop for a while until
warm or cool air is ready to flow immedi-
ately after “Rear AUTO” is selected or
“AUTO” is touched.
Cool air may blow ar ound the upper body
even when the heater is on due to sunlight.
The temperature setting of the rear
seats can be adjusted using the follow-
ing methods:
 When the “3-ZONE” indicator is
off: Adjust the driver’s seat tempera-
ture.
Adjust the temperature setting of each
rear seat using the Center Display or rear
air conditioning system control panel.
Adjust the temperature setting of
rear seats using the Center Display
(rear air conditioning control
screen) or rear air conditioning sys-
tem control panel.
■Location of air outlets
The air outlets and air volume changes
according to the selected air flow
mode.
■Adjusting the position of and open-
ing and closing the air outlets
Adjusting the position of and opening
and closing the air outlets
Using automatic modeAdjusting the temperature set-
ting of the rear seats
Air outlets

2985-3. Using the air conditioning system and defogger
Turns the heated steering wheel on/off
The indicator light comes on when the
heated steering wheel is operating.
■Operation condition
The engine switch is in IGNITION ON
mode.
■Timer function
The heated steering wheel will automati-
cally turn off after about 30 minutes.
■Front seats
Vehicles without seat ventilators
Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit) Mid (2 segments
lit)  Lo (1 segment lit) Off
The level indicator (amber) lights up
during operation.
Vehicles with seat ventilators
When any switch is pressed, the system
is set to automatic mode and the
“AUTO” indicator (green) lights up.
Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit) Mid (2 segments
lit)  Lo (1 segment lit) Off
The level indicator (amber) lights up
during operation.
■Second-row seats
Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit) Mid (2 segments
lit)  Lo (1 segment lit) Off
The level indicator (amber) lights up
during operation.
Heated steering wheel
Seat heaters
A
A
B
A

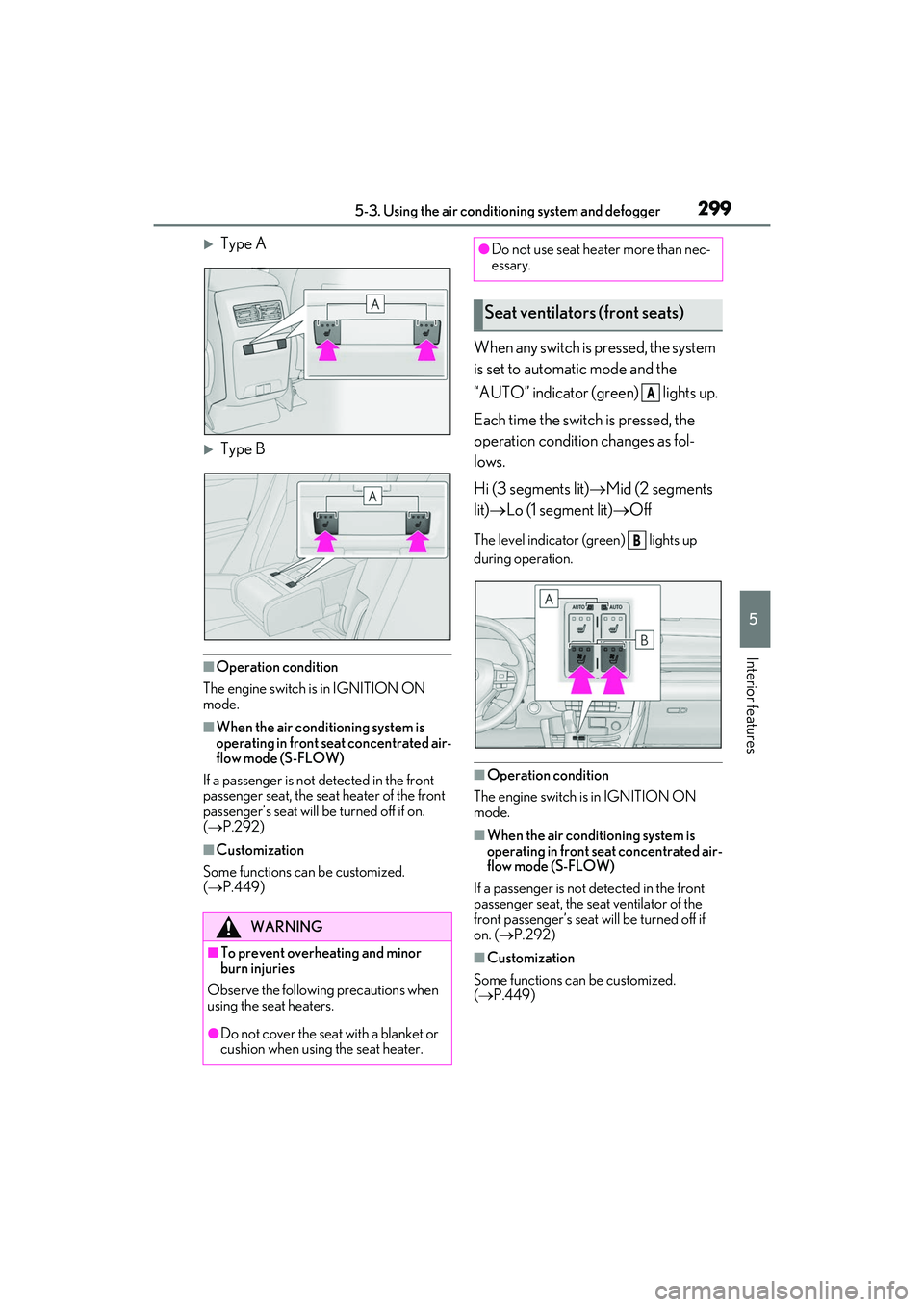

2995-3. Using the air conditioning system and defogger
5
Interior features
Type A
Type B
■Operation condition
The engine switch is in IGNITION ON
mode.
■When the air conditioning system is
operating in front seat concentrated air-
flow mode (S-FLOW)
If a passenger is not detected in the front
passenger seat, the seat heater of the front
passenger’s seat will be turned off if on.
(  P.292)
■Customization
Some functions can be customized.
(  P.449)
When any switch is pressed, the system
is set to automatic mode and the
“AUTO” indicator (green) lights up.
Each time the switch is pressed, the
operation condition changes as fol-
lows.
Hi (3 segments lit) Mid (2 segments
lit)  Lo (1 segment lit) Off
The level indicator (green) lights up
during operation.
■Operation condition
The engine switch is in IGNITION ON
mode.
■When the air conditioning system is
operating in front seat concentrated air-
flow mode (S-FLOW)
If a passenger is not detected in the front
passenger seat, the se at ventilator of the
front passenger’s seat will be turned off if
on. ( P.292)
■Customization
Some functions can be customized.
( P.449)
WARNING
■To prevent overheating and minor
burn injuries
Observe the following precautions when
using the seat heaters.
●Do not cover the seat with a blanket or
cushion when using the seat heater.
●Do not use seat heater more than nec-
essary.
Seat ventilators (front seats)
A
B

3406-1. Maintenance and care
Remove dirt and dust using a vac-
WARNING
●Do not get any of the SRS components
or wiring in the vehicle interior wet.
( P.30)
An electrical malfunction may cause
the airbags to deploy or not function
properly, resulting in death or serious
injury.
●Vehicles with wireless charger: Do not
let the wireless charger (
P.315) get
wet. Failure to do so may cause the
charger to become hot and cause
burns or could cause electric shock
resulting in death or serious injury.
■Cleaning the interior (especially
instrument panel)
Do not use polish wax or polish cleaner.
The instrument panel may reflect off the
windshield, obstructing the driver’s view
and leading to an accident, resulting in
death or serious injury.
NOTICE
■Cleaning detergents
●Do not use the following liquids, as
they may discolor the vehicle interior
or cause streaks or damage to painted
surfaces:
• Center Display: Organic substances such as benzine or gasoline, alkaline
solutions, and alcohol
• Seats: Alkaline solutions, organic sub- stances such as thinner or benzine,
and alcohol
• Other parts: Organic substances such as benzine or gasoline, alkaline or
acidic solutions, dye, and bleach
●Do not use polish wax or polish
cleaner. The instrument panel’s or
other interior part’s painted surface
may be damaged.
■Preventing damage to leather sur-
faces
Observe the following precautions to
avoid damage to and deterioration of
leather surfaces:
●Remove any dust or dirt from leather
surfaces immediately.
●Do not expose the vehicle to direct
sunlight for extended periods of time.
Park the vehicle in the shade, espe-
cially during summer.
●Do not place items made of vinyl, plas-
tic, or containing wax on the uphol-
stery, as they may stick to the leather
surface if the vehicle interior heats up
significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system
may be damaged if water comes into
contact with electrical components such
as the audio system above or under the
floor of the vehicle. Water may also
cause the body to rust.
■When cleaning the inside of the wind-
shield
Do not allow glass cleaner to contact the
lens. Also, do not touch the lens.
(  P.198)
■Cleaning the inside of the rear win-
dow
●Do not use glass cleaner to clean the
rear window, as this may cause dam-
age to the rear window defogger
heater wires or antenna. Use a cloth
dampened with lukewarm water to
gently wipe the window clean. Wipe
the window in strokes running parallel
to the heater wires or antenna.
●Be careful not to scratch or damage
the heater wires or antenna.
Cleaning the leather areas

3756-3. Do-it-yourself maintenance
6
Maintenance and care
■RearBack-up light (bulb type)
Rear turn signal light (bulb type)
■Replacing the following bulbs
If any of the lights listed below has
burnt out, have it replaced by your
Lexus dealer.
 Headlight
 Parking lights and daytime running
lights
 Front turn signal lights (vehicles
without single-beam headlights)
 Front side marker lights (vehicles
without single-beam headlights)
 Front fog lights (if equipped)
 Cornering lights (if equipped)
 Side turn signal lights
 Stop/tail lights
 Back-up lights (LED type) 
Rear turn signal light (LED type)
 Rear side marker lights
 High mounted stoplight
 License plate lights
 Outer foot lights
■LED Lights
The lights other than the front turn signal
lights (vehicles with single-beam head-
lights), front side marker lights (vehicles
with single-beam headlights), rear turn sig-
nal lights (bulb type) and back-up lights
(bulb type) each consist of a number of
LEDs. If any of the LEDs burn out, take your
vehicle to your Lexus dealer to have the
light replaced.
■Condensation build-up on the inside of
the lens
Temporary condensation build-up on the
inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus
dealer for more information in the following
situations:
●Large drops of water have built up on the
inside of the lens.
●Water has built up in side the headlight.
■When replacing light bulbs
P.372
■Front side marker lights (vehicles
with single-beam headlights)
1 To ensure enough space to per-
form work, turn the steering wheel
to rotate the front wheel away from
the bulb to be replaced.
Remove the 3 fender liner clips.
Turn the steering wheel to the left when
replacing the right side light bulb, and turn
the steering wheel to the right when
replacing the left side light bulb.
When removing a fender liner clip, use a
A
B
Replacing light bulbs

482Alphabetical Index
BrakeBrake hold.......................................................182
Fluid ......................................................354, 436
Parking brake ................................................ 179
Warning light ............................................... 393
Brake assist .................................................... 265
Break-in tips...................................................... 151
Brightness control Instrument panel light control ................ 78
BSM (Blind Spot Monitor)....................... 232
Buzzer Hands off steering wheel warning (LTA)...........................................................................218
C
Care Exterior ........................................................... 336
Interior ............................................................. 339
Seat belts........................................................ 339
Wheels and wheel ornaments............ 336
Cargo capacity.................................... 155, 158
Cargo hooks ................................................. 309
Cargo net hooks .......................................... 309
Center Display .............................................280
Chains ...............................................................272
Child restraint system Fixed with a LATCH system .................. 54
Fixed with a seat belt...................................50
Front passenger occupa nt classification
system ............................................................. 39
Points to remember .................................... 45
Riding with children ..................................... 45
Types of child restraint system installation method ........................................................... 46
Using an anchor bracket .......................... 57
Child safety Airbag precautions...................................... 36
Battery precautions ......................356, 425
Child restraint system................................. 46
Heated steering wheel and seat heater precautions................................................ 297 How your child should
wear the seat belt
............................................................................. 27
Moon roof precautions.............................144
Panoramic moon roof precautions ....147
Power back door precautions ............... 101
Power window lock switch .....................142
Power window precautions .................... 141
Rear door child-protectors ................... 100
Seat belt extender prec autions.............. 27
Seat belt precautions .................................. 45
Child-protectors........................................... 100
Cleaning Exterior............................................................336
Interior .............................................................339
Radar sensor ................................................. 198
Seat belts ........................................................339
Wheels and wheel ornaments ............336
Clock ........................................................ 75, 323
Coat hooks..................................................... 323
Coin box.......................................................... 307
Compass ...........................................................331
Condenser ..................................................... 354
Console box .................................................. 305
Consumption screen .................................... 90
Cooling system............................................. 353 Engine overheating................................... 426
Cornering lights ............................................ 186 Replacing light bulbs................................375
Cruise control Dynamic radar cruise control with full-speed range ...................................... 222
Cup holders ................................................... 306
Current fuel consumption .......................... 80
Curtain shield airbags .................................. 30
Customizable features .............................. 449
D
Daytime running light system .................. 184
Defogger Outside rear view mirrors.................... 286
Rear window ............................................... 286
Windshield ................................................... 286

484Alphabetical Index
If the vehicle is submerged or water on the road is rising..................................... 385
If you have a flat tire ..................................406
If you lose your keys...................................419
If you think something is wrong ...........391
If your vehicle becomes stuck............. 428
If your vehicle has to be stopped in an
emergency ................................................384
If your vehicle needs to be towed ..... 387
If your vehicle overheats ........................ 426
Engine ACCESSORY mode ............................... 173
Compartment ...............................................351
Engine switch.................................................170
Fuel pump shut off system .................... 392
Hood................................................................ 349
How to start the engine ............................170
Identification number ................................. 431
If the engine will not start ........................ 418
If your vehicle has to be stopped in an
emergency ................................................384
Ignition switch (engine switch) .............170
Overheating................................................. 426
Tachometer ..................................................... 75
Engine coolant Capacity ......................................................... 434
Checking ....................................................... 353
Preparing and checking before winter........................................................................... 271
Engine coolant temperature gauge ........75
Engine immobilizer system ........................ 66
Engine oil Capacity ......................................................... 432
Checking .........................................................351
Preparing and checking before winter........................................................................... 271
Warning light ............................................... 394
Engine oil maintenance data .................. 353
Engine switch ..................................................170 Auto power off function ........................... 173
Changing the engine switch modes.. 173 If your vehicle has to be stopped in an
emergency ................................................ 384
EPS (Electric Power Steering) .............. 266 Warning light .............................................. 395
Event data recorder (EDR) ........................... 8
F
Flat tire Tire pressure warning system ............ 359
Vehicles with a spare tire...................... 406
Floor mats .......................................................... 24
Fluid Automatic transmission ..........................435
Brake ................................................................436
Washer .......................................................... 356
Fog lights Switch................................................................ 190
Footwell light .................................................300
Front automatic air conditioning system .......................................................................... 284
Front fog lights Replacing light bulbs................................375
Front passenger footwell hooks ............ 325
Front passenger occupant classification system .............................................................. 39
Front seats Adjustment ....................................................... 117
Cleaning .........................................................339
Correct driving posture ............................ 25
Driving position memory .........................129
Head restraints..............................................132
Memory recall function.............................. 131
Power easy access system .....................129
Seat heaters .................................................. 297
Seat position memory ...............................129
Seat ventilators ............................................ 297
Front side marker light Light switch .................................................... 184
Replacing light bulbs................................375
Front side marker lights Replacing light bulbs................................375
Wattage .......................................................... 437
