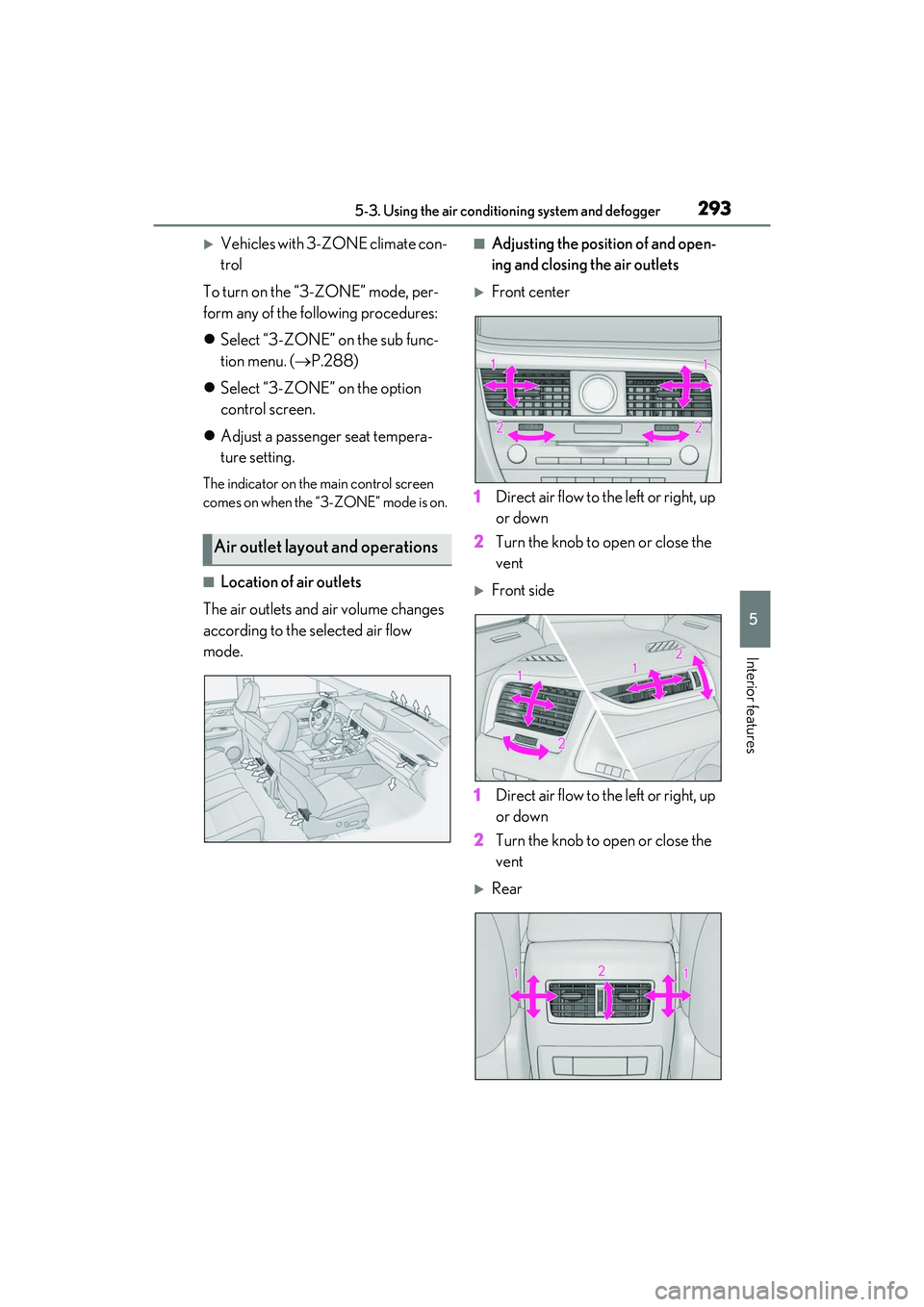

2022 LEXUS RX350 climate control

2935-3. Using the air conditioning system and defogger
5
Interior features
Vehicles with 3-ZONE climate con-
trol
To turn on the “3-ZONE” mode, per-
form any of the following procedures:
 Select “3-ZONE” on the sub func-
tion menu. ( P.288)
 Select “3-ZONE” on the option
control screen.
 Adjust a passenger seat tempera-
ture setting.
The indicator on the main control screen
comes on when the “3-ZONE” mode is on.
■Location of air outlets
The air outlets and air volume changes
according to the selected air flow
mode.
■Adjusting the position of and open-
ing and closing the air outlets
Front center
1 Direct air flow to the left or right, up
or down
2 Turn the knob to open or close the
vent
Front side
1 Direct air flow to the left or right, up
or down
2 Turn the knob to open or close the
vent
Rear
Air outlet layout and operations

2945-3. Using the air conditioning system and defogger
1Direct air flow to the left or right, up
or down
2 Turn the knob to open or close the
vent
■Center Display
Using the touchpad of the Remote
Touch, select the button on the screen.
This system can also be operated by
the touch screen.
Adjust the rear seats fan speed set-
ting
WARNING
■To prevent the windshield defogger
from operating improperly
Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
Rear automatic air condi-
tioning system (RX350L)
The air outlets and fan speed are
automatically adjusted according
to the temperature setting.
The rear air conditioning system
can be operated using the Center
Display and rear air conditioning
system control panel.
Press the “MENU” button on the
Remote Touch to display the main
menu and move the cursor to
to display the climate control short-
cut buttons. Then, select to dis-
play the rear air conditioning
control screen.
Rear air conditioning control
operation
A

4438-1. Specifications
8
Vehicle specifications
Your Lexus dealer will help answer any
questions you may have as you read this
information.
■DOT quality grades
All passenger vehicle tires must con-
form to Federal Safety Requirements in
addition to these grades. Quality
grades can be found where applicable
on the tire sidewall between tread
shoulder and maximum section width.
For example: Treadwear 200 Traction AA
Temperature A
■Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the tire
when tested under controlled condi-
tions on a specified government test
course.
For example, a tire graded 150 would wear
one and a half (1 - 1/2) times as well on the
government course as a tire graded 100.
The relative performa nce of tires depends
upon the actual conditions of their use.
Performance may differ significantly from
the norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
■Traction AA, A, B, C
The traction grades, from highest to
lowest, are AA, A, B and C, and they
represent the tire’s ability to stop on
wet pavement as measured under con-
trolled conditions on specified govern-
ment test surfaces of asphalt and
concrete.
A tire marked C may have poor traction
performance.
Warning: The traction grade assigned to
this tire is based on braking (straight ahead) traction tests and does not include
cornering (turning) traction.
■Temperature A, B, C
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled condi-
tions on a specified indoor laboratory
test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and
reduce tire life, and excessive temperature
can lead to sudden tire failure.
Grade C corresponds to a level of perfor-
mance which all passenger car tires must
meet under the Federal Motor Vehicle
Safety Standard No. 109.
Grades B and A represent higher levels of
performance on the laboratory test wheel
than the minimum required by law.
Warning: The temperatur e grades of a tire
assume that it is properly inflated and not
overloaded.
Excessive speed, unde rinflation, or exces-
sive loading, either separately or in combi-
nation, can cause heat buildup and
possible tire failure.

486Alphabetical Index
Indicators ............................................................72
InitializationItems to initialize ......................................... 462
Maintenance .................................... 342, 353
Power windows........................................... 140
Tire pressure warning system ...............361
Inside rear view mirror ................................136
Instrument panel light control ................... 78
Intercooler coolant Capacity ......................................................... 434
Interior lights..................................................300 Front interior light ..................................... 300
Rear interior light ...................................... 300
Intuitive parking assist.....................236, 238 Function .......................................................... 238
Warning message..................................... 240
J
JackPositioning a floor jack............................ 349
Vehicle-equipped jack ........................... 407
Jack handle .................................................... 407
Jam protection function Electronic sunshade ...................................146
Moon roof .......................................................143
Panoramic moon roof...............................146
Power back door.........................................107
Power windows........................................... 140
Rear seats ......................................................... 118
K
Keyless entrySmart access system with push-button start ................................................................... 113
Wireless remote control........................... 95
Keys Battery-saving function ..............................114
Electronic key ................................................. 94
Engine switch.................................................170
If the electronic key does not operate properly......................................................... 421 If you lose your keys .................................. 419
Key number plate ......................................... 94
Keyless entry .......................................... 95, 113
Mechanical key .............................................. 94
Replacing the battery .............................. 369
Warning buzzer ............................................ 113
Wireless remote control ...........................95
Knee airbags .................................................... 30
L
Lane Tracing Assist (LTA) Operation ......................................................... 211
Warning messages.....................................219
Language (multi-infor mation display) ... 83
LATCH anchors ............................................. 54
Lever Auxiliary catch lever .................................349
Hood lock release lever .........................349
Shift lever ..........................................................174
Turn signal lever .......................................... 178
Wiper lever .................................................... 190
Lexus climate concierge .......................... 283
Lexus Enform Safety Connect.................. 60
Lexus Safety System + 2.0 AHB (Automatic High Beam) ............. 187
Dynamic radar cruise control with full-speed range ...................................... 222
LTA (Lane Tracing Assist) ....................... 211
PCS (Pre-Collision System) ................204
RSA (Road Sign Assist)..........................220
License plate lights Light switch .................................................... 184
Replacing light bulbs................................375
Light bulbs Replacing ....................................................... 374
Lights Automatic High Beam system ............. 187
Fog light switch ............................................ 190
Front interior lights ................................... 300
Front personal lights.................................. 301
Headlight switch.......................................... 184
Interior lights ................................................ 300
