2022 LEXUS RX350 ECO mode

4247-2. Steps to take in an emergency
Positive (+) battery terminal (second vehicle)
Negative (-) battery terminal (second vehicle)
Solid, stationary, unpainted metallic point away from the battery and any mov-
ing parts as shown in the illustration
4 Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.
5 Open and close any of the doors of
your vehicle with the engine switch
off.
6 Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to IGNITION ON
mode.
7 Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.
Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.
■Starting the engine when the battery is
discharged
The engine cannot be started by push-start-
ing.
■To prevent battery discharge
●Turn off the headlights and the audio sys-
tem while the engine is off.
●Turn off any unnecessary electrical com-
ponents when the vehicle is running at a
low speed for an extended period, such
as in heavy traffic.
■When removing the battery terminals
When the battery terminals are removed, the information stored in the ECU is
cleared. Before removi
ng the battery termi-
nals, contact your Lexus dealer.
■Charging the battery
The electricity stored in the battery will dis-
charge gradually even when the vehicle is
not in use, due to natural discharge and the
draining effects of certain electrical appli-
ances. If the vehicle is left for a long time,
the battery may discharge, and the engine
may be unable to start. (The battery
recharges automatically during driving.)
■When the battery is removed or dis-
charged
●In some cases, it may not be possible to
unlock the doors using the smart access
system with push-button start when the
battery is discharged. Use the wireless
remote control or the mechanical key to
lock or unlock the doors.
●The engine may not start on the first
attempt after the battery has recharged
but will start normally after the second
attempt. This is not a malfunction.
●The engine switch mode is memorized by
the vehicle. When the battery is recon-
nected, the system will return to the
mode it was in before the battery was dis-
charged. Before disconnecting the bat-
tery, turn the engine switch off.
If you are unsure wh at mode the engine
switch was in before the battery dis-
charged, be especially careful when
reconnecting the battery.
●The power back door must be initialized.
( P.107)
■Replacing the battery
●Use a battery with the same case size as
the previous battery and an equivalent
20 hour rate capacity (20HR) or greater.
• If the sizes differ, the battery cannot be
properly secured.
• If the 20 hour rate capacity is low, even if
B
C
D

4287-2. Steps to take in an emergency
1Stop the engine. Shift the shift lever
to P and set the parking brake.
2 Remove the mud, snow or sand
from around the front wheels.
3 Place wood, stones or some other
material under the front wheels to
help provide traction.
4 Restart the engine.
5 AWD models: Activate all-wheel
drive lock mode. ( P.264)
6 Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.
■When it is difficult to free the vehicle
Press to turn off TRAC.
If the vehicle becomes stuck
Carry out the following proce-
dures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Recovering procedure
WARNING
■When attempting to free a stuck vehi-
cle
If you choose to push the vehicle back
and forth to free it, make sure the sur-
rounding area is clear to avoid striking
other vehicles, obje cts or people. The
vehicle may also lunge forward or lunge
back suddenly as it becomes free. Use
extreme caution.
■When shifting the shift lever
Be careful not to shift the shift lever with
the accelerator pedal depressed.
This may lead to un expected rapid accel-
eration of the vehicle that may cause an
accident resulting in death or serious
injury.
NOTICE
■To avoid damage to the transmission
and other components
●Avoid spinning the front wheels and
depressing the accelerator pedal
more than necessary.
●If the vehicle remains stuck even after
these procedures are performed, the
vehicle may require towing to be freed.

4308-1. Specifications
8-1.Specifications
*1:RX350
*2:RX350L
*3:Unladen vehicle
*4: For GGL25L-BWZGBA models*9
*5
: Except for GGL25L-BWZGBA models*9
*6
: Vehicles with separate -type second-row seats
*7: Vehicles with bench-type second-row seats
*8: Vehicles with towing package
*9: The model code is indicated on the Certification Label. (P.431)
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length192.5 in. (4890 mm)*1
196.9 in. (5000 mm)*2
Overall width74.6 in. (1895 mm)
Overall height*367.7 in. (1720 mm)
Wheelbase109.8 in. (2790 mm)
Tread
Front64.4 in. (1635 mm)*1
64.5 in. (1640 mm)*2
Rear64.0 in. (1625 mm)*1
64.1 in. (1630 mm)*2
Vehicle capacity weight
(Occupants + luggage)
1050 lb. (480 kg)*1, 4
920 lb. (420 kg)*1, 5
1140 lb. (520 kg)*2, 6
1235 lb. (560 kg)*2, 7
Trailer Weight Rating*8
(Trailer weight + cargo weight)3500 lb. (1585 kg)

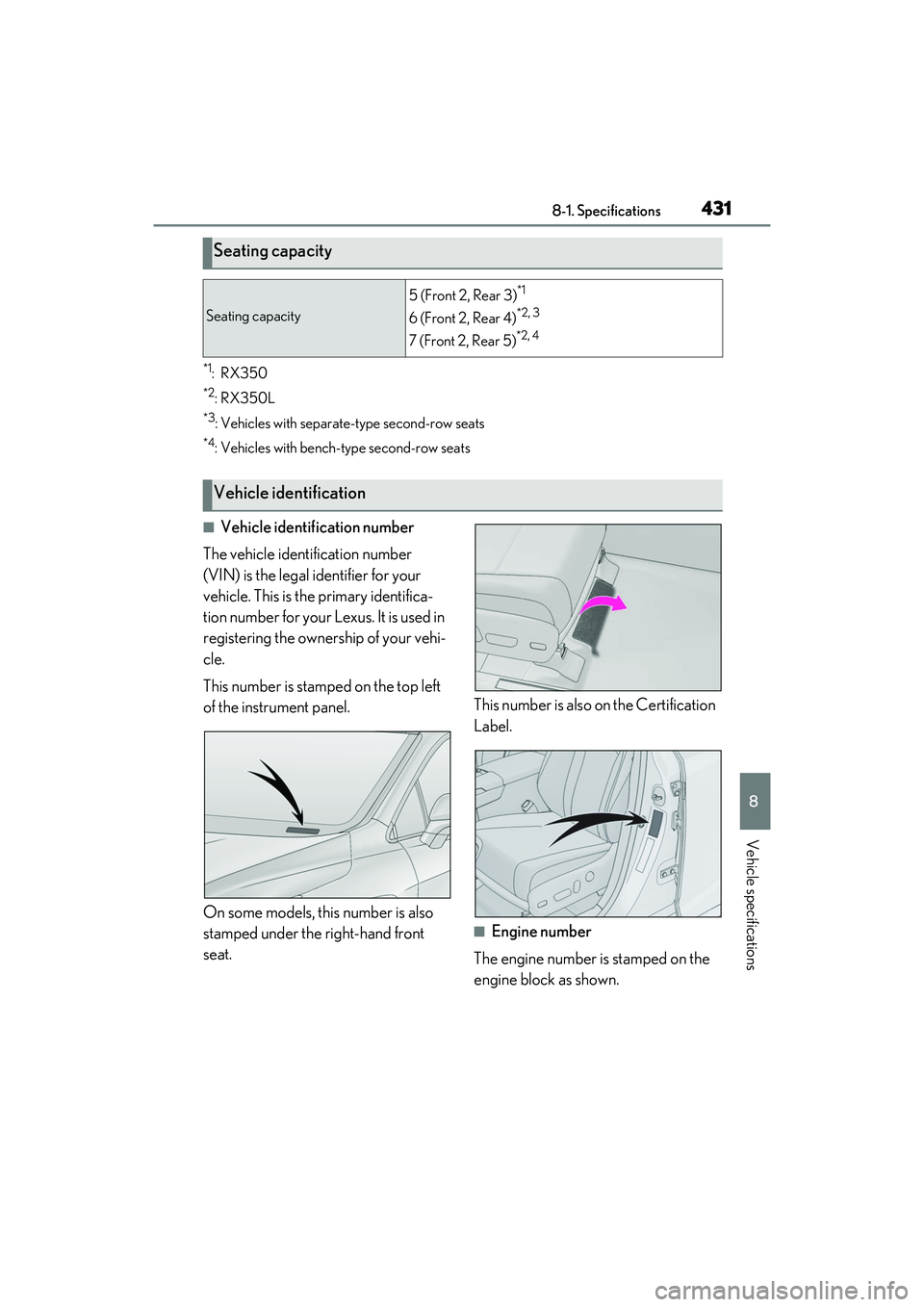

4318-1. Specifications
8
Vehicle specifications
*1:RX350
*2:RX350L
*3: Vehicles with separate-type second-row seats
*4: Vehicles with bench-type second-row seats
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the top left
of the instrument panel.
On some models, this number is also
stamped under the right-hand front
seat. This number is also on the Certification
Label.
■Engine number
The engine number is stamped on the
engine block as shown.
Seating capacity
Seating capacity
5 (Front 2, Rear 3)*1
6 (Front 2, Rear 4)*2, 3
7 (Front 2, Rear 5)*2, 4
Vehicle identification

4518-2. Customization
8
Vehicle specifications
*2: The default setting varies according to country.
*3:Except F SPORT models
*4: F SPORT models
■Head-up Display*( P.86)
*:If equipped
■Door lock ( P.97, 421)
FunctionDefault settingCustomized setting
Gauge informationNo content
Eco Driving Indica-
tor
—O—
Tachometer
Route guidance to destina-
tion/street nameOnOff—O—
Driving support system displayOnOff—O—
CompassOnOff—O—
Audio system operation statusOnOff—O—
FunctionDefault settingCustomized setting
Unlocking using a mechanical
key
Driver’s door
unlocked in one step, all doors
unlocked in two step
All doors unlocked in one step——O
Automatic door locking func-
tionShift position linked
door locking opera- tionOff
O—OSpeed linked door locking operation
Automatic door unlocking
functionShift position linked door unlocking operationOff
O—ODriver’s door linked door unlocking operation
ABC
ABC

4598-2. Customization
8
Vehicle specifications
■PKSB (Parking Support Brake)* ( P.251)
*:If equipped
■Driving mode select switch ( P.262)
*:If equipped
■Front automatic air conditioning system ( P.284)
*:If equipped
■Seat heaters*/seat ventilators* ( P.297)
*:If equipped
FunctionDefault settingCustomized setting
PKSB (Parking Support Brake)
functionOnOff—O—
FunctionDefault settingCustomized setting
Powertrain control in custom-
ized mode
*NormalPowerO——Eco
Chassis control in customized
mode
*NormalSportO——
Air conditioning operation in
customized mode
*NormalEcoO——
FunctionDefault settingCustomized setting
A/C auto switch operationOnOffO—O
Exhaust gas sensor sensitivity*Standard-3 to 3O—O
FunctionDefault settingCustomized setting
Driver’s seat temperature pref-
erence in automatic modeStandard-2 (cooler) to 2
(warmer)O—O
Front passenger’s seat tem-
perature preference in auto-
matic mode
Standard-2 (cooler) to 2 (warmer)O—O
ABC
ABC
ABC
ABC

481Alphabetical Index
Alphabetical Index
A
A/CAir conditioning filter ............................... 366
Front automatic air conditioning system......................................................................... 284
Front seat concentr ated airflow mode
(S-FLOW)................................................. 292
Rear automatic air conditioning system ......................................................................... 294
ABS (Anti-lock Brake System).............. 265 Warning light ...............................................395
ACA (Active Cornering Assist) ........... 266
Active Cornering Assist (ACA) ........... 266
Adaptive Front-lighting System (AFS) 186
Adaptive Variable Suspension System266
AFS (Adaptive Front- lighting System) 186
AHB (Automatic High Beam) .................187
Air conditioning filter ................................. 366
Air conditioning system Air conditioning filter ............................... 366
Front automatic air conditioning system......................................................................... 284
Front seat concentr ated airflow mode
(S-FLOW)................................................. 292
Rear automatic air conditioning system ......................................................................... 294
Airbags Airbag operating conditions................... 33
Airbag precautions for your child ........ 36
Correct driving posture ............................ 25
Curtain shield airbag operating condi- tions .................................................................. 33
Curtain shield airbag precautions ....... 36
Front passenger occupa nt classification
system ............................................................. 39
General airbag precautions ................... 36
Locations of airbags.................................... 30
Modification and disp osal of airbags . 38
Side airbag operating conditions ......... 33
Side airbag precautions ............................ 36 Side and curtain shie
ld airbags operating
conditions ...................................................... 33
Side and curtain shield airbags precau- tions .................................................................. 36
SRS airbags......................................................30
SRS warning light.......................................394
Alarm ....................................................................67 Warning buzzer .........................................393
Anchor brackets ..................................... 46, 57
Antennas (smart acc ess system with
push-button start)........................................ 113
Anti-lock Brake System (ABS).............. 265 Warning light .............................................. 395
Approach warning...................................... 228
Armrest............................................................ 322
Assist grips ..................................................... 322
Audio system-linked display ...................... 83
Automatic headlight leveling system ... 185
Automatic High Beam ................................187
Automatic light control system............... 184
Automatic transmission .............................. 174 M mode ............................................................ 177
Paddle shift switches ........................176, 177
Auxiliary boxes .................................... 308, 311
Average fuel economy................................. 80
Average vehicle speed ................................ 80
AWD Control....................................................81
B
Back door .......................................................... 101
Back-up light Wattage .......................................................... 437
Back-up lights Replacing light bulbs..................... 375, 381
Battery Battery checking ....................................... 355
If the battery is discharged .................... 423
Preparing and checking before winter............................................................................ 271
Warning light ...............................................394
Blind Spot Monitor (BSM)....................... 232
Bottle holders ................................................ 307

483Alphabetical Index
DifferentialRear differential oil .................................... 435
Dimension ...................................................... 430
Dinghy towing.................................................169
Display Center Display............................................280
Dynamic radar cruise control with full-speed range .......................................222
Head-up display ........................................... 86
Intuitive parking assist.............................. 238
LTA (Lane Tracing Assist)...................... 216
Multi-information display .......................... 79
RCTA .............................................................. 245
Warning message..................................... 402
Distance until next engine oil change .... 78
Do-it-yourself maintenance .................... 343
Door courtesy lights ...................................300 Wattage.......................................................... 437
Door lock Power back door.......................................... 101
Side doors ........................................................ 97
Smart access system with push-button start ................................................................... 113
Wireless remote control........................... 95
Door pockets ................................................ 307
Doors Automatic door lock ing and unlocking
system ........................................................... 100
Door glasses ................................................. 140
Door lock warning buzzer ...................... 98
Open door warning buzzer ................. 100
Outside rear view mirrors ...................... 137
Rear door child-protectors ................... 100
Side doors ........................................................ 97
Drive distance .................................................. 80
Driver’s seat position memory Driving position memory......................... 129
Memory recall function ............................. 131
Power easy access system ..................... 129
Drive-start control ......................................... 151
Driving Break-in tips .................................................... 151 Correct driving posture ............................ 25
Driving mode select switch .................. 262
Procedures .................................................... 150
Winter drive tips ........................................... 271
Driving assist system information ............ 83
Driving information display ........................ 80
Driving position memory............................129 Memory recall function.............................. 131
Power easy access system .....................129
Driving range ................................................... 80
Dynamic radar cruise control with full-speed range ........................................ 222 Warning message .....................................230
Dynamic Torque Control AWD system .......................................................................... 266
E
Eco Driving Indicator............................. 81, 90
Eco Driving Indicator Light ..........................81
EDR (Event data recorder) ........................... 8
Elapsed time ..................................................... 80
Electric Power Steering (EPS) .............. 266 Warning light .............................................. 395
Electronic key .................................................. 94 Battery-saving function.............................. 114
If the electronic key does not operate properly .........................................................421
Replacing the battery .............................. 369
Electronic sunshade Jam protection function ........................... 146
Operation ....................................................... 145
Emergency flashers .................................... 384
Emergency, in case of If a warning buzzer sounds...................393
If a warning light turns on.......................393
If a warning message is displayed.....402
If the battery is discharged .................... 423
If the electronic key does not operate properly .........................................................421
If the engine will not start......................... 418
If the fuel filler do or cannot be opened
..........................................................................420
