17Pictorial index
RC F Owner's Manual
Outside rear view mirror switches ..................................................................... P.110
Door lock switches ...................................................................................................P.94
Power window switches ......................................................................................... P.112
Window lock switch ................................................................................................ P.113
Tire pressure warning reset switch................................................................... P.275
*:If equippedAudio remote control switches
*
Paddle shift switches ....................................... ............................................. P.134, 135
Meter control switches ........................................................................................... P.74
Vehicle-to-vehicle distance switch ................................................................... P.175
Cruise control switch.............................................................................................. P.171
LDA (Lane Departure Alert with steering control) switch ........................ P.164
Talk switch
*
Telephone switches*
*
: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
B
C
D
E
F
A
B
C
D
E
F
G
H

221-1. For safe use
RC F Owner's Manual
1-1.For safe use
Use only floor mats designed specifi-
cally for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Always align the marks.
The shape of the reta ining hooks (clips)
may differ from that shown in the illustra-
tion.
Before driving
Observe the following before start-
ing off in the vehicle to ensure
safety of driving.
Installing floor mats
A
WARNING
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpect-
edly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■When installing the driver’s floor mat
●Do not use floor mats designed for
other models or di fferent model year
vehicles, even if they are Lexus Genu-
ine floor mats.
●Only use floor mats designed for the
driver’s seat.
●Always install the floor mat securely
using the retaining hooks (clips) pro-
vided.
●Do not use two or more floor mats on
top of each other.
●Do not place the floor mat bot-
tom-side up or upside-down.
■Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
●With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

231-1. For safe use
RC F Owner's Manual
1
For safety and security
Adjust the angle of the seatback so
that you are sitting straight up and
so that you do not have to lean for-
ward to steer. (P.103)
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. ( P.103)
Wear the seat belt correctly.
(  P.24) Make sure that all occupants are wear-
ing their seat belts before driving the
vehicle. (
P.24)
Use a child restraint system appropri-
ate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. ( P.42)
Make sure that you can see backward
clearly by adjusting the inside and out-
side rear view mirrors properly.
(  P.109, 110)
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
WARNING
■For safe driving
Observe the following precautions.
Failure to do so may result in death or
serious injury.
●Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
A
B
C
●Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct pos-
ture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
●Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
●Always observe the legal speed limit
when driving on public roads.
●When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to con-
tinue driving and take a break immedi-
ately.
Correct use of the seat belts
Adjusting the mirrors

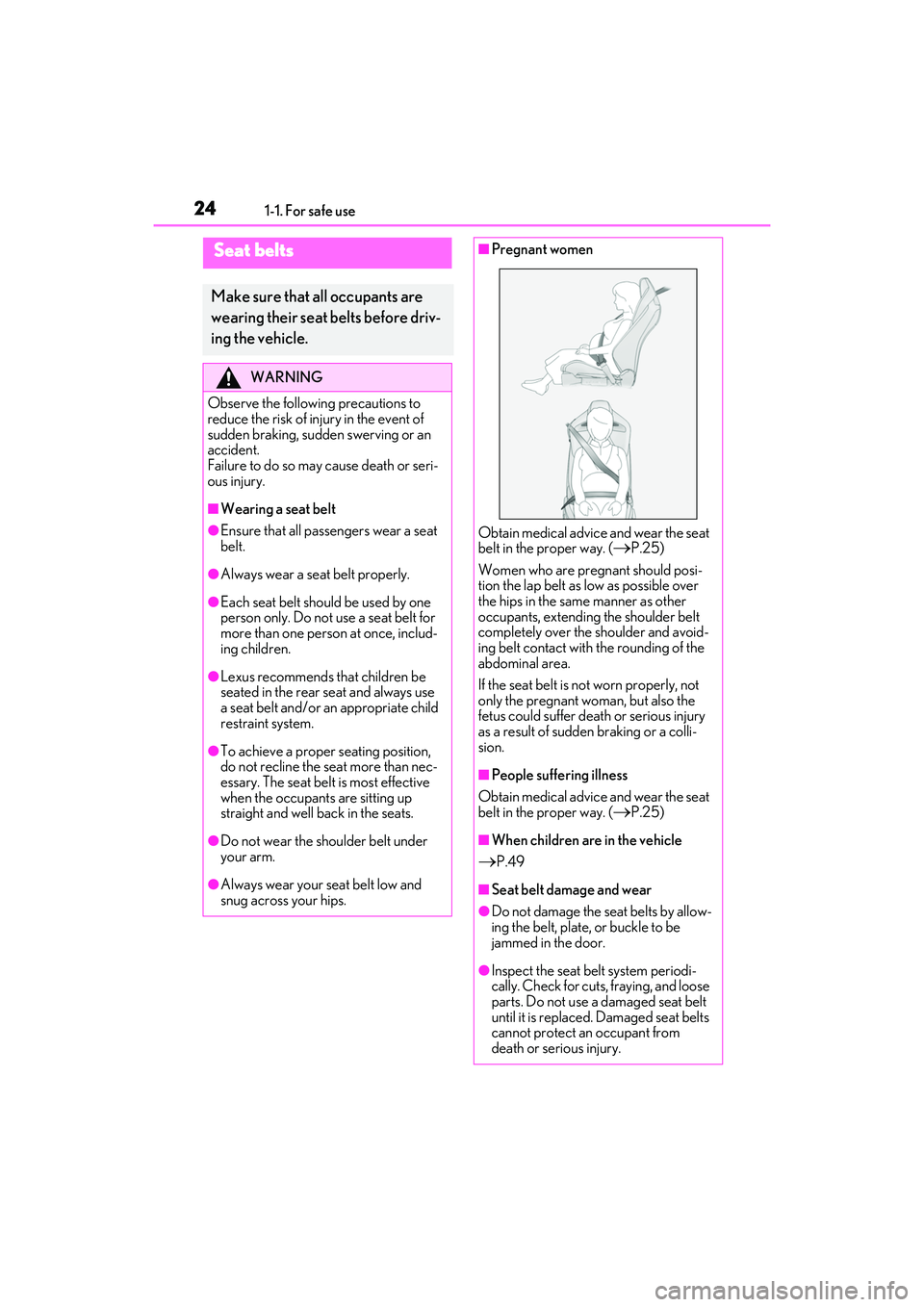

241-1. For safe use
RC F Owner's Manual
Seat belts
Make sure that all occupants are
wearing their seat belts before driv-
ing the vehicle.
WARNING
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failure to do so may cause death or seri-
ous injury.
■Wearing a seat belt
●Ensure that all passengers wear a seat
belt.
●Always wear a seat belt properly.
●Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, includ-
ing children.
●Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
●To achieve a proper seating position,
do not recline the seat more than nec-
essary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
●Do not wear the shoulder belt under
your arm.
●Always wear your seat belt low and
snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat
belt in the proper way. (
P.25)
Women who are pregnant should posi-
tion the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoid-
ing belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.
■People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (
P.25)
■When children are in the vehicle
P.49
■Seat belt damage and wear
●Do not damage the seat belts by allow-
ing the belt, plate, or buckle to be
jammed in the door.
●Inspect the seat belt system periodi-
cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.

251-1. For safe use
RC F Owner's Manual
1
For safety and security
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
 Position the lap belt as low as possi-
ble over the hips.
 Adjust the position of the seatback.
Sit up straight and well back in the
seat.
 Do not twist the seat belt. Not twisted
Twisted
■Child seat belt usage
The seat belts of your vehicle were princi-
pally designed for pe rsons of adult size.
●Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. ( P.42)
●When the child becomes large enough to
properly wear the vehicle’s seat belt, fol-
low the instructions regarding seat belt
usage. ( P.24)
■Seat belt extender
If your seat belts cannot be fastened
securely because they are not long enough,
a personalized seat belt extender is avail-
able from your Lexus dealer free of charge.
WARNING
●Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt do es not function cor-
rectly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there is no obvious damage.
●Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have an y necessary repairs
carried out by your Lexus dealer. Inap-
propriate handling may lead to incor-
rect operation.
Correct use of the seat belts
WARNING
■Using a seat belt extender
●Do not wear the seat belt extender if
you can fasten the seat belt without the
extender.
A
B

261-1. For safe use
RC F Owner's Manual
1To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sud-
den stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that
you can move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is com-
pletely extended and then retracted even
slightly, the belt is locked in that position and
cannot be extended. This feature is used to
hold a child restraint system (CRS) firmly. To
free the belt again, fully retract the belt and
then pull the belt out once more. ( P.42)
When fastening a front seat belt,
ensure that it is passed through the seat
belt guide. Passing the seat belt
through the guide enables the seat belt
to be easily extended.
When you get into or ou t of the rear seats,
release the seat belt from the seat belt
guide.
WARNING
●Do not use the seat belt extender
when installing a child restraint system
because the belt will not securely hold
the child restraint system, increasing
the risk of death or serious injury in the
event of an accident.
●The personalized extender may not be
safe on another vehicle, when used by
another person, or at a different seat-
ing position other than the one origi-
nally intended.
NOTICE
■When using a seat belt extender
When releasing the se at belt, press on
the buckle release button on the
extender, not on the seat belt.
This helps prevent damage to the vehicle
interior and the extender itself.
Fastening and releasing the seat
belt
A
Seat belt guide
WARNING
■When using the seat belt guide
●Always make sure that the belt is not
twisted, and runs freely through the
guide.
●Regardless of whether the guide is
used or not, always secure the seat belt
guide button.
●Do not hang from or pull the guide
forcefully.

271-1. For safe use
RC F Owner's Manual
1
For safety and security
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehi-
cle is subjected to certain types of
severe frontal collision or a vehicle
rollover.
The front seat belt pretensioners also acti-
vate when the vehicle is subjected to cer-
tain types of severe side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact or a rear impact.
■Replacing the belt after the
pretensioner has been activated
If the vehicle is involv ed in multiple colli-
sions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
Seat belt pretensioners
WARNING
■Seat belt pretensioners
●Do not place anything, such as a cush-
ion, on the front passenger’s seat.
Doing so will disperse the passenger’s
weight, which prevents the sensor
from detecting the passenger’s weight
properly. As a result , the seat belt
pretensioner for the front passenger’s
seat may not activate in the event of a
collision.
●If the pretensioner has activated, the
SRS warning light will come on. In that
case, the seat belt cannot be used
again and must be replaced at your
Lexus dealer.

291-1. For safe use
RC F Owner's Manual
1
For safety and security
cle rollover
■SRS airbag system componentsFront passenger occupant classifi cation system (ECU and sensors)
Side impact sensors (front door)
Knee airbags
Front passenger airbag
Curtain shield airbags
“AIR BAG ON” and “AIR BA G OFF” indicator lights
Seat belt pretensioners and force limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front passenger’s seat belt buckle switch
Front impact sensors
Your vehicle is equipped with ADVANC ED AIRBAGS designed based on the US
motor vehicle safety standards (FMVSS20 8). The airbag sensor assembly (ECU)
controls airbag deployment based on information obtain ed from the sensors etc.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
