2022 LEXUS LC500 display

55
LC500_LC500h_QG_OM11618U_(U)
1Turn the engine switch to IGNITION ON mode .
2Press or of the meter control switches and select .
3Press or of the meter control switches and select “Vehicle Settings”, then
press “OK”.
4Press or of the meter control switches and select “TPWS SET”, then press
“OK”.
5Press or of the meter control switches and select “Set tire pressure”. Then
press and hold “OK” until the tire pressure warning light starts blinking.
A message is displayed on the multi-infor-
mation display. Also, “--” is displayed for
inflation pressure of each tire on the multi-
information display while the tire pressure
warning system determines the position.
6Drive the vehicle at approximately 25 mph (40 km/h) or more for approximately 10 to
30 minutes.
When initialization is complete, the inflation pressure of each tire will be displayed on
the multi-information display.
Initializing the tire pressure warning system

56
LC500_LC500h_QG_OM11618U_(U)
Multi-information display (P.34)
Displays the status of the active rear
wing.
Active rear wing switch
Operates the active rear wing manu-
ally.
Indicator
Illuminates when the active rear wing is
raised and turns off when it is retracted.
Active Rear Wing (if equipped)
The vehicle is equipped with an active rear wing that operates automatically while the
vehicle is being driven. This active rear wi ng enhances aerodynamic performance, espe-
cially at high speeds, contributing to a more stable ride.
The active rear wing can be controlled manually using a switch.
A
B
C

57
LC500_LC500h_QG_OM11618U_(U)
“MAP” button
Press to display the current location.
“MENU” button
Press to display the menu screen.
Back button
Press to display the previous screen.
Touchpad
Operate to select/confirm a button on the screen.
Operate to scroll list screens and enlarge/shrink the map.
Sub function button
When is displayed on the screen, a function screen assigned to the screen can be
displayed.
Remote Touch
The navigation/multimedia system is primarily operated by the Remote Touch.
Remote Touch is the name for the device that includes the “MAP” button, “MENU” but-
ton, back button, touchpad and sub function button.
Names and operations of each part
A
B
C
D
E

58
LC500_LC500h_QG_OM11618U_(U)
Press the “MENU” button on the Remote Touch to display the menu screen.
*1: This function is not made available in some countries or areas.
*2: Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
*3: Refer to the “OWNER’S MANUAL”.
Menu screen
SwitchFunction
Select to display the destination screen. (P.64)
Select to display the audio control screen. ( P.70)
Select to display the hands-free control screen. ( P.66)
Select to display the “Apps” screen.*1, 2
/
/
When an Apple CarPlay/Android Auto connection is established and this
button displays “Apple CarPlay”/“Andr oid Auto”, select to display the
home screen of Apple CarPlay/Android Auto.
*1, 2
Select to display the information screen. ( P.61, 62)
Select to display the setup screen.*2, 3
Select to display the air conditioning control screen. ( P.79)

59
LC500_LC500h_QG_OM11618U_(U)
Different information can be displayed on the left and right of the screen. For example, air
conditioning system screen can be displayed and operated while the fuel consumption
information screen is being displayed. The large screen on the left of the display is called the
main display, and the small screen to the right is called the side display.
The following functions can be displayed
and operated on the side display.Navigation system ( P.64)
Audio ( P.73, 74, 75, 76)
Vehicle information ( P.63)
Air conditioning system ( P.81)
Show/hide the side display
Split-screen display
Side display
A
B
C
D
E

61
LC500_LC500h_QG_OM11618U_(U)
■Display procedure
Multi-information display
Press or of the meter control switches and select , and then press or
to select the energy monitor display.
 Center Display
Press the “MENU” button on the Remote Touch, then select on the menu screen.
If the “Trip information” or “History” screen is displayed, select “Energy”.
■Reading the display
The arrows will appear in accordance with the energy flow. When there is no energy flow,
arrows will not be displayed.
The color of the arrows will change as follows
Blue: When the hybrid battery (traction battery) is regenerated or charged.
Yellow: When the hybrid battery (traction battery) is in use.
Red: When the gasoline engine is in use.
Multi-information display
The image shows all the arrows as an exam-
ple. The actual display will vary depending
on conditions.
Gasoline engine
Hybrid battery (traction battery)
Tires
Energy Monitor/Consumption Screen
You can view the status of your hybrid sy stem (LC500h) and fuel consumption informa-
tion on the multi-information display and Center Display.
The screen can be displayed on the side display. For details, refer to the “OWNER’S
MANUAL”.
Energy monitor (LC500h)
A
B
C

62
LC500_LC500h_QG_OM11618U_(U)
Center Display
The image shows all the arrows as an exam-
ple. The actual display will vary depending
on conditions.
Gasoline engine
Electric motor (traction motor)
Hybrid battery (traction battery)
Tires
Press the “MENU” button on the Remote Touch, then select on the menu screen, and
then select “Trip Information” or “History”.
■Trip information
If a screen other than “Trip Information” is displayed, select “Trip Information”. Resetting the consumption data
Fuel consumption in the past 15 min-
utes
Current fuel consumption
Regenerated energy in the past 15
minutes (LC500h)
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Average vehicle speed since the engine was started.
Elapsed time since the engine was started.
Cruising range
■History
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consumption
Latest fuel consumption
Previous fuel consumption record
Resetting the history data
Updating the latest fuel consumption
data
A
B
C
D
Consumption
A
B
C
D
E
F
G
A
B
C
D
E

63
LC500_LC500h_QG_OM11618U_(U)

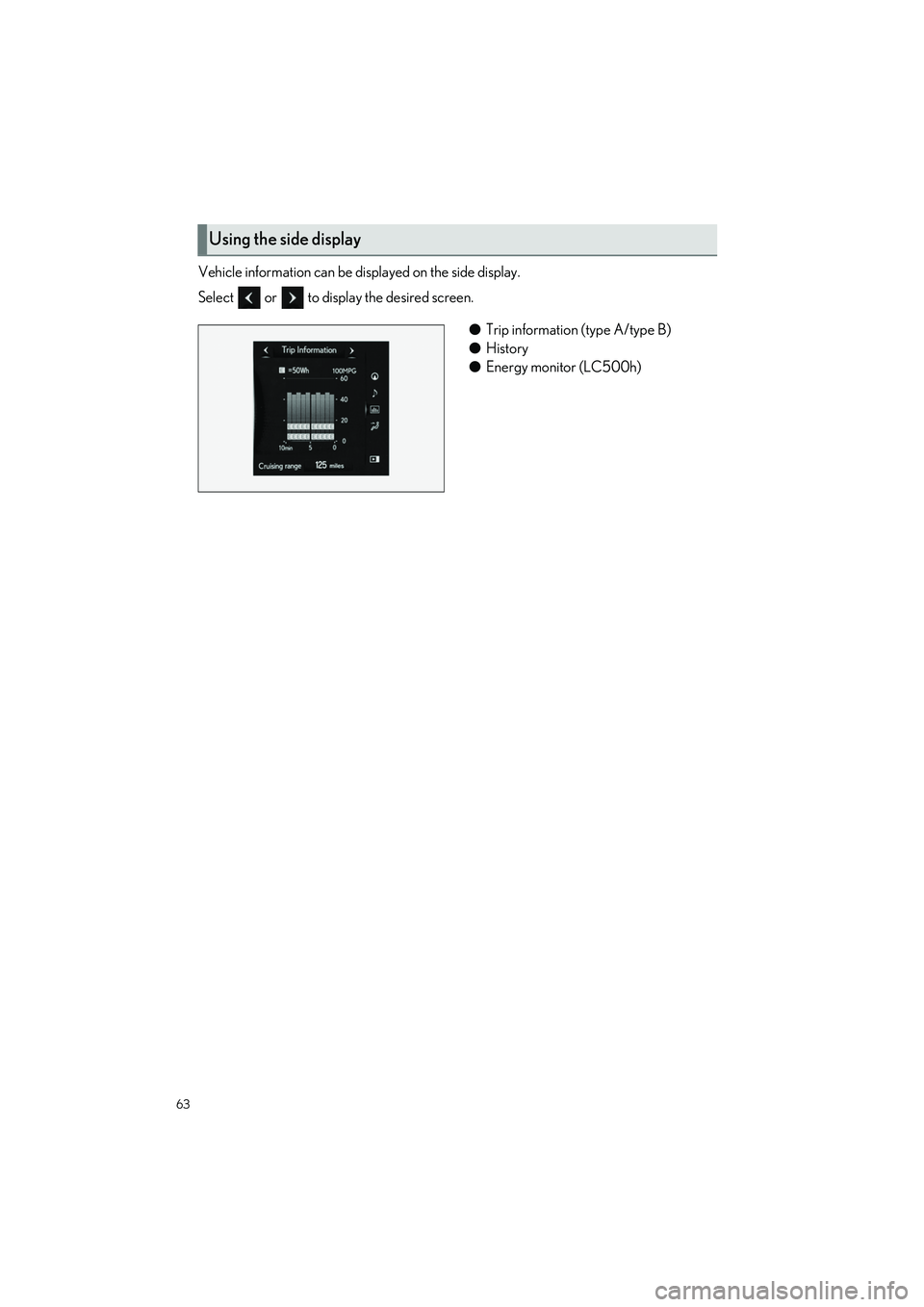

Vehicle information can be displayed on the side display.
Select or to display the desired screen.●Trip information (type A/type B)
● History
● Energy monitor (LC500h)
Using the side display
