4TABLE OF CONTENTS
General maintenance .................315
Emission inspection and mainte- nance (I/M) programs ............. 318
6-3. Do-it-yourself maintenance Do-it-yourself service precautions............................................................ 319
Hood................................................... 321
Positioning a floor jack ................ 321
Engine compartment.................. 323
12-volt battery................................ 328
Tires ................................................... 330
Tire inflation pressure ................. 338
Wheels.............................................. 340
Air conditioning filter.................. 342
Cleaning the hybrid battery (trac- tion battery) air intake vent and fil-
ter..................................................... 343
Electronic key battery ................ 347
Checking and replacing fuses 349
Headlight aim.................................. 351
Light bulbs ....................................... 352
7-1. Essential information Emergency flashers..................... 358
If your vehicle has to be stopped in an emergency ............................. 358
If the vehicle is submerged or water on the road is rising .................. 359
7-2. Steps to take in an emergency If your vehicle needs to be towed............................................................ 361
If you think something is wrong ........................................................... 362
If a warning light turns on or a warn- ing buzzer sounds ..................... 364If a warning message is displayed
.......................................................... 374
If you have a flat tire .................... 379
If the hybrid system will not start .......................................................... 386
If you lose your keys.................... 388
If the fuel filler door cannot be opened .......................................... 388
If the electronic key does not oper- ate properly ................................. 389
If the 12-volt battery is discharged ........................................................... 391
If your vehicle overheats ........... 396
If the vehicle becomes stuck ... 399
8-1. Specifications Maintenance data (fuel, oil level, etc.) ................................................. 402
Fuel information............................. 410
Tire information .............................. 412
8-2. Customization Customizable features ................ 421
8-3. Items to initialize Items to initialize ........................... 433
9-1. For owners Reporting safety defects for U.S. owners ........................................... 436
Reporting safety defects for Cana- dian owners ................................. 436
Seat belt instructions for Canadian owners (in French) ................... 437
7When trouble arises
8Vehicle specifications
9For owners

651-4. Hybrid system
1
For safety and security
the hybrid battery (traction battery)
may overheat, leading to a reduction in
the hybrid battery (traction battery)
output.When a certain level of impact is
detected by the impact sensor, the
emergency shut off system blocks the
high voltage current and stops the fuel
pump to minimize the risk of electrocu-
tion and fuel leakage. If the emergency
shut off system activates, your vehicle
will not restart. To restart the hybrid
system, contact your Lexus dealer.
A message is automatically displayed
when a malfunction occurs in the
hybrid system or an improper opera-
tion is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.
NOTICE
QHybrid battery (traction battery) air
intake vent
OMake sure not to block the air intake
vent with anything, such as a seat
cover, plastic cover, or luggage. If the
vents become blocked, the hybrid bat-
tery (traction battery) input and output
may be restricted, leading to a reduc-
tion in hybrid battery (traction battery)
output and a malfunction.
OWhen dust etc. has accumulated in the
air intake vent, periodically clean it
with a vacuum cleaner to prevent the
vent from clogging.
ODo not get water or foreign materials
in the air intake vent as this may cause
a short circuit and damage the hybrid
battery (traction battery).
ODo not carry large amounts of water
such as water cooler bottles in the
vehicle. If water spills onto the hybrid
battery (traction battery), the battery
may be damaged. Have the vehicle
inspected by your Lexus dealer.
OThere is a filter installed to the air
intake vent. When the filter remains
noticeably dirty even after cleaning the
air intake vent, filter cleaning or
replacement is recommended. For
information regarding filter cleaning or
replacement, refer to P.343.
OIf “Maintenance required for Traction
battery cooling parts See owner’s
manual” is shown on the multi-infor-
mation display, the air intake vent and
filter may be clogged. Refer to P.343
for information on how to clean the air
intake vent.
Emergency shut off system
Hybrid warning message

2725-3. Using the air conditioning system
QOutside/recirculated air mode
OSetting to the recirculated air mode tem-
porarily is recommended in preventing
dirty air from entering the vehicle interior
and helping to cool the vehicle when the
outside air temperature is high.
OOutside/recirculated air mode may
automatically switch regardless of the air
conditioning setting depending on the
temperature setting or inside tempera-
ture.
QRegistering air conditioning settings to
electronic keys
OUnlocking the vehicle using an electronic
key and turning the power switch to ON
mode will recall that key’s registered air
conditioning settings.
OWhen the power switch is turned off, the
current air conditioning settings will auto-
matically be registered to the electronic
key that was used to unlock the vehicle.
OThe system may not operate correctly if
more than one electronic key is in the
vicinity or if the smart access system with
push-button start is used to unlock the
passenger door.
OVehicles with the driving position mem-
ory: The doors that can recall the air con-
ditioning setting
* when unlocked using
the smart access system with push-but-
ton start can be changed. For details,
contact your Lexus dealer.
*: The doors that can recall the driving posi-
tion memory are changed at the same
time.
QOperation of the air conditioning sys-
tem in Eco drive mode
In Eco drive mode, the air conditioning sys-
tem is controlled as follows to prioritize fuel
efficiency:
OEngine speed and compressor operation
controlled to restrict heating/cooling
capacity
OFan speed restricted when automatic
mode is selected
To improve air conditioning performance,
perform the following operations:
OTurn off eco air conditioning mode
(  P.273)
OAdjust the fan speed
OTurn off Eco drive mode ( P.219)
QWhen the outside temperature falls to
nearly 32°F (0°C)
The dehumidification function may not
operate even when “A/C” is selected.
QVentilation and air conditioning odors
OTo let fresh air in, set the air conditioning
system to the outside air mode.
ODuring use, various odors from inside
and outside the vehicle may enter into
and accumulate in the air conditioning
system. This may then cause odor to be
emitted from the vents.
OTo reduce potential odors from occur-
ring, the start timing of the blower may be
delayed for a short period of time imme-
diately after the air conditioning system is
started in automatic mode.
OWhen parking, the system automatically
switches to fresh air intake mode to
encourage better air circulation through-
out the vehicle, helping to reduce odors
that occur when starting the vehicle.
QUsing the voice command system
Air conditioning system can be operated
using voice commands. For details, refer to
the “NAVIGATION AND MULTIMEDIA
SYSTEM OWNER’S MANUAL”.
QAir conditioning filter
 P.342
QAir conditioning system refrigerant
OA label regarding the refrigerant of the
air conditioning system is attached to the
hood at the location shown in the follow-
ing illustration.

3206-3. Do-it-yourself maintenance
Light bulbs
( P.352)
• Bulb with same number
and wattage rating as
original
• Flathead screwdriver
Radiator and
condenser
(  P.326)

Tire inflation
pressure
( P.338)• Tire pressure gauge
• Compressed air source
Washer fluid
( P.327)
• Water or washer fluid
containing antifreeze
(for winter use)
• Funnel (used only for adding water or washer
fluid)
WARNING
The engine compartment contains many
mechanisms and fluids that may move
suddenly, become hot, or become elec-
trically energized. To avoid death or seri-
ous injury, observe the following
precautions.
QWhen working on the engine com-
partment
OMake sure that the “IGNITION ON”
on the multi-information display and
the “READY” indicator are both off.
OKeep hands, clothing and tools away
from the moving fan and engine drive
belt.
OBe careful not to touch the engine,
power control unit, radiator, exhaust
manifold, etc. right after driving as they
may be hot. Oil and other fluids may
also be hot.
ODo not leave anything that may burn
easily, such as paper and rags, in the
engine compartment.
ItemsParts and toolsODo not smoke, cause sparks or expose
an open flame to fuel. Fuel fumes are
flammable.
QWhen working near the electric cool-
ing fan or radiator grille
Be sure the power switch is off.
With the power switch in ON mode, the
electric cooling fan may automatically
start to run if the air conditioning is on
and/or the coolant temperature is high.
(  P.326)
QSafety glasses
Wear safety glasses to prevent flying or
falling material, fluid spray, etc. from get-
ting in your eyes.
NOTICE
QIf you remove the air cleaner filter
Driving with the air cleaner filter
removed may cause excessive engine
wear due to dirt in the air.

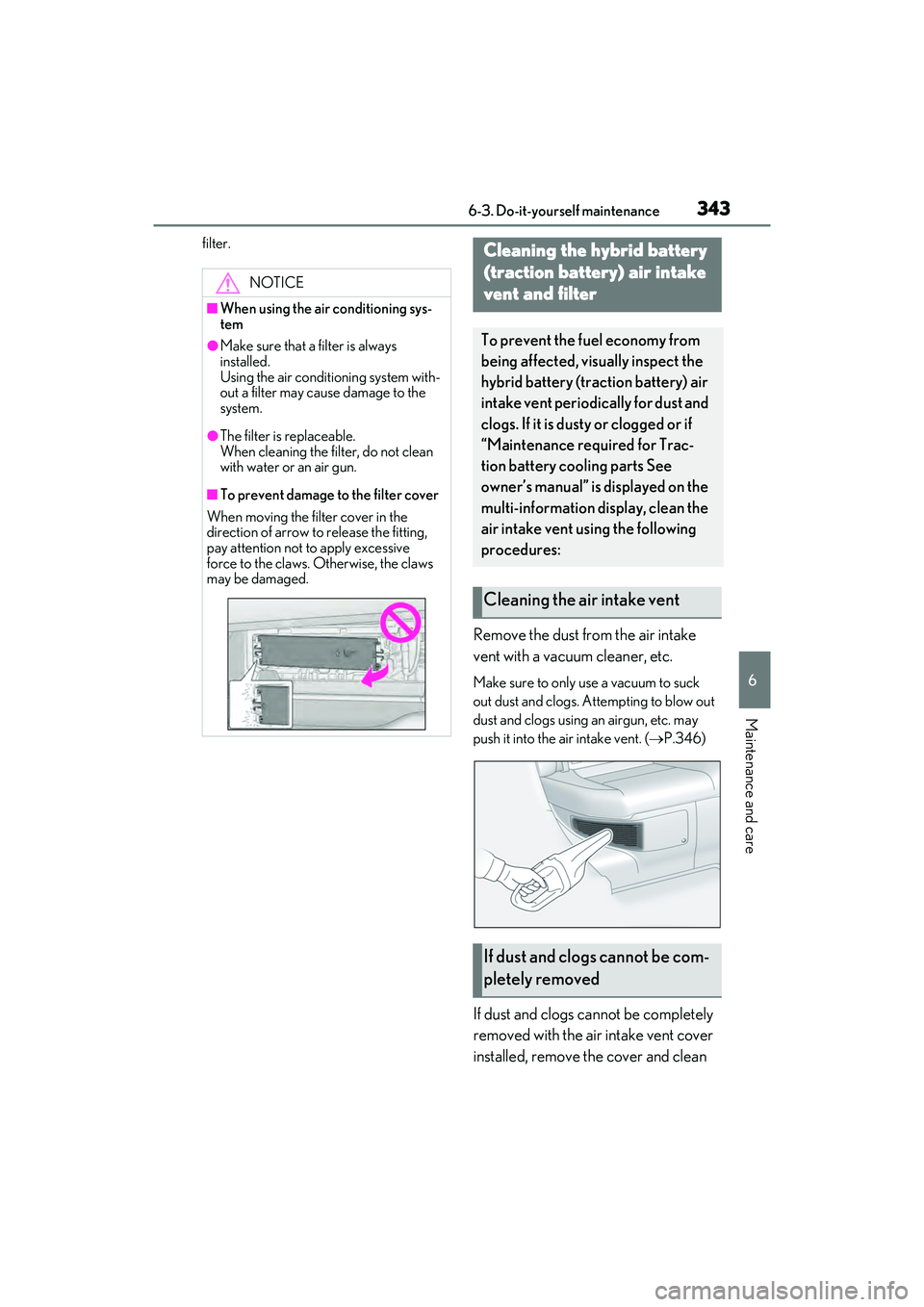

3436-3. Do-it-yourself maintenance
6
Maintenance and care
filter.
Remove the dust from the air intake
vent with a vacuum cleaner, etc.
Make sure to only use a vacuum to suck
out dust and clogs. Attempting to blow out
dust and clogs using an airgun, etc. may
push it into the air intake vent. (P.346)
If dust and clogs cannot be completely
removed with the air intake vent cover
installed, remove the cover and clean
NOTICE
QWhen using the air conditioning sys-
tem
OMake sure that a filter is always
installed.
Using the air conditioning system with-
out a filter may cause damage to the
system.
OThe filter is replaceable.
When cleaning the filter, do not clean
with water or an air gun.
QTo prevent damage to the filter cover
When moving the filter cover in the
direction of arrow to release the fitting,
pay attention not to apply excessive
force to the claws. Otherwise, the claws
may be damaged.
Cleaning the hybrid battery
(traction battery) air intake
vent and filter
To prevent the fuel economy from
being affected, visually inspect the
hybrid battery (traction battery) air
intake vent periodically for dust and
clogs. If it is dusty or clogged or if
“Maintenance required for Trac-
tion battery cooling parts See
owner’s manual” is displayed on the
multi-information display, clean the
air intake vent using the following
procedures:
Cleaning the air intake vent
If dust and clogs cannot be com-
pletely removed

3456-3. Do-it-yourself maintenance
6
Maintenance and care
6Reinstall the filter to the cover.
1 Engage the filter to the 2 claws as
shown in the illustration.
2 Engage the 3 claws to install the fil-
ter.
Make sure that the filter is not crooked or
deformed when installing it.
7Install the air intake vent cover.
1 Insert the tab of the cover as shown
in the illustration.
2 Push the cover to engage the 7
claws. 8
Using a Phillips screwdriver, install
the clip.
QScheduled maintenance of the air
intake vent is necessary when
In some situations such as when the vehicle
is used frequently or in heavy traffic or dusty
areas, the air intake vent may need to be
cleaned more regularly.
For details, refer to “Owner’s Manual Sup-
plement” or “Scheduled Maintenance”.
QCleaning the air intake vent
ODust in the air intake vent may interfere
with the cooling of the hybrid battery
(traction battery). If charging/discharg-
ing of the hybrid battery (traction battery)
becomes limited, the distance that the
vehicle can be driven using the electric
motor (traction motor) may be reduced
and the fuel economy may be reduced.
Inspect and clean the air intake vent peri-
odically.
OImproper handling of the air intake vent
cover and filter may re sult in damage to
them. If you have any concerns about
cleaning the filter, contact your Lexus
dealer.
QIf “Maintenance required for Traction
battery cooling parts See owner’s man-
ual” is displayed on the multi-informa-
tion display
OIf this warning message is displayed on
the multi-information display, remove the
air intake vent cover and clean the filter.
(  P.343)
OAfter cleaning the air intake vent, start
the hybrid system and check that the
warning message is no longer displayed.
After the hybrid system is started, it may

3787-2. Steps to take in an emergency
ment” for the maintenance interval
applicable to your vehicle.
QIf “Maintenance Required Visit Your
Dealer” is displayed
Indicates that all maintenance is required to
correspond to the driven distance on the
maintenance schedule
*.
Comes on approximately 5000 miles
(8000 km) after the message has been
reset. (The indicator will not work properly
unless the message has been reset.) Per-
form the necessary maintenance. Please
reset the message after the maintenance is
performed. ( P.314)
*: Refer to the separate “Scheduled Main-
tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.
QIf “Oil Maintenance Required Soon” is
displayed
Indicates that the engine oil should be
scheduled to be changed.
Check the engine oil an d change it if neces-
sary. After changing the engine oil, make
sure to reset the message. ( P.314)
QIf “Oil Maintenance Required” is dis-
played
Indicates that the engine oil should be
changed.
Check and change the engine oil, and oil fil-
ter by your Lexus dealer. After changing
the engine oil, make sure to reset the mes-
sage. ( P.325)
QIf a message that indicates the need for
visiting your Lexus dealer is displayed
The system or part shown on the multi-
information display is malfunctioning. Have
the vehicle inspected by your Lexus dealer
immediately.
QIf a message that indicates the need for
referring to Owner’s Manual is dis-
played
OIf any of the following messages are
shown on the multi-information display,
follow the instructions.
• “Engine Coolant Temp High” ( P.396)
OIf any of the following messages are
shown on the multi-information display, it
may indicate a malfunction. Have the
vehicle inspected by your Lexus dealer
immediately.
• “Access System with Elec. Key Malfunc-
tion”
• “Hybrid system malfunction”
•“Check Engine”
• “Hybrid battery system malfunction”
• “Accelerator system malfunction”
OIf any of the following messages are
shown on the multi-information display, it
may indicate a malfunction. Immediately
stop the vehicle and contact your Lexus
dealer.
•“Braking Power Low”
• “Charging System Malfunction”
• “Oil Pressure Low”
OIf any of the following messages are
shown on the multi-information display,
the vehicle may have run out of fuel. Stop
the vehicle in a safe place and, if the fuel
level is low, refuel the vehicle. ( P.62)
• “Hybrid system stopped”
• “Engine stopped”
OIf “Low Auxiliary Battery” is shown
• When the display goes off after several
seconds
*:
Maintain the hybrid system operation for
more than 15 minutes and charge the 12-
volt battery.
• When the display does not go off:
Start up the hybrid system using the proce-
dures for “If the 12-volt battery is dis-
charged” ( P.391).
*: Displays for about 6 seconds
OIf “Maintenance required for Traction
battery cooling parts” is shown, the filter
may be clogged, the air intake vent may
be blocked, or there may be a gap in the
duct. Therefore, perform the following
correction procedure.
• If the air intake vent and filter of the
hybrid battery (traction battery) are dirty,
perform the procedure on P.343 to
clean them.
• If the warning message is shown when the air intake vent and filter of the hybrid

4048-1. Specifications
Except for Canada
For Canada
QOil capacity (Drain and refill [Ref-
erence
*])
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turn
off the hybrid system, wait more than 5
minutes, and check the oil level on the
dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-6B multigrade engine oil
Recommended viscosity:
SAE 0W-16
SAE 0W-16 is the best choice for
good fuel economy
and good starting
in cold weather.
If SAE 0W-16 is not available, SAE
0W-20 oil may be used. However, it
must be replaced with SAE 0W-16 at
the next oil change.
Hybrid battery (traction battery)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity4.0 Ah
Quantity70 cells
Nominal voltage259 V
TypeNickel-metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity34 modules
Nominal voltage244.8 V
Lubrication system
With filter4.8 qt. (4.5 L, 4.0 Imp.qt.)
Without filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
