2022 KIA SPORTAGE cruise control

Driving your vehicle
132
5

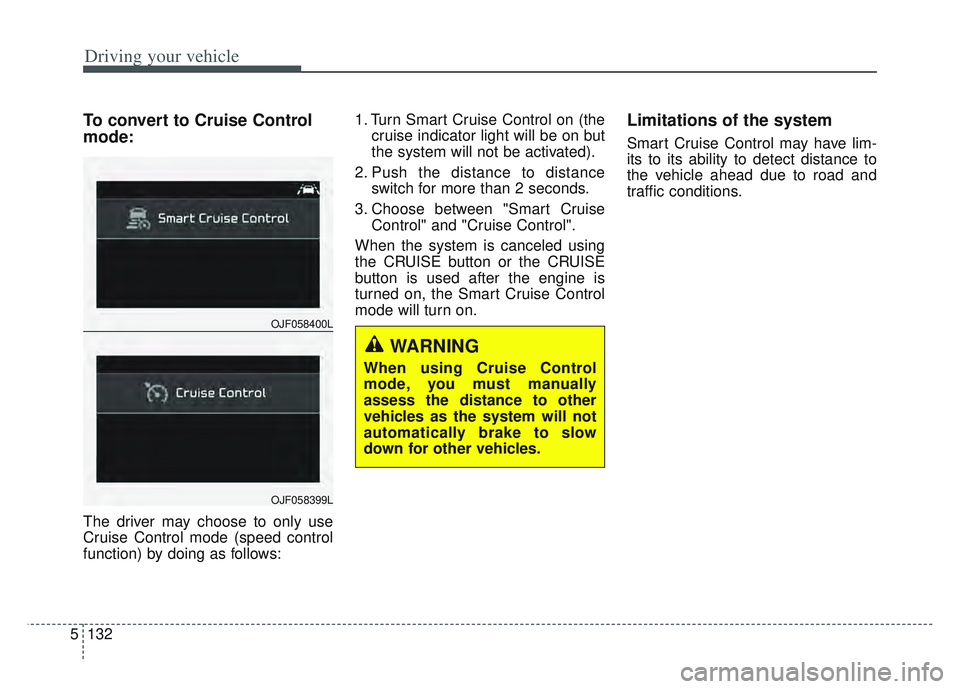

To convert to Cruise Control
mode:
The driver may choose to only use
Cruise Control mode (speed control
function) by doing as follows: 1. Turn Smart Cruise Control on (the
cruise indicator light will be on but
the system will not be activated).
2. Push the distance to distance switch for more than 2 seconds.
3. Choose between "Smart Cruise Control" and "Cruise Control".
When the system is canceled using
the CRUISE button or the CRUISE
button is used after the engine is
turned on, the Smart Cruise Control
mode will turn on.
Limitations of the system
Smart Cruise Control may have lim-
its to its ability to detect distance to
the vehicle ahead due to road and
traffic conditions.
OJF058400L
OJF058399L
WARNING
When using Cruise Control
mode, you must manually
assess the distance to other
vehicles as the system will not
automatically brake to slow
down for other vehicles.

5133
Driving your vehicle

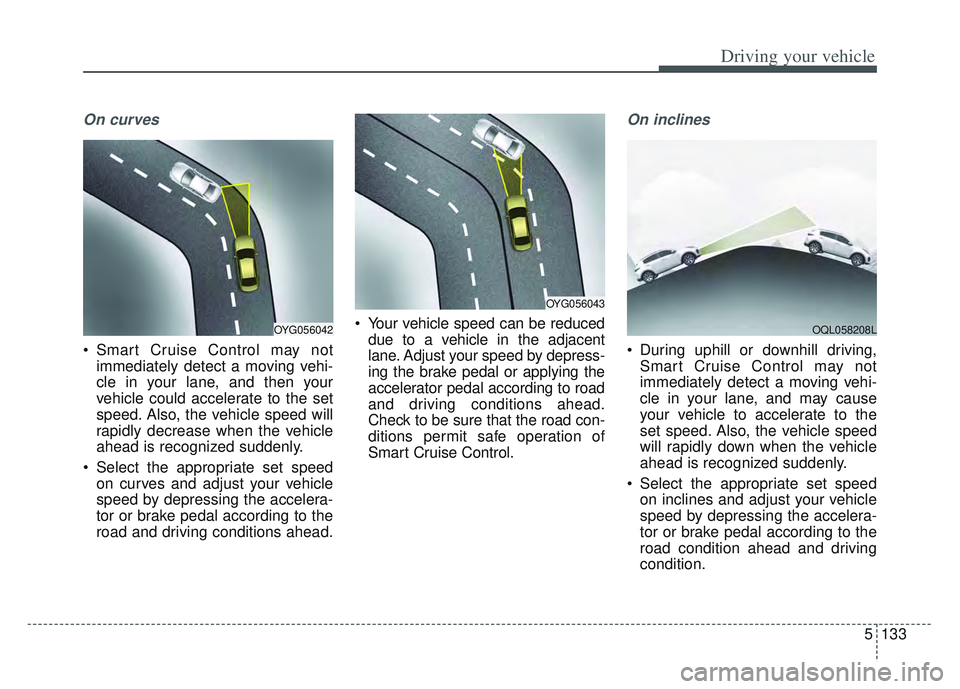

On curves
Smart Cruise Control may notimmediately detect a moving vehi-
cle in your lane, and then your
vehicle could accelerate to the set
speed. Also, the vehicle speed will
rapidly decrease when the vehicle
ahead is recognized suddenly.
Select the appropriate set speed on curves and adjust your vehicle
speed by depressing the accelera-
tor or brake pedal according to the
road and driving conditions ahead. Your vehicle speed can be reduced
due to a vehicle in the adjacent
lane. Adjust your speed by depress-
ing the brake pedal or applying the
accelerator pedal according to road
and driving conditions ahead.
Check to be sure that the road con-
ditions permit safe operation of
Smart Cruise Control.
On inclines
During uphill or downhill driving,Smart Cruise Control may not
immediately detect a moving vehi-
cle in your lane, and may cause
your vehicle to accelerate to the
set speed. Also, the vehicle speed
will rapidly down when the vehicle
ahead is recognized suddenly.
Select the appropriate set speed on inclines and adjust your vehicle
speed by depressing the accelera-
tor or brake pedal according to the
road condition ahead and driving
condition.
OYG056043
OYG056042OQL058208L

Driving your vehicle
136
5

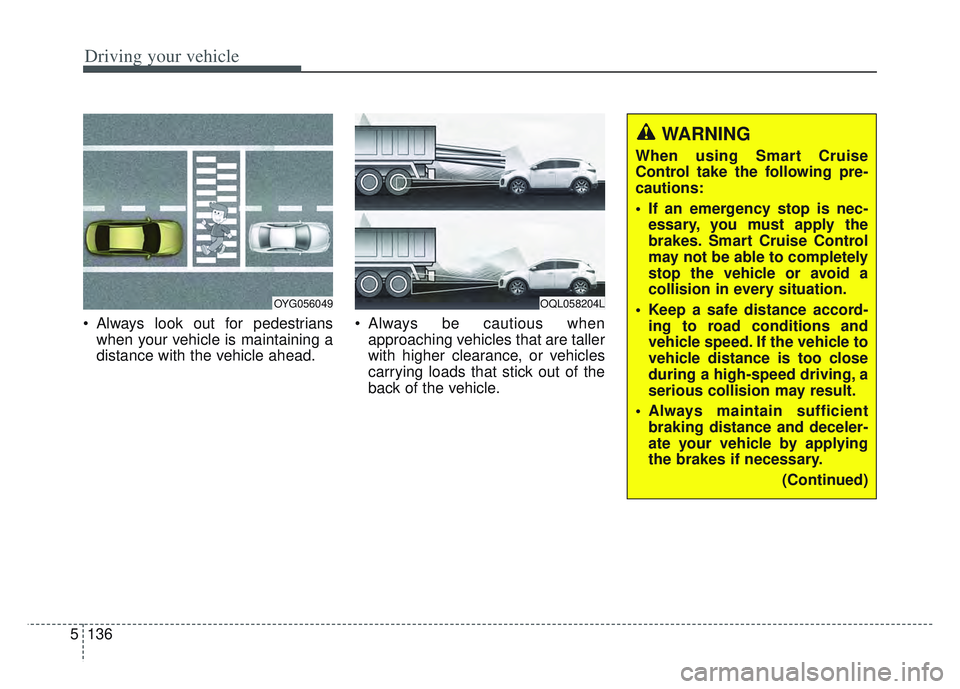

Always look out for pedestrians
when your vehicle is maintaining a
distance with the vehicle ahead. Always be cautious when
approaching vehicles that are taller
with higher clearance, or vehicles
carrying loads that stick out of the
back of the vehicle.
OQL058204LOYG056049
WARNING
When using Smart Cruise
Control take the following pre-
cautions:
If an emergency stop is nec-essary, you must apply the
brakes. Smart Cruise Control
may not be able to completely
stop the vehicle or avoid a
collision in every situation.
Keep a safe distance accord- ing to road conditions and
vehicle speed. If the vehicle to
vehicle distance is too close
during a high-speed driving, a
serious collision may result.
Always maintain sufficient braking distance and deceler-
ate your vehicle by applying
the brakes if necessary.
(Continued)

5137
Driving your vehicle
✽ ✽NOTICE
Smart Cruise Control may not oper-
ate temporarily due to:
- Electrical interference
- Modified suspension
- Differences in tire abrasion or tire
pressure
- Installation of different type of tires(Continued)
Always be aware of the select-
ed speed and distance to the
vehicle ahead.
Smart Cruise Control may not recognize complex driving sit-
uations, always pay attention
to driving conditions and con-
trol your vehicle speed.
After an engine start, please stop for several seconds. If
system initialization is not
completed, SCC does not nor-
mally operate.
After starting the engine, if objects are not detected or
the sensor cover is covered
with foreign substances, the
SCC may not work.(Continued)
Smart Cruise Control cannotrecognize a stopped vehicle,
pedestrians or an oncoming
vehicle.
Always look ahead cautiously
to prevent unexpected and
sudden situations from occur-
ring.
When other vehicles are changing lanes in front of you
frequently, Smart Cruise
Control may not operate
appropriately.
Always drive cautiously to
prevent unexpected and sud-
den situations from occurring.
Smart Cruise Control is not a substitute for safe driving
practices but a convenience
function only. It is the respon-
sibility of the driver to always
check to the vehicle ahead.
(Continued)
WARNING
For safe operation, carefully
read and follow the instructions
in this manual before use.

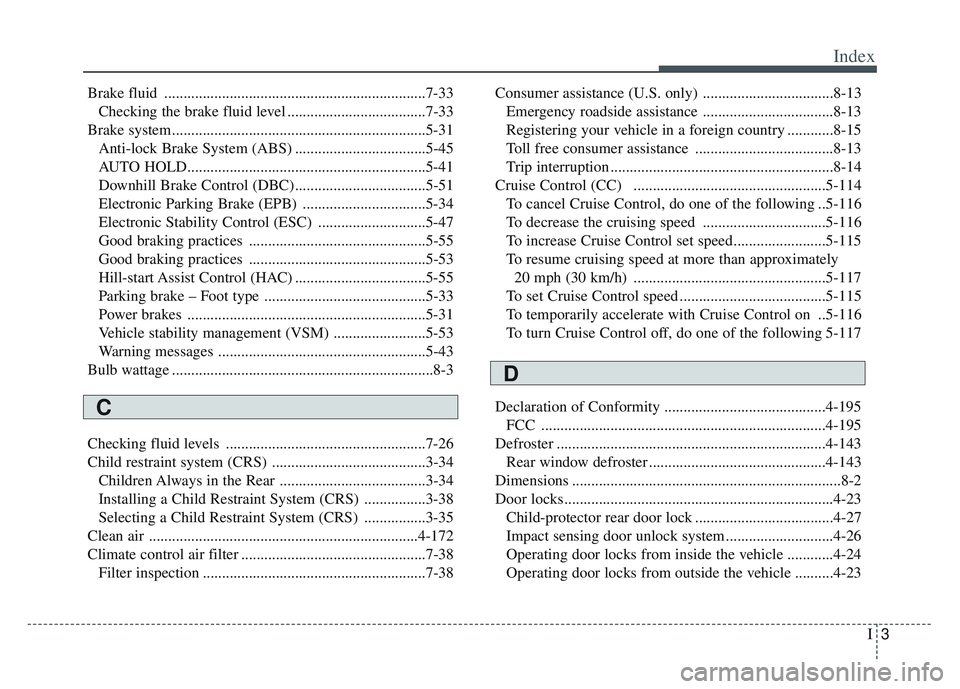

I3
Index
Brake fluid ....................................................................7-33\
Checking the brake fluid level ....................................7-33
Brake system..................................................................5-31 Anti-lock Brake System (ABS) ..................................5-45
AUTO HOLD..............................................................5-41
Downhill Brake Control (DBC)..................................5-51
Electronic Parking Brake (EPB) ................................5-34
Electronic Stability Control (ESC) ............................5-47
Good braking practices ..............................................5-55
Good braking practices ..............................................5-53
Hill-start Assist Control (HAC) ..................................5-55
Parking brake – Foot type ..........................................5-33
Power brakes ..............................................................5-31
Vehicle stability management (VSM) ........................5-53
Warning messages ......................................................5-43
Bulb wattage ....................................................................8-3
Checking fluid levels ....................................................7-26
Child restraint system (CRS) ........................................3-34 Children Always in the Rear ......................................3-34
Installing a Child Restraint System (CRS) ................3-38
Selecting a Child Restraint System (CRS) ................3-35
Clean air ......................................................................4-\
172
Climate control air filter ................................................7-38 Filter inspection ..........................................................7-38 Consumer assistance (U.S. only) ..................................8-13
Emergency roadside assistance ..................................8-13
Registering your vehicle in a foreign country ............8-15
Toll free consumer assistance ....................................8-13
Trip interruption ..........................................................8-14
Cruise Control (CC) ..................................................5-114 To cancel Cruise Control, do one of the following ..5-116
To decrease the cruising speed ................................5-116
To increase Cruise Control set speed........................5-115
To resume cruising speed at more than approximately 20 mph (30 km/h) ..................................................5-117
To set Cruise Control speed ......................................5-115
To temporarily accelerate with Cruise Control on ..5-116
To turn Cruise Control off, do one of the following 5-117
Declaration of Conformity ..........................................4-195 FCC ........................................................................\
..4-195
Defroster ......................................................................4-\
143 Rear window defroster ..............................................4-143
Dimensions ......................................................................8-\
2
Door locks......................................................................4-\
23 Child-protector rear door lock ....................................4-27
Impact sensing door unlock system ............................4-26
Operating door locks from inside the vehicle ............4-24
Operating door locks from outside the vehicle ..........4-23
C
D

I9
Index
Seat belts ........................................................................\
3-20Care of seat belts ........................................................3-33
Pre-tensioner seat belt ................................................3-28
Seat belt precautions ..................................................3-31
Seat belt restraint system ............................................3-20
Smart Cruise Control(SCC) ........................................5-118 Limitations of the system..........................................5-132\
Smart Cruise Control cancelled ................................5-124
Smart Cruise Control speed ....................................5-120
Smart Cruise Control switch ....................................5-120
To adjust the sensitivity of Smart Cruise Control ....5-131
To convert to Cruise Control mode ........................5-132
Vehicle to vehicle distance setting ............................5-125
When the lane ahead is clear ....................................5-126
When there is a vehicle ahead of you in your lane ..5-127
Smart key ......................................................................4-\
12 Battery replacement ....................................................4-17
Loss of the smart key ..................................................4-16
Record your key number ............................................4-12
Smart key function ......................................................4-12
Smart key immobilizer system ..................................4-18
Smart key precautions ................................................4-14
Special driving conditions ..........................................5-150 Driving at night ........................................................5-153
Driving in flooded areas ........................................5-154
Driving in the rain ..................................................5-153
Driving off-road ......................................................5-154
Hazardous driving conditions ................................5-150 Highway driving ......................................................5-154
Reducing the risk of a rollover ................................5-150
Rocking the vehicle ..................................................5-152
Smooth cornering ......................................................5-152
Snowy or icy conditions ..........................................5-156
Steering wheel ..............................................................4-58 Electronic Power Steering (EPS) ................................4-58
Heated steering wheel ................................................4-60
Horn ........................................................................\
....4-61
Tilt and telescopic steering ........................................4-59
Storage compartments ................................................4-173 Center console storage ..............................................4-173
Glove box ..................................................................4-173
Luggage box.............................................................\
.4-174
Sunglass holder ........................................................4-174
Two types of luggage board levels ..........................4-175
Theft-alarm system ........................................................4-20 Armed stage ................................................................4-20
Disarmed stage ............................................................4-21
Theft-alarm stage ........................................................4-21
Tire Pressure Monitoring System (TPMS) ......................6-8 Changing a tire with TPMS ........................................6-12
Check tire pressure.....................................................\
...6-8
Low tire pressure position telltale ..............................6-10
Low tire pressure telltale ............................................6-10
T
