2022 KIA SORENTO HYBRID park assist

2 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
TABLE OF CONTENTS
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . . . . 03Hybrid / Plug-In Hybrid Indicators at Star tup . . . . . 04Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . 05Tire Pressure Monitoring System (TPMS) . . . . . . . . . 06Fuel Economy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06Drive Mode Integrated Control System* . . . . . . . . . . 07
VEHICLE SETTINGSTrip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . .08LCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . .08User Set tings – Instrument Cluster . . . . . . . . . . . . . . .09Vehicle Set tings* – Audio Head Unit . . . . . . . . . . . . . .09Vehicle Auto-Shut Off System* . . . . . . . . . . . . . . . . . . . 10Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
H Y B R I D / P LU G - I N H Y B R I D S YS T E MPlug-In Hybrid Display* . . . . . . . . . . . . . . . . . . . . . . . . . . 11Charging the Plug-In Hybrid Vehicle . . . . . . . . . . . . . 12Energy Flow - Instrument Cluster LCD . . . . . . . . . . . . 14Charging Connector Auto/Lock Mode . . . . . . . . . . . . 16Scheduled Charging* (Plug-In Hybrid only) . . . . . . . 16Plug-In Hybrid Modes (Plug-In Hybrid only) . . . . . . 17
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Forward Collision-Avoidance Assist (FCA) . . . . . . . . 18Blind-Spot Collision-Avoidance Assist (BCA)* . . . . . 19Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . . .20Intelligent Speed Limit Assist (ISL A) . . . . . . . . . . . . . . 21Driver At tention Warning (DAW)* . . . . . . . . . . . . . . . . . 22Leading Vehicle Depar ture Aler t (LVDA) . . . . . . . . . . 23Safe Exit Assist (SEA)* . . . . . . . . . . . . . . . . . . . . . . . . . . . 23Smar t Cruise Control (SCC) with Stop and Go* . . . . 24Cruise Control (CC)* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . . . 26Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . 27Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . . . 28Blind-Spot View Monitor (BVM)* . . . . . . . . . . . . . . . . . . 28Surround View Monitor (SVM)* . . . . . . . . . . . . . . . . . . . 29
Rear Cross-Traffic Collision-Avoidance Assist* . . .30Rear Occupant Aler t with Ultrasonic Sensors . . . . . 31Reverse Parking Collision-Avoidance Assist* . . . . . . 32Forward/Reverse Parking Distance Warning* . . . . . 32
DRIVER’S PANELInstrument Cluster Illumination Control . . . . . . . . . . . 33Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . 33Hill-Star t Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . 33Reverse Parking Aid Function* . . . . . . . . . . . . . . . . . . . 34Engine Star t/Stop But ton* . . . . . . . . . . . . . . . . . . . . . . . 34Power Windows, Window Lock & Central Door Lock / Auto Door Lock/Unlock . . . . . . . . . . . . 35Electronic Child Safety Lock System . . . . . . . . . . . . . . 35Power/Heated Outside Mirrors* . . . . . . . . . . . . . . . . . . 36Manual Folding Mirrors* . . . . . . . . . . . . . . . . . . . . . . . . . 36Power Folding Outside Mirrors* . . . . . . . . . . . . . . . . . .36
STEERING WHEEL CONTROLSTilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . . . 37Headlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . 38High Beam Assist / Daytime Running Lights* . . . . . 38Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . 39Windshield Wipers & Washers . . . . . . . . . . . . . . . . . . . . 39Rear Wiper & Washer* . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
AUDIO SYSTEMSBluetooth® Wireless Technology . . . . . . . . . . . . . . . . . 40 Audio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . . 42UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43Kia Access with UVO link App Download . . . . . . . . .44Kia Access with UVO link App Features Guide . . . .44Standard Audio System - Value with UVO link* . . . .45UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . 46
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47Multimedia USB Por t, Power Outlets & USB Charger Por t . . . . . . . . . . . . . . . . . . . . . . . . . . .47Automatic Climate Control . . . . . . . . . . . . . . . . . . . . . . . 48
Wireless Smar tphone Charging System* . . . . . . . . . .50Rotary Dial Shifter Knob – Shift-by-Wire . . . . . . . . . . 51Paddle Shifters* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51AWD (All-Wheel Drive) Lock* . . . . . . . . . . . . . . . . . . . . . 52Idle, Stop & Go (ISG) System* . . . . . . . . . . . . . . . . . . . . . 52Electronic Parking Brake (EPB)* / Auto Hold . . . . . .53Heated Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . .54Seat Warmers/ Ventilated Seats* . . . . . . . . . . . . . . . . .54
SEATINGFront Seat Headrest Adjustment . . . . . . . . . . . . . . . . .55Driver Position Memory System* . . . . . . . . . . . . . . . . .55Power Adjustable Driver ’s Seat / Power Lumbar . .562nd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . .562nd-Row Auto-Folding Seat . . . . . . . . . . . . . . . . . . . . . . 57Unfastening Center Seatbelt . . . . . . . . . . . . . . . . . . . . . 57One-Touch Slide & Fold 2nd-Row Seats . . . . . . . . . . .583rd-Row Folding Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
OTHER KEY FEATURESSunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . . 59Smar t Key* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60Power Liftgate* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61Smar t Liftgate with Auto Open* . . . . . . . . . . . . . . . . . . 62Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63Panoramic Sunroof with Power Sunshade* . . . . . . .63HomeLink® with Auto-Dimming Rearview Mirror . . 64Hood Release Lever and Latch . . . . . . . . . . . . . . . . . . .65Fuel Cap / Malfunction Indicator . . . . . . . . . . . . . . . . .65Fuel Filler Lid Release . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . .66Child-Protector Rear Door Locks* . . . . . . . . . . . . . . . .66Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
MAINTENANCE CHART . . . . . . . . . .Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover

Indicators & Warning Lights
Your vehicle’s instrument cluster & indicator light locations may differ from those in the illustrations . Refer to Section 4 in the Owner ’s Manual for more information .
READY Indicator
EVEV Mode Indicator
Hybrid System Warning Light*
Engine Oil Pressure Warning Light
Malfunction Indicator Light
EPBElectric Parking Brake (EPB) Warning Light*
Seat Belt Warning Light
Light ON Indicator Light
High Beam Indicator Light
Low Beam Indicator Light
Front Fog Light Indicator Light*
High Beam Assist Indicator Light
Parking Brake & Brake Fluid Warning Light
For ward Safet y Warning Light*
All-Wheel Drive (AWD) Warning Light*
All-Wheel Drive (AWD) Lock Indicator Light*
Electronic Power Steering (EPS) Warning Light
Charging System Warning Light*
Airbag Warning Light
Low Fuel Level Warning Light
Immobilizer Indicator Light*
Engine Coolant Temperature Warning Light*
Icy Road Warning Indicator Light*

Low Tire Pressure Light / Tire Pressure Monitoring System (TPMS) Malfunction Indicator Light
Anti-Lock Braking System (ABS) Warning Light
Electronic Stabilit y Control (ESC) OFF Indicator Light
Electronic Stabilit y Control (ESC) Indicator Light
AUTO HOLD Indicator*
Cruise Control Indicator Light*
/Cruise Control ON/SET Indicator Light*
EPB
EVOFF
AUTO
L H
D
EAUTO
HEVF
MPH
km/h0 １60
20
１40
40
１20
60
１00
80
20
40 60
200
2 40
2 80
300
80
１80
１
00 １60
１
20 １40
0
E F
１60
20
１40
40
１20
60
１00
80
MPH
526mi50F°
CHARGE
ECO
POWER
Washer Fluid Warning Light*
Master Warning Light
Electronic Brake Force Distribution (EBD) System Warning Light (t wo separate indicators on Instrument Cluster lit at same time)
Lane Safet y Indicator Light
LED Headlamp Warning Indicator*
Downhill Brake Assist (DBC) Indicator*
SPORT Mode Indicator Light
ECO Mode Indicator Light
SMART Mode Indicator Light
Charging Cable Connection Indicator (Plug-In Hybrid)*
Regenerative Brake Warning Indicator (Two separate indicators on Instrument Cluster lit at same time)
Conventional cluster (Type A)
This illustration is for demonstration purposes only . Some indicators and warning lights may not appear in the illustration . On the vehicle, they may appear in the LCD .
5†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
INSTRUMENT CLUSTERINSTRUMENTCLUSTER

9†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill, shift lever in Park, and with the Engine/Start Stop button in the ON position, select User Settings by pressing the Move (OK) button B up/down .
You can navigate the selections on the display by pressing the Move (OK) button B up/down, and then selecting the item by pressing the OK button B .
Press the OK button B up/down to go back to the previous mode/item .
User Settings mode:
User Settings - Instrument Cluster
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
See section 4 in the Owner ’s Manual for more information .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
Driver Assistance •Driver at tention warning •Speed limit warning •Warning timing •Warning volume •Haptic Warning •For ward safet y •Lane safet y •Blind-spot safet y •Parking safet y
Door* •Automatically lock •Automatically unlock •Two-press unlock •Power liftgate •Power liftgate speed •Power liftgate opening height •Smart liftgate*
Lights* •Illumination •One-touch turn signal •Ambient light brightness •Ambient light color •Headlamp delay •High-beam assist
Sound* •Welcome sound*
Convenience* •Seat easy access •Rear occupant aler t •Welcome mirror/light •Wireless charging system •Auto rear wiper (in R) •Vehicle auto-shut off •Icy road warning
Service Interval •Enable ser vice inter val •Adjust interval •Reset
Other Features •Speedometer unit •Fuel economy unit •Temperature unit •Tire pressure unit
ECO Vehicle* •Coasting guide •Star t coasting
Reset •Reset the menus in the User Set tings mode
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODEA
B
Vehicle Settings* -
Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit C, press the SETUP key on the audio head unit . Then press Vehicle , which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention
Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*, Cluster
Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/ Ventilated Features*, Seat East Access*, Rear Seat Heating Control*
Reset: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
VEHICLE SETTINGS
VEHICLESETTINGS
C

18†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODE
COLLISION WARNING
EMERGENCY BRAKING
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking . Initially, FCA provides Forward Collision Warning (FCW) when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A .
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be turned ON/ OFF by going to the User Settings in
the Instrument Cluster or the Audio Head Unit*
•To go to User Settings , press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance
– In some models, go to Driving Assist, then Forward Collision-Avoidance Assist or Forward Collision Warning and press the OK button C
– In other models, go to Forward Safety and select Active Assist, Warning Only or Off
•Then select one of the following modes:
– Active Assist: Vehicle will provide a warning (audible & visual) and apply the brakes if needed
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings or braking provided
•To adjust the FCA initial warning activation time, go to User Settings , Driver Assistance, Warning Timing then select Normal, Early or Late, depending on your Kia model:
– Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
– L a t e : Reduces the amount of distance between the vehicles before the initial warning occurs
FCA/FCW will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision- Avoidance Assist (FCA)Video
QR CODE

FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
QUICK TIP
Forward Collision-Avoidance Assist (FCA)†5
For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle . Always drive safely and use caution .
Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information . For illustrative purposes only . Your actual display, but tons and/or features may var y .
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
A
B
C
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS

19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Blind-Spot Collision-Avoidance Assist (BCA)†5
REMINDERS:
•
BCW will not issue a warning if the vehicle speed is 6 mph or more above the surrounding vehicles
•
When BCW is ON and the ignition is cycled, BCW returns to its previous state
•
BCW is a supplemental system . Do not rely solely on this system . Always pay at tention to the road and drive safely
The BCA system is not a substitute for safe and proper driving . Always drive safely and use caution . Refer to section 5 in the Owner ’s Manual for more information . The images on this page are for illustrative purposes only and may not reflect actual feature or operation .
BCW uses rear corner radar sensors in the rear bumper to monitor and warn the driver in certain situations if it detects an
approaching vehicle in the driver ’s blind spot area and before changing lanes . Initially, BCA provides Blind-Spot Collision Warning
(BCW) when it detects a potential collision with a vehicle, emitting an audible warning and visual alert on the outside rearview
mirrors . If the system detects that the collision risk has increased, Blind-Spot Collision-Avoidance Assist (BCA) automatically
applies the opposite side front brake to try and mitigate a potential collision .
1st-stage warning: When another vehicle is detected within BCW warning boundary A, an
indicator will illuminate on the outside rearview mirrors B .
2nd-stage warning: When 1st stage warning is on and the driver activates a turn signal, a flashing yellow indicator will illuminate on the outside rearview mirrors and the system will sound a warning .
3rd-stage: When 1st stage warning is on and the 2nd stage warning has already occurred, and the collision risk has increased, braking is applied to the opposite side front wheel and a visual warning occurs .
BCW User Settings:
•To turn BCA on, go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition switch or the Engine Start/Stop button* in the ON position, and select User Settings . Press the Move (OK) button D up/down and select Driver Assistance, Blind-Spot Safety and then press the OK button D
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
To set BCW when in Blind-Spot Safety, select:
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings provided
•
To set the initial warning activation time, go to User Settings , then Driver Assistance, Warning Time and press the OK button D . Adjust the warning timing:
– Early: Maximizes the amount of distance between the vehicles before the initial warning occurs
- Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
– Late: Reduces the amount of distance between the vehicles before the initial warning occurs
•BCW Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume
•BCW will activate when:
– The system is turned on
– Other vehicles are detected on the rear sides of the vehicle
– Vehicle speed is above approximately 20 mph
QUICK TIPS
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot Collision-Avoidance Assist Video
QR CODE
A
B
ADAS
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODEC
D
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)

21ALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS . †LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPED
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODE

You can set a speed limit offset to the posted speed limit by going to User Set tings, Driver Assistance, Speed Limit, then Speed Limit Offset . Set the offset to “0” if you want the vehicle to travel at the detected speed limit, when ISL A is on .
QUICK TIP
Intelligent Speed Limit Assist (ISLA)†5
Intelligent Speed Limit Assist is designed to use the information from the posted speed limit and the navigation system to inform the driver of the speed limit .
When ISL A is on and active, the system will display an alert on the Instrument Cluster LCD of the detected speed limit . If the vehicle’s current speed exceeds the detected speed limit, a warning will sound and the vehicle’s current speed will blink on the LCD .
ISLA User Settings:
To turn ISL A on, press the Mode button C on the Steering Wheel and go to User Settings on the Instrument Cluster LCD . Press the Move (OK) button D up/down and select Driver Assistance by pressing the OK button D, then Intelligent Speed Limit Assist .
Select one of the three modes:
•Speed Limit Assist: Informs the driver of the detected speed limit, display a message change the set speed of the MSL A or SCC to help the driver stay within the posted speed limit
•Speed Limit Warning: Informs the driver of the detected speed limit and warn the driver when the vehicle is traveling faster than the posted speed limit
•Off: MSL A is disabled
REMINDERS:
•
Vehicle must be parked and in a safe location to change the speed set tings
•
Additional information may be displayed if additional road sign information is detected
LKA User Settings:
•
To turn LK A ON, with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* B . The instrument cluster indicator will initially illuminate white indicating the system is on
•To turn LK A on in the user settings, go to the User Settings menu in the Instrument Cluster, press the Mode button C on the Steering Wheel when the vehicle is at a standstill, gear shift in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•To switch between LK A modes (Lane Keep Assist, Lane Departure Warning), go to User Settings in the Instrument Cluster . Press the Move (OK) button D up/down and select desired setting and press the OK button D
REMINDERS:
•
LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
•
Some models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Set tings
Lane Keeping Assist (LKA)†5 (continued)
HOLD
(Located on Panel to the left of the steering wheel)
Lane Keeping Assist and Lane Depar ture Warning are not substitutes for safe driving and may not always aler t the driver if the vehicle is driven outside of its lane . Always drive safely and use caution .
For illustrative purposes only . Your actual display, but tons and/or features may var y . Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .

The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
QUICK TIP
B
C
D
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)

26†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
OK
MODE
OK
MODEMODE
OKOK
OKOK
OKOK
OK
MODE
MODEMODE
MODEMODE
MODEMODE
OK
MODEMODE
D
C
E
The LFA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
QUICK TIP
Lane Following Assist (LFA)*†5
REMINDERS:
•
If the ignition is cycled, LFA returns to its previous state, on or off, if activated in the User Set tings menu . If using the LFA but ton C, then LFA defaults to off
•
LFA is not a substitute for safe and proper driving . Always drive safely and use caution
Lane Following Assist (LFA) is designed to help ensure that the vehicle stays centered in its lane A by monitoring the detected lane markings ahead and adjusting the steering . The instrument cluster indicator will initially illuminate white when turned ON, and on some vehicles . It will remain white when the system does not detect the lane markers . When the system detects the lane markers and can assist the steering, the LFA icon will illuminate green B . When LFA is enabled in the User or Vehicle Settings*, press the LFA button C to turn LFA on or off .
LFA will operate only when these conditions are met:
•LK A recognizes both sides of the lane markers the vehicle is traveling in
•
The vehicle is traveling slower than 95 mph
LFA User Settings:
•To go to User Settings in the Instrument Cluster, press the Mode button D on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position, and select User Settings
•
To enable LFA , when in User Settings, press the Move (OK) button E up/down and Select Driver Assistance then Driving Assist, Select Lane Following Assist . Press the OK button E
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the SETUP hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Settings
•
Some vehicles have a Lane Driving Assist / Lane Safety button* on the Driver ’s Panel or the Steering Wheel . Press to activate Lane Following Assist
(But tons located on steering wheel)
Images are for illustrative purposes only and may not reflect actual feature or operation .
LFA is supplemental . Do not solely rely on this system and always pay at tention to the road and its conditions .
Actual User Set tings steps may var y by model . See section 5 in the Owner ’s Manual for more detailed information, limitations and conditions .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Lane Following Assist (LFA) Video
QR CODE
A
B
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)

29†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOWTERRAIN
P
R
D
N
-PDBUFE
CFMPX
HFBS
TIJGU
LOPC

4VSSPVOE
7JFX
.POJUPS
47.

JT
B
QBSLJOH
TVQQPSU
TZTUFN
UIBU
TIPXT
UIF
BSFBT
BSPVOE
UIF
GSPOU

SFBS

MFGU
BOE
SJHIU
TJEFT
PG
UIF
WFIJDMF
WJB
GPVS
DBNFSBT
EJTQMBZFE
POUP
UIF
BVEJP
IFBE
VOJU
TDSFFO

1SFTT
A to turn SVM ON/OFF .
•
When OFF: The camera view will automatically display on the audio head unit screen when the vehicle is shifted into Reverse . The camera view will turn off when the vehicle is shifted out of Reverse
•
When ON: The camera view will display on the audio head unit screen in both Drive and Reverse . In Drive, the camera view will continue to display until the vehicle is traveling at speeds above approximately 9 mph . If you keep SVM on, the camera view will reappear on the audio head unit screen whenever the vehicle speed drops below approximately 9 mph
The Surround View Monitoring (SVM) is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear .
Images are for illustrative purposes only and may not reflect actual feature or operation .
See section 4 in the Owner ’s Manual for more information .
REMINDERS:
•
The SVM camera is equipped with an optical lens to provide a wider range of vision and may appear different from the actual distance . The Surround View Monitor system is only a supplemental device . Drivers should not rely solely on the SVM information when parking and backing up . Drivers should always pay at tention and directly check the left/right and rear
•
While the SVM is active the volume will be lowered on all audio modes
•
Through normal use and after washing or inclement weather, the rear camera may need cleaning . Use a clean, microfiber cloth to remove any dir t, debris or spots that may have accumulated on the lens .

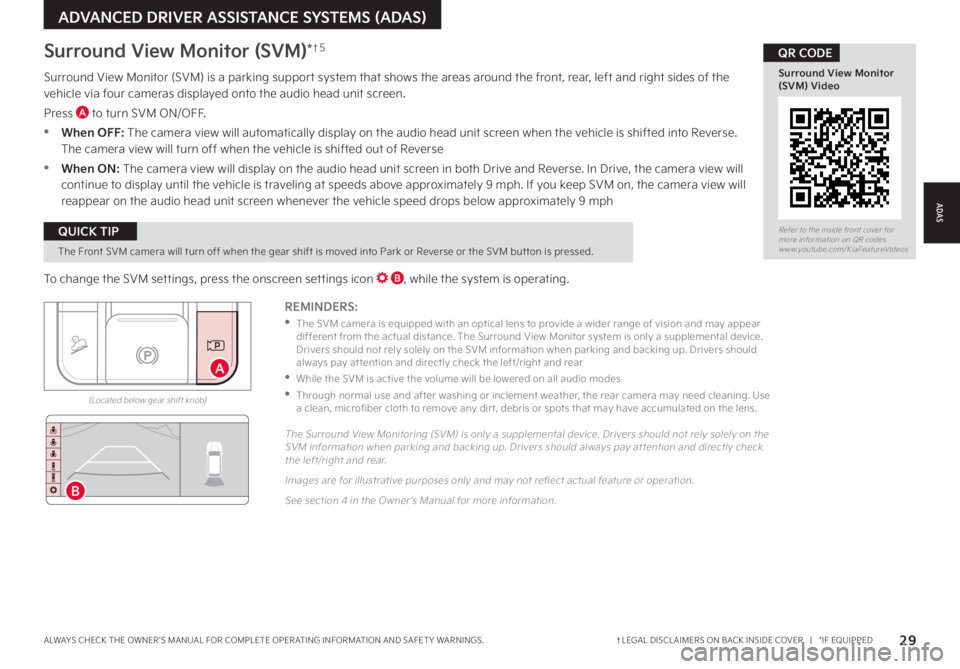

Surround View Monitor (SVM)*†5
To change the SVM settings, press the onscreen settings icon B, while the system is operating .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Surround View Monitor (SVM) Video
QR CODE
The Front SVM camera will turn off when the gear shift is moved into Park or Reverse or the SVM but ton is pressed .
QUICK TIP
B
A
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
