7*IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
VEHICLESETTINGS
VEHICLE SETTINGS
When service is required, the following screens will be displayed:
•Rotate Tire
•Change Engine Oil
To enter Service Interval Mode, press the Mode button A and scroll to User Settings . Then scroll to Service Interval using the Move button B .
To reset or deactivate the Maintenance system reminder, press the Move button B for more than one second . Then toggle to the preference and select by pressing the Move button B .
Service Interval Setting (Type B Steering Wheel)
When in User Settings mode, press the Mode button A to scroll to Service Interval and select by pressing the OK button B .
When in the Service Interval mode, scroll to the menu item and press the OK button B to enter:
•Engine Oil
•Tire
Scroll to your selection and press the OK button B to set .
(Type B cluster)
(Type B shown; located on the right side of the Steering Wheel)
For more information on the User Set tings mode, please refer to your Owner ’s Manual .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
Driving Assistance*:
•Warning Timing*
•Driver Attention Warning*
•Forward Safety*
•Lane Safety*
•Parking Safety*
Lights:
•One Touch Turn Signal
•Headlight Delay
•High Beam Assist (HBA)*
Door:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock*
•Horn Feed Back*
•Smart Trunk*
Language*:
•To select the language
Convenience:
•Rear Occupant Alert*
•Wiper/Light Display*
•Icy road warning*
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Theme Selection*:
•Select the theme for the Instrument Cluster
Other:
•Fuel Economy Auto Reset
•Speed Unit
•Fuel Economy Unit
•Temperature Unit
Reset:
•Reset menus in User Settings
User Settings* (Type B Cluster)
To enter the User Settings mode in the LCD Instrument Cluster modes, press the Mode button A when the vehicle is at a standstill, gear shift is in Park, and with the ignition ON, select User Settings .
You can navigate the selections on the display by toggling the Move/OK button B . Select the item by pressing the OK (Set/Reset) button B .
User Settings Menu:
Service Interval Mode* (Type A Cluster)
MPG030
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
Back
OFF7500 mi
15000 mi Engine Oil
MPG0
30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
MPG0 30
60
INSTFuel
Economy
BackTire Rotation
OFF9000 km
10000 kmBack OFF7500 mi
15000 mi Engine Oil
Set Tire Service Set Oil Service
Notify Later
Maintenance Reset OFF Notify Later
Maintenance Reset OFF
Rotate Tire
Change Engine Oil
Set Alarm
Set Alarm
RESETRESET
Change Engine Oil
Set Alarm
RESET
Set Oil ServiceNotify Later
Maintenance Reset OFF
BackOFF
7500 mi
15000 mi
Engine OilOKRES+
SET-
CANCEL
A
B
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE

ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Check rear seats
: Alarm OffOK
Rear Occupant Alert (ROA) with Door Monitoring†1 1
The Rear Occupant Alert (ROA) with Door Monitoring can help alert the driver when a rear passenger may be left in the vehicle
. The alert will be a message on the Instrument Cluster stating to “Check rear seats” A and a chime will sound .
The factory default is set to OFF . To turn the system ON or OFF, go to User Settings in the Instrument cluster or Vehicle Settings*, on the audio head unit, select Convenience, then Rear Occupant Alert and check/uncheck the box .
REMINDER: Always be sure to check the passenger areas before leaving the vehicle .
When engaged, ROA is not a substitute for one’s at tention . Always check the vehicle’s interior before exiting .
Refer to section 4 in the Owner ’s Manual for more information .
Images are for illustrative purposes only and may not reflect actual feature or operation .Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Rear Occupant Alert (ROA) with Door Monitoring Video
QR CODE
A
14†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE

33†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OTHER KEY FEATURES
OTHER KEY FEATURES
A Press to lock All Doors
B Press to unlock Driver ’s Door . Press twice in 4 seconds to unlock All Doors
C Press and hold to open Trunk . Then lift by the handle
REMINDER: Trunk lid will par tially open . To fully open, lift up manually . The Trunk unlocks when the Smar t Key fob is within close proximit y to the vehicle .
D Press and hold more than 1 second for Panic Alarm . To turn off Alarm, press any button
E Press to release Mechanical Key (on reverse side of fob)
F Mechanical Key
Driver’s Door Lock/Unlock button H:

Press button once to unlock Driver ’s Door
Press again within 4 seconds to unlock All Doors
Mechanical Key: Use to unlock/lock Driver ’s Door:
1 . Pull out door handle
2 .
Remove door handle keyhole cover with Mechanical Key by pressing up into slot as shown I
3 .
Insert Mechanical Key J and turn right to Unlock Driver ’s Door
4 . Turn twice within 4 seconds to Unlock All Doors
5 . Insert Mechanical Key and turn left to Lock All Doors
6 . Return keyhole cover to its original position
Note: Use to unlock trunk, lock glove box* and to turn Child Protector Rear-Door Locks .
(Type B handle shown)
Smart Key*†7
REMINDER: Remote but ton configuration may var y depending on vehicle options .
REMINDER: When reinser ting the mechanical key, make sure it is pushed all the way in until there is a click sound .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information .
HOLDRefer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Kia Smart & Folding Key Fobs Video
QR CODE
A
B
C
I
J
H
F
D
E
•If the Smar t Key bat ter y is weak or not working properly, hold the Smar t Key fob up to the Engine Star t/Stop but ton (Lock but ton side closest) and press to star t engine •The Smar t Key ’s signal can be blocked by the normal operation of a cell phone or smar tphone . To help prevent this, store each device separately
QUICK TIPS

34*IF EQUIPPEDRIO FEATURES & FUNCTIONS GUIDE
OTHER KEY FEATURES
OTHER KEY FEATURES
LockUnlock
(With folding key shown)
(Type A)
HOLD
Remote Keyless Entry (Folding Key)*Fuel Cap / Malfunction Indicator
(Check Engine Light)A Press the release button to unfold the key
B Press to lock all Doors . If pressed again within 4 seconds the hazard lights will blink and the horn will sound .
C Press to unlock Driver ’s Door . Press twice in 4 seconds to unlock all Doors and Trunk/Liftgate*
D Press for more than 1 second to automatically open Trunk/Liftgate*
E Press and hold for approximately one second for Panic Alarm . To turn OFF Alarm, press any button REMINDER: Remote but ton configuration may var y depending on vehicle options .
Refer to section 4 in the Owner ’s Manual for more information .
Door Locks / Double-Turn
Unlock All
•Turn counterclockwise once to unlock Driver ’s Door
•Turn counterclockwise again within 4 seconds to unlock all Doors
•Turn clockwise once to lock all Doors
Refer to section 4 in the Owner ’s Manual for more information .
To install the fuel cap, turn the fuel cap clockwise for ONE CLICK to prevent Malfunction Indicator from illuminating . Close and lightly push the Fuel Filler Lid to ensure it ’s securely closed .
Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
One Click Fuel Cap Video
QR CODE
REMINDERS:
• The Fuel Filler Door Release lever is located on the lower par t of the driver ’s door sill
• It is normal operation when tightening to hear one click and then, when Fuel Cap is released, it clicks
A
B
C
D
E
Fuel Door Release Lever
Pull the lever F upwards to release the fuel door .
(Lever located on the driver ’s floor near door sill; Image shown is 4-door model)
F

37 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
OTHER KEY FEATURES
OTHER KEY FEATURES
For illustrative purposes only . Your actual display, but tons and/or features may var y .

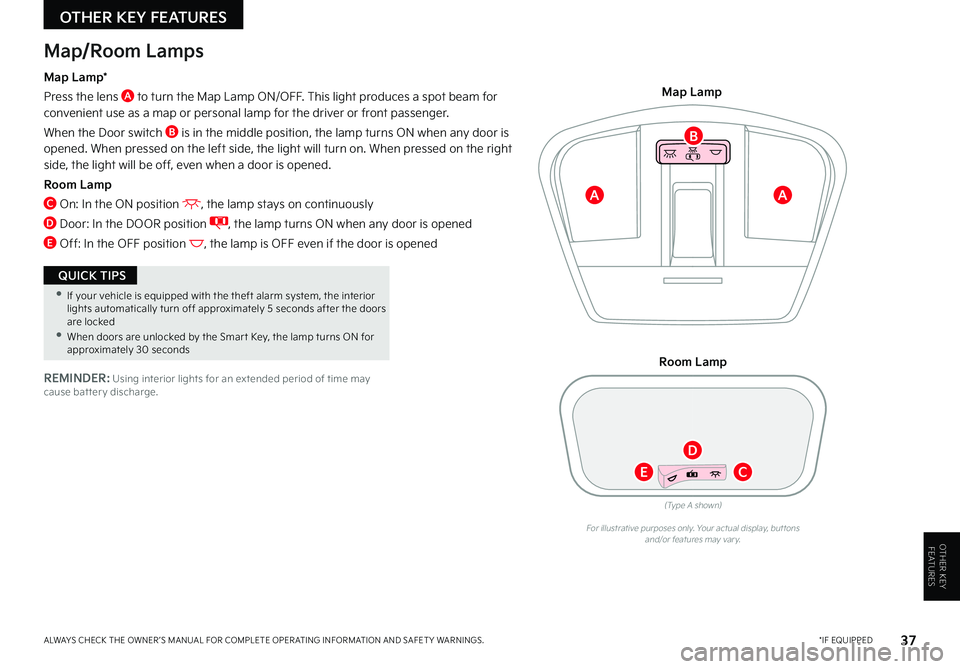

Map Lamp*
Press the lens A to turn the Map Lamp ON/OFF . This light produces a spot beam for convenient use as a map or personal lamp for the driver or front passenger .
When the Door switch B is in the middle position, the lamp turns ON when any door is opened . When pressed on the left side, the light will turn on . When pressed on the right side, the light will be off, even when a door is opened .
Room Lamp
C On: In the ON position , the lamp stays on continuously
D Door: In the DOOR position , the lamp turns ON when any door is opened
E Off: In the OFF position , the lamp is OFF even if the door is opened
REMINDER: Using interior lights for an extended period of time may cause bat ter y discharge .
(Type A shown)
Map Lamp
Room Lamp
Map/Room Lamps
•
If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 5 seconds after the doors are locked •When doors are unlocked by the Smar t Key, the lamp turns ON for approximately 30 seconds
QUICK TIPS
AA
B
CE
D
