2022 KIA NIRO PHEV display

Driving your vehicle
58
5
Emergency Braking (2nd warning)
The warning message appears on
the LCD display with the warning
alarms.
The brake control is maximized just before a collision, reducing
impact when it strikes a forward
vehicle.
- It will operate if the vehicle speedis greater than 5 mph (8 km/h)
and less than or equal to 40 mph
(60 km/h) on a forward vehicle.
(Depending on the condition of
the vehicle ahead and the envi-
ronment surrounding it, the possi-
ble maximum operating speed
may be reduced.) - For pedestrian, the vehicle speed
is greater than or equal to 5 mph
(8 km/h) and less than 40 mph
(60 km/h). (Depending on the
condition of pedestrian and the
surrounding environment the pos-
sible maximum operating speed
may be reduced.)
Forward Collision-Avoidance Assist controls the brakes within
certain limit to release shock from
the collision.
Forward Collision-Avoidance Assist
controls the maximum brakes just
before the collision.
- If you select “Warning Only”,Forward Collision-Avoidance
Assist activates and produces
only warning alarms in accor-
dance with the collision risk levels.
You should control the brake
directly because Forward
Collision-Avoidance Assist do not
control the brake.
Brake operation
In an urgent situation, the braking system enters into the ready status
for prompt reaction to assist the driv-
er in depressing the brake pedal.
Forward Collision-Avoidance Assist provides additional braking
power for optimum braking per-
formance, when the driver
depresses the brake pedal.
The braking control is automatical- ly deactivated, when the driver
sharply depresses the accelerator
pedal, or when the driver abruptly
operates the steering wheel.
The braking control is automatical- ly canceled, when risk factors dis-
appear.
OJF058390L

Driving your vehicle
60
5
✽ ✽
NOTICE
• Be careful not to apply unneces-
sary force on the frontal sensor
area. When the sensor moves out
of the correct position due to
external force, Forward Collision-
Avoidance Assist may not normal-
ly operate even without the warn-
ing light or message. In this case,
have your vehicle inspected by an
authorized Kia dealer.
• Keep the sensor and sensor area clean.
• Be careful not to force to shock on sensor or area. If the sensor is out
of the position by the shock,
Forward Collision-Avoidance
Assist may not normally operate
even without the warning light ON
or message. In this case, have your
vehicle inspected by an authorized
Kia dealer.
• Do not tint the window or install stickers, accessories around the
inside mirror where the front view
camera is installed.
• Make sure the front view camera installation point does not get wet. (Continued)(Continued)
• Do not impact or arbitrarily
remove any front view camera
components.
• Do not place reflective objects(white paper or mirror etc.)
on the crash pad.
Forward Collision-Avoidance
Assist may activate unnecessarily
due to reflect of the sunlight.
• For more cautions for the camera sensor, refer to Lane Keeping
Assist (LKA) in this chapter.
Warning message and warning
light
If the front view camera is covered by
bad weather or foreign objects, dust,
etc., Forward Collision-Avoidance
Assist operation may stop temporari-
ly. If this occurs, a warning message
will appear on the LCD display.
Forward Collision-Avoidance Assist
will operate normally when debris is
removed.
OBDM058129N

561
Driving your vehicle
Forward Collision-Avoidance
Assist malfunction
When Forward Collision-Avoidance Assist is not working
properly, Forward Collision-
Avoidance Assist warning light
( ) will illuminate and the warn-
ing message will appear for a few
seconds. After the message disap-
pears, the master warning light
( ) will illuminate. In this case,
have your vehicle inspected by an
authorized Kia dealer.
The Forward Collision-Avoidance Assist warning message may
appear along with the illumination
of the ESC warning light.
WARNING
Forward Collision-Avoidance
Assist may not activate without
any warning messages accord-
ing to driving condition, traffic
on the road, weather, road con-
dition, etc.
OJF058394L
WARNING
Forward Collision-AvoidanceAssist is only a supplemental
function for the driver’s con-
venience. The driver should
hold the responsibility to con-
trol the vehicle operation. Do
not solely depend on Forward
Collision-Avoidance Assist.
Rather, maintain a safe braking
distance, and, if necessary,
depress the brake pedal to
lower the driving speed.
In certain instances and under certain driving conditions,
Forward Collision-Avoidance
Assist may activate uninten-
tionally. This initial warning
message appears on the LCD
display with a warning chime.
Also, in certain instances the
front radar sensor or front view
camera recognition function
may not detect the vehicle or
pedestrian ahead. Forward
Collision-Avoidance Assist may
not activate and the warning
message will not be displayed.
(Continued)

571
Driving your vehicle

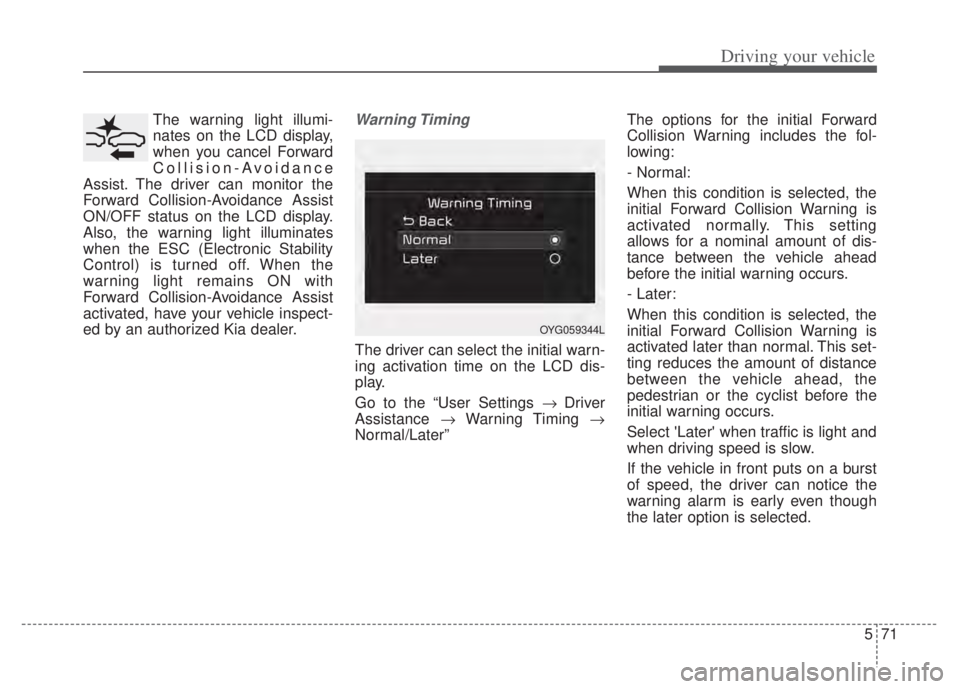

The warning light illumi-
nates on the LCD display,
when you cancel Forward
Collision-Avoidance
Assist. The driver can monitor the
Forward Collision-Avoidance Assist
ON/OFF status on the LCD display.
Also, the warning light illuminates
when the ESC (Electronic Stability
Control) is turned off. When the
warning light remains ON with
Forward Collision-Avoidance Assist
activated, have your vehicle inspect-
ed by an authorized Kia dealer.Warning Timing
The driver can select the initial warn-
ing activation time on the LCD dis-
play.
Go to the “User Settings Driver
Assistance Warning Timing 
Normal/Later” The options for the initial Forward
Collision Warning includes the fol-
lowing:
- Normal:
When this condition is selected, the
initial Forward Collision Warning is
activated normally. This setting
allows for a nominal amount of dis-
tance between the vehicle ahead
before the initial warning occurs.
- Later:
When this condition is selected, the
initial Forward Collision Warning is
activated later than normal. This set-
ting reduces the amount of distance
between the vehicle ahead, the
pedestrian or the cyclist before the
initial warning occurs.
Select 'Later' when traffic is light and
when driving speed is slow.
If the vehicle in front puts on a burst
of speed, the driver can notice the
warning alarm is early even though
the later option is selected.
OYG059344L

Driving your vehicle
72
5
✽ ✽

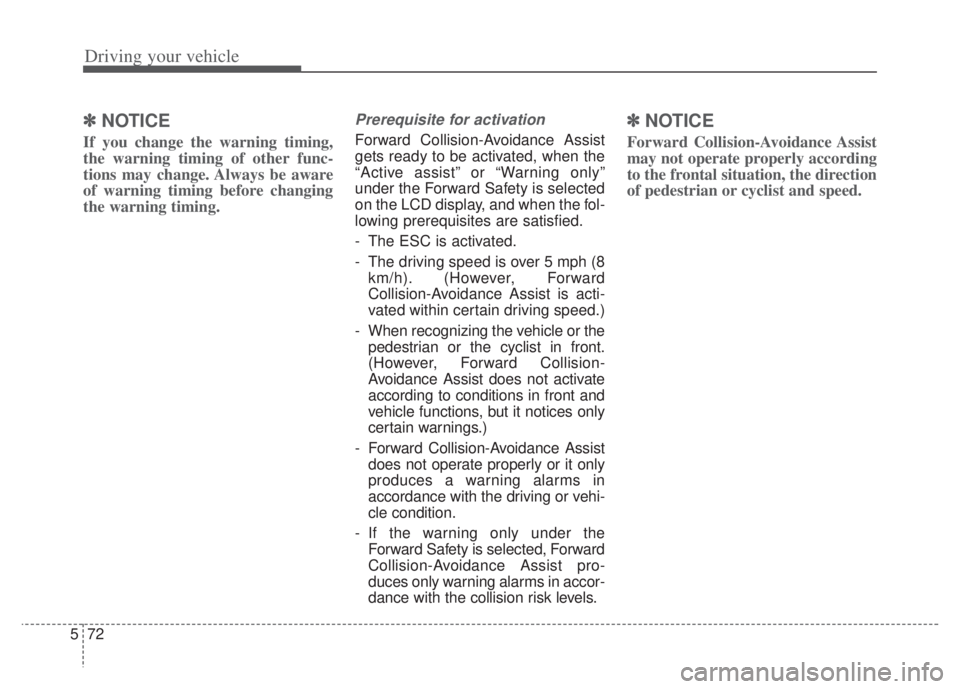

NOTICE
If you change the warning timing,
the warning timing of other func-
tions may change. Always be aware
of warning timing before changing
the warning timing.
Prerequisite for activation
Forward Collision-Avoidance Assist
gets ready to be activated, when the
“Active assist” or “Warning only”
under the Forward Safety is selected
on the LCD display, and when the fol-
lowing prerequisites are satisfied.
- The ESC is activated.
- The driving speed is over 5 mph (8
km/h). (However, Forward
Collision-Avoidance Assist is acti-
vated within certain driving speed.)
- When recognizing the vehicle or the pedestrian or the cyclist in front.
(However, Forward Collision-
Avoidance Assist does not activate
according to conditions in front and
vehicle functions, but it notices only
certain warnings.)
- Forward Collision-Avoidance Assist does not operate properly or it only
produces a warning alarms in
accordance with the driving or vehi-
cle condition.
- If the warning only under the Forward Safety is selected, Forward
Collision-Avoidance Assist pro-
duces only warning alarms in accor-
dance with the collision risk levels.
✽ ✽ NOTICE
Forward Collision-Avoidance Assist
may not operate properly according
to the frontal situation, the direction
of pedestrian or cyclist and speed.

573
Driving your vehicle
Forward Collision-Avoidance
Assist warning message and
function control
Forward Collision-Avoidance Assist
produces warning messages and
warning alarms in accordance with
the collision risk levels of followings
like vehicle’s sudden braking in front
or lack of vehicle distance or collision
to pedestrian or cyclist. Also, it con-
trols the brakes in accordance with
the collision risk levels.The driver can select the initial warn-
ing activation time in the User set-
tings in the LCD display. The
options for the initial Forward
Collision Warning include Normal or
Late initial warning time.
Collision Warning (1st warning)
The warning message appears on the LCD display with the warning
alarms.
The Vehicle may slow down slightly - It will operate if the vehicle speedis greater than 5 mph (8 km/h)
and less than or equal to 110
mph (180 km/h) on a forward
vehicle. (Depending on the condi-
tion of the vehicle ahead and the
environment surrounding it, the
possible maximum operating
speed may be reduced.)
WARNING
Completely stop the vehicle in a safe location before operat-
ing the switch on the steering
wheel to activate/deactivate
Forward Collision-Avoidance
Assist.
Forward Collision-Avoidance Assist automatically activates
upon placing the ignition
switch to the ON position. The
driver can deactivate Forward
Collision-Avoidance Assist by
canceling the function setting
on the LCD display or
Infotainment System screen.
Forward Collision-Avoidance Assist automatically deacti-
vates upon canceling the ESC.
When the ESC is canceled,
Forward Collision-Avoidance
Assist cannot be activated on
the LCD display or Infotainment
System screen.
Forward Collision-Avoidance
Assist warning light will illu-
minate, which is normal.
OJF058389L

Driving your vehicle
74
5
- For pedestrian and cyclist, the
vehicle speed is greater than or
equal to 5 mph (8 km/h) and less
than 45 mph (70 km/h).
(Depending on the condition of
pedestrian and bike riders and
the surrounding environment the
possible maximum operating
speed may be reduced.)
Forward Collision-Avoidance Assist controls the brakes within certain
limit to release shock from the colli-
sion.
- If you select “Warning Only”,Forward Collision-Avoidance
Assist activates and produces
only warning alarms in accor-
dance with the collision risk lev-
els. You should control the brake
directly because Forward
Collision-Avoidance Assist do not
control the brake.Emergency Braking (2nd warning)
The warning message appears on the LCD display with the warning
alarms.
The brake control is maximized just before a collision, reducing
impact when it strikes a forward
vehicle.
- It will operate if the vehicle speedis greater than 5 mph (8 km/h)
and less than or equal to 50 mph
(80 km/h) on a forward vehicle.
(Depending on the condition of
the vehicle ahead and the envi-
ronment surrounding it, the possi-
ble maximum operating speed
may be reduced.) - For pedestrian and cyclist, the
vehicle speed is greater than or
equal to 5 mph (8 km/h) and less
than 45 mph (70 km/h).
(Depending on the condition of
pedestrian and bike rider and the
surrounding environment the pos-
sible maximum operating speed
may be reduced.)
Forward Collision-Avoidance Assist controls the brakes within
certain limit to release shock from
the collision.
Forward Collision-Avoidance
Assist controls the maximum
brakes just before the collision.
- If you select “Warning Only”,Forward Collision-Avoidance
Assist activates and produces
only warning alarms in accor-
dance with the collision risk lev-
els. You should control the brake
directly because Forward
Collision-Avoidance Assist do not
control the brake.
OJF058390L

Driving your vehicle
78
5
WARNING
Forward Collision-Avoidance
Assist is only a supplemental
function for the driver’s con-
venience. The driver has the
ultimate responsibility to con-
trol and operate the vehicle
safely. Do not solely depend on
Forward Collision-Avoidance
Assist. Rather, maintain a safe
braking distance, and, if neces-
sary, depress the brake pedal
to lower the driving speed.
In certain instances and under certain driving conditions,
Forward Collision-Avoidance
Assist may activate uninten-
tionally. This initial warning
message appears on the LCD
display with a warning chime.
(Continued)
(Continued)Also, in certain instances the
front view camera or front
radar recognition function may
not detect the vehicle, pedestri-
an or cyclist (if equipped)
ahead. Forward Collision-
Avoidance Assist may not acti-
vate and the warning message
will not be displayed.
Forward Collision-Avoidance Assist may unnecessarily pro-
duce the warning message
and the warning alarms. Also,
due to the sensing limitation,
Forward Collision-Avoidance
Assist may not produce the
warning message and the
warning alarm at all.
When there is a malfunction with Forward Collision-
Avoidance Assist, the braking
control does not operate upon
detecting a collision risk even
with other braking systems
normally operating.
(Continued)(Continued)
Forward Collision-AvoidanceAssist operates only for the
vehicle/pedestrian in front, while
driving forward. It does not oper-
ate for any animals or vehicles
in the opposite direction.
Forward Collision-Avoidance Assist does not recognize the
vehicle, which transversally
drives across the crossroad,
or the vehicle, which is parked
in the transversal direction.
If the vehicle in front stops suddenly, you may have less
control of the brake system.
Therefore, always keep safe
distance between your vehicle
and the vehicle in front of you.
Forward Collision-Avoidance Assist may activate during
braking and the vehicle may
stop suddenly. And the load in
the vehicle may endanger pas-
sengers. Therefore, always be
mindful of the load volume in
the vehicle.
(Continued)
