2022 KIA NIRO HYBRID EV center console

25
Your vehicle at a glance
INSTRUMENT PANEL OVERVIEW
1. Steering wheel audio controls .......Refer to
"Car Infotainment System Quick Reference
Guide".
2. Driver`s front air bag ...........................3-62
3. Horn.....................................................4-52
4. Instrument cluster ................................4-68
5. Wiper and washer control lever
(Right) ................................................4-139
6. Lighting control lever (Left) ................4-132
7. Ignition switch........................................5-7
ENGINE START/STOP button .............5-11
8. Driving Assist button .........................5-103
9. Infotainment system...............Refer to "Car
Infotainment System Quick Reference
Guide".
10. Hazard warning flasher .......................6-2
11. Climate control system ....................4-148
12. Shift lever DCT ..................................5-16
13. Front seat warmer ...........................4-170
Front air ventilation seat ..................4-172
14. Heated steering wheel button ...........4-51
15. Changing plug-in hybrid mode button..intro
16. Parking Distance Warning Off
button/Parking Safety button..4-123, 4-127
17. Smart phone wireless charger ........4-176
18. Center console storage box ............4-167
19. Power outlet.....................................4-173
20. USB charger ....................................4-174
21. Glove box ........................................4-167
22. Passenger`s front air bag ..................3-62
23. USB port..........................................4-185
24. AC inverter ......................................4-175
ODEP011004CF❈The actual shape may differ from the illustration.

Safety features of your vehicle
6 3

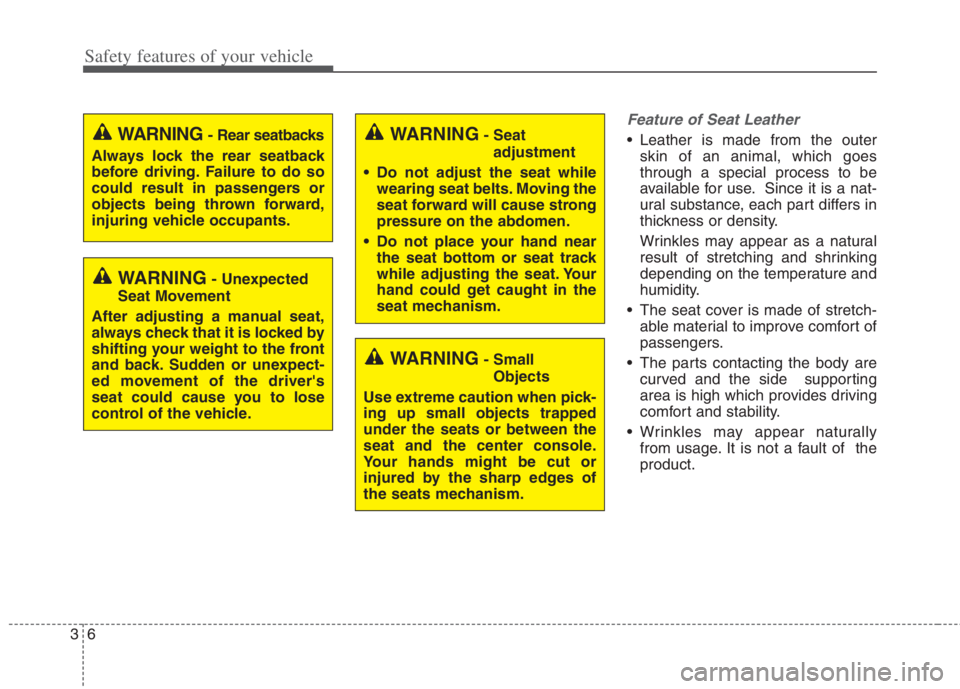

Feature of Seat Leather
Leather is made from the outer
skin of an animal, which goes
through a special process to be
available for use. Since it is a nat-
ural substance, each part differs in
thickness or density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.
The seat cover is made of stretch-
able material to improve comfort of
passengers.
The parts contacting the body are
curved and the side supporting
area is high which provides driving
comfort and stability.
Wrinkles may appear naturally
from usage. It is not a fault of the
product.
WARNING- Unexpected
Seat Movement
After adjusting a manual seat,
always check that it is locked by
shifting your weight to the front
and back. Sudden or unexpect-
ed movement of the driver's
seat could cause you to lose
control of the vehicle.
WARNING - Rear seatbacks
Always lock the rear seatback
before driving. Failure to do so
could result in passengers or
objects being thrown forward,
injuring vehicle occupants.WARNING- Seat
adjustment
Do not adjust the seat while
wearing seat belts. Moving the
seat forward will cause strong
pressure on the abdomen.
Do not place your hand near
the seat bottom or seat track
while adjusting the seat. Your
hand could get caught in the
seat mechanism.
WARNING- Small
Objects
Use extreme caution when pick-
ing up small objects trapped
under the seats or between the
seat and the center console.
Your hands might be cut or
injured by the sharp edges of
the seats mechanism.

355
Safety features of your vehicle

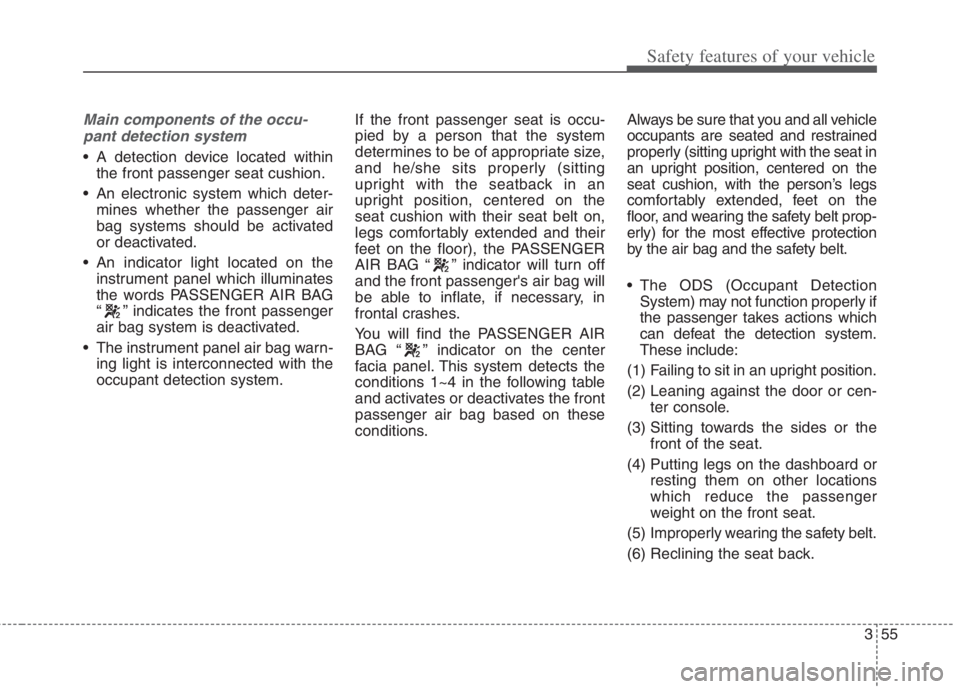

Main components of the occu-
pant detection system
A detection device located within
the front passenger seat cushion.
An electronic system which deter-
mines whether the passenger air
bag systems should be activated
or deactivated.
An indicator light located on the
instrument panel which illuminates
the words PASSENGER AIR BAG
“ ” indicates the front passenger
air bag system is deactivated.
The instrument panel air bag warn-
ing light is interconnected with the
occupant detection system.If the front passenger seat is occu-
pied by a person that the system
determines to be of appropriate size,
and he/she sits properly (sitting
upright with the seatback in an
upright position, centered on the
seat cushion with their seat belt on,
legs comfortably extended and their
feet on the floor), the PASSENGER
AIR BAG “ ” indicator will turn off
and the front passenger's air bag will
be able to inflate, if necessary, in
frontal crashes.
You will find the PASSENGER AIR
BAG “ ” indicator on the center
facia panel. This system detects the
conditions 1~4 in the following table
and activates or deactivates the front
passenger air bag based on these
conditions.Always be sure that you and all vehicle
occupants are seated and restrained
properly (sitting upright with the seat in
an upright position, centered on the
seat cushion, with the person’s legs
comfortably extended, feet on the
floor, and wearing the safety belt prop-
erly) for the most effective protection
by the air bag and the safety belt.
The ODS (Occupant Detection
System) may not function properly if
the passenger takes actions which
can defeat the detection system.
These include:
(1) Failing to sit in an upright position.
(2) Leaning against the door or cen-
ter console.
(3) Sitting towards the sides or the
front of the seat.
(4) Putting legs on the dashboard or
resting them on other locations
which reduce the passenger
weight on the front seat.
(5) Improperly wearing the safety belt.
(6) Reclining the seat back.

4167
Features of your vehicle

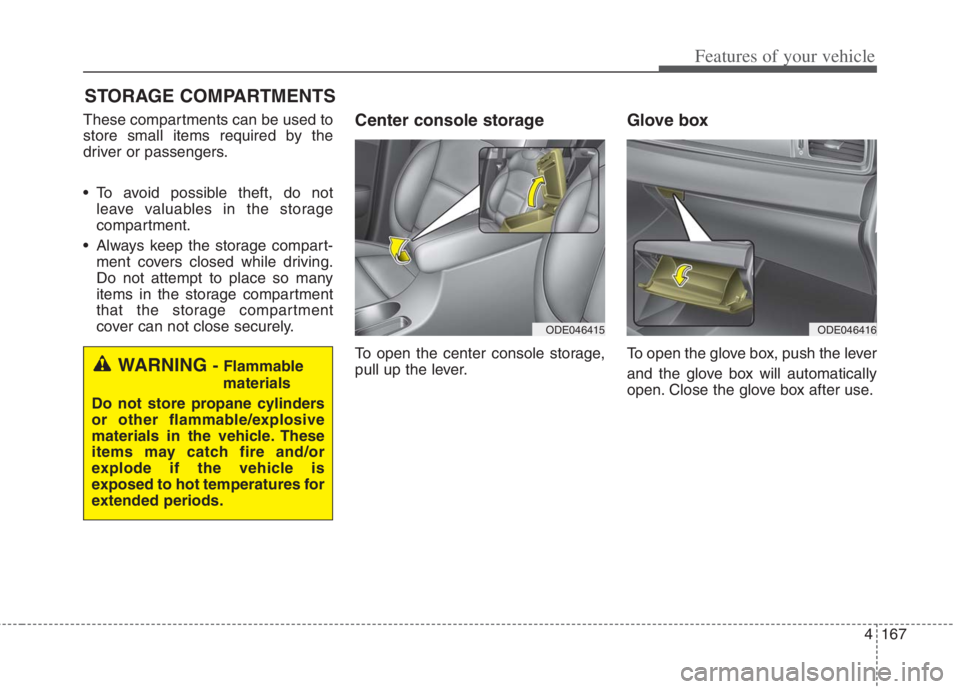

STORAGE COMPARTMENTS
These compartments can be used to
store small items required by the
driver or passengers.
To avoid possible theft, do not
leave valuables in the storage
compartment.
Always keep the storage compart-
ment covers closed while driving.
Do not attempt to place so many
items in the storage compartment
that the storage compartment
cover can not close securely.Center console storage
To open the center console storage,
pull up the lever.
Glove box
To open the glove box, push the lever
and the glove box will automatically
open. Close the glove box after use.WARNING - Flammable
materials
Do not store propane cylinders
or other flammable/explosive
materials in the vehicle. These
items may catch fire and/or
explode if the vehicle is
exposed to hot temperatures for
extended periods.
ODE046416ODE046415

I9
Index

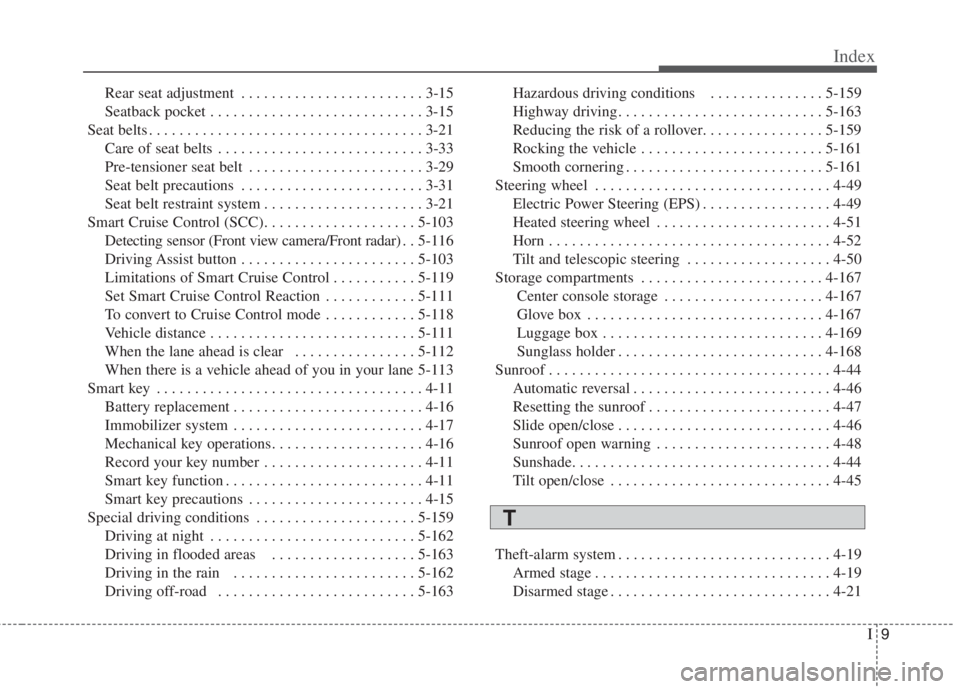

Rear seat adjustment . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Seatback pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-15
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-21
Care of seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-33
Pre-tensioner seat belt . . . . . . . . . . . . . . . . . . . . . . . 3-29
Seat belt precautions . . . . . . . . . . . . . . . . . . . . . . . . 3-31
Seat belt restraint system . . . . . . . . . . . . . . . . . . . . . 3-21
Smart Cruise Control (SCC). . . . . . . . . . . . . . . . . . . . 5-103
Detecting sensor (Front view camera/Front radar) . . 5-116
Driving Assist button . . . . . . . . . . . . . . . . . . . . . . . 5-103
Limitations of Smart Cruise Control . . . . . . . . . . . 5-119
Set Smart Cruise Control Reaction . . . . . . . . . . . . 5-111
To convert to Cruise Control mode . . . . . . . . . . . . 5-118
Vehicle distance . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-111
When the lane ahead is clear . . . . . . . . . . . . . . . . 5-112
When there is a vehicle ahead of you in your lane 5-113
Smart key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Battery replacement . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Immobilizer system . . . . . . . . . . . . . . . . . . . . . . . . . 4-17
Mechanical key operations. . . . . . . . . . . . . . . . . . . . 4-16
Record your key number . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key function . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Smart key precautions . . . . . . . . . . . . . . . . . . . . . . . 4-15
Special driving conditions . . . . . . . . . . . . . . . . . . . . . 5-159
Driving at night . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-162
Driving in flooded areas . . . . . . . . . . . . . . . . . . . 5-163
Driving in the rain . . . . . . . . . . . . . . . . . . . . . . . . 5-162
Driving off-road . . . . . . . . . . . . . . . . . . . . . . . . . . 5-163Hazardous driving conditions . . . . . . . . . . . . . . . 5-159
Highway driving . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-163
Reducing the risk of a rollover. . . . . . . . . . . . . . . . 5-159
Rocking the vehicle . . . . . . . . . . . . . . . . . . . . . . . . 5-161
Smooth cornering . . . . . . . . . . . . . . . . . . . . . . . . . . 5-161
Steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-49
Electric Power Steering (EPS) . . . . . . . . . . . . . . . . . 4-49
Heated steering wheel . . . . . . . . . . . . . . . . . . . . . . . 4-51
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-52
Tilt and telescopic steering . . . . . . . . . . . . . . . . . . . 4-50
Storage compartments . . . . . . . . . . . . . . . . . . . . . . . . 4-167
Center console storage . . . . . . . . . . . . . . . . . . . . . 4-167
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-167
Luggage box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-169
Sunglass holder . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-168
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Automatic reversal . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Resetting the sunroof . . . . . . . . . . . . . . . . . . . . . . . . 4-47
Slide open/close . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-46
Sunroof open warning . . . . . . . . . . . . . . . . . . . . . . . 4-48
Sunshade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-44
Tilt open/close . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-45
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Armed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Disarmed stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
