2022 KIA NIRO EV turn signal

2†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
VIDEOS & QR CODES . . Inside Front Cover
INSTRUMENT CLUSTERInstrument Cluster Overview . . . . . . . . . . . . . . . . . . . . 03Indicators & Warning Lights . . . . . . . . . . . . . . . . . . . . . . 04Electric Vehicle (EV) Indicators . . . . . . . . . . . . . . . . . . . 05Energy Consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05Charge Warning Messages on LCD Display . . . . . . . 06Tire Pressure Monitoring System (TPMS) . . . . . . . . . 08Drive Mode Integrated Control System . . . . . . . . . . . 12
VEHICLE SETTINGSLCD Instrument Cluster Modes . . . . . . . . . . . . . . . . . . 09Trip Modes / Trip Computer . . . . . . . . . . . . . . . . . . . . . . 09User Set tings – Instrument Cluster . . . . . . . . . . . . . . . 10Vehicle Set tings* – Audio Head Unit . . . . . . . . . . . . . . . 11Service Interval Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
ELECTRIC VEHICLE (EV) FEATURESCharging Connector Auto/Lock Mode . . . . . . . . . . . . 13Scheduled Charging* . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13Charging Your Electric Vehicle . . . . . . . . . . . . . . . . . . . 14EV Mode - UVO link with Navigation* . . . . . . . . . . . . . 16Regenerative Braking with Paddle Shifters . . . . . . . 18
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)Blind-Spot Collision-Avoidance Warning (BCW) . . . 19Rear Cross-Traffic Collision Warning (RCCW) . . . . . 19Lane Keeping Assist (LK A) . . . . . . . . . . . . . . . . . . . . . . . 20Lane Following Assist (LFA) . . . . . . . . . . . . . . . . . . . . . . 22Forward Collision-Avoidance Assist (FCA) . . . . . . . . 23Highway Driving Assist (HDA)* . . . . . . . . . . . . . . . . . . . 24Leading Vehicle Depar ture Aler t (LVDA) . . . . . . . . . . 25Smar t Cruise Control (SCC) with Stop & Go* . . . . . . 26Navigation-based Smar t Cruise Control - (NSCC)* 27Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27Driver At tention Warning (DAW)* . . . . . . . . . . . . . . . . . 28Rear Occupant Aler t (ROA) with Door Monitoring . 29Reverse Parking Distance Warning (PDW)* . . . . . . .30 Rear View Monitor (RVM) . . . . . . . . . . . . . . . . . . . . . . . .30
DRIVER’S PANELInstrument Cluster Control . . . . . . . . . . . . . . . . . . . . . . . 31Electronic Stability Control (ESC) . . . . . . . . . . . . . . . . . 31Hill-Star t Assist Control (HAC) . . . . . . . . . . . . . . . . . . . . 31Power But ton . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32Power Windows, Window Lock & Central Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Automatic Door Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33Power/Heated Outside Mirrors . . . . . . . . . . . . . . . . . . . 33Power Folding Outside Mirrors . . . . . . . . . . . . . . . . . . . 33
STEERING WHEEL CONTROLSHeadlights & High Beams . . . . . . . . . . . . . . . . . . . . . . . . 34Turn Signals & Fog Lights* . . . . . . . . . . . . . . . . . . . . . . . 35Tilt/Telescoping Steering Wheel . . . . . . . . . . . . . . . . . . 35Windshield/Rear Wipers & Washers . . . . . . . . . . . . . . 36
AUDIO SYSTEMSAudio Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37Bluetooth® Wireless Technology . . . . . . . . . . . . . . . . .38Android Auto™ / Apple CarPlay® Setup . . . . . . . . . . .40UVO link Activation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41UVO Assistance* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41Kia Access with UVO link App Download . . . . . . . . . 42Kia Access with UVO link App Features Guide . . . . 42UVO link with Navigation* . . . . . . . . . . . . . . . . . . . . . . . 43
CENTER PANELDigital Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44USB Charger Por ts* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44Multimedia USB Por ts & Power Outlets* . . . . . . . . . . 44Wireless Smar tphone Charging System* . . . . . . . . . . 45Automatic Climate Control . . . . . . . . . . . . . . . . . . . . . . . 46Rotary Dial Shifter Knob . . . . . . . . . . . . . . . . . . . . . . . . . 47Heated Steering Wheel But ton* . . . . . . . . . . . . . . . . . . 47Electronic Parking Brake (EPB) . . . . . . . . . . . . . . . . . . . 48Auto Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Seat Warmers / Ventilated Seats* . . . . . . . . . . . . . . . . 49
SEATINGFront Seat Headrest Adjustment . . . . . . . . . . . . . . . . . 50Power Adjustable Driver ’s Seat* . . . . . . . . . . . . . . . . . . 50Folding Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
OTHER KEY FEATURESHood Release Lever and Latch . . . . . . . . . . . . . . . . . . . 52Sunvisor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52Smar t Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53Double-Turn Lock/Unlock All . . . . . . . . . . . . . . . . . . . . 53Map/Room Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Sunroof Operation* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54Liftgate Release But ton* . . . . . . . . . . . . . . . . . . . . . . . . .55Child-Protector Rear Door Lock . . . . . . . . . . . . . . . . . .55Tire Mobility Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
SAFETY FEATURESOccupant Detection System (ODS) / Passenger Airbag Off Indicator . . . . . . . . . . . . . . . . 56Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
MAINTENANCE CHART . . . . . . . . . Back Cover
LEGAL DISCLAIMERS . . Inside Back Cover
TABLE OF CONTENTS

11 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODEUser Settings - Instrument Cluster
To enter the User Settings mode in the LCD Instrument Cluster Modes, press the Mode button A when the vehicle is at a standstill, Rotary Dial Shifter Knob in Park while the Engine Start/Stop button is in the ON position . Then select User Settings by pressing the Move/Reset (OK) button .
You can navigate the selections on the display by pressing the OK button B up/down, and then selecting the item by pressing the OK button B again .
Driver Assistance:
•Lane Safety
•Driver Attention Warning (DAW)
•Smart Cruise Control (SCC) Reaction
•Leading Vehicle Departure Alert
•Lane Following Assist
•Highway Driving Assist
•Highway Auto Curve Slowdown
•Forward Collision-Avoidance Assist
•Forward Collision Warning
•Blind-Spot Collision Warning Sound
•Rear Cross-Traffic Collision Warning
Door:
•Automatically Lock
•Automatically Unlock
•Two Press Unlock
Lights:
•One Touch Turn Signal
•Ambient Light Brightness
•Ambient Light Color
Sound:
•Parking Distance Warning-Forward Volume*
Convenience:
•Utility Mode
•Rear Occupant Alert
•Welcome Mirror/Light
•Wireless Charging System*
•Wiper/Lights Display*
•Auto Rear Wiper
•Smart Regeneration
•Icy Road Warning
Service Interval:
•Enable Service Interval
•Adjust Interval
•Reset
Other features:
•Aux . Battery Saver+
•Energy Consumption Reset
•Temperature Unit
•Tire Pressure Unit
Reset:
•Choosing reset will restore defaults for all User Settings menus
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
(But tons located on Steering Wheel – Type B)
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
A
B
VEHICLE SETTINGS
VEHICLESETTINGS

12*IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Vehicle & User Settings Video
Ambient, Mood & Theme Lighting Video
QR CODE
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
(But tons located on Steering Wheel – Type B)
Service in
Off
Service Required
0000mi.
0000mi.
B
C
Driving while distracted is dangerous and should be avoided . Do not at tempt to change vehicle system set tings while driving .
VEHICLE SETTINGS
VEHICLESETTINGS
Vehicle Settings* - Audio Head Unit
To enter the Vehicle Settings mode in the audio head unit A, press the SETUP hard key on the audio head unit . Then press Vehicle onscreen, which will take you to Vehicle Settings . Use the touchscreen to navigate through the menus .
Vehicle Settings:
Driver Assistance*: Driving Convenience*, Warning Time*, Warning Volume*, Driver Attention Warning*, Forward Safety*, Lane Safety*, Blind-Spot Safety*, Parking Safety*
Drive Mode: Drive Mode Alert*
Climate*: Recirculate Air*, Automatic Ventilation*, Defog/Defrost Options*, Climate Features*
Lights*: Ambient Light*, One Touch Turn Signal*, Headlight Display*, High Beam Assist*
Door*: Auto Lock*, Auto Unlock*, Walk-Away Lock*, Two-Press Unlock*, Smart Trunk*
Cluster*: Service Interval*, Energy Consumption Reset*, Content Selection*, Cluster Voice Guidance Volume*, Welcome Sound*, Theme Selection*
Convenience*: Rear Occupant Alert*, Welcome Mirror Light*, Wireless Charging System*, Vehicle Auto-Shut Off*
Seat*: Seat Position Change Alert*, Smart Posture Care*, Heated/Ventilated Features*, Seat Easy Access*, Rear Seat Heating Control*
Reset*: Reset Vehicle Settings to Factory Defaults
12:00 AM Jan. 1MenuVehicle SettingsDriving Convenience
Drive Mode
Climate
LightsDriver
AssistanceWarning TimingLateWarning VolumeOffDriver Attention Warning
A
Service Interval Mode
To enter Service Interval mode, press the Mode button B, User Settings , then scroll to Service Interval Mode and press the OK button C . The system will display the number of miles remaining until next service is due, as well as type of service .
When service is required, the following will be displayed: Service Required
To reset the Service Interval mode system, press and hold the OK button C for more than 1 second .
To turn the Service In message off, go to User Settings .
Service Interval Setting
To set the service interval when in User Settings mode:
•Press the OK button C up/down and scroll to Service Interval . Press the OK button C to enter
•Press the OK button C up/down and toggle to ON, then press the OK button C again . Then
press the OK button C to scroll and select the desired miles or months for your next service
•Press the OK button C again

19†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Blind-Spot Collision Warning with Lane Change Assist Video
QR CODEBlind-Spot Collision Warning (BCW)*†4
The BCW system uses radar sensors to help alert the driver if it detects an approaching vehicle in the driver ’s blind spot before changing lanes . The light on the BCW button A will illuminate when turned ON . The outside rearview mirror warning lights will also illuminate for 3 seconds .
The system will become active when the vehicle is traveling more than approximately 20 mph and will alert the driver if another vehicle is detected by the radar sensor .
1st-stage alert: When another vehicle is detected within the BCW boundary B, or when a vehicle is detected within the Lane Change Assist (LCA) boundary C, a yellow indicator will illuminate on the outside rearview mirrors .
2nd-stage alert: When 1st-stage alert is on and the driver activates a turn signal,
a flashing yellow indicator will illuminate on the outside rearview mirrors and the system will sound an alert .
Rear Cross-Traffic Collision Warning (RCCW)*†4
If the RCCW system sensors detect approaching vehicles from the left or right side D, the system will sound an audible alert, the warning indicators on the outside rearview mirror will illuminate, and a message will appear on the LCD screen, if the following conditions are met:
•When Rotary Dial Shifter Knob is in Reverse
•When the vehicle is moving slower than 6 mph
•When the vehicle moves in reverse from a parked position
REMINDERS:
•If the BCW is turned ON/OFF and the ignition is cycled, the BCW system returns to ON/OFF
•The RCCW feature can be turned OFF/ON in User Set tings
•
The BCA and RCCW Warning Volume can be adjusted in the Vehicle Set tings on the audio head unit . Adjusting this volume set ting may also change other Driver Assistance systems’ volume set ting
REMINDER: The above images are for illustration purposes only and may not reflect actual operation .
AUTO
OFF
#VU UPOT
BSF
MPDBUFE
MFGU
PG
UIF
4UFFSJOH
8IFFM

5IF
#$8
BOE
3$$8
TZTUFNT
BSF
TVQQMFNFOUBM
TZTUFNT

%P
OPU
SFMZ
TPMFMZ
PO
UIFTF
TZTUFNT
BOE
BMXBZT
ESJWF
TBGFMZ
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO

AUTO
OFF
A
B
C
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
D

21†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
LKA User Settings:
•
To turn LK A ON, with the ignition on or the Engine Start/Stop button* in the ON position, press the Lane Safety/LK A button* A . The instrument cluster indicator will initially illuminate white indicating the system is on
•To turn LK A on in the user settings, go to the User Settings menu in the
Instrument Cluster, press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the
Engine Start/Stop button* in the ON position, and select User Settings
•To switch between LK A modes (Lane Keeping Assist, Lane Departure Warning,
Off), go to User Settings in the Instrument Cluster . Press the Move (OK)
button C up/down, select desired setting and press the OK button C
REMINDERS:
•LK A will not issue a warning if the turn signals or hazard lights are activated
•
When the ignition is cycled, LK A will return to the previously set state
•
Some models access set tings through the Vehicle Set tings in the audio head unit . Press the Setup hard key on the audio head unit, then VEHICLE on the screen to enter Vehicle Set tings
(But tons are located left of the Steering Wheel)
AUTO
OFF
A

The LK A Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit
.
QUICK TIP
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
(But tons located on Steering Wheel – Type B)
B
C
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
Lane Keeping Assist (LKA)*†4 (continued)

Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Forward Collision-Avoidance Assist Video
QR CODE
(But tons located on steering wheel)

FCA Warning Volume can be adjusted in the User Set tings in the Instrument Cluster or the Vehicle Set tings* on the audio head unit . Go to Driver Assistance, then Warning Volume .
QUICK TIP
Collision Warning
Emergency Braking
FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, temporarily apply emergency braking . Initially, FCA provides Forward Collision Warning (FCW) when it detects a potential collision with a vehicle, pedestrian, or cyclist, emitting an audible warning and visual alert on the instrument cluster A .
If the system detects that the collision risk has increased, Forward Collision-Avoidance Assist (FCA) automatically applies the brakes to reduce your speed, potentially helping to reduce the effects of a possible collision .
FCA User Settings:
•FCA is ON by default in most Kia models . FCA can be turned ON/ OFF by going to the User Settings in the Instrument Cluster
•To go to User Settings , press the Mode button B on the Steering Wheel when the vehicle is at a standstill, gear shift is in Park and with the ignition on or the Engine Start/Stop button* in the ON position
•Press the OK button C up/down and select User Settings then Driver Assistance
– In some models, go to Driving Assist, then Forward Collision-Avoidance Assist or Forward Collision Warning and press the OK button C
– In other models, go to Forward Safety and select Active Assist, Warning Only or Off
Then select one of the following modes:
– Active Assist: Vehicle will provide a warning (audible & visual) and may apply the brakes if needed
– Warning Only: Vehicle will provide a warning only (audible & visual)
– Off: System is off, no warnings or braking provided
•To adjust the FCA initial warning activation time, go to User Settings , Driver Assistance, Warning Timing then select Fast, Normal or Slow, depending on your Kia model:
– F a s t : When this condition is selected, the initial Forward Collision Warning is activated earlier than normal
– Normal: This setting allows for a nominal amount of distance between the vehicles before the initial warning occurs
– Slow: Reduces the amount of distance between the vehicles before the initial warning occurs
FCA/FCW will become active when the:
•Ignition is on or the Engine Start/Stop button* is ON
•Vehicle is traveling faster than 5 mph
•Electronic Stability Control (ESC) is ON
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
Forward Collision-Avoidance Assist (FCA)†4
For ward Collision-Avoidance Assist (FCA) is not a substitute for safe driving and may not detect all objects in front of the vehicle
. Always drive safely and use caution . Actual User Set tings steps may var y by model . Refer to section 4 in the Owner ’s Manual for more information .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
REMINDERS:
•
FCA will be activated by default when the ignition is cycled ON, even when previous set ting was OFF
•
If FCA is operating and the ESC (Electronic Stabilit y Control) is turned off, FCA system is automatically turned off
•
When the FCA system is off, the FCA warning indicator is on in the Instrument Cluster
23†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .
ADAS
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
A
B
C

28†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDNIRO EV FEATURES & FUNCTIONS GUIDE
Refer to the inside front cover for more information on QR codes .www .youtube .com/KiaFeatureVideos
Driver Attention Warning (DAW) Video
QR CODE
Driver At tention Warning is not a substitute for safe driving and may not detect all instances of inat tentive driving practices . Failure to pay at tention to travel conditions and vehicle operation could result in loss of vehicle control . Always drive safely and use caution .
Refer to section 5 in the Owner ’s Manual for more information .
Driver Attention Warning is designed to alert the driver if it detects inattentive driving practices and, in certain situations, can give a warning signal to take a break from driving . There are three modes:
•Normal Sensitivity: Driver Attention Warning warns the driver of his/her inattentive driving practices
•
High Sensitivity: Driver Attention Warning warns the driver of his/her inattentive driving practices faster than Normal mode
•
Off: Driver Attention Warning is deactivated
If DAW is activated, the DAW information A will appear on the Instrument Cluster LCD when you select the Driving Assist/Assist mode menu in User Settings . A message, “Consider taking a break,” B appears on the LCD and a warning sounds to suggest the driver take a break when the driver ’s attention level becomes low .
DAW User Settings:
To turn DAW on/off, with the ignition on, press the Mode button C on the Steering Wheel and go to User Settings in the Instrument Cluster . Then go to Driver Assistance and select Driver Attention Warning . Set DAW to Normal Sensitivity, High Sensitivity or Off .
•
Some models access settings through the Vehicle Settings in the audio head unit . Press the Setup hard key on the audio head unit, then press VEHICLE on the screen to enter Vehicle Settings
REMINDERS:
•
The setup of DAW will be maintained, as selected, when the ignition is cycled
•
When activated, DAW does not display “Consider taking a break ” message when the total trip driving time is less than 10 minutes
•
DAW will enter a standby mode if the camera does not detect the lanes and/or the driving speed remains under 40 mph
Driver Attention Warning (DAW)*†5
CNCLRES
CRUISE
SETCNCLRES
CRUISE
SET
Consider taking a break
Attention Level
High
ADVANCED DRIVER ASSISTANCE SYSTEMS (ADAS)
ADAS
AB
C

35†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS .

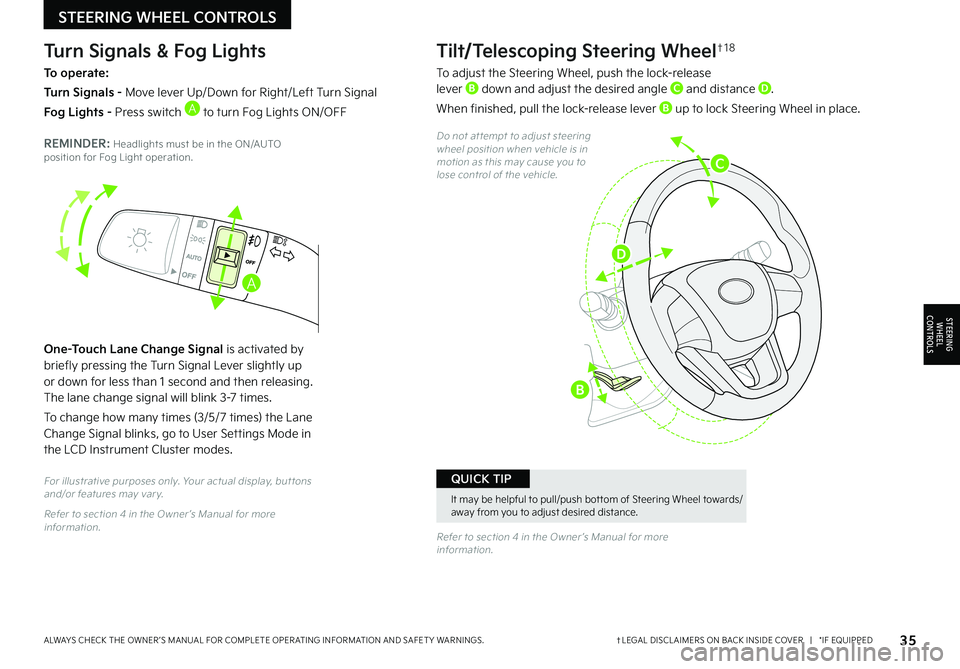

Tilt/Telescoping Steering Wheel†1 8
To adjust the Steering Wheel, push the lock-release lever B down and adjust the desired angle C and distance D .
When finished, pull the lock-release lever B up to lock Steering Wheel in place .
Do not at tempt to adjust steering wheel position when vehicle is in motion as this may cause you to lose control of the vehicle .
Refer to section 4 in the Owner ’s Manual for more information .
One-Touch Lane Change Signal is activated by briefly pressing the Turn Signal Lever slightly up or down for less than 1 second and then releasing . The lane change signal will blink 3-7 times .
To change how many times (3/5/7 times) the Lane Change Signal blinks, go to User Settings Mode in the LCD Instrument Cluster modes .
Turn Signals & Fog Lights
To operate:
Turn Signals - Move lever Up/Down for Right/Left Turn Signal
Fog Lights - Press switch A to turn Fog Lights ON/OFF
REMINDER: Headlights must be in the ON/AUTO position for Fog Light operation .
For illustrative purposes only . Your actual display, but tons and/or features may var y .
Refer to section 4 in the Owner ’s Manual for more information .
A
STEERING WHEEL CONTROLS
STEERING

WHEEL CONTROLS
It may be helpful to pull/push bot tom of Steering Wheel towards/away from you to adjust desired distance .
QUICK TIP
B
C
D
