2022 JEEP RENEGADE engine

:$5N,N*
Never have any smoking materials lit in or
near the vehicle when the fuel door is open
or the tank is being filled.
Never add fuel when the engine is running.
This is in violation of most state and federal
fire regulations and may cause the
Malfunction Indicator Light to turn on.
A fire may result if fuel is pumped into a
portable container that is inside of a
vehicle. You could be burned. Always place
fuel containers on the ground while filling.
CAUTION!
Driving with a hot cooling system could
damage your vehicle. If the temperature
gauge reads “H,” pull over and stop the
vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops
back into the normal range. If the pointer
remains on the “H” and you hear continuous
chimes, turn the engine off immediately and
call for service.WARNING!
You or others can be badly burned by hot
engine coolant (antifreezeyfRUVWHDPIURP
your radiator. If you see or hear steam coming
from under the hood, do not open the hood
until the radiator has had time to cool. Never
try to open a cooling system pressure cap
when the radiator or coolant bottle is hot.7

21_BV_OM_EN_USC_t.book Page 347

:$5N,N*
)aVt VSLQQLQg tLUeV FaQ be GaQgeUoXV. )oUFeV
geQeUateG b\ e[FeVVLYe ZKeeO VSeeGV Pa\
FaXVe GaPage oU eYeQ IaLOXUe oI tKe a[Oe
aQG tLUeV. $ tLUe FoXOG e[SOoGe aQG LQMXUe
VoPeoQe. 'o Qot VSLQ \oXU YeKLFOe
V ZKeeOV
IaVteU tKaQ 30 PSK 48 kPK\fRUIRUORQJHU tKaQ 30 VeFoQGV FoQtLQXoXVO\ ZLtKoXt
VtoSSLQg ZKeQ \oX aUe VtXFk aQG Go Qot Oet
aQ\oQe QeaU a VSLQQLQg ZKeeO Qo PatteU
ZKat tKe VSeeG.
C$U7,ON
Racing the engine or spinning the wheels
may lead to transmission overheating and
failure. Allow the engine to idle with the
transmission in NEUTRAL for at least one
minute after every five rocking-motion
cycles. This will minimize overheating and
reduce the risk of clutch or transmission
failure during prolonged efforts to free a
stuck vehicle.
When “rocking” a stuck vehicle by shifting
between DRIVE/SECOND gear and
REVERSE, do not spin the wheels faster
than 15 mph (24 km/hyfRUGULYHWUDLQ
damage may result.
Revving the engine or spinning the wheels
too fast may lead to transmission over -
heating and failure. It can also damage the
tires. Do not spin the wheels above 30 mph
(48 km/hyfZKLOHLQJHDUQRWUDQVPLVVLRQ
shifting occurringyf.7

21_BV_OM_EN_USC_t.book Page 349

SERVICING AND MAINTENANCE
SC\b\fED SERVICING
Your vehicle is equipped with an automatic oil
change indicator system. The oil change
indicator system will remind you that it is time to
take your vehicle in for scheduled maintenance.
Based on engine operation conditions, the oil
change indicator message will illuminate in the
instrument cluster. This means that service is
required for your vehicle. Operating conditions
such as frequent short-trips, trailer tow and
extremely hot or cold ambient temperatures will
influence when the “Change Oil” or “Oil Change
Required” message is displayed. Have your
vehicle serviced as soon as possible, within the
next 500 miles (805 kmyf.
An authorized dealer will reset the oil change
indicator message after completing the
scheduled oil change.NOTE:

Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 kmyf
1 year or 350 hours of engine run time, which
-
ever comes first. The 350 hours of engine run
or idle time is generally only a concern for fleet
customers.

NOTE:
The Oil Change Indicator will not illuminate
under these conditions.
Once A Month Or Before A Long Trip:
Check engine oil level.
Check windshield washer fluid level.
Check the tire inflation pressures and look
for unusual wear or damage.
Check the fluid levels of the coolant reservoir,
and brake master cylinder reservoir, and fill
as needed.
Check function of all interior and exterior
lights.
MAINTENANCE PLAN
NOTE:
Using white lithium grease, lubricate the door
hinge roller pivot joints twice a year to prevent
premature wear.
At Every Oil Change Interval As Indicated By Oil Change Indicator System:
Change oil and filter.
Inspect battery and clean and tighten
terminals as required.
Inspect the CV/Universal joints.
Inspect brake pads, shoes, rotors, drums, and
hoses.
Inspect engine cooling system protection and
hoses.
Rotate the tires, rotate at the first sign of
irregular wear, even if it occurs before the oil
indicator system turns on.
Inspect exhaust system.
Inspect engine air cleaner filter if using in
dusty or off-road conditions.
8

21_BV_OM_EN_USC_t.book Page 353

:$5N,N*

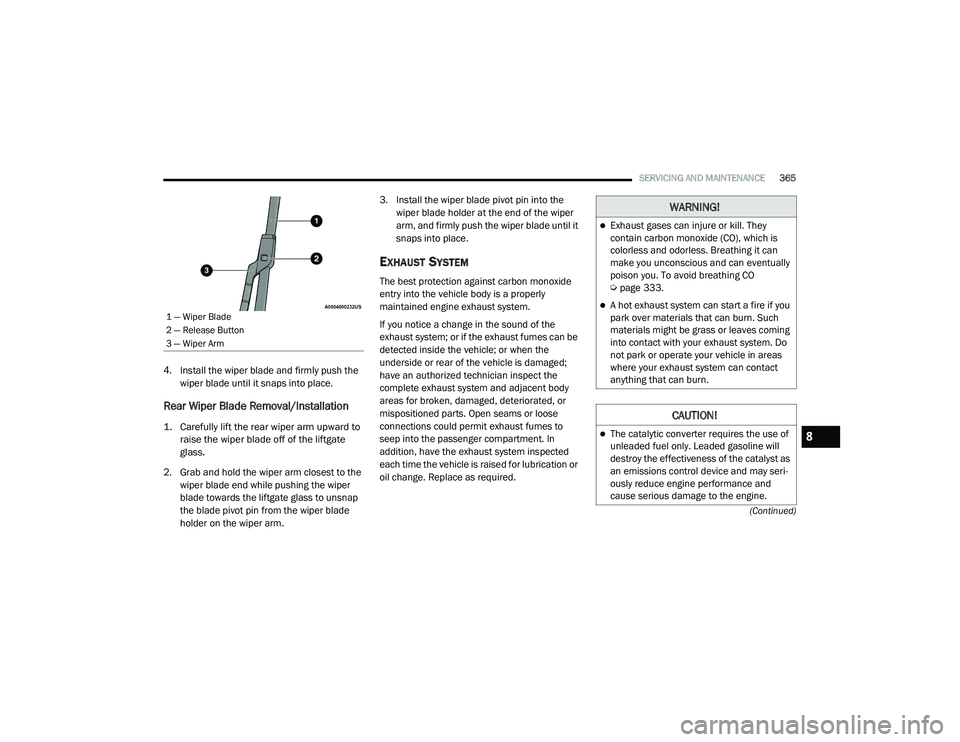

Exhaust gases can injure or kill. They
contain carbon monoxide (COyfZKLFKLV
colorless and odorless. Breathing it can
make you unconscious and can eventually
poison you. To avoid breathing CO
Úpage 333.
A hot exhaust system can start a fire if you
park over materials that can burn. Such
materials might be grass or leaves coming
into contact with your exhaust system. Do
not park or operate your vehicle in areas
where your exhaust system can contact
anything that can burn.
CAUTION!
The catalytic converter requires the use of
unleaded fuel only. Leaded gasoline will
destroy the effectiveness of the catalyst as
an emissions control device and may seri -
ously reduce engine performance and
cause serious damage to the engine.8

21_BV_OM_EN_USC_t.book Page 365

:$5N,N*
Do not open hot engine cooling system.
Never add engine coolant (antifreezeyfZKHQ
the engine is overheated. Do not loosen or
remove the cap to cool an overheated
engine. Heat causes pressure to build up in
the cooling system. To prevent scalding or
injury, do not remove the pressure cap
while the system is hot or under pressure.
Do not use a pressure cap other than the
one specified for your vehicle. Personal
injury or engine damage may result.

:$5N,N*
When replacing a blown fuse, always use
an appropriate replacement fuse with the
same amp rating as the original fuse. Never
replace a fuse with another fuse of higher
amp rating. Never replace a blown fuse with
metal wires or any other material. Failure to
use proper fuses may result in serious
personal injury, fire and/or property
damage.
Before replacing a fuse, make sure that the
ignition is off and that all the other services
are switched off and/or disengaged.
If the replaced fuse blows again, contact an
authorized dealer.
If a general protection fuse for safety
systems (air bag system, braking systemyf
power unit systems (engine system,
gearbox systemyfRUVWHHULQJV\VWHPEORZV
contact an authorized dealer.
1 — Fuse Element
2 — Blade Fuse with a good/functional
fuse element
3 — Blade fuse with a bad/not functional
fuse element (blown fuseyf
8

21_BV_OM_EN_USC_t.book Page 371

WARNING: Operating, servicing and maintaining a passenger vehicle or off-highway
motor vehicle can expose you to chemicals including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the State of California to cause cancer and birth
defects or other reproductive harm. To minimize exposure, avoid breathing exhaust,
do not idle the engine except as necessary, service your vehicle in a well-ventilated area
and wear gloves or wash your hands frequently when servicing your vehicle. For more
information go to www.P65Warnings.ca.gov/passenger-vehicle.
This Owner’s Manual illustrates and describes the operation of features and equipment that are either standard or optional on this
vehicle. This manual may also include a description of features and equipment that are no longer available or were not ordered on
this vehicle. Please disregard any features and equipment described in this manual that are not on this vehicle. FCA US LLC reserves the
right to make changes in design and specifications, and/or make additions to or improvements to its products without imposing any
obligation upon itself to install them on products previously manufactured.
With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc.
used in substitution therefore.
If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Warranty Booklet by calling
1-877-426-5337 (U.S.) or 1- 800 -387-1143 (Canada) or by contacting your dealer.
This Owner’s Manual is intended to familiarize you with the important features of your vehicle. Your most up-to-date Owner’s
Manual, Navigation/Uconnect manuals and Warranty Booklet can be found by visiting the website on the back cover. U.S.
residents can purchase replacement kits by visiting www.techauthority.com and Canadian residents can purchase replacement
kits by calling 1- 800 -387-1143.
The driver’s primary responsibility is the safe operation of the vehicle. Driving while distracted can result in loss of vehicle control,
resulting in an accident and personal injury. FCA US LLC strongly recommends that the driver use extreme caution when using any
device or feature that may take their attention off the road. Use of any electrical devices, such as cellular telephones, computers, portable
radios, vehicle navigation or other devices, by the driver while the vehicle is moving is dangerous and could lead to a serious accident.
Texting while driving is also dangerous and should never be done while the vehicle is moving. If you find yourself unable to devote your
full attention to vehicle operation, pull off the road to a safe location and stop your vehicle. Some states or provinces prohibit the use of
cellular telephones or texting while driving. It is always the driver’s responsibility to comply with all local laws.
This Owner’s Manual has been prepared to help you get acquainted with your new Jeep® brand vehicle and to provide a convenient
reference source for common questions.
Not all features shown in this manual may apply to your vehicle. For additional information, visit mopar.com/om (U.S.), owners.mopar.ca
(Canada) or your local Jeep® brand dealer.
Drunk driving is one of the most frequent causes of accidents. Your driving ability can be seriously
impaired with blood alcohol levels far below the legal minimum. If you are drinking, don’t drive.
Ride with a designated non-drinking driver, call a cab, a friend or use public transportation.
DRIVING AND ALCOHOL
Driving after drinking can lead to an accident. Your perceptions are less sharp, your reflexes are
slower and your judgment is impaired when you have been drinking. Never drink and then drive.
WARNING!
