07
7-45
Blind-Spot Collision-Avoidance
Assist Malfunction and
Limitations
Blind-Spot Collision-Avoidance
Assist malfunction
OTM070099NOTM070099N
When Blind-Spot Collision-Avoidance
Assist is not working properly, the ‘Check
Blind-Spot Safety system’ warning
message appears on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
ONX4OB071025ONX4OB071025
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message appears on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Blind-Spot Collision-Avoidance
Assist disabled
OTM070098NOTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Blind-Spot
Collision-Avoidance Assist.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message appears on the cluster.
Blind-Spot Collision-Avoidance Assist
will operate properly when such foreign
material or trailer, etc., is removed, and
then the engine is restarted.
If Blind-Spot Collision-Avoidance Assist
does not operate properly after it is
removed, have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING
• Even though the warning message
does not appear on the cluster, Blind-
Spot Collision-Avoidance Assist may
not properly operate.
• Blind-Spot Collision-Avoidance
Assist may not properly operate in
an area (for example, open terrain)
where any objects are not detected
right after the engine is turned on, or
when the detecting sensor is blocked
with foreign material right after the
engine is turned on.

Driver Assistance System
7-54

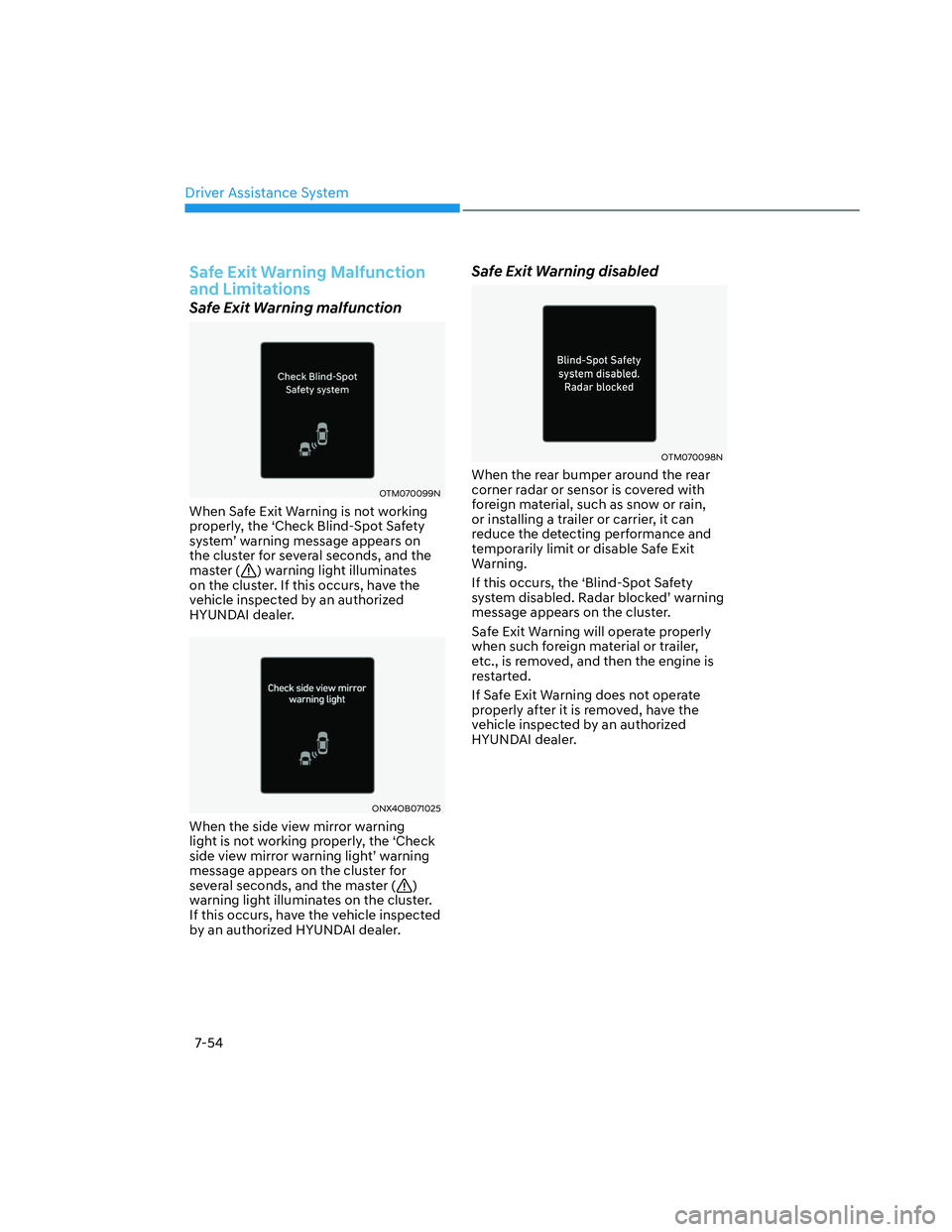

Safe Exit Warning Malfunction
and Limitations
Safe Exit Warning malfunction
OTM070099N OTM070099N
When Safe Exit Warning is not working
properly, the ‘Check Blind-Spot Safety
system’ warning message appears on
the cluster for several seconds, and the
master (
) warning light illuminates
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
ONX4OB071025ONX4OB071025
When the side view mirror warning
light is not working properly, the ‘Check
side view mirror warning light’ warning
message appears on the cluster for
several seconds, and the master (
)
warning light illuminates on the cluster.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
Safe Exit Warning disabled
OTM070098NOTM070098N
When the rear bumper around the rear
corner radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Safe Exit
Warning.
If this occurs, the ‘Blind-Spot Safety
system disabled. Radar blocked’ warning
message appears on the cluster.
Safe Exit Warning will operate properly
when such foreign material or trailer,
etc., is removed, and then the engine is
restarted.
If Safe Exit Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.

07
7-87

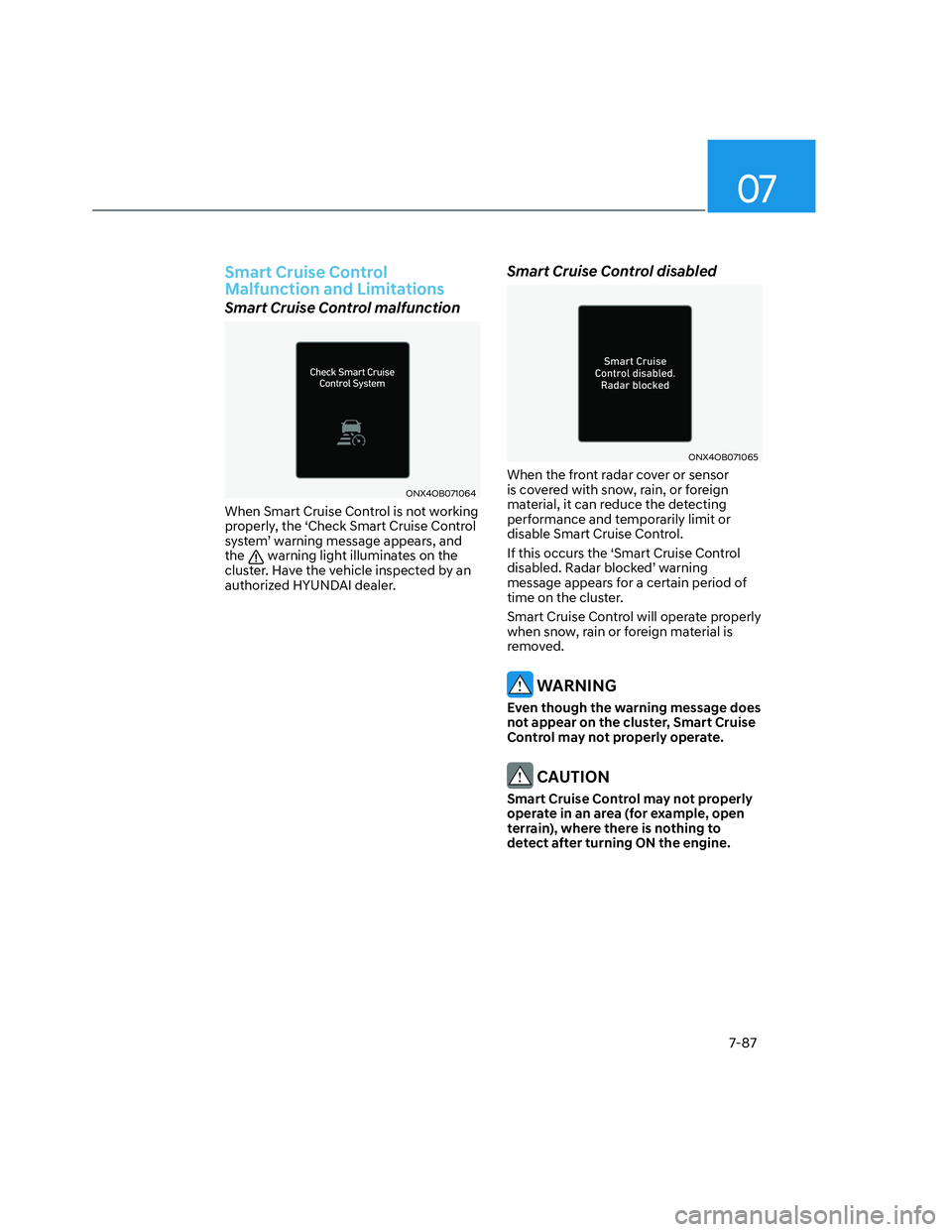

Smart Cruise Control
Malfunction and Limitations
Smart Cruise Control malfunction
ONX4OB071064ONX4OB071064
When Smart Cruise Control is not working
properly, the ‘Check Smart Cruise Control
system’ warning message appears, and
the
warning light illuminates on the
cluster. Have the vehicle inspected by an
authorized HYUNDAI dealer.
Smart Cruise Control disabled
ONX4OB071065ONX4OB071065
When the front radar cover or sensor
is covered with snow, rain, or foreign
material, it can reduce the detecting
performance and temporarily limit or
disable Smart Cruise Control.
If this occurs the ‘Smart Cruise Control
disabled. Radar blocked’ warning
message appears for a certain period of
time on the cluster.
Smart Cruise Control will operate properly
when snow, rain or foreign material is
removed.
WARNING
Even though the warning message does
not appear on the cluster, Smart Cruise
Control may not properly operate.
CAUTION
Smart Cruise Control may not properly
operate in an area (for example, open
terrain), where there is nothing to
detect after turning ON the engine.

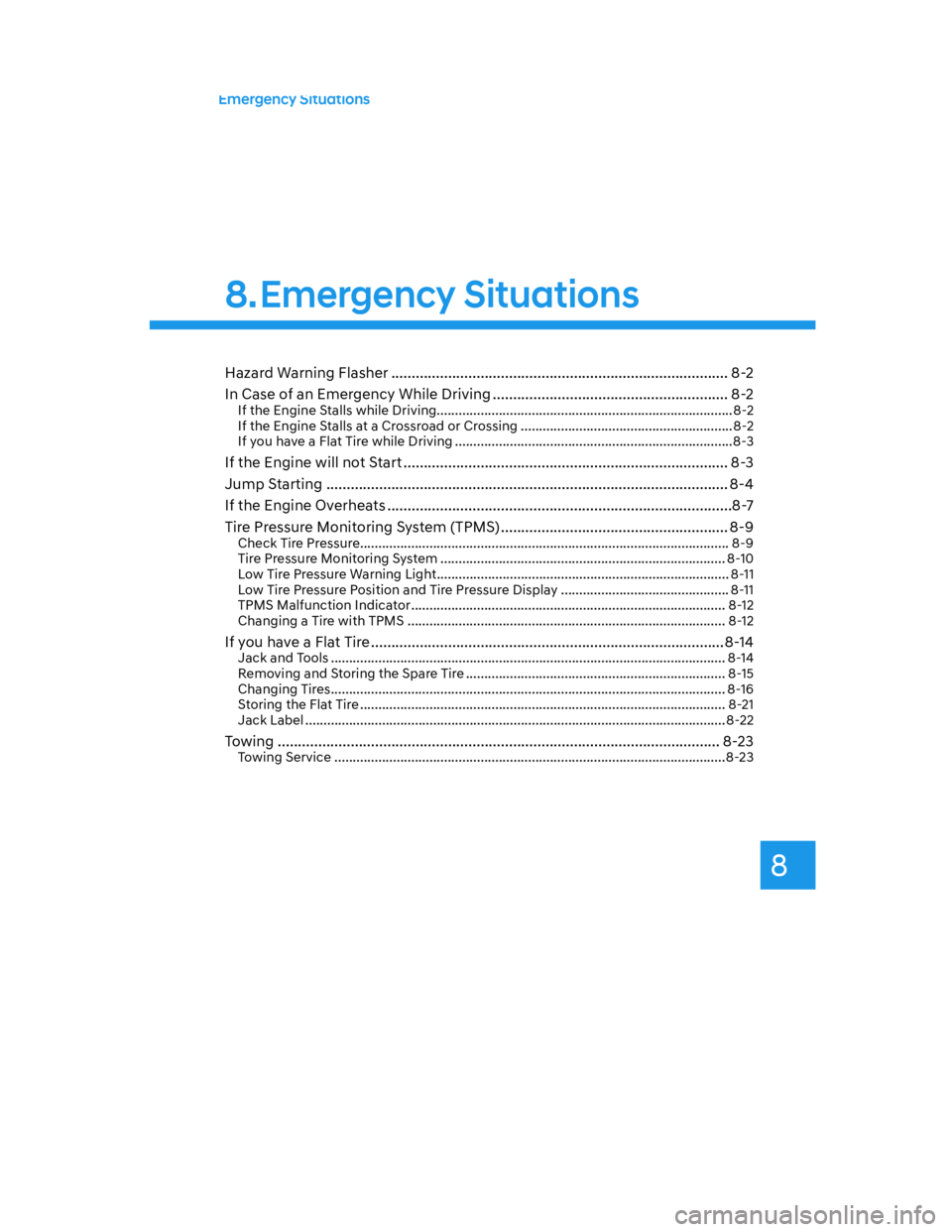

8
Emergency Situations
Hazard Warning Flasher ................................................................................... 8-2
In Case of an Emergency While Driving .......................................................... 8-2
If the Engine Stalls while Driving................................................................................. 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If you have a Flat Tire while Driving ............................................................................8-3
If the Engine will not Start ................................................................................ 8-3
Jump Starting ................................................................................................... 8-4
If the Engine Overheats .....................................................................................8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-9
Check Tire Pressure ..................................................................................................... 8-9
Tire Pressure Monitoring System .............................................................................. 8-10
Low Tire Pressure Warning Light ................................................................................ 8-11
Low Tire Pressure Position and Tire Pressure Display .............................................. 8-11
TPMS Malfunction Indicator ...................................................................................... 8-12
Changing a Tire with TPMS ....................................................................................... 8-12
If you have a Flat Tire .......................................................................................8-14
Jack and Tools ............................................................................................................ 8-14
Removing and Storing the Spare Tire ....................................................................... 8-15
Changing Tires ............................................................................................................ 8-16
Storing the Flat Tire .................................................................................................... 8-21
Jack Label ................................................................................................................... 8-22
Towing ............................................................................................................. 8-23
Towing Service ........................................................................................................... 8-23
8. Emergency Situations

08
8-3

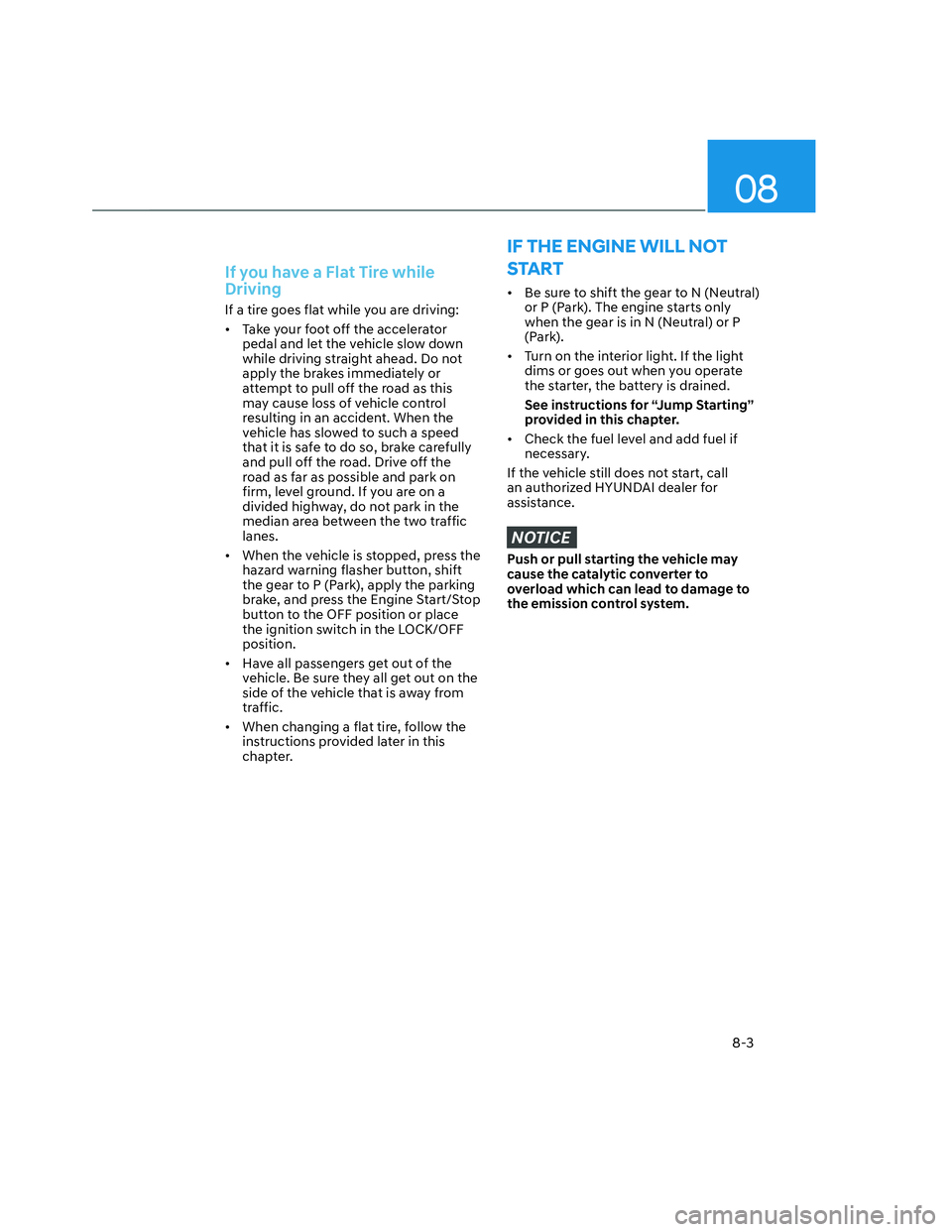

If you have a Flat Tire while
Driving
If a tire goes flat while you are driving:
• Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do not
apply the brakes immediately or
attempt to pull off the road as this
may cause loss of vehicle control
resulting in an accident. When the
vehicle has slowed to such a speed
that it is safe to do so, brake carefully
and pull off the road. Drive off the
road as far as possible and park on
firm, level ground. If you are on a
divided highway, do not park in the
median area between the two traffic
lanes.
• When the vehicle is stopped, press the
hazard warning flasher button, shift
the gear to P (Park), apply the parking
brake, and press the Engine Start/Stop
button to the OFF position or place
the ignition switch in the LOCK/OFF
position.
• Have all passengers get out of the
vehicle. Be sure they all get out on the
side of the vehicle that is away from
traffic.
• When changing a flat tire, follow the
instructions provided later in this
chapter.
IF THE ENGINE WILL NOT
START
• Be sure to shift the gear to N (Neutral)
or P (Park). The engine starts only
when the gear is in N (Neutral) or P
(Park).
• Turn on the interior light. If the light
dims or goes out when you operate
the starter, the battery is drained.
See instructions for “Jump Starting”
provided in this chapter.
• Check the fuel level and add fuel if
necessary.
If the vehicle still does not start, call
an authorized HYUNDAI dealer for
assistance.
NOTICE
Push or pull starting the vehicle may
cause the catalytic converter to
overload which can lead to damage to
the emission control system.

08
8-9

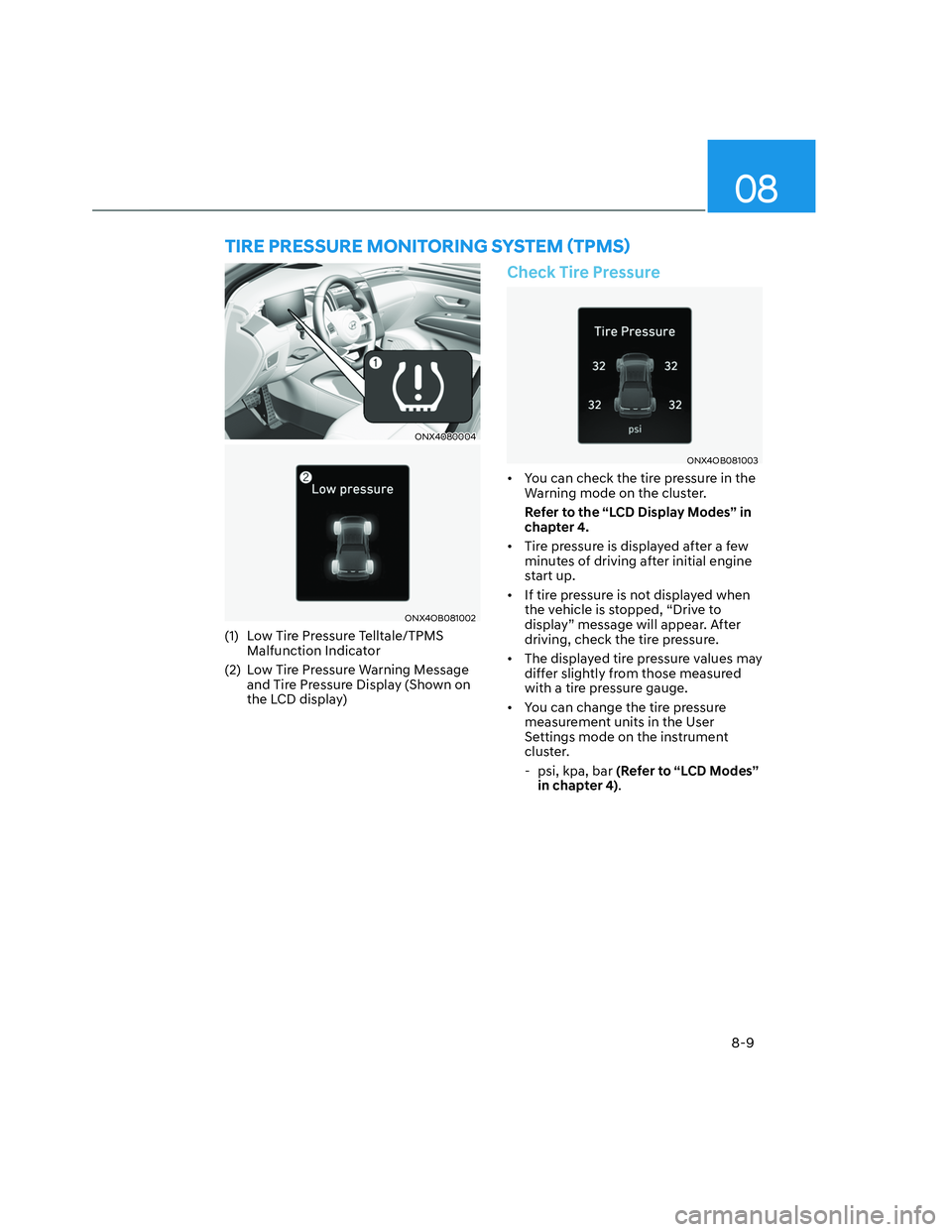

ONX4080004ONX4080004
ONX4OB081002ONX4OB081002
(1) Low Tire Pressure Telltale/TPMS
Malfunction Indicator
(2) Low Tire Pressure Warning Message
and Tire Pressure Display (Shown on
the LCD display)
Check Tire Pressure
ONX4OB081003ONX4OB081003
• You can check the tire pressure in the
Warning mode on the cluster.
Refer to the “LCD Display Modes” in
chapter 4.
• Tire pressure is displayed after a few
minutes of driving after initial engine
start up.
• If tire pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tire pressure.
• The displayed tire pressure values may
differ slightly from those measured
with a tire pressure gauge.
• You can change the tire pressure
measurement units in the User
Settings mode on the instrument
cluster.
- psi, kpa, bar (Refer to “LCD Modes”
in chapter 4).
7,5(35(6685(021,725,1*6<67(0

9
Tires and Wheels ............................................................................................. 9-35Tire Care ......................................................................................................................9-35
Recommended Cold Tire Inflation Pressures ...........................................................9-35
Check Tire Inflation Pressure .....................................................................................9-36
Tire Rotation ............................................................................................................... 9-37
Wheel Alignment and Tire Balance .......................................................................... 9-38
Tire Replacement ...................................................................................................... 9-38
Wheel Replacement ...................................................................................................9-39
Tire Traction ................................................................................................................9-39
Tire Maintenance........................................................................................................9-39
Tire Sidewall Labeling ............................................................................................... 9-40
Tire Terminology and Definitions ............................................................................. 9-43
All Season Tires .......................................................................................................... 9-46
Summer Tires ............................................................................................................ 9-46
Low Aspect Ratio Tires ...............................................................................................9-47
Fuses ................................................................................................................9-48Instrument Panel Fuse Replacement ....................................................................... 9-49
Engine Compartment Panel Fuse Replacement ..................................................... 9-50
Fuse/Relay Panel Description.................................................................................... 9-51
Light Bulbs ....................................................................................................... 9-57Headlamp, Position Lamp, Turn Signal Lamp, Daytime Running Light (DRL)
Replacement ............................................................................................................. 9-58
Side Repeater Lamp Replacement .......................................................................... 9-60
Rear Combination Lamp Replacement ................................................................... 9-60
High Mounted Stop Lamp and Top Mounted Bed Lamp /
Side Mounted Bed Lamp Replacement .................................................................. 9-62
License Plate Lamp Replacement ............................................................................ 9-63
Interior light replacement ......................................................................................... 9-63
Appearance Care ............................................................................................ 9-65
Exterior Care .............................................................................................................. 9-65
Interior Care ................................................................................................................9-7 0
Emission Control System ................................................................................ 9-73
California Perchlorate Notice ......................................................................... 9-76

Maintenance
9-6
Owner Maintenance Schedule
When you stop for fuel:
• Check the coolant level in the engine
coolant reservoir.
• Check the windshield washer fluid
level.
• Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level when the engine is hot. This may
result in coolant being blown out of the
opening and cause serious burns and
other injuries.
While operating your vehicle:
• Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.
• Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• Check the automatic transmission
or dual clutch transmission P (Park)
function.
• Check the parking brake.
• Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:
• Check coolant level in the engine
coolant reservoir.
• Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year:
• Check radiator, heater and air
conditioning hoses for leaks or
damage.
• Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.
• Check headlamp alignment.
• Check muffler, exhaust pipes, shields
and clamps.
• Check the seat belts for wear and
function.
At least once a year:
• Clean body and door drain holes.
• Lubricate door hinges and hood
hinges.
• Lubricate door and hood locks and
latches.
• Lubricate door rubber weather strips.
• Check the air conditioning system.
• Inspect and lubricate automatic
transmission linkage and controls.
• Clean the battery and terminals.
• Check the brake fluid level.
