2022 HYUNDAI IONIQ 5 5-3

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONE1011003N
1. Inside door handle ................................ 5-34
2. Integrated memory system ................. 5-40
3. Side view mirror control switch ........... 5-60
4. Side view mirror folding button........... 5-60
5. Central door lock switch ...................... 5-34
6. Power window switches ...................... 5-63
7. Power window lock button / ............... 5-65
Electronic child safety lock button .......5-37
8. Instrument panel illumination ............... 4-59. ESC (Electronic Stability Control) OFF
button .................................................... 6-37
10. Power liftgate open/close button ........5-78
11. AUTO Hold button ................................ 6-32
12. EPB (Electronic Parking Brake)
switch .....................................................6-27
13. Hood release lever .................................5-73
14. Steering wheel tilt/telescopic lever .... 5-45
15. Steering wheel ...................................... 5-44
16. Seat .......................................................... 3-3
17. Cluster fascia side panel ..................... 5-130
INTERIOR OVERVIEW

5

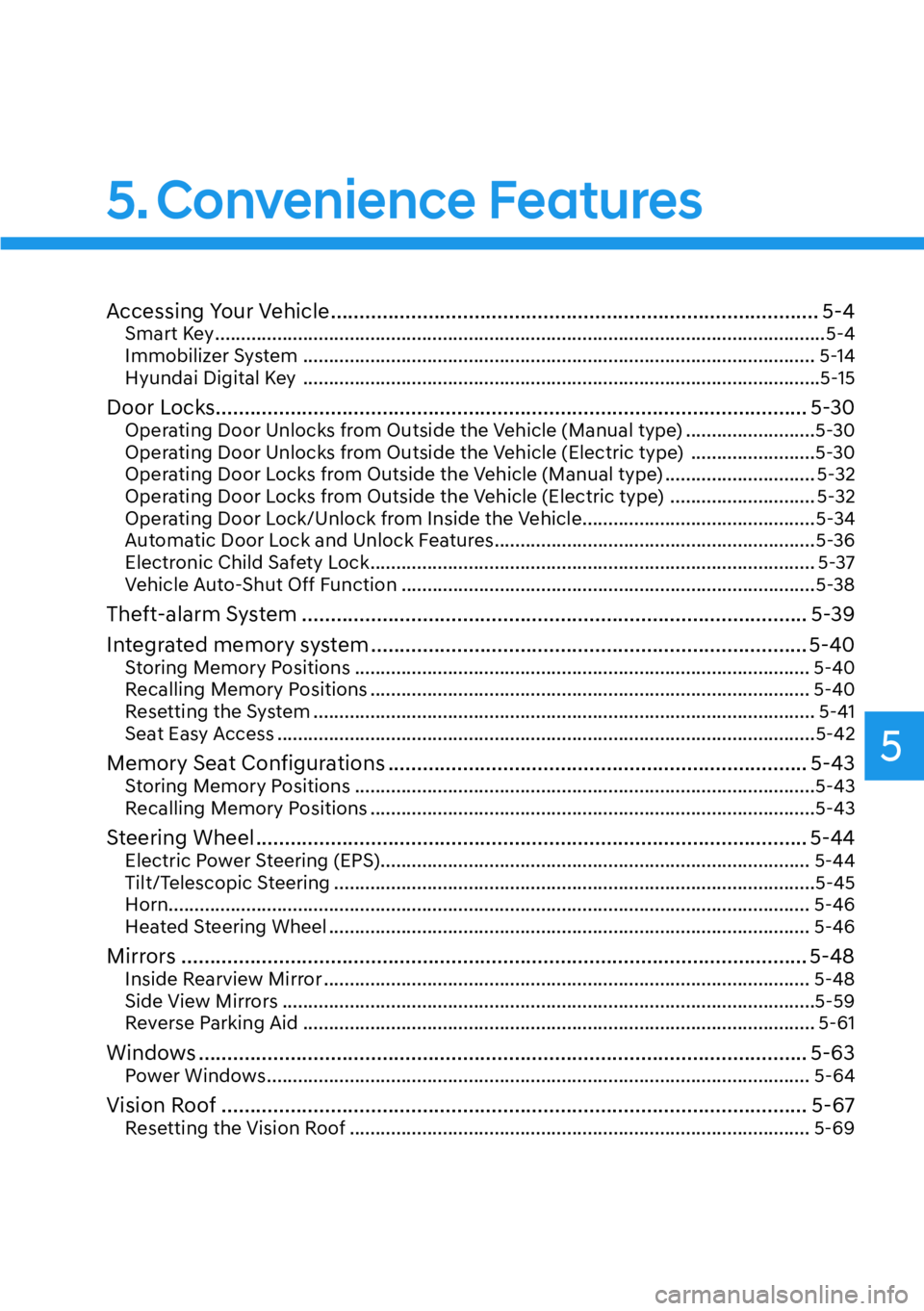

5. Convenience Features
Accessing Your Vehicle ..................................................................................... 5-4Smart Key ......................................................................................................................5-4
Immobilizer System ................................................................................................... 5-14
Hyundai Digital Key ....................................................................................................5-15
Door Locks ....................................................................................................... 5-30Operating Door Unlocks from Outside the Vehicle (Manual type) .........................5-30
Operating Door Unlocks from Outside the Vehicle (Electric type) ........................5-30
Operating Door Locks from Outside the Vehicle (Manual type) ............................. 5-32
Operating Door Locks from Outside the Vehicle (Electric type) ............................ 5-32
Operating Door Lock/Unlock from Inside the Vehicle ............................................. 5-34
Automatic Door Lock and Unlock Features ..............................................................5-36
Electronic Child Safety Lock ...................................................................................... 5-37
Vehicle Auto-Shut Off Function ................................................................................5-38
Theft-alarm System ........................................................................................ 5-39
Integrated memory system ............................................................................ 5-40
Storing Memory Positions ........................................................................................ 5-40
Recalling Memory Positions ..................................................................................... 5-40
Resetting the System ................................................................................................. 5-41
Seat Easy Access ........................................................................................................5-42
Memory Seat Configurations ......................................................................... 5-43Storing Memory Positions .........................................................................................5-43
Recalling Memory Positions ......................................................................................5-43
Steering Wheel ................................................................................................ 5-44Electric Power Steering (EPS) ................................................................................... 5-44
Tilt/Telescopic Steering .............................................................................................5-45
Horn............................................................................................................................ 5-46
Heated Steering Wheel ............................................................................................. 5-46
Mirrors ............................................................................................................. 5-48Inside Rearview Mirror .............................................................................................. 5-48
Side View Mirrors .......................................................................................................5-59
Reverse Parking Aid ................................................................................................... 5-61
Windows .......................................................................................................... 5-63Power Windows ......................................................................................................... 5-64
Vision Roof ...................................................................................................... 5-67Resetting the Vision Roof ......................................................................................... 5-69

Convenience Features
5-30

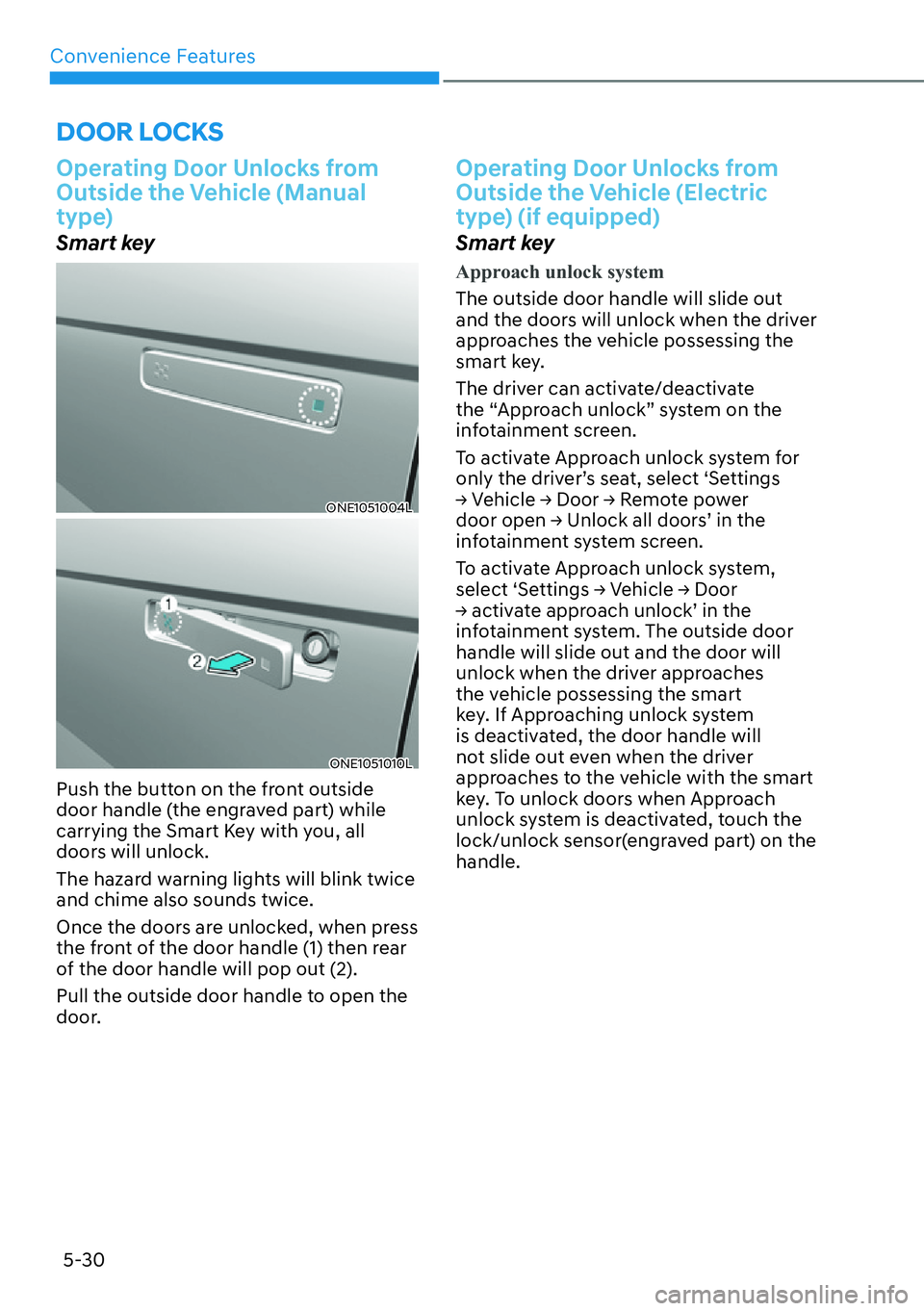

DOOR LOCKS
Operating Door Unlocks from
Outside the Vehicle (Manual
type)
Smart key
ONE1051004L
ONE1051010L
Push the button on the front outside
door handle (the engraved part) while
carrying the Smart Key with you, all
doors will unlock.
The hazard warning lights will blink twice
and chime also sounds twice.
Once the doors are unlocked, when press
the front of the door handle (1) then rear
of the door handle will pop out (2).
Pull the outside door handle to open the
door.
Operating Door Unlocks from
Outside the Vehicle (Electric
type) (if equipped)
Smart key
Approach unlock system
The outside door handle will slide out
and the doors will unlock when the driver
approaches the vehicle possessing the
smart key.
The driver can activate/deactivate
the “Approach unlock” system on the
infotainment screen.
To activate Approach unlock system for
only the driver’s seat, select ‘Settings

05
5-31
ONE1051276
ONE1051010

[When the “Approach unlock” is
activated :
- If you approach (within 1 m) the
driver or front passenger’s door
handle possessing the smart key,
the outside door handles slide out
and the doors are unlocked. In this
case, Hazard Warning Flasher blinks
twice and chime also sounds twice.
- After first approach, the vehicle
tries detecting the smart key
every 5 seconds and if the key is
not detected, the doors will lock
automatically and the handles will
slide in.
ONE1051004
ONE1051010

[When the “Approach unlock” is
deactivated : The handle does not
slide out even when you approach
with the smart key in possession. The
doors are unlocked if you press the
outside handle as the handles slide
out.

[The doors will lock automatically
and the handles will slide in after 30
seconds unless a door is opened.
Information
In emergency situations, such as battery is
dead, the outside electric door handle can
still be operated in a way that the outside
manual door handle operate.

Convenience Features
5-32
Operating Door Locks from
Outside the Vehicle (Manual
type)
Smart key
ONE1051004L
Push the button on the front outside
door handle (the engraved part) while
carrying the Smart Key with you, all
doors will lock.
The hazard warning lights will blink and
chime also sounds once.
Push the door to close.
Operating Door Locks from
Outside the Vehicle (Electric
type) (if equipped)
Smart key
ONE1051012
ONE1051013
When all doors are closed, touch the
touch sensor on the front outside door
handle (the engraved part) while carrying
the Smart Key with you, outside door
handle will return and doors will be
locked.
The hazard warning lights will blink and
chime also sounds once.

05
5-33
NOTICE

[If the door is locked/unlocked
multiple times in rapid succession
with the smart key, door lock button
or door lock switch, the system
may stop operating temporarily in
order to protect the circuit. Also,
the “Approach unlock” system may
not operate. Try operation after a
sufficient time in case the system
does not operate due to multiple
operations.

[“Approach unlock” system is not
operated continuously. Retry after a
certain period of time when all the
doors are closed.
Information

[In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

[If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

[:KHQZDVKLQJWKHYHKLFOH
-Self car wash
Keep the door locked with the outside
door handle closed.
To keep the door unlocked, push
back the outside door handle by
hand. This function prevents the door
handle from being damaged, and the
door handle pops out again when the
unlock button is pressed.
-Auto car wash
Keep the door locked with the outside
door handle closed.
If the Smart Key is not in the vehicle,
turn off the vehicle and stay the
Smart Key away at least 2 m (78
in.) from the vehicle to prevent the
outside door handle operates.
Digital key (if equipped)
Refer to ‘HYUNDAI digital key’ of this
chapter to lock or unlock the door from
outside vehicle with digital key.
Pull the outside door handle to open the
door after unlocking the door. Push the
door to close.
Mechanical key
ONE1051015
Press the front part (1) of the door
handle to pull out the rear part of the
door handle. While keep pressing the
front part of the door handle, insert the
mechanical key to the lock.
To lock the door, turn the key toward the
front (left side) of the vehicle. To unlock,
turn the key toward the rear (right side)
of the vehicle.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
The mechanical key only locks/unlocks
the driver’s door handle. For more
detail, refer to ‘In case of an emergency’
in this chapter.
Information
:KHQWKHGRRUKDQGOHRUWKHNH\KROH
freeze and do not open, lightly tap or
indirectly warm (for example, hand
temperature) the keyhole.

Convenience Features
5-34

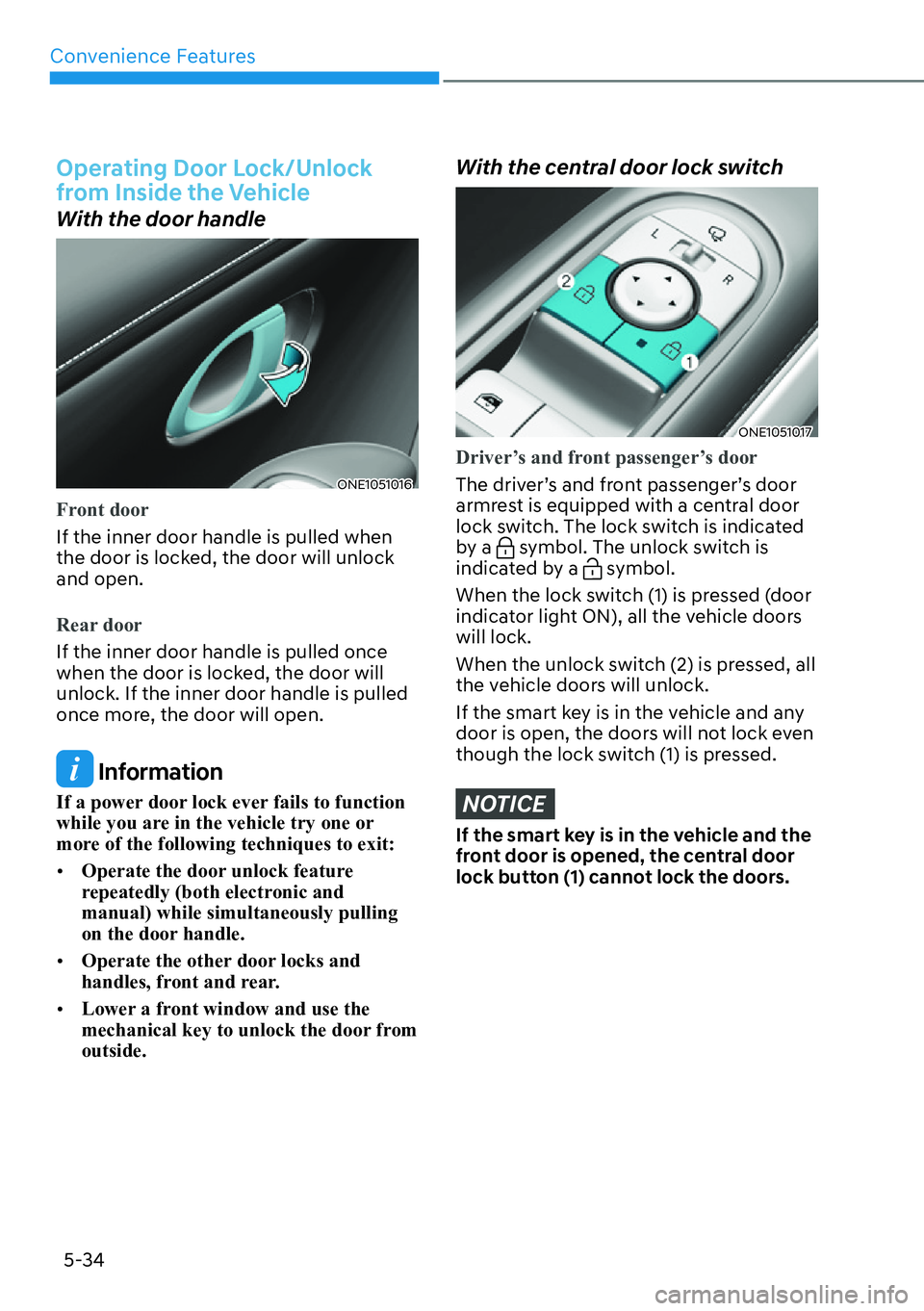

Operating Door Lock/Unlock
from Inside the Vehicle
With the door handle
ONE1051016
Front door
If the inner door handle is pulled when
the door is locked, the door will unlock
and open.
Rear door
If the inner door handle is pulled once
when the door is locked, the door will
unlock. If the inner door handle is pulled
once more, the door will open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[Operate the other door locks and
handles, front and rear.

[Lower a front window and use the
mechanical key to unlock the door from
outside.
With the central door lock switch
ONE1051017
Driver’s and front passenger’s door
The driver’s and front passenger’s door
armrest is equipped with a central door
lock switch. The lock switch is indicated
by a
symbol. The unlock switch is
indicated by a symbol.
When the lock switch (1) is pressed (door
indicator light ON), all the vehicle doors
will lock.
When the unlock switch (2) is pressed, all
the vehicle doors will unlock.
If the smart key is in the vehicle and any
door is open, the doors will not lock even
though the lock switch (1) is pressed.
NOTICE
If the smart key is in the vehicle and the
front door is opened, the central door
lock button (1) cannot lock the doors.

05
5-35

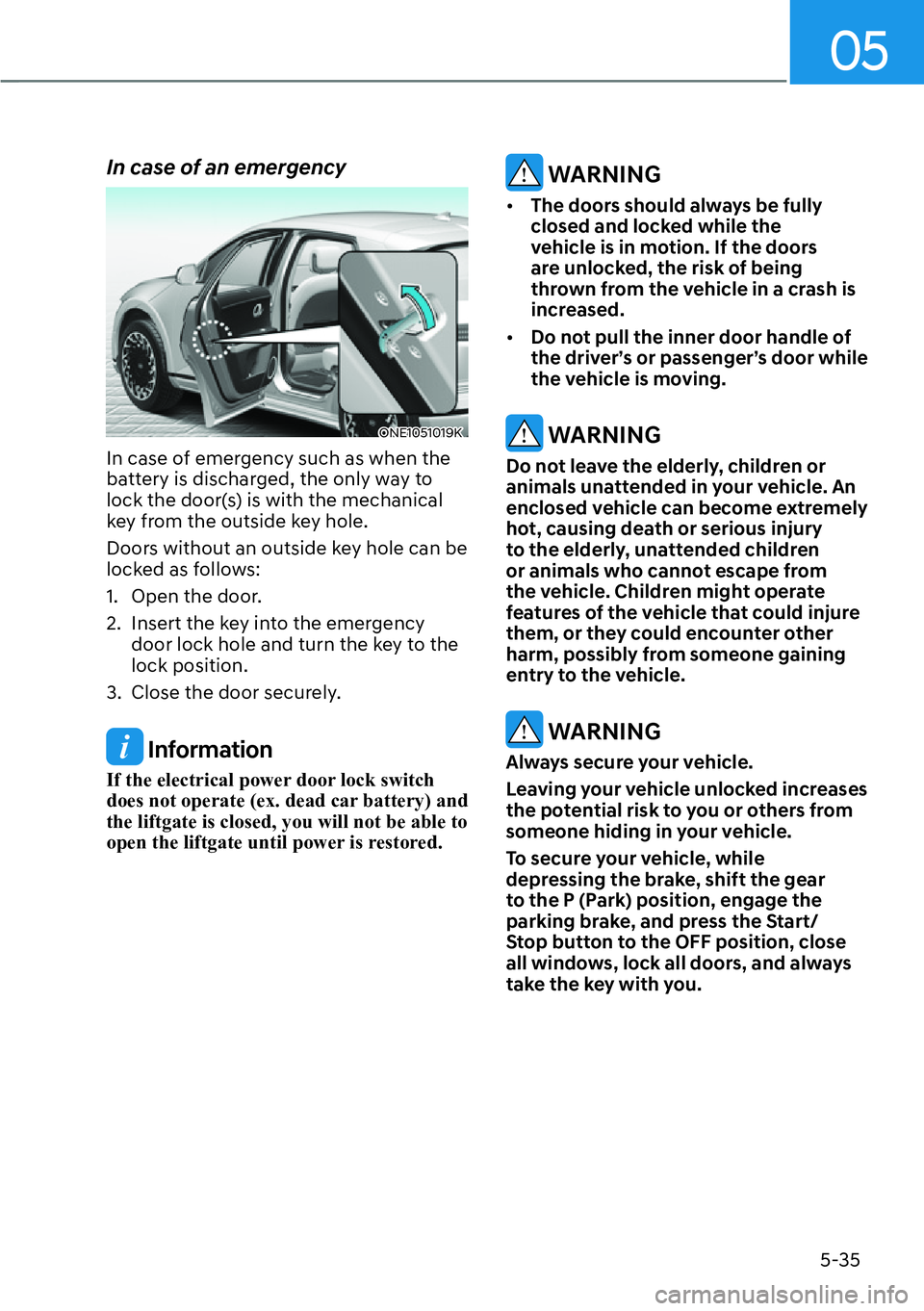

In case of an emergency
ONE1051019K
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (ex. dead car battery) and
the liftgate is closed, you will not be able to
open the liftgate until power is restored.
WARNING

[The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.

[Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.
WARNING
Do not leave the elderly, children or
animals unattended in your vehicle. An
enclosed vehicle can become extremely
hot, causing death or serious injury
to the elderly, unattended children
or animals who cannot escape from
the vehicle. Children might operate
features of the vehicle that could injure
them, or they could encounter other
harm, possibly from someone gaining
entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Start/
Stop button to the OFF position, close
all windows, lock all doors, and always
take the key with you.
