5-18
Instrument cluster
Master Warning Light
(if equipped)
This indicator light illuminates :
• When the remaining mileage or time
is 0 on the “Service Interval” in the
cluster.
If the service interval setting is reset,
the master warning light turns off.

KEY OUT Indicator Light
(if equipped)
KEY
OUT
When the Engine Start/Stop button is
in the ACC or ON position, if any door is
open, the system checks for the smart
key.
This indicator light blinks:
When the smart key is not in the vehicle
and any door is open with the ignition
switch or Engine Start/Stop button in the
ACC or ON position.
- At this time, if you close all doors,
the chime will also sound for
approximately 5 seconds.
- The indicator will go off while the
vehicle is moving.
Low Tire Pressure
Warning Light
(if equipped)
This warning light illuminates:
• When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When one or more of your tires
are significantly underinflated (The
location of the underinflated tires are
displayed on the LCD display).
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains on after
blinking for approximately 60 seconds
or repeatedly blinks on and off at
approximately 3 second intervals:
• When there is a malfunction with the
TPMS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
• If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

5-26
Instrument cluster
Master warning
OBI3040018OBI3040018
This warning light informs the driver the
following situations.
- Tire Pressure Monitoring System
malfunction (if equipped)
The Master Warning Light illuminates
if one or more of the above warning
situations occur.
At this time, a Master Warning icon (
)
ill appear beside the User Settings icon
(
), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
User settings mode
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Door
2. Light
3. Convenience
4. Service Interval
5. Other
6. Language
7. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
Shift to P to edit settings/Engage
parking brake to edit settings
This warning message illuminates if
you try to select an item from the User
Settings mode while driving.
• Automatic transmission / Intelligent
variable transmission
For your safety, change the User
Settings after parking the vehicle,
applying the parking brake and
moving the shift level to P(Park).
• Manual transmission
For your safety, change the User
Settings after engaging the parking
brake.
Quick guide (Help)
This mode provides quick guides for the
systems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details about each system,
refer to this Owner’s Manual.

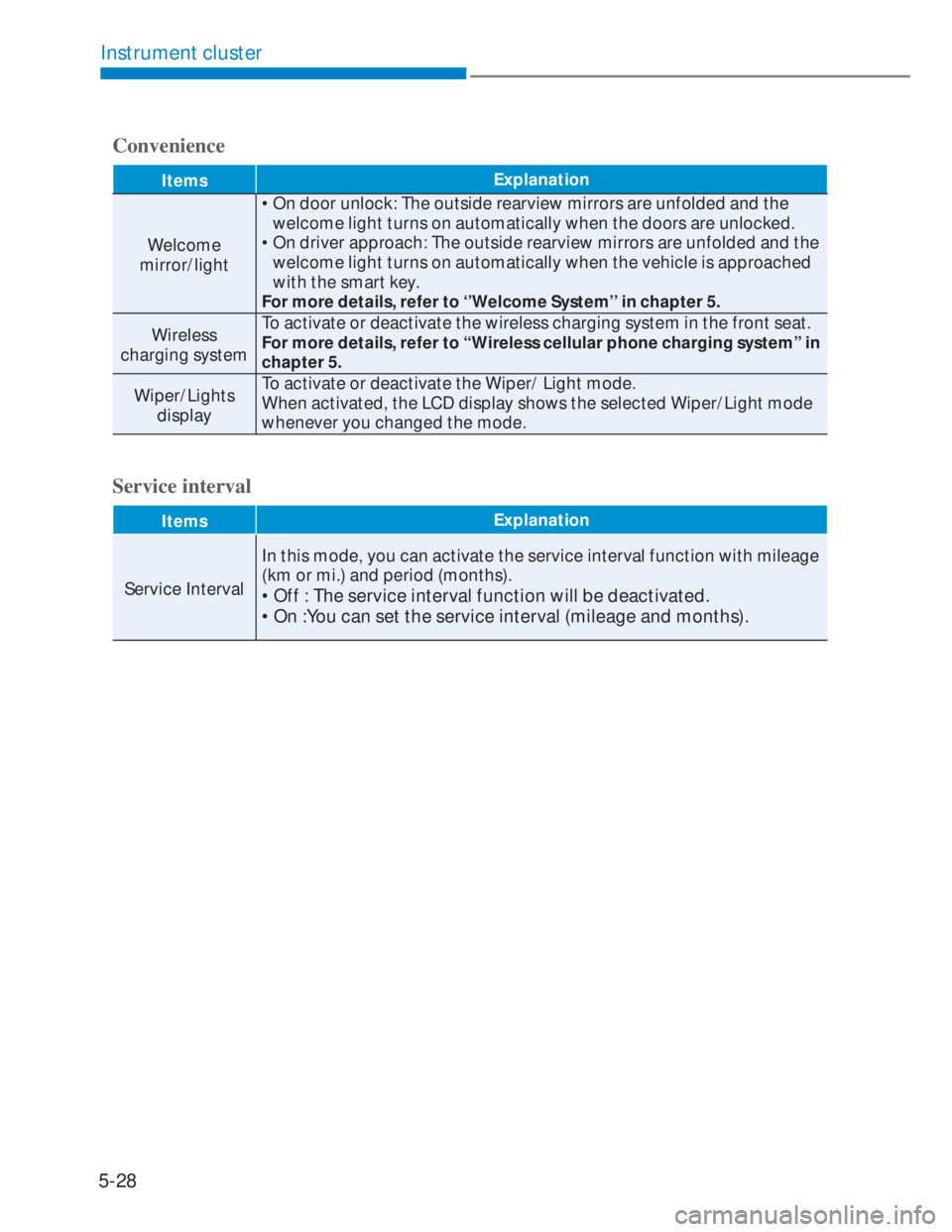

5-28
Instrument cluster
Convenience
ItemsExplanation
Welcome
mirror/light• On door unlock: The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the doors are unlocked.
• On driver approach: The outside rearview mirrors are unfolded and the
welcome light turns on automatically when the vehicle is approached
with the smart key.
For more details, refer to ‘’Welcome System’’ in chapter 5.
Wireless
charging systemTo activate or deactivate the wireless charging system in the front seat.
For more details, refer to “Wireless cellular phone charging system” in
chapter 5.
Wiper/Lights
displayTo activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Service interval
ItemsExplanation
Service IntervalIn this mode, you can activate the service interval function with mileage
(km or mi.) and period (months).• Off : The service interval function will be deactivated.
• On :You can set the service interval (mileage and months).

5-29
05
Other features
ItemsExplanation
Fuel Economy
Auto Reset• Off : The average fuel economy will not reset automatically whenever
refueling.
• After Ignition : The average fuel economy will reset automatically
whenever it has passed 4 hours after turning OFF the engine.
• After Refueling : The average fuel economy will reset automatically
when refueling.
For more details, refer to “Trip Computer” in this chapter.
Fuel Economy
UnitChoose the fuel economy unit. (Km/L, L/100km)
Temperature
UnitChoose the temperature unit. (°C,°F)
Tyre pressure
unitTo select the tire pressure unit. (psi, kPa, bar)
Language
ItemsExplanation
LanguageChoose the language.
Reset
ItemsExplanation
ResetYou can reset the menus in the User Settings Mode. All menus in the
User Settings Mode are reset to factory settings, except language and
service interval.

5-34
Instrument cluster
OQXI049123OQXI049123
Elapsed time (if equipped)
This mode indicates the total time
traveled since the last driving time reset.
Even if the vehicle is not in motion,
the driving time keeps going while the
engine is running.
The meter’s working range is from
00:00~99:59.
Pressing the RESET button for more than
1 second, when the driving time is being
displayed, clears the driving time to zero
(00:00).
Service reminder
OBI3040012OBI3040012
This mode displays the service interval
(mileage).
Digital Speedometer
OBI3040013OBI3040013
This message shows the speed of the
vehicle (km/h, MPH).

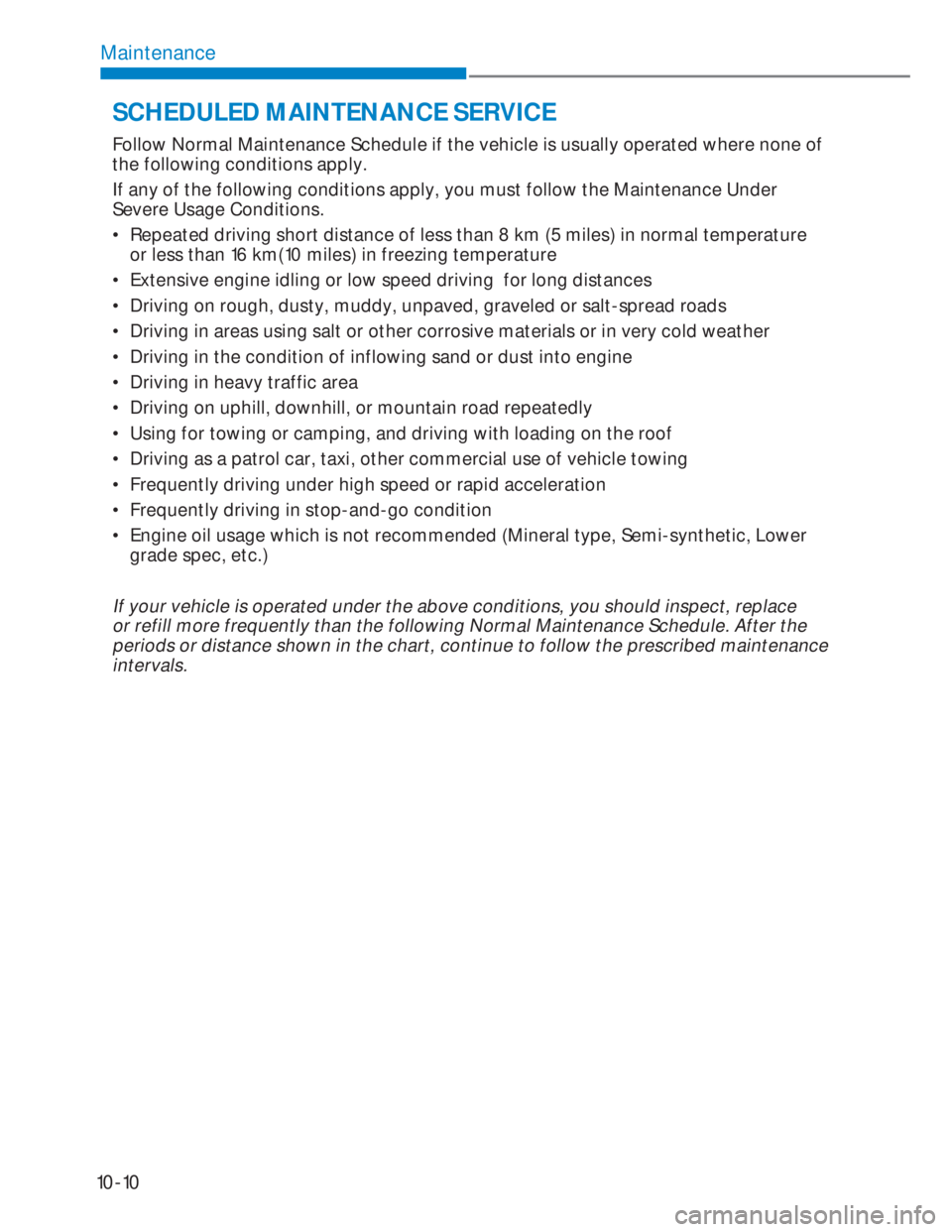

10-10
Maintenance
Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply.
If any of the following conditions apply, you must follow the Maintenance Under
Severe Usage Conditions.
• Repeated driving short distance of less than 8 km (5 miles) in normal temperature
or less than 16 km(10 miles) in freezing temperature
• Extensive engine idling or low speed driving for long distances
• Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads
• Driving in areas using salt or other corrosive materials or in very cold weather
• Driving in the condition of inflowing sand or dust into engine
• Driving in heavy traffic area
• Driving on uphill, downhill, or mountain road repeatedly
• Using for towing or camping, and driving with loading on the roof
• Driving as a patrol car, taxi, other commercial use of vehicle towing
• Frequently driving under high speed or rapid acceleration
• Frequently driving in stop-and-go condition
• Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace
or refill more frequently than the following Normal Maintenance Schedule. After the
periods or distance shown in the chart, continue to follow the prescribed maintenance
intervals.
SCHEDULED MAINTENANCE SERVICE

10-12
Maintenance
MAINTENANCE
INTERVALS
MAINTENANCE ITEMNumber of months or driving distance, whichever comes first
Kmsx1,000
1.51020304050607080
Months
2 1224364860728496
Years
- 12345678
ENGINE BAY
Engine oil & filter *
1 *2 *3
I RRRRRRRR
Drive beltAt first, Inspect 90,000km or 72 months after that,
Inspect every 30,000km or 24 month
Air cleaner filter 1.0 T-GDI C C R C R C R C C
S
martstream G1.2
CCCRCCRCC
Battery condition & specific gravity IIIIIIIII
Spark Plugs *
10
1.0 T-GDI Replace at every 70,000 kmsSmartstream G1.2
Replace at every 150,000 kms
Valve clearance *
4
Inspect at every 90,000 kms or 108 months
Vaccum Hose - - - I - - I - I
Idler / damper pulley/Adj. Bolt Inspect when replacing the drive belt or timing belt/chain
Brake/Clutch fluid Replace @ every 40,000 kms or 3 years
Engine Coolant (topup & specify gravity) *
5
Inspect at every service;
Replace first at 100,000 Km or 60 months ; then at every 30,000 Km or 24 months
Manual transaxle fluid *
6
------ I --
Dual Clutch transaxle fluid (if equipped)*
6
------ I --
MT system actuator fluid (if equipped) *
6
-R-R R-R
Intelligent Var. transaxle fluid (if equipped)*
6
-- -- I ---
I : Inspect and if necessary adjust,top-up, clean or replaceC : Clean and Replace if necessary R : Replace
NORMAL MAINTENANCE SCHEDULE - PETROL ENGINE (CONT.)

10-16
Maintenance
MAINTENANCE UNDER SEVERE USAGE CONDITIONS - PETROL ENGINEThe following items must be serviced more frequently on cars mainly used under severe driving conditions.
Refer to the chart below for the appropriate maintenance intervals.I : Inspect and if necessary, adjust, correct, clean or replace R:Replace or change
Maintenance itemMaintenance
operationMaintenance intervalsDriving
condition
Engine oil and engine oil filter R1.0 T-GDi every 5,000km (3,000miles) or 6 months
A, B, C, D, E, F,
G, H, I, J , K, L
Smartstream
G1.2every 7,500km (5,000miles) or 6 months
Air cleaner filter R Replace more frequently depending on the condition C, E
Spark plugs R Replace more frequently depending on the condition B, H
Manual transmission fluid
(Intelligent manual transmission fluid)
(if equipped)R Every 120,000 km (80,000 miles)C, D, E, F, G,
H, I, J
Dual clutch transmission fluid
(if equipped)R Every 120,000 km (80,000miles)C, D, E, F, G,
H, I, J
Steering gear rack, linkage and boots I Inspect more frequently depending on the condition C, D, E, F, G
