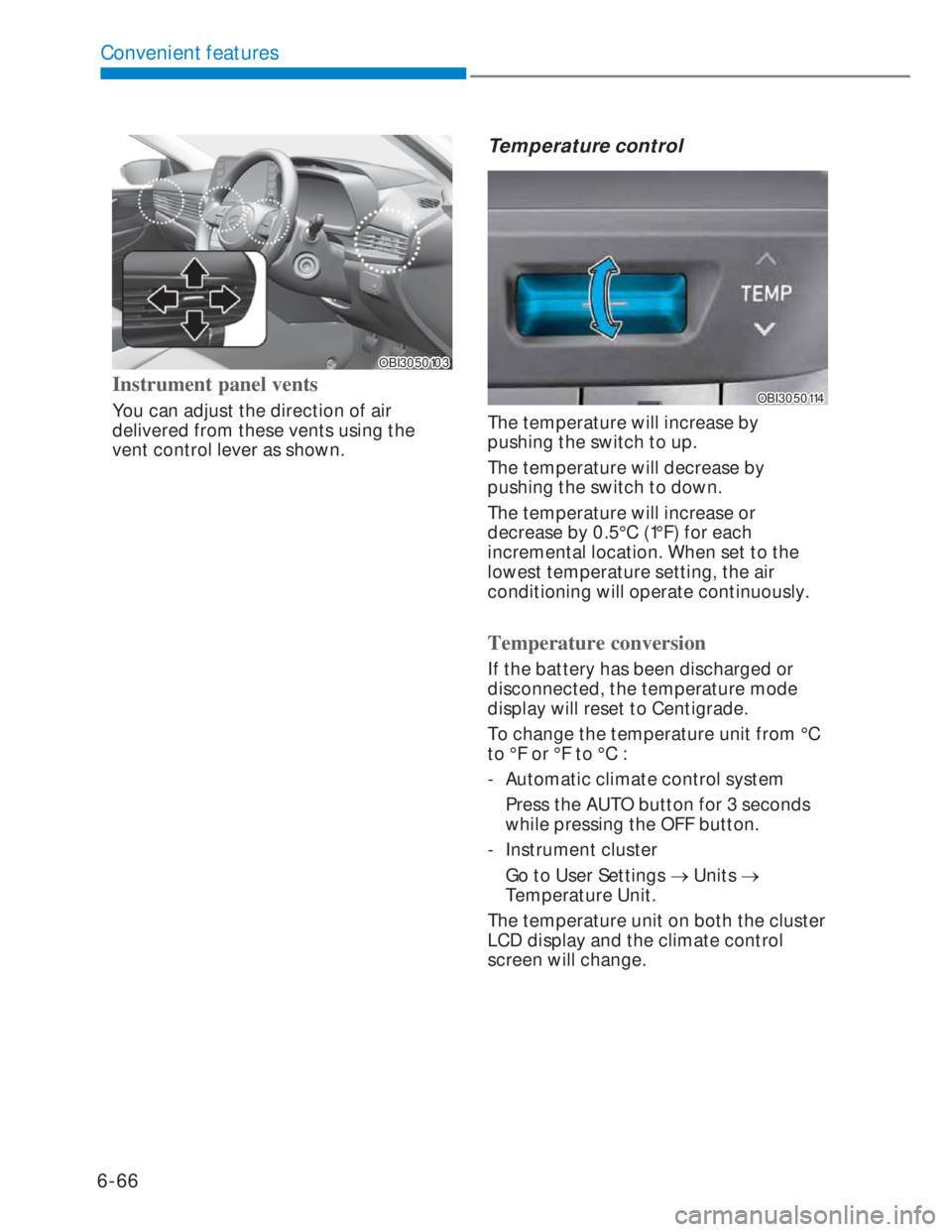

6-66
Convenient features
OBI3050103OBI3050103
Instrument panel vents
You can adjust the direction of air
delivered from these vents using the
vent control lever as shown.
Temperature control
OBI3050114OBI3050114
The temperature will increase by
pushing the switch to up.
The temperature will decrease by
pushing the switch to down.
The temperature will increase or
decrease by 0.5°C (1°F) for each
incremental location. When set to the
lowest temperature setting, the air
conditioning will operate continuously.
Temperature conversion
If the battery has been discharged or
disconnected, the temperature mode
display will reset to Centigrade.
To change the temperature unit from °C
to °F or °F to °C :
- Automatic climate control system
Press the AUTO button for 3 seconds
while pressing the OFF button.
- Instrument cluster
Go to User Settings o Units o
Temperature Unit.
The temperature unit on both the cluster
LCD display and the climate control
screen will change.
