6-9
06

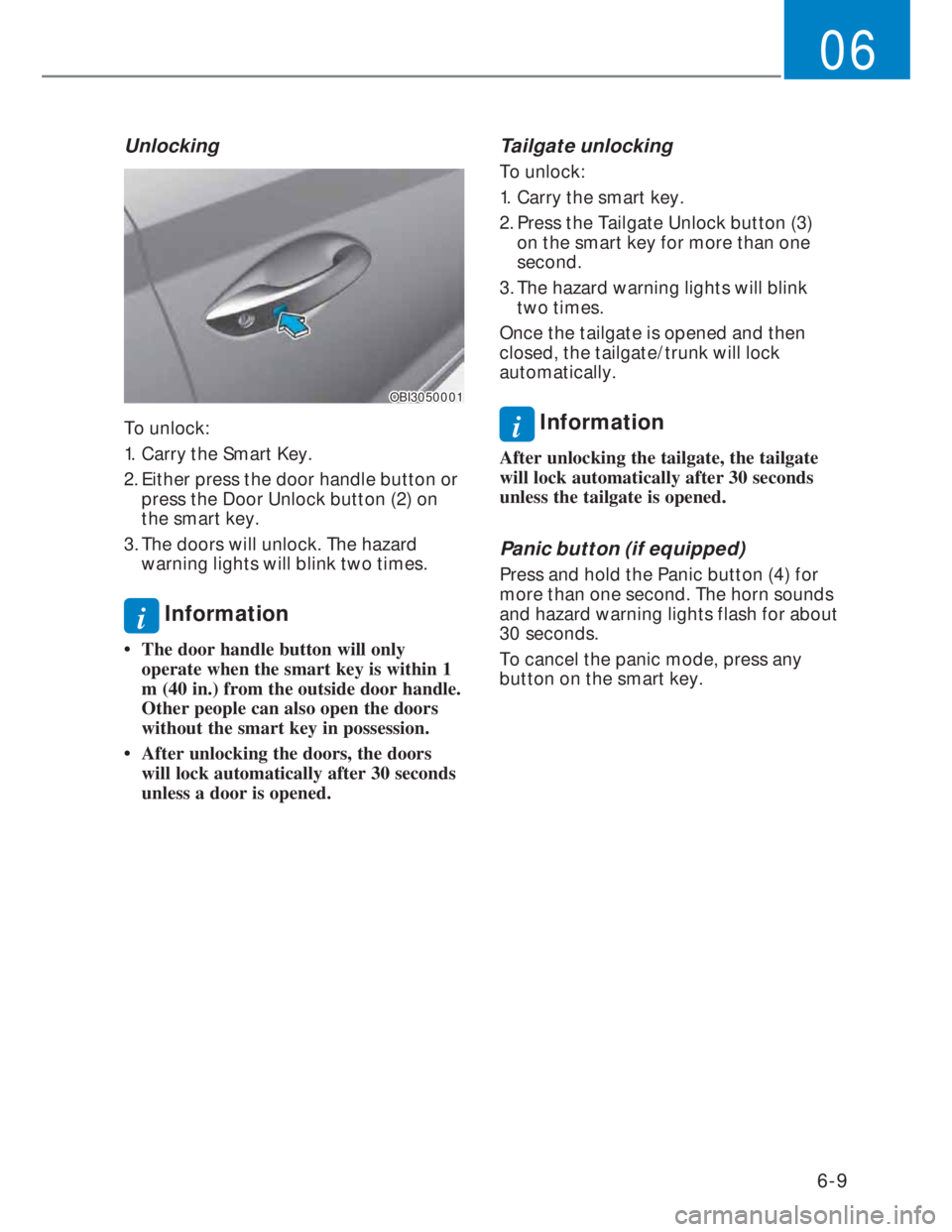

Unlocking
OBI3050001OBI3050001
To unlock:
1. Carry the Smart Key.
2. Either press the door handle button or
press the Door Unlock button (2) on
the smart key.
3. The doors will unlock. The hazard
warning lights will blink two times.
i Information
• The door handle button will only
operate when the smart key is within 1
m (40 in.) from the outside door handle.
Other people can also open the doors
without the smart key in possession.
• After unlocking the doors, the doors
will lock automatically after 30 seconds
unless a door is opened.
Tailgate unlocking
To unlock:
1. Carry the smart key.
2. Press the Tailgate Unlock button (3)
on the smart key for more than one
second.
3. The hazard warning lights will blink
two times.
Once the tailgate is opened and then
closed, the tailgate/trunk will lock
automatically.
i Information
After unlocking the tailgate, the tailgate
will lock automatically after 30 seconds
unless the tailgate is opened.
Panic button (if equipped)
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights flash for about
30 seconds.
To cancel the panic mode, press any
button on the smart key.

6-14
Convenient features
• Vehicle should be parked on a flat
surface.
• Smart Key (FOB) should not be placed
inside the vehicle.
Remote Engine Start will not
operate:
1. If gear position is other than ‘N’
2. If the parking brake position is less
than 5th notch condition
3. If vehicle is parked on a hill or an
inclination road(not on flat area)
4. If vehicle battery is low.
CAUTION
For remote start operation in Manual
Transmission, vehicle must be parked
on a flat surface.
Door lock/unlock sound
When a user steps out of the car, all
doors are closed and then the user tries
to lock or unlock the car with the remote
key or smart key, sound occurs along
with flashing.
• Door Lock beep sound : 1time
• Door Unlock beep sound : 2times
Lock/Unlock Sound Function
Disable / Enable:
The user can disable or enable the lock/
unlock sound using the remote key or
smart key.
• Default condition : Sound is Enabled
(ON)
- Sound Disable : User must press
both lock and unlock buttons in the
remote key or smart key together for
at least 4seconds to deactivate the
sound (from “ON  OFF”).
- Sound Enable : User must press
both lock and unlock buttons in the
remote key or smart key together for
at least 4seconds to activate Sound
(from “ OFF  ON”).
• For a successful Activation/
De-activation of Sound, Hazard
warning lights will blink 4 times.

6-21
06

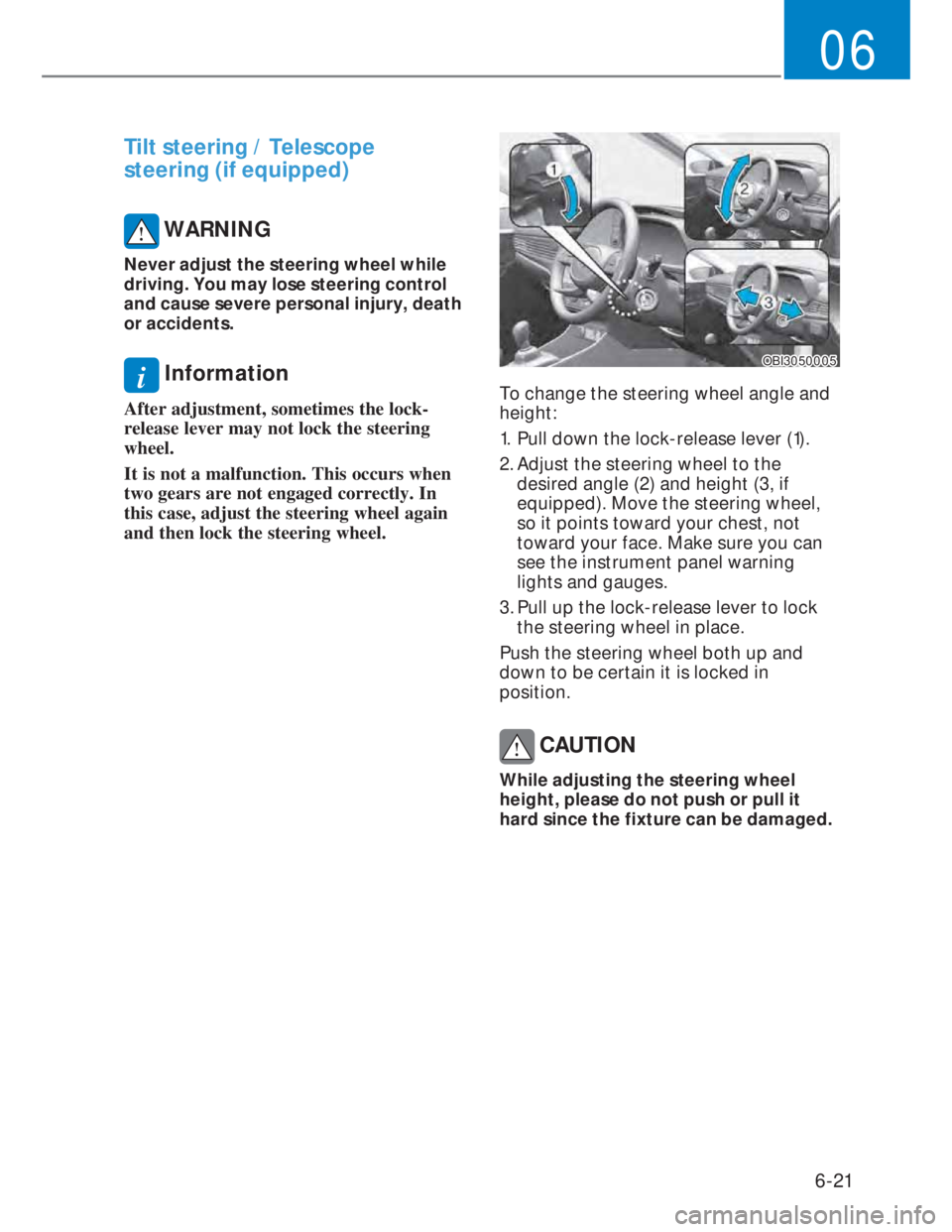

Tilt steering / Telescope
steering (if equipped)
WARNING
Never adjust the steering wheel while
driving. You may lose steering control
and cause severe personal injury, death
or accidents.
i Information
After adjustment, sometimes the lock-
release lever may not lock the steering
wheel.
It is not a malfunction. This occurs when
two gears are not engaged correctly. In
this case, adjust the steering wheel again
and then lock the steering wheel.
OBI3050005OBI3050005
To change the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the
desired angle (2) and height (3, if
equipped). Move the steering wheel,
so it points toward your chest, not
toward your face. Make sure you can
see the instrument panel warning
lights and gauges.
3. Pull up the lock-release lever to lock
the steering wheel in place.
Push the steering wheel both up and
down to be certain it is locked in
position.
CAUTION
While adjusting the steering wheel
height, please do not push or pull it
hard since the fixture can be damaged.

6-23
06
Inside rearview mirror
Before you start driving, adjust the
rearview mirror to the center on the view
through the rear window.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
Day/night rearview mirror
OBC3050054OBC3050054
[A] : Day, [B] :Night
Make this adjustment before you start
driving and while the day/night lever is
in the day position.Pull the day/night lever toward you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Blue Link® center (if equipped)
OQXI049073OQXI049073
For details, refer to the Blue Link®
Owner’s Guide, infotainment system
manual.
(1) SOS : Emergency assistance
(2) RSA (Road Side Assistance)
- Flat tire
- Vehicle break down
- Vehicle towing
- Emergency fuel
(3) BlueLink
- Push maps by call center
- General assistance
MIRRORS

6-43
06
OBI3050020OBI3050020
AUTO light position (if equipped)
When the light switch is in the AUTO
position, the parking (position) light and
headlights will be turned ON or OFF
automatically depending on the amount
of light outside the vehicle.
Even with the AUTO light feature
in operation, it is recommended to
manually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and parking
facilities.
NOTICE
• Do not cover or spill anything on the
sensor (1) located on the instrument
panel.
• Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
• If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO light
system may not work properly.
High beam operation
OBI3050021OBI3050021
To turn on the high beam headlight,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.

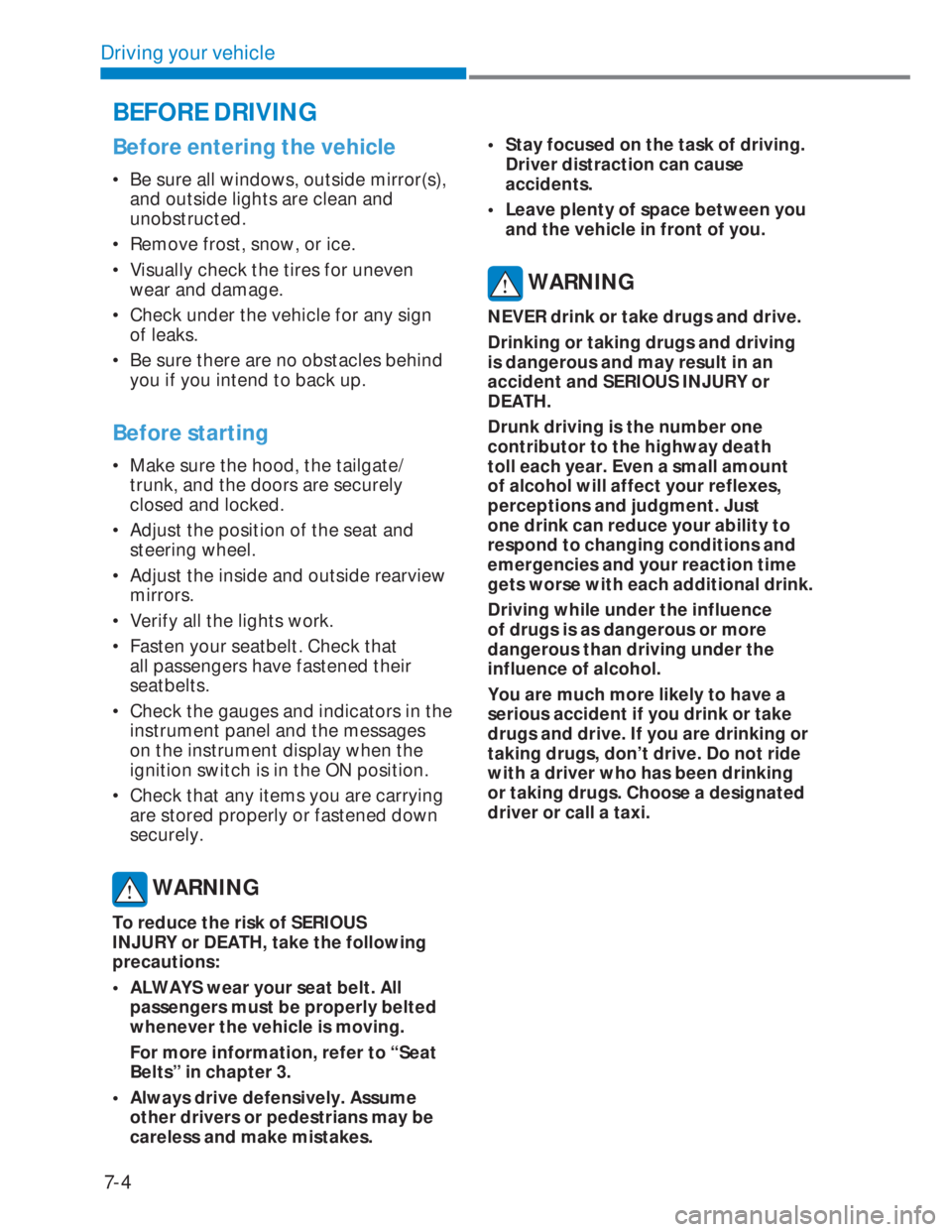

7-4
Driving your vehicle
Before entering the vehicle
• Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.
• Remove frost, snow, or ice.
• Visually check the tires for uneven
wear and damage.
• Check under the vehicle for any sign
of leaks.
• Be sure there are no obstacles behind
you if you intend to back up.
Before starting
• Make sure the hood, the tailgate/
trunk, and the doors are securely
closed and locked.
• Adjust the position of the seat and
steering wheel.
• Adjust the inside and outside rearview
mirrors.
• Verify all the lights work.
• Fasten your seatbelt. Check that
all passengers have fastened their
seatbelts.
• Check the gauges and indicators in the
instrument panel and the messages
on the instrument display when the
ignition switch is in the ON position.
• Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, take the following
precautions:
• ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving.
For more information, refer to “Seat
Belts” in chapter 3.
• Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.• Stay focused on the task of driving.
Driver distraction can cause
accidents.
• Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving while under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING

7-6
Driving your vehicle
Key ignition switch positions
Switch
PositionAction Notice
LOCKThe ignition key can be removed in
the LOCK position.The steering wheel locks to protect
the vehicle from theft.
(if equipped)
ACCElectrical accessories are usable.The steering wheel unlocks.
If difficulty is experienced turning
the ignition switch to the ACC
position, turn the key while turning
the steering wheel right and left to
release tension.
ONThis is the normal key position
when the engine has started.
All features and accessories are
usable.
The warning lights can be checked
when you turn the ignition switch
from ACC to ON.Do not leave the ignition switch in
the ON position when the engine is
not running to prevent the battery
from discharging.
STARTTo start the engine, turn the
ignition switch to the START
position. The switch returns to the
ON position when you let go of the
key.The engine will crank until you
release the key.

7-11
07
Engine Stop/Start button positions
Button PositionAction Notice
OFF• To turn off the engine, stop
the vehicle and then press the
Engine Start/Stop button.
• The steering wheel locks to
protect the vehicle from theft.
(if equipped)If the steering wheel is not locked
properly when you open the
driver’s door, the warning chime
will sound.
ACC• Press the Engine Start/Stop
button when the button is
in the OFF position without
depressing the brake pedal.
• Electrical accessories are
usable.
• The steering wheel unlocks.• If you leave the Engine Start/
Stop button in the ACC
position for more than one
hour, the battery power
will turn off automatically
to prevent the battery from
discharging.
• If the steering wheel doesn’t
unlock properly, the Engine
Start/Stop button will not
work. Press the Engine Start/
Stop button while turning the
steering wheel right and left to
release tension.
ON• Press the Engine Start/Stop
button while it is in the ACC
position without depressing
the clutch pedal.
• The warning lights can be
checked before the engine is
started.Do not leave the Engine Start/
Stop button in the ON position
when the engine is not running
to prevent the battery from
discharging.
STARTTo start the engine, depress the
clutch and brake pedals and
press the Engine Start/ Stop
button with the shift lever in
neutral.If you press the Engine Start/Stop
button without depressing the
clutch pedal, the engine does not
start and the Engine Start/Stop
button changes as follows:
OFF o ACC o ON o OFF
