Convenience Features
5-24

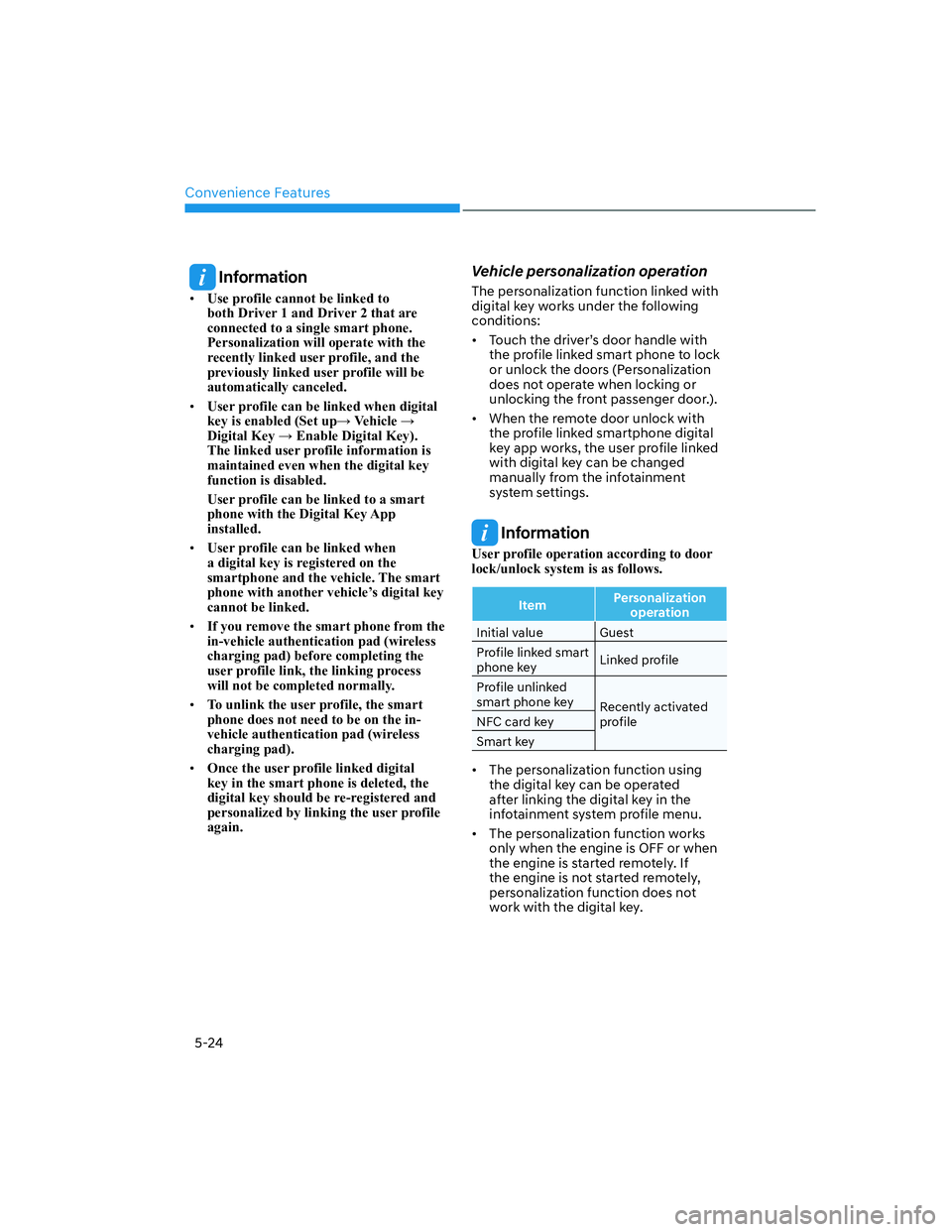

Information
• Use profile cannot be linked to
both Driver 1 and Driver 2 that are
connected to a single smart phone.
Personalization will operate with the
recently linked user profile, and the
previously linked user profile will be
automatically canceled.
• User profile can be linked when digital
NH\LVHQDEOHG6HWXS
:9HKLFOH
:
'LJLWDO.H\
:(QDEOH'LJLWDO.H\
The linked user profile information is
maintained even when the digital key
function is disabled.
User profile can be linked to a smart
phone with the Digital Key App
installed.
• User profile can be linked when
a digital key is registered on the
smartphone and the vehicle. The smart
phone with another vehicle’s digital key
cannot be linked.
• If you remove the smart phone from the
in-vehicle authentication pad (wireless
charging pad) before completing the
user profile link, the linking process
will not be completed normally.
• To unlink the user profile, the smart
phone does not need to be on the in-
vehicle authentication pad (wireless
charging pad).
• Once the user profile linked digital
key in the smart phone is deleted, the
digital key should be re-registered and
personalized by linking the user profile
again.
Vehicle personalization operation
The personalization function linked with
digital key works under the following
conditions:
• Touch the driver’s door handle with
the profile linked smart phone to lock
or unlock the doors (Personalization
does not operate when locking or
unlocking the front passenger door.).
• When the remote door unlock with
the profile linked smartphone digital
key app works, the user profile linked
with digital key can be changed
manually from the infotainment
system settings.
Information
User profile operation according to door
ORFNXQORFNV\VWHPLVDVIROORZV
ItemPersonalization
operation
Initial value Guest
Profile linked smart
phone keyLinked profile
Profile unlinked
smart phone key
Recently activated
profile NFC card key
Smart key
• The personalization function using
the digital key can be operated
after linking the digital key in the
infotainment system profile menu.
• The personalization function works
only when the engine is OFF or when
the engine is started remotely. If
the engine is not started remotely,
personalization function does not
work with the digital key.

Convenience Features
5-30
• You cannot use the fingerprint sensor
when the vehicle is discharged.
• If ‘Start Vehicle’ is deselected from
the vehicle settings menu for Driver
1 and Driver 2, the fingerprint sensor
will not operate when the vehicle is
off.
• If you turn the engine on or off during
the fingerprint authentication process,
your fingerprint may not be verified
properly.
WARNING
Do not register children’s fingerprints in
the vehicle.
If you register children’s fingerprints
and leave them in the vehicle,
unexpected accidents may occur.
When Purchasing a Used Vehicle
If you purchase a used vehicle, you
should confirm and delete all registered
fingerprints in Driver 1 and Driver 2
profile.
If a fingerprint is registered, the message
“Biometric authentication active”
appears on the cluster once when the
vehicle door is unlocked, and the engine
is started.
Remotely Starting the Vehicle
If ‘Start Vehicle’ is selected from the
Driver 1 or Driver 2 User Profile settings
menu, and the door is unlocked with the
Genesis Digital Key App or the Genesis
Connected Service App while the vehicle
is remotely started, the engine will turn
off if the fingerprint sensor does not
verify your fingerprint.
To remotely start the vehicle with
the Genesis Digital Key App, refer to
“Genesis Digital Key” section in this
chapter. And for Genesis Connected
Service App, see additional information
in a separately supplied manual.

05
5-41
Information
• The second alert is available for
vehicles equipped with the ROA sensor.
• Rear Occupant Alert also activates
when movement is detected in the cargo
area.
• The second alert is activated only after
the prior activation of the first alert.
• „„ClusterCluster„„Steering wheelSteering wheel
OJX1059019LOJX1059019LOJX1059021OJX1059021
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.
• If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
Advanced Rear Occupant Alert
Precautions
„„SensorSensor
OJK050009OJK050009
• Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(e.g. wind or bugs).
• The alert may operate if movement
in the driver or passenger seat is
detected.
• If the doors are locked with a
passenger inside the vehicle, the alert
may operate.
• An alert can occur if there is an impact
on the vehicle.
• If boxes or objects are stacked in the
vehicle, the system may not detect
passengers. Or, the alert may operate
if the boxes or objects fall off.
• The alert may operate when the
vehicle is pushed or shaken, or while
washed, or by surrounding noise or
vibration after the vehicle is locked.
• The alert may operate when there
are metallic or liquid objects in the
vehicle.

05
5-53

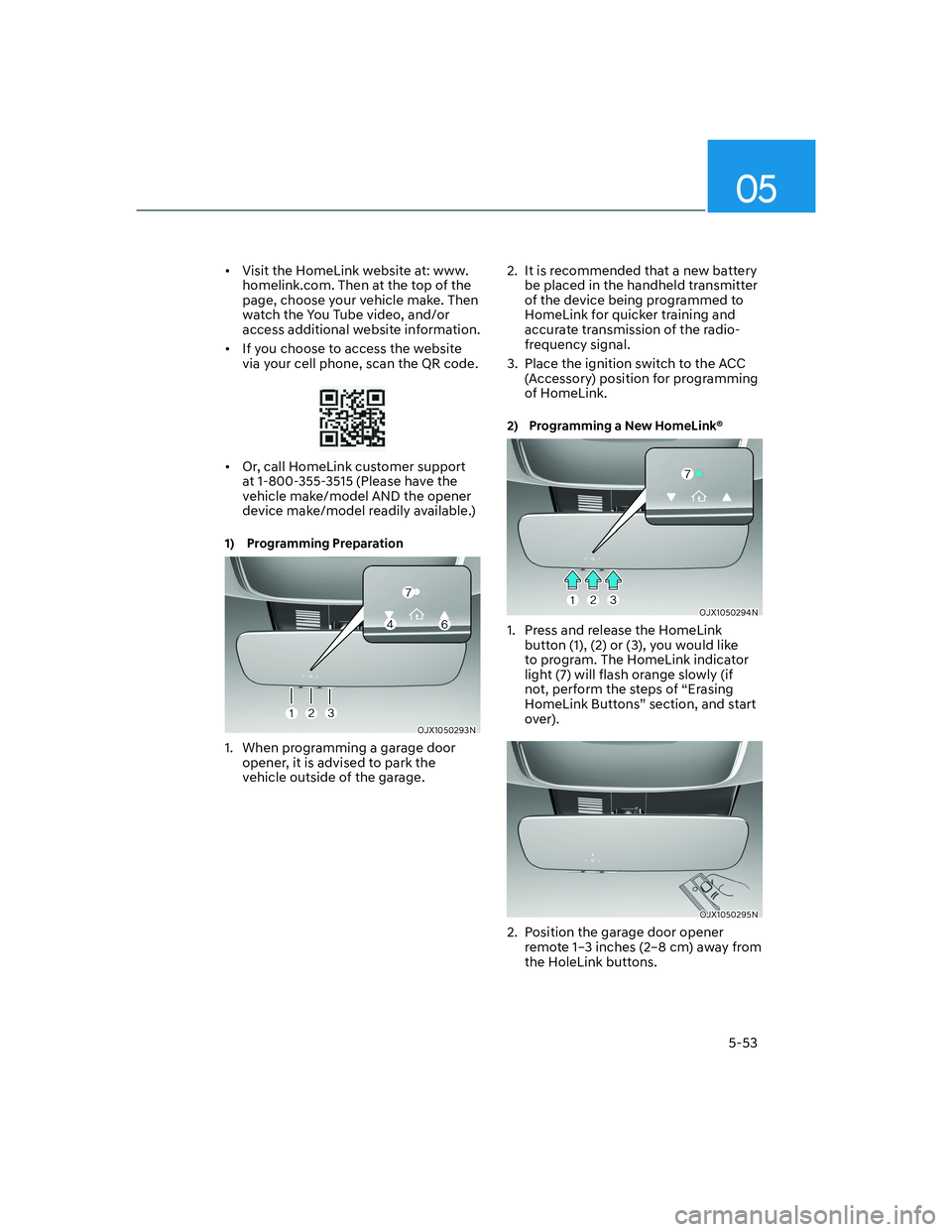

• Visit the HomeLink website at: www.
homelink.com. Then at the top of the
page, choose your vehicle make. Then
watch the You Tube video, and/or
access additional website information.
• If you choose to access the website
via your cell phone, scan the QR code.
• Or, call HomeLink customer support
at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
1) Programming Preparation
OJX1050293NOJX1050293N
1. When programming a garage door
opener, it is advised to park the
vehicle outside of the garage.2. It is recommended that a new battery
be placed in the handheld transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
3. Place the ignition switch to the ACC
(Accessory) position for programming
of HomeLink.
2) Programming a New HomeLink®
OJX1050294NOJX1050294N
1. Press and release the HomeLink
button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
HomeLink Buttons” section, and start
over).
OJX1050295NOJX1050295N
2. Position the garage door opener
remote 1–3 inches (2–8 cm) away from
the HoleLink buttons.

Convenience Features
5-54

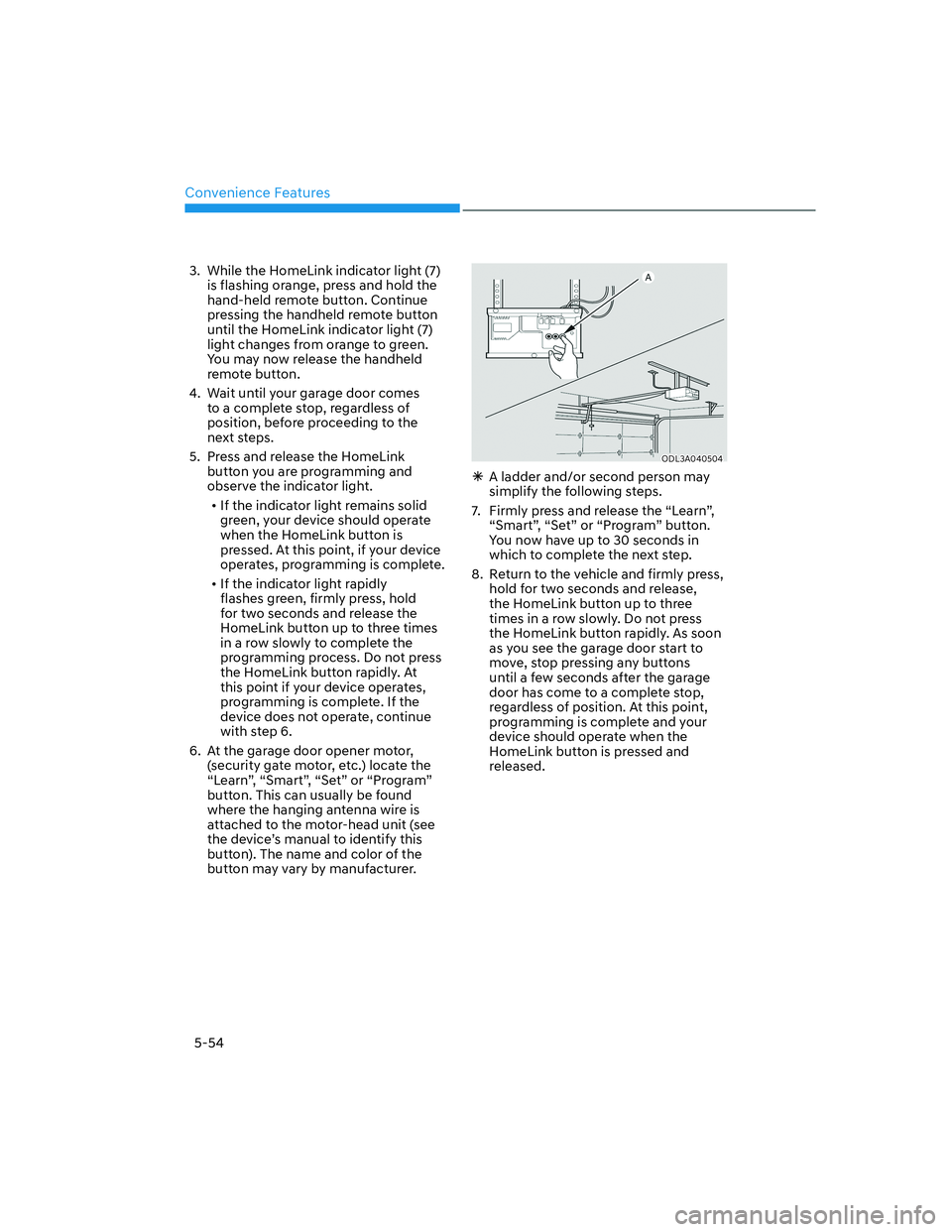

3. While the HomeLink indicator light (7)
is flashing orange, press and hold the
hand-held remote button. Continue
pressing the handheld remote button
until the HomeLink indicator light (7)
light changes from orange to green.
You may now release the handheld
remote button.
4. Wait until your garage door comes
to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press and release the HomeLink
button you are programming and
observe the indicator light.
• If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.
• If the indicator light rapidly
flashes green, firmly press, hold
for two seconds and release the
HomeLink button up to three times
in a row slowly to complete the
programming process. Do not press
the HomeLink button rapidly. At
this point if your device operates,
programming is complete. If the
device does not operate, continue
with step 6.
6. At the garage door opener motor,
(security gate motor, etc.) locate the
“Learn”, “Smart”, “Set” or “Program”
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device’s manual to identify this
button). The name and color of the
button may vary by manufacturer.
ODL3A040504ODL3A040504
ÃA ladder and/or second person may
simplify the following steps.
7. Firmly press and release the “Learn”,
“Smart”, “Set” or “Program” button.
You now have up to 30 seconds in
which to complete the next step.
8. Return to the vehicle and firmly press,
hold for two seconds and release,
the HomeLink button up to three
times in a row slowly. Do not press
the HomeLink button rapidly. As soon
as you see the garage door start to
move, stop pressing any buttons
until a few seconds after the garage
door has come to a complete stop,
regardless of position. At this point,
programming is complete and your
device should operate when the
HomeLink button is pressed and
released.

6
Before Driving ................................................................................................... 6-4Before Entering the Vehicle ........................................................................................ 6-4
Before Starting ............................................................................................................ 6-4
Engine Start/Stop Button ................................................................................. 6-5
Engine Stop/Start Button Positions ........................................................................... 6-6
Starting the Engine ...................................................................................................... 6-7
Turning Off the Engine ................................................................................................ 6-8
Remote Start ................................................................................................................ 6-9
Automatic Transmission ..................................................................................6-10
Automatic Transmission Operation ........................................................................... 6-10
LCD Display Messages (Cluster) ................................................................................ 6-16
Paddle Shifter (Manual Shift Mode) .......................................................................... 6-18
Good Driving Practices .............................................................................................. 6-19
Braking System ............................................................................................... 6-20Power-Assist Brakes .................................................................................................. 6-20
Disc Brakes Wear Indicator....................................................................................... 6-20
High Performance Brake............................................................................................ 6-21
Electronic Parking Brake (EPB) .................................................................................. 6-21
Auto Hold ................................................................................................................... 6-25
Anti-Lock Brake System (ABS) ...................................................................................6-29
Electronic Stability Control (ESC) ............................................................................ 6-30
Vehicle Stability Management (VSM) .......................................................................6-33
Hill-Start Assist Control (HAC) ...................................................................................6-34
Downhill Brake Control (DBC) ...................................................................................6-34
Good Braking Practices ............................................................................................. 6-37
All Wheel Drive (AWD) .................................................................................... 6-38All Wheel Drive (AWD) Operation ............................................................................. 6-38
Emergency Precautions ............................................................................................ 6-40
Electronic Limited Slip Differential ................................................................ 6-42Drive Mode Selection ................................................................................................ 6-42
Warning Messages .................................................................................................... 6-42
Electronic Control Suspension ....................................................................... 6-43System Malfunction .................................................................................................. 6-43
Electronically Controlled Suspension with Road Preview ........................... 6-43System Malfunction .................................................................................................. 6-44
Limitations of the System ......................................................................................... 6-44
6. Driving Your Vehicle

06
6-9

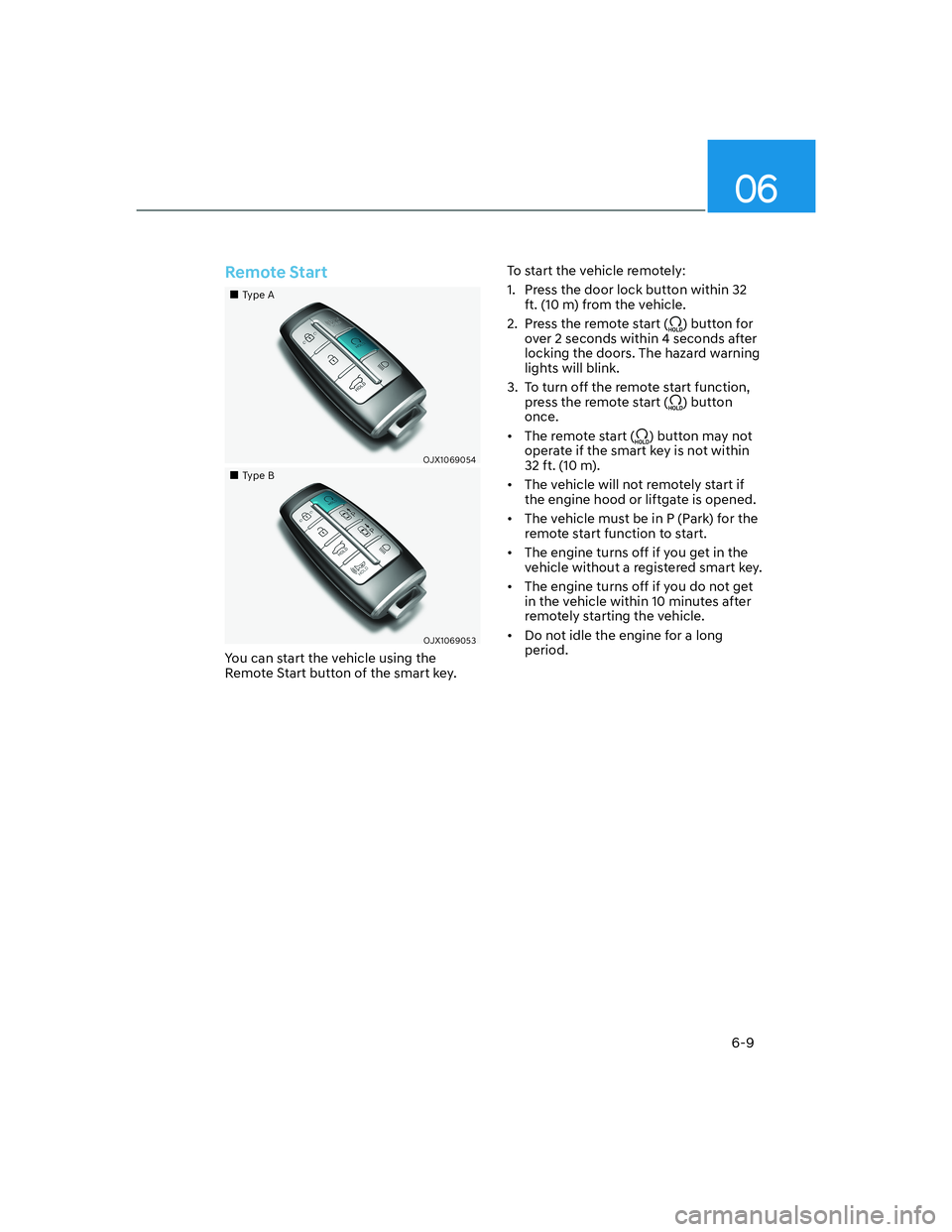

Remote Start
„„Type AType A
OJX1069054OJX1069054
„„Type BType B
OJX1069053OJX1069053
You can start the vehicle using the
Remote Start button of the smart key.To start the vehicle remotely:
1. Press the door lock button within 32
ft. (10 m) from the vehicle.
2. Press the remote start (
) button for
over 2 seconds within 4 seconds after
locking the doors. The hazard warning
lights will blink.
3. To turn off the remote start function,
press the remote start (
) button
once.
• The remote start (
) button may not
operate if the smart key is not within
32 ft. (10 m).
• The vehicle will not remotely start if
the engine hood or liftgate is opened.
• The vehicle must be in P (Park) for the
remote start function to start.
• The engine turns off if you get in the
vehicle without a registered smart key.
• The engine turns off if you do not get
in the vehicle within 10 minutes after
remotely starting the vehicle.
• Do not idle the engine for a long
period.

Driver Assistance System
7-160

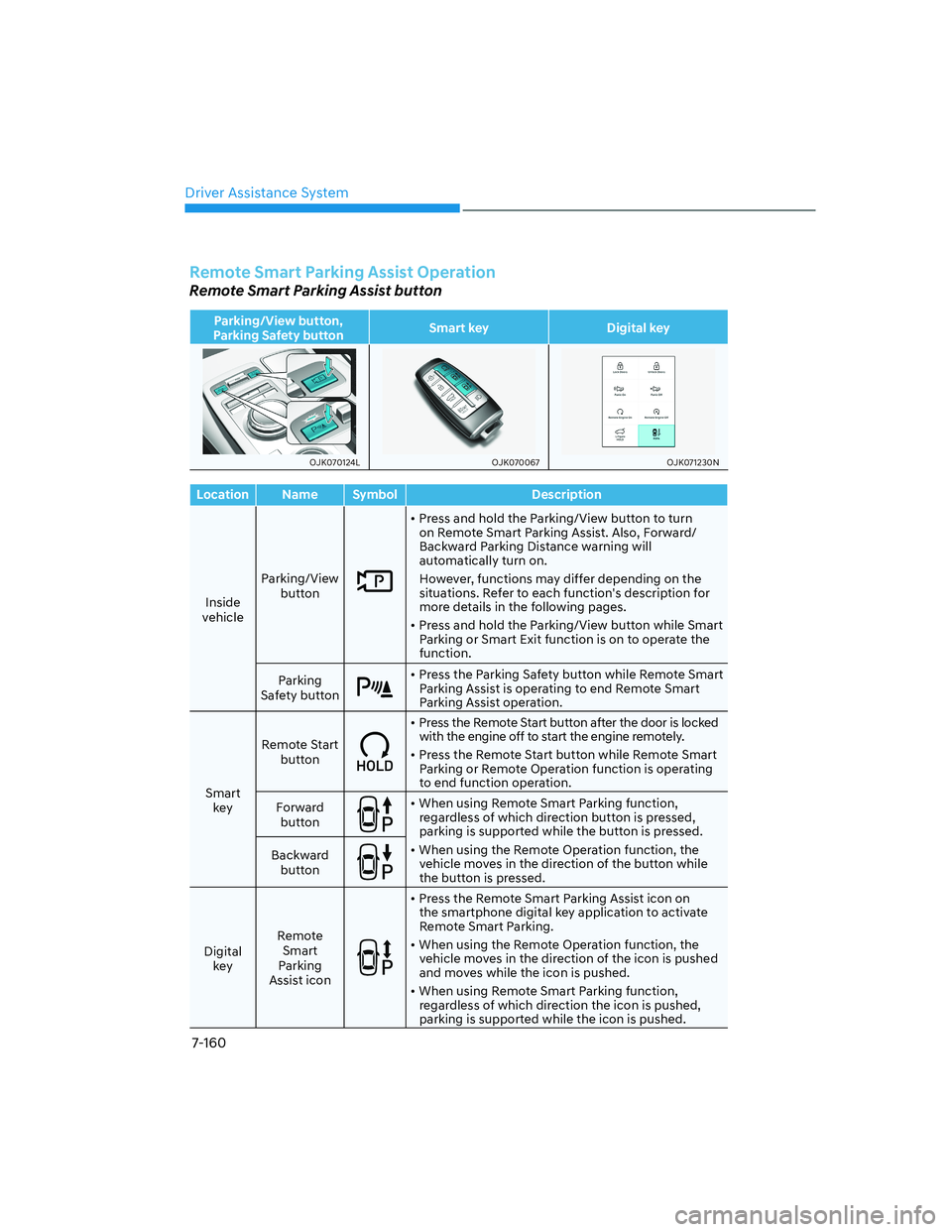

5HPRWH6PDUW3DUNLQJ$VVLVW2SHUDWLRQ
Remote Smart Parking Assist button
3DUNLQJ9LHZEXWWRQ
3DUNLQJ6DIHW\EXWWRQ6PDUWNH\ 'LJLWDONH\
OJK070124LOJK070124LOJK070067OJK070067OJK071230NOJK071230N
Location Name6\PERODescription
Inside
vehicleParking/View
button
• Press and hold the Parking/View button to turn
on Remote Smart Parking Assist. Also, Forward/
Backward Parking Distance warning will
automatically turn on.
However, functions may differ depending on the
situations. Refer to each function's description for
more details in the following pages.
• Press and hold the Parking/View button while Smart
Parking or Smart Exit function is on to operate the
function.
Parking
Safety button
• Press the Parking Safety button while Remote Smart
Parking Assist is operating to end Remote Smart
Parking Assist operation.
Smart
keyRemote Start
button
• Press the Remote Start button after the door is locked
with the engine off to start the engine remotely.
• Press the Remote Start button while Remote Smart
Parking or Remote Operation function is operating
to end function operation.
Forward
button
• When using Remote Smart Parking function,
regardless of which direction button is pressed,
parking is supported while the button is pressed.
• When using the Remote Operation function, the
vehicle moves in the direction of the button while
the button is pressed. Backward
button
Digital
keyRemote
Smart
Parking
Assist icon
• Press the Remote Smart Parking Assist icon on
the smartphone digital key application to activate
Remote Smart Parking.
• When using the Remote Operation function, the
vehicle moves in the direction of the icon is pushed
and moves while the icon is pushed.
• When using Remote Smart Parking function,
regardless of which direction the icon is pushed,
parking is supported while the icon is pushed.
