2022 HYUNDAI GENESIS GV70 Down hill control

06
6-35
System operation
Mode Indicator Description
Standby
Green light onPress the Downhill Brake Control button when vehicle
speed is under 37 mph (60 km/h). Downhill Brake
Control will turn on and enter the standby mode. The
system does not turn on if vehicle speed is over 37 mph
(60 km/h).
Activated
Green light blinkIn the standby mode, Downhill Brake Control will
activate under the following conditions:
• The hill is steep enough.
• The brake pedal or accelerator pedal is not depressed.
• Vehicle speed is within 2–25 mph (4–40 km/h) range
(within 2–5 mph (4–8 km/h) when reversing).
Within the activation speed range 2-25 mph (4-40km/h),
the driver can control the vehicle speed by depressing
the brake pedal or accelerator pedal.
Deactivated
Green light offDownhill Brake Control will turn off under the following
conditions:
• The Downhill Brake Control button is pressed again.
• Vehicle speed is over 37 mph (60 km/h).
Green light onDownhill Brake Control will be deactivated but maintain
the standby mode under the following conditions:
• The hill is not steep enough.
• Vehicle speed is between 18–37 mph (30–60 km/h).
System
malfunction
Yellow light onThe yellow warning light illuminates when the system
may have malfunctioned or may not work properly
during activation. If this occurs, Downhill Brake Control
is deactivated. Have the system inspected by an
authorized retailer of Genesis Branded products as soon
as possible.

Driving Your Vehicle
6-36
OJK060067LOJK060067L
Downhill Brake Control disabled. Control
vehicle speed
When Downhill Brake Control is not
working properly this warning message
will appear on the cluster LCD display
and you will hear a warning sound. If
this occurs, control vehicle speed by
depressing the brake pedal.
WARNING
Always turn off Downhill Brake Control
on normal roads. The system might
activate inadvertently from the standby
mode when driving through speed
bumps or making sharp curves.
Information
• Downhill Brake Control may not
deactivate on steep inclines even though
the brake pedal or accelerator pedal is
depressed.
• Downhill Brake Control may not
always maintain vehicle speed at a
certain speed.
• Downhill Brake Control does not
operate when:
-The gear is in P (Park).
-ESC is activated.
• Noise or vibration may occur from the
brakes when Downhill Brake Control is
activated.
• The rear stop light comes on when
Downhill Brake Control is activated.

06
6-53
OJK060018OJK060018
Drive mode may be selected according
to the driver's preference or road
condition.
Drive Mode
The mode changes whenever the driver
pushes the DRIVE MODE switch up or
down.
COMFORT mode
COMFORT mode provides smooth
driving and comfortable riding.
ECO mode
ECO mode helps improve fuel
efficiency for eco-friendly
driving.
Fuel efficiency varies according
to the driver's driving habit and
road condition.
• When ECO mode is selected, the
ECO indicator will illuminate on the
instrument cluster.• When ECO mode is activated:
- The acceleration response may be
slightly reduced if the accelerator
pedal is depressed moderately.
- The air conditioner performance
may be limited.
- The shift pattern of the automatic
transmission may change.
- Engine noise may be louder at some
automatic transmission shifts as
down-shift requires pressing down
more on the accelerator.
The above situations are normal
conditions when ECO mode is
activated to help improve fuel
efficiency.
Limitations of ECO mode
If the following conditions occur while
ECO mode is operating, the system
operation is limited even though there is
no change in the ECO indicator.
• When coolant temperature is low:
The system will be limited until engine
performance becomes normal.
• When driving up a hill:
The system will be limited to gain
power when driving uphill because
engine torque is restricted.
• When driving the vehicle in manual
shift mode using the paddle shifter.
The system will be limited according
to the shift location.
DRIVE MODE INTEGRATED CONTROL SYSTEM

Driver Assistance System

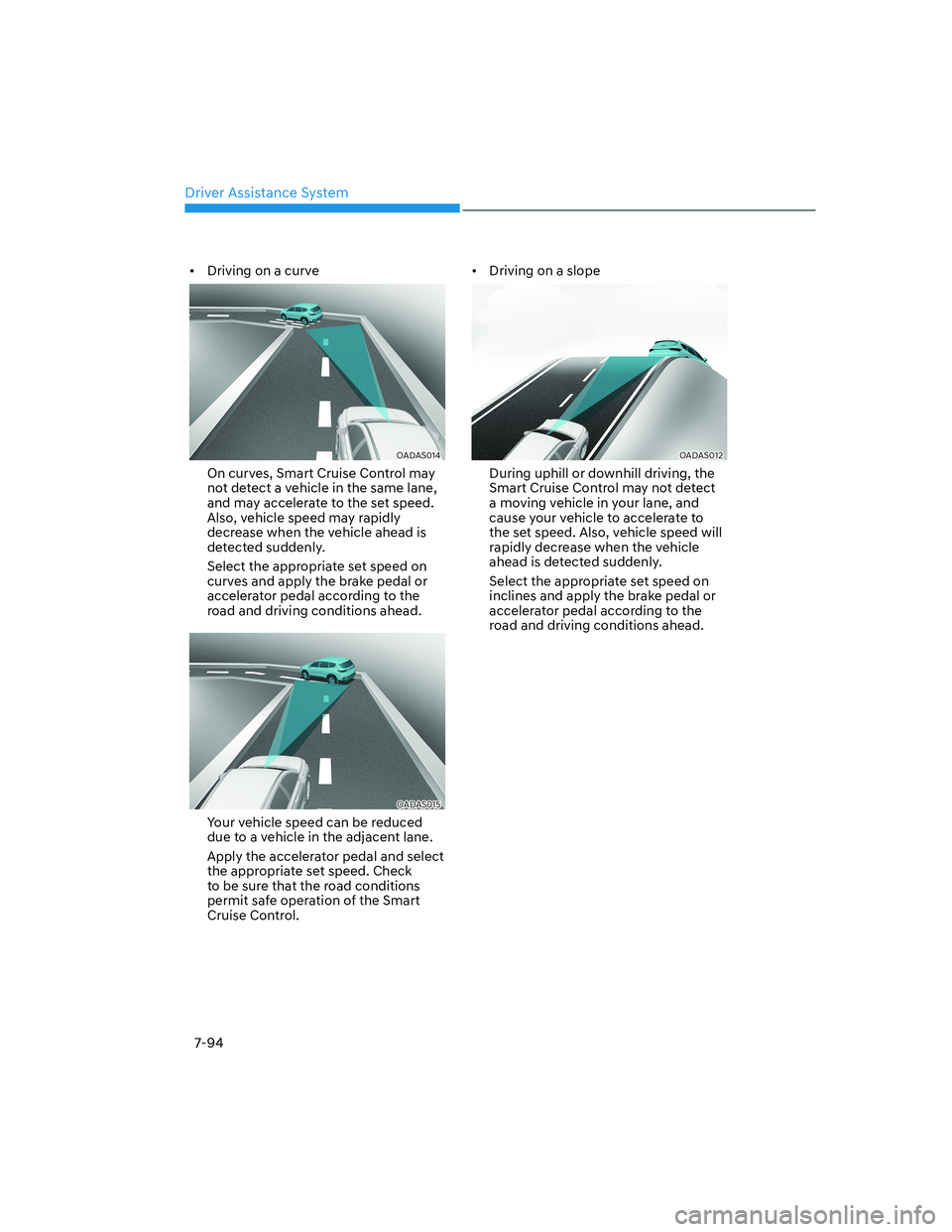

7-94
• Driving on a curve
OADAS014 OADAS014
On curves, Smart Cruise Control may
not detect a vehicle in the same lane,
and may accelerate to the set speed.
Also, vehicle speed may rapidly
decrease when the vehicle ahead is
detected suddenly.
Select the appropriate set speed on
curves and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.
OADAS015 OADAS015
Your vehicle speed can be reduced
due to a vehicle in the adjacent lane.
Apply the accelerator pedal and select
the appropriate set speed. Check
to be sure that the road conditions
permit safe operation of the Smart
Cruise Control. • Driving on a slope
OADAS012OADAS012
During uphill or downhill driving, the
Smart Cruise Control may not detect
a moving vehicle in your lane, and
cause your vehicle to accelerate to
the set speed. Also, vehicle speed will
rapidly decrease when the vehicle
ahead is detected suddenly.
Select the appropriate set speed on
inclines and apply the brake pedal or
accelerator pedal according to the
road and driving conditions ahead.

I
I-3
Automatic Transmission ........................................................................\
..............6-10
Automatic Transmission Operation.................................................................6-10
Good Driving Practices ........................................................................\
...........6-19
LCD Display Messages (Cluster)....................................................................6-16
Paddle Shifter (Manual Shift Mode) ...............................................................6-18
B
Battery ........................................................................\
.........................................9-27
Battery Recharging ........................................................................\
..................9-28
Battery Usage Recommendations ...................................................................9-28
Reset Items ........................................................................\
..............................9-29
Before Driving ........................................................................\
...............................6-4
Before Entering the Vehicle ........................................................................\
......6-4
Before Starting ........................................................................\
..........................6-4
Blind-Spot Collision-Avoidance Assist (BCA) ...................................................7-32
Blind-Spot Collision-Avoidance Assist Malfunction and Limitations ............7-41
Blind-Spot Collision-Avoidance Assist Operation ..........................................7-36
Blind-Spot Collision-Avoidance Assist Settings .............................................7-34
Blind-Spot View Monitor (BVM) .......................................................................7-77
Blind-Spot View Monitor Malfunction ...........................................................7-78
Blind-Spot View Monitor Operation ...............................................................7-77
Blind-Spot View Monitor Settings ..................................................................7-77
Brake Fluid ........................................................................\
..................................9-21
Checking the Brake Fluid Level .....................................................................9-21
Braking System ........................................................................\
............................6-20
Anti-Lock Brake System (ABS) .....................................................................6-29
Auto Hold ........................................................................\
...............................6-25
Disc Brakes Wear Indicator ........................................................................\
.....6-20
Downhill Brake Control (DBC) ......................................................................6-34
Electronic Parking Brake (EPB) .....................................................................6-21
Electronic Stability Control (ESC)..................................................................6-30
Good Braking Practices........................................................................\
...........6-37
High Performance Brake ........................................................................\
.........6-21
Hill-Start Assist Control (HAC) ......................................................................6-34
Power-Assist Brakes ........................................................................\
...............6-20
Vehicle Stability Management (VSM) ............................................................6-33
Bulb Wattage ........................................................................\
..................................2-9
