Introduction
1-2
INTRODUCTION
Congratulations, and thank you for choosing this Genesis Branded Vehicle. We are pleased to welcome you to the growing number of discerning people who drive the Genesis Branded Vehicle. We are very proud of the advanced engineering and high-quality construction of each Genesis Branded Vehicle we build.
Your Owner’s Manual will introduce you to the features and operation of your new Genesis Branded Vehicle. To become familiar with your new Genesis Branded Vehicle, so that you can fully enjoy it, read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to familiarize you with your vehicle’s controls and safety features so you can safely operate your vehicle.
This manual also contains information on maintenance designed to enhance safe operation of the vehicle. It is recommended that all service and maintenance on your car be performed by an authorized retailer of Genesis Branded products. Retailers of Genesis Branded products are prepared to provide high-quality service, maintenance and any other assistance that may be required.
This Owner’s Manual should be considered a permanent part of your vehicle, and should be kept in the vehicle so you can refer to it at any time. The manual should stay with the vehicle if you sell it to provide the next owner with important operating, safety and maintenance information.
GENESIS CUSTOMER CARE
CAUTION
Severe engine and transmission damage may result from the use of poor quality fuels and lubricants that do not meet Genesis Branded Vehicle specifications. You must always use high quality fuels and lubricants that meet the specifications listed on Page 2-12 in the Vehicle Specifications section of the Owner’s Manual.
Copyright 2021 Genesis Customer Care. All rights reserved. No part of this publication may be reproduced, stored in any retrieval system or transmitted in any form or by any means without the prior written permission of Genesis Customer Care.

01
1-5
Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as well as minimize exhaust emissions and spark plug fouling.
For the optimal vehicle performance, we recommend you use unleaded gasoline which has an octane number ((R+M)/2) of 91 (Research Octane Number 95) or higher.
NOTICE
Using unleaded gasoline that is lower than octane number ((R+M)/2) of 91 (Research Octane Number 95) could result in loss of engine power and increase fuel consumption.
NOTICE
To prevent damage to the engine and engine components, never add any fuel system cleaning agents to the fuel tank other than what has been specified.
Consult an authorized retailer of Genesis Branded products for additional information.
WARNING
• Do not “top off” after the nozzle automatically shuts off when refueling.
• Always check that the fuel cap is installed securely to prevent fuel spillage in the event of an accident.
Gasoline containing alcohol and methanol
Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being marketed along with or instead of leaded or unleaded gasoline. For example, “E15” is a gasohol comprised of 15% ethanol and 85% gasoline. Do not use gasohol containing more than 15% ethanol, and do not use gasoline or gasohol containing any methanol. Either of these fuels may cause drivability problems and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur. “E85” fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline, and is manufactured exclusively for use in Flexible Fuel Vehicles. “E85” is not compatible with your vehicle. Use of “E85” may result in poor engine performance and damage to your vehicle’s engine and fuel system. Genesis Branded Vehicle recommends that customers do not use fuel with an ethanol content exceeding 15 percent.
NOTICE
To prevent damage to your vehicle’s engine and fuel system:
• Never use gasohol which contains methanol.
• Never use gasohol containing more than 15% ethanol.
• Never use leaded fuel or leaded gasohol.
• Never use “E85” fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any performance problems caused by the use of “E85” fuel.
FUEL REQUIREMENTS

Introduction
1-6
Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as:
-Silicone fuel additive
-Ferrocene (iron-based) fuel additive
-Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the catalyst, or abnormal corrosion, and may cause damage to the engine resulting in a reduction in the overall life of the powertrain.
The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels or fuel additives may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT (Methylcyclopentadienyl Manganese Tricarbonyl).
Genesis Branded Vehicle does not recommend the use of gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
Genesis Branded Vehicle recommends that you use good quality gasolines treated with detergent additives such as TOP TIER Detergent Gasoline, which help prevent deposit formation in the engine. These gasolines will help the engine run cleaner and enhance performance of the Emission Control System. For more information on TOP TIER Detergent Gasoline, please go to the website (www.toptiergas.com).
For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems starting or the engine does not run smoothly, detergent-based fuel additives that you can purchase separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not available, one bottle of additive added to the fuel tank at every 8,000 miles or 12 months is recommended.
Additives are available from your authorized retailer of Genesis Branded products along with information on how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:
• Observe all regulations regarding registration and insurance.
• Determine that acceptable fuel is available.

01
1 -7
VEHICLE MODIFICATIONS
• This vehicle should not be modified. Modification of your vehicle could affect its performance, safety or durability and may even violate governmental safety and emissions regulations.
• In addition, damage or performance problems resulting from any modification may not be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate abnormally, wire damage, battery discharge and fire. For your safety, do not use unauthorized electronic devices.
NOTICE
All warning sounds (including welcome/good-bye sound, virtual engine sound, etc.) are generated from the interior speakers or amplifiers. If necessary, we recommend you to purchase Genesis Part to replace an interior speaker or amplifier. Any unauthorized product may cause a malfunction of the interior speakers or amplifiers.
VEHICLE BREAK-IN PROCESS
• Do not race the engine.
• While driving, keep your engine speed (rpm, or revolutions per minute) between 2,000 RPM and 4,000 RPM.
• Do not maintain a single speed for long periods of time, either fast or slow. Varying engine speed is needed to properly break-in the engine.
• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
• Fuel economy and engine performance may vary depending on vehicle break-in process and be stabilized after 4,000 miles (6,000 km). New engines may consume more oil during the vehicle break-in period.
• Do not tow a trailer during the first 1,200 miles (2,000 km) of operation.
NOTICE
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of California to cause cancer and birth defects or reproductive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead compounds and other chemicals known to the State of California to cause cancer and reproductive harm.

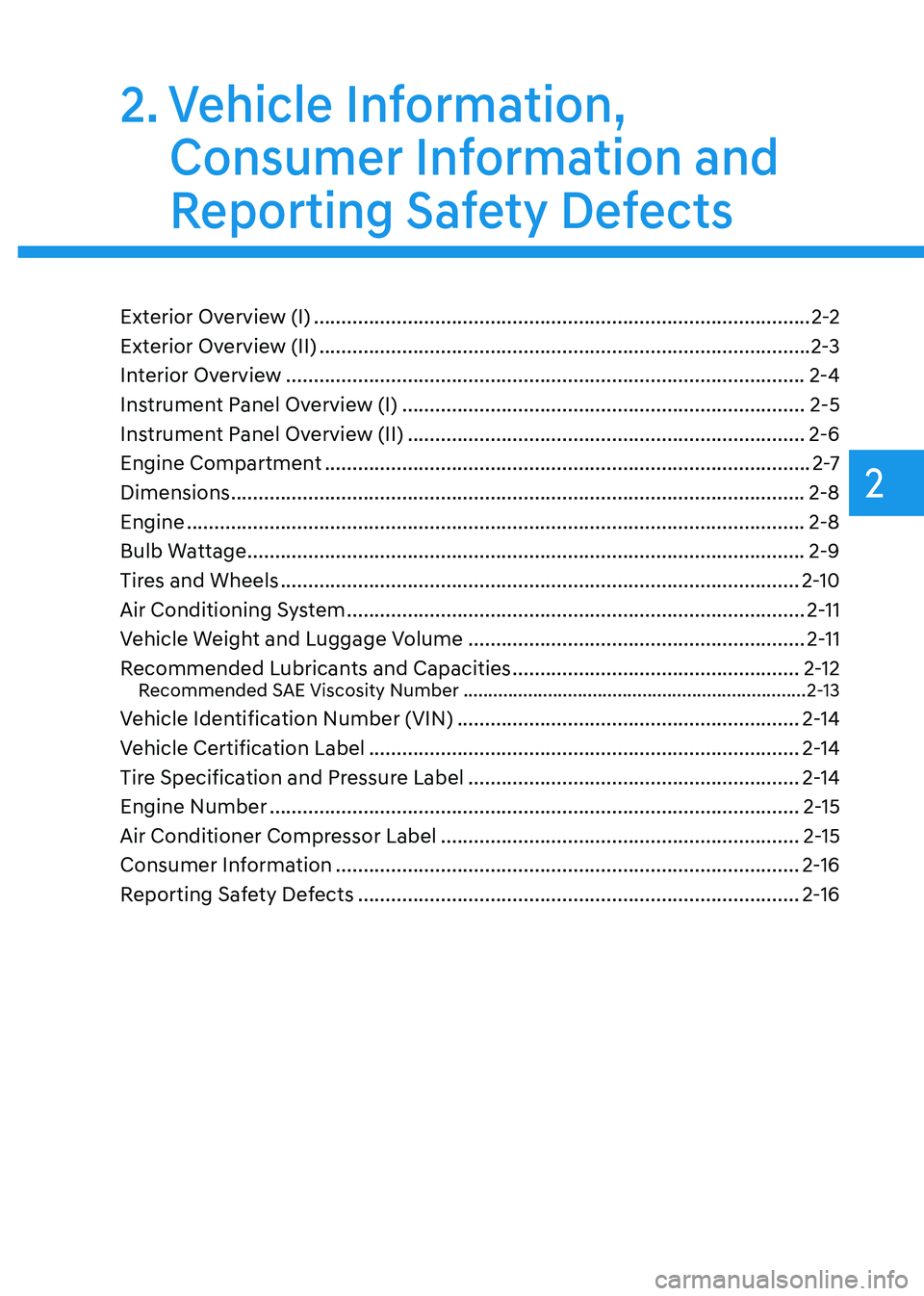

2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ........................................................................\
..................2-2
Exterior Overview (II) ........................................................................\
.................2-3
Interior Overview ........................................................................\
......................2-4
Instrument Panel Overview (I) ........................................................................\
.2-5
Instrument Panel Overview (II) ........................................................................\
2-6
Engine Compartment ........................................................................\
................2-7
Dimensions ........................................................................\
................................2-8
Engine ........................................................................\
........................................2-8
Bulb Wattage ........................................................................\
.............................2-9
Tires and Wheels ........................................................................\
......................2-10
Air Conditioning System ........................................................................\
...........2-11
Vehicle Weight and Luggage Volume .............................................................2-11
Recommended Lubricants and Capacities ....................................................2-12Recommended SAE Viscosity Number .....................................................................2-13
Vehicle Identification Number (VIN) ..............................................................2-14
Vehicle Certification Label ........................................................................\
......2-14
Tire Specification and Pressure Label ............................................................2-14
Engine Number ........................................................................\
........................2-15
Air Conditioner Compressor Label .................................................................2-15
Consumer Information ........................................................................\
............2-16
Reporting Safety Defects ........................................................................\
........2-16
Vehicle Information, Consumer Information and Reporting Safety Defects
2

2-5
02
1. Instrument cluster ..................................4-4
2. Horn .......................................................5-49
3. Driver’s front air bag .............................3-48
4. Engine Start/Stop button .......................6-5
5. Infotainment system ...........................5-139
6. Automatic climate control system .....5-103
7. Hazard warning flasher button ..............8-2
8. Passenger’s front air bag .....................3-48
9. Glove box .............................................5-124
10. Wireless charging system indicator ...5-130
11. USB port ...............................................5-138
12. USB charger .........................................5-128
13. Wireless charging system pad ............5-130
14. Cup holder ...........................................5-126
15. Rotary shifter
(Rotary gear shift dial) ............................6-11
16. Auto Hold button ..................................6-25
17. Drive mode button ...............................6-53
18. Parking/View button ............................7-122
19. Parking Safety button ..........................7-146
20. Rear seat climate control ....................5-107
21. Rear seat USB charger ........................5-128
22. AC inverter ...........................................5-129
The actual shape may differ from the illustration.
OJK010004OJK010004
INSTRUMENT PANEL OVERVIEW (I)

Vehicle Information, Consumer Information and Reporting Safety Defects
2-8
Itemsin (mm)
Overall length185.63 (4715)
Overall width75.20 (1910)
Overall height64.17 (1630)
Tread
Tire sizeFront Rear
18 in65 (1651)65.63 (1667)
19 in64.92 (1649)65.55 (1665)
21 in64.60 (1641)65.24 (1657)
Wheelbase113.19 (2875)
ENGINE
EngineDisplacement cu. in (cc)Bore x Stroke in. (mm)No. of cylindersFiring order
2.5 T-GDI152.4 (2497)3.5 x 4 (88.5 x 101.5)41-3-4-2
3.5 T-GDI211.8 (3470)3.6 x 3.4 (92 x 87)61-2-3-4-5-6
DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil *1 *2 Recommends2.5 T-GDI6.5 US qt. (6.2 ℓ) API SN PLUS /SP or ILSAC GF-6 *3
SAE: 0W-30
3.5 T-GDI7.4 US qt. (7.0 ℓ)API SN PLUS/SP or ILSAC GF-6 *3
SAE: 0W-30
Automatic transmission fluid9.7 US qt. (9.2 ℓ)
GS ATF SP-IV-RR, Genesis/HYUNDAI genuine ATF SP-IV-RR or other brands meeting the above specification approved by Genesis Customer Care
Engine coolant2.5 T-GDI9.1 US qt. (8.6 ℓ)
Mixture of antifreeze and water (Phosphate-based Ethylene glycol coolant for aluminum radiator)
3.5 T-GDI10.2 US qt. (9.7 ℓ)
Liquid-cooled intercooler coolant
2.5 T-GDI1.56 US qt. (1.48 ℓ)
3.5 T-GDI1.56 US qt. (1.48 ℓ)
Brake fluid *4As requiredSAE J1704 DOT0-4LV, FMVSS116 DOT-4, ISO4925 CLASS-6
Front differential oil (AWD) *50.71±0.026 US qt. (0.67±0.025 ℓ)
HYPOID GEAR OIL API GL-5 SAE 75W/85 (SK HK SYN GEAR OIL 75W85 FM PLUS OR EQUIVALENT)
Rear differential oil *51.27±0.05 US qt. (1.2±0.05 ℓ)
HYPOID GEAR OIL API GL-5 SAE 75W/85 (SK HK SYN GEAR OIL 75W85 FM PLUS OR EQUIVALENT)
Transfer case oil (AWD)
Gear/Clutch : 0.44 ± 0.022 US qt. (0.42 ± 0.021 ℓ)Actuator : 0.28 ± 0.011 US qt. (0.27 ± 0.010 ℓ)
SHELL TF0870B
e-LSD oil0.43 ± 0.016 US qt. (0.41 ± 0.015 ℓ)SHELL TF0870C
Fuel17.43 US gal. (66 ℓ)Refer to “Fuel requirements” in chapter 1.
RECOMMENDED LUBRICANTS AND CAPACITIES
