697
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning appears
1. Immediately park the vehicle on level ground in a safe place.
2. If necessary, turn the hazard warning lights on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for approximately three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 639
3.Start the engine and check the low oil pressure warning.
u The warning disappears: Start driving again.
u The warning does not disappear within 10 seconds: Immediately
stop the engine and contact a dealer for repairs.
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when the battery is not being charged.
■What to do when th e indicator comes on
Turn off the climate control system, rear defogger, and other electrical
systems, and immediately co ntact a dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
1If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
22 PILOT-31TG76600.book 697 ページ ２０２１年６月１１日　金曜日　午後４時４０分

699
uuIndicator, Comin g On/BlinkinguIf the Brake System Indicator (Red) Comes On
Handling the Unexpected
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine
speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.
■What to do when th e indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
1 If the Brake System Indicator (Red) Comes On
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the elec tronic brake distribution
system is not working. Th is can result in vehicle
instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.U.S.
Canada
22 PILOT-31TG76600.book 699 ページ ２０２１年６月１１日　金曜日　午後４時４０分

700
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 522
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 706
22 PILOT-31TG76600.book 700 ページ ２０２１年６月１１日　金曜日　午後４時４０分

701Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
REAR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
SUNSHADE*1(20 A)−*2
ENGINE MOUNT30 A
FRONT BLOWER40 A
A/C INVERTER*1(30 A)−*2
STANDARD AMP*1(30 A)−*2
REAR DEF40 A
−(30 A)
PREMIUM AMP*1(20 A)−*2
3
−−
−−
−−
−−
*1:Models with Display Audio
*2:Models with color audio system 4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)*1
−−*2
6 STOP LIGHT 10 A
7FI SUB VSS(10 A)*1
−−*2
8L
H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP (10 A)
15FRONT FOG*(10 A)
16 HAZARD 15 A
17
PASSENGER P/SEAT (RECLINE)*(20 A)*1
−−*2
18 PASSENGER P/SEAT
(SLIDE)*(20 A)*1
−−*2
19PREMIUM AMP*(20 A)*1
−−*2
Circuit ProtectedAmps
* Not available on all models
22 PILOT-31TG76600.book 701 ページ ２０２１年６月１１日　金曜日　午後４時４０分

705
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage.
2 Fuse Locations P. 701
Replace fuse with a spare fuse of the same specified
amperage.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
22 PILOT-31TG76600.book 705 ページ ２０２１年６月１１日　金曜日　午後４時４０分

717Continued

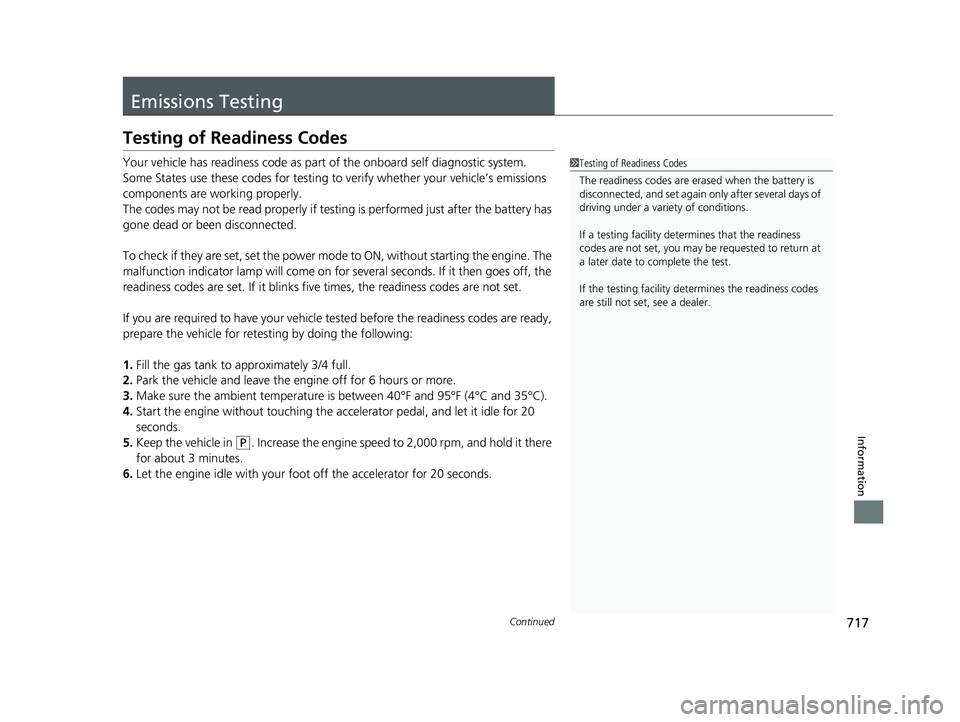

Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system.
Some States use these codes for testing to verify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, set the power mo de to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks fi ve times, the readiness codes are not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P. Increase the engine speed to 2,000 rpm, and hold it there
for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
1Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
22 PILOT-31TG76600.book 717 ページ ２０２１年６月１１日　金曜日　午後４時４０分

728
Index
Starting the Engine .................................. 522
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 671
E
Eco Assist® System ....................................... 12
ECON Button ............................................. 543
Econ Mode Indicator .................................................... 90
Electric Power Steering (EPS) System Indicator ............................................ 87, 699
Electronic Stability Control (ESC) ............. 546
Emergency ................................................. 706
Emissions Testing (Readiness Codes) ....... 717
Engine
Coolant ................................................... 643
If the Battery Is Dead ............................... 692
Number ................................................... 714
Oil ........................................................... 638
Remote Engine Start ................................ 524
Starting ................................................... 522
Engine Compartment Cover .................... 637
Engine Coolant ......................................... 643
Adding to the Radiator ............................ 644
Adding to the Reserve Tank ..................... 643
Overheating............................................. 695
Temperature Gauge................................. 110
Engine Oil .................................................. 638
Adding .................................................... 640
Checking ................................................. 639 Displaying Maintenance Minder
Information ........................................... 630
Low Oil Pressure Warning........................ 697
Recommended Engine Oil ....................... 638
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 699
Exhaust Gas Hazard (Carbon Monoxide) .. 78
Exterior Care (Cleaning) ........................... 674
Exterior Mirrors ........................................ 193
F
Features.................................................... 239
File Manager ............................................. 286
Filters Dust and Pollen ....................................... 671
Oil ........................................................... 641
Flat Tire ..................................................... 681
Floor Mats ................................................. 673
Fluids Automatic Transmission .......................... 645
Brake ...................................................... 646
Engine Coolant ....................................... 643
Windshield Washer ................................. 646
FM/AM Radio .................................... 254, 298
Fog Light Indicator ..................................... 89
Fog Lights ................................................. 178
Folding Down the Second Row Seat ....... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 605
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 601
Fuel ..................................................... 25, 621
Economy................................................. 624
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Range ..................................................... 116
Recommendation.................................... 621
Refueling ................................................ 621
Fuel Economy ........................................... 624
Fuel Fill Door ...................................... 25, 622
Unable to Unlock .................................... 707
Fuses ......................................................... 701
Inspecting and Changing ........................ 705
Locations ........................ 701, 702, 703, 704
G
Gasoline (Fuel)
Economy................................................. 624
Gauge .................................................... 110
Information............................................. 621
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Refueling ................................................ 621
Gauges ...................................................... 110
Gear Position Indicator ...................... 83, 532
Gear Shift Positions
Automatic Transmission .......................... 530
22 PILOT-31TG76600.book 728 ページ ２０２１年６月１１日　金曜日　午後４時４０分

731
Index
Safety ..................................................... 627
Service Items ........................................... 632
Tires........................................................ 656
Transmission Fluid ................................... 645
Under the Hood ...................................... 635
Wireless Headphone ............................... 669
Malfunction Indicator Lamp ............. 83, 698
Map Lights ................................................ 210
Maximum Load Limit ............................... 507
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 677
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 619
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 714
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 520
Oil (Engine) ............................................... 638
Adding .................................................... 640
Checking ................................................. 639
Displaying Maintenance Minder Information ........................................... 630
Low Oil Pressure Warning ........................ 697
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 638
Viscosity .................................................. 638
Open Source Licenses ............................... 368
Opening/Closing
Hood ....................................................... 636
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 695
P
Paddle Shifters (Sequential Mode) .... 24, 537
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 608
Parking Brake ........................................... 604 Parking Brake and Brake System
Indicator .................................................. 699
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 610
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 528
Driving Guidelines for Your Utility Vehicle .................................................. 528
Rain ........................................................ 528
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 681
R
Radiator.................................................... 644
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 717
22 PILOT-31TG76600.book 731 ページ ２０２１年６月１１日　金曜日　午後４時４０分
