2022 HONDA PASSPORT key

17
Quick Reference Guide
Tailgate (P141)
Use a forward and back kicking motion
under the center of the rear bumper to
open or close the power tailgate while
carrying the keyless remote.
Models with Hands Free Access
1 sec.
●Press the tailgate outer handle to unlock
and open the tailgate when you carry the
keyless remote.
●Press the power tailgate button on the
driver’s door or the remote transmitter to
open and close the power tailgate.
Outer Handle
Models with power tailgate
Power Door Mirrors
(P180)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button* to fold in and
out the door mirrors.
Selector Switch
Adjustment Switch
Folding Button*
*
Not available on all models
22 PASSPORT-31TGS6300.book 17 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuChild Safety uSafety of Infants and Small Children
66
Safe DrivingMost child seats are LATCH-compatible (L ower Anchors and Tethers for Children).
Some have a rigid-type conn ector while others have a flexible-type connector. Both
are equally easy to use. Some existing and previously owned child seats can only be
installed using the seat belt. Whichever type you choose, follow the child seat
manufacturer’s use and care instructions including recommended expiration dates
as well as the instructions in this manual. Proper installation is key to maximizing
your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible
child seat can be installed using the seat belt and a top tether for added security.
This is because all child seats are required to be designed so that they can be secured
with a lap belt or the lap part of a lap/sh oulder belt. In addition, the child seat
manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat
once a child reaches a specified weight. Please read the child seat owner’s manual
for proper installation instructions.
■Important consideration wh en selecting a child seat
Make sure the child seat meets th e following three requirements:
• The child seat is the correct type and size for the child.
• The child seat is the correct type for the seating position.
• The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.
■Selecting a Child Seat1Selecting a Child Seat
Installation of a LATCH-co mpatible child seat is
simple.
LATCH-compatible child s eats have been developed
to simplify the installati on process and reduce the
likelihood of injuries caused by incorrect installation.
22 PASSPORT-31TGS6300.book 66 ページ ２０２１年１０月６日　水曜日　午前１０時２分

87
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Fog Light
Indicator*
•Comes on when the fog lights are
on.——
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks if the immobilizer system
cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
—
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 151—
Indicator
Indicator
* Not available on all models
22 PASSPORT-31TGS6300.book 87 ページ ２０２１年１０月６日　水曜日　午前１０時２分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the steering wheel is locked.•Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
•Appears when the power mode is in ACCESSORY.
—
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.•Change the power mo de to VEHICLE OFF.
2ENGINE START/STOP Button P. 158
•Appears when you close the door with the power
mode in ON without the remote inside the vehicle.•Disappears when you bring the remote back inside the
vehicle and close the door.
2 Keyless Remote Reminder P. 160
•Appears when the remote battery becomes weak.•Replace the battery as soon as possible.
2 Replacing the Remote Battery P. 539
•Appears if the remote battery is too weak to start the
engine or the key is not within operating range to
start the engine.
A beeper sounds six times.•Bring the remote in front of the ENGINE START/STOP
button to be touched with.
2 If the Keyless Remote Battery is Weak P. 560
●Appears three seconds after the To Start, Hold
Remote Near Start Button , then To Start Engine
messages appeared sequentially.●Unless you bring the keyless remote in front of the
ENGINE START/STOP button, this message does not
appear.
2 If the Keyless Remote Battery is Weak P. 560
Canada
22 PASSPORT-31TGS6300.book 98 ページ ２０２１年１０月６日　水曜日　午前１０時２分

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent ov erheating and have your
vehicle checked by a dealer as soon as possible.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
•Appears if there is a proble m with the parking sensor
system.
• Check if the area around the sensor(s) is covered with
mud, ice, snow, etc. If the indicator(s) stays on or the
beeper does not stop even after you clean the area,
have the system checked by a dealer.
• Appears if there are obstacles around the sensors.
•Check for obstacles near your vehicle to make sure it is
safe to park.
• Appears as soon as a prob lem is detected in the
keyless access system.• Appears constantly - Have your vehicle checked by a
dealer.
• Appears as soon as a problem is detected in the push
button starting system.•Appears constantly - Have your vehicle checked by a
dealer.
●Appears if you press the ENGINE START/STOP
button while the vehicle is moving.2 Emergency Engine Stop P. 561
Models with parking sensor system
Models with parking sensor system
22 PASSPORT-31TGS6300.book 99 ページ ２０２１年１０月６日　水曜日　午前１０時２分

123
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 124
Locking and Unlocking the Doors Key Types and Functions .................. 126
Low Keyless Remote Signal Strength .... 128Locking/Unlocking the Doors from the Outside .......................................... 129
Locking/Unlocking the Doors from the Inside ............................................. 137
Childproof Door Locks ..................... 139
Auto Door Locking/Unlocking .......... 140
Opening and Closing the Tailgate ... 141
Security System ................................ 151
Opening and Closing the Windows ..... 154
Moonroof*........................................ 157
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 158
Turn Signals ..................................... 161
Light Switches.................................. 162
Fog Lights
*...................................... 165
Daytime Running Lights ................... 166
Auto High-Beam .............................. 167
Wipers and Washers ........................ 170
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 173
Brightness Control ........................... 175
Driving Position Memory System
*.... 176 Adjusting the Steering Wheel .......... 178
Adjusting the Mirrors Interior Rearview Mirror ................... 179
Power Door Mirrors ......................... 180
Adjusting the Seats
Front Seats ...................................... 181
Rear Seats........................................ 185
Armrest ........................................... 191
Interior Lights/Interior Convenience
ItemsInterior Lights .................................. 192
Interior Convenience Items .............. 195
Climate Control System ................... 213
* Not available on all models
22 PASSPORT-31TGS6300.book 123 ページ ２０２１年１０月６日　水曜日　午前１０時２分

126
Controls

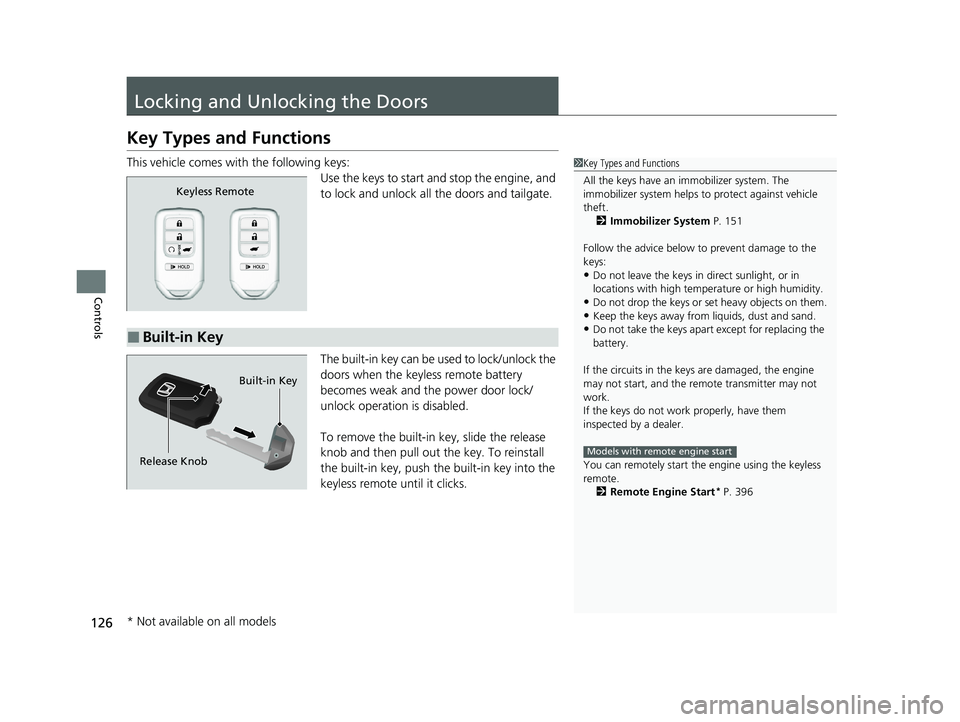

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the keys to start and stop the engine, and
to lock and unlock all the doors and tailgate.
The built-in key can be used to lock/unlock the
doors when the keyless remote battery
becomes weak and the power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
keyless remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 151
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.
You can remotely start th e engine using the keyless
remote. 2 Remote Engine Start
* P. 396
Models with remote engine start
Keyless Remote
■Built-in Key
Release Knob Built-in Key
* Not available on all models
22 PASSPORT-31TGS6300.book 126 ページ ２０２１年１０月６日　水曜日　午前１０時２分

127
uuLocking and Unlocking the Doors uKey Types and Functions
Controls
Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
