2022 HONDA PASSPORT display

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.honda.com
(U.S.) or honda.ca (Canada). If you are the first registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.honda.com. In
Canada, please request a copy from your Honda dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 37 Airbags P. 47
2Instrument Panel P. 79
Indicators P. 80 Gauges and Displays P. 107
2Controls P. 123
Clock P. 124 Locking and Unlocking the Doors P. 126
Opening and Closing the Windows P. 154 Moonroof* P. 157
Adjusting the Seats P. 181
2 Features P. 221
Audio System P. 222
General Information on the Audio System P. 305
Bluetooth® HandsFreeLink ® P. 349
2 Driving P. 375
Before Driving P. 376 Towing a Trailer P. 382
Parking Your Vehicle P. 480Multi-View Rear Camera P. 491
2Maintenance P. 497
Before Performing Maintenance P. 498 Maintenance MinderTM P. 501
Checking and Maintaining Wiper Blades P. 524
Remote Transmitter Care P. 539
Accessories and Modifications P. 547
2 Handling the Unexpected P. 549
Tools P. 550 If a Tire Goes Flat P. 551
Indicator, Coming On/Blinking P. 567 Fuses P. 572
Refueling P. 579 If You Cannot Open the Tailgate P. 580
2Information P. 581
Specifications P. 582 Identification Numbers P. 584
Emissions Testing P. 587 Warranty Coverages P. 589
22 PASSPORT-31TGS6300.book 4 ページ ２０２１年１０月６日　水曜日　午前１０時２分

12
Quick Reference Guide
Eco Assist® System
Ambient Meter●The color of the ambient meter changes
to green to indicate that the vehicle is
being driven in a fuel efficient manner.
ECON Button (P417 )
Helps maximize fuel economy.
ECON Mode Indicator (P88 )
Comes on when the ECON button is pressed.
The message is displayed fo r a few seconds when the
ECON button is pressed.
22 PASSPORT-31TGS6300.book 12 ページ ２０２１年１０月６日　水曜日　午前１０時２分

uuSeat Belts uAbout Your Seat Belts
40
Safe Driving
■Rear seats
Your vehicle monitors rear seat belt use.
A driver information inte rface notifies you if
any of the rear seat belts are unfastened after
they were previously fastened.
In order to encourage the driver to evaluate
rear seat belt usage, the display appears
when:
• Any of the rear passengers' seat belts are
unfastened when the power mode is
turned to ON.
• A rear door is opened and then closed.
• Any of the rear passengers fastens or
unfastens their seat belt.
The seat belt reminder indicator blinks and
beeper sounds if any rear passenger’s seat belt
is unfastened while driving.
To see the display:
2 Accessing Content P. 110
1Seat Belt Reminder
The system will not detect a passenger in the rear
seats who has not fastened the seat belt.
The driver should check the status of the rear
passengers' seat belts at th e start of each trip and
each time a passenger is seated in the rear seats,
using the driver information interface as an aid.
An alert will sound if a pa ssenger in the rear seats
unfastens the seat belt whil e the vehicle is in motion
or if motion resumes wh ile the graphic is red.
The driver information interface uses colors to aid the
driver in checking the st atus of the passengers.
For the rear seating positions:
•Green indicates the seat belt is fastened.
•An unfastened gray graphic indicates the seat belt
has not been fastened recently.
•An unfastened red graphic indicates the seat belt
was unfastened recently.
The system does not monito r harnesses that are part
of a child seat, the anchors of the LATCH system, or
the anchor buckle of the se cond row center seat belt.
While the system can inform you that a seat belt
buckle is fastened, it ca nnot determine whether the
second row center seat belt anchor buckle is in use or
if a child seat is properly inst alled or used.
2 Protecting Child Passengers P. 62
: Fastened
: Unfastened
22 PASSPORT-31TGS6300.book 40 ページ ２０２１年１０月６日　水曜日　午前１０時２分

79
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 80
Driver Information Interface Warning and Information Messages ...................... 96
Gauges and Displays Gauges ............................................ 107
Driver Information Interface ............. 108
22 PASSPORT-31TGS6300.book 79 ページ ２０２１年１０月６日　水曜日　午前１０時２分

84
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Supplemental
Restraint System
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner• Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
Auto High-Beam
Indicator
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on when all the operating
conditions of the Auto high-beam
are met.
2 Auto High-Beam P. 167—
Vehicle Stability
AssistTM (VSA®)
System Indicator
●Comes on for a few seconds when
you set the power mode to ON,
then goes off.
●Blinks when VSA ®, or trailer
stability assist is active.
●Comes on if there is a problem
with the VSA ®, hill start assist,
trailer stability assist or brake
lighting system.
●Stays on constantly - Have your vehicle
checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®),
aka Electronic Stability Control
(ESC), System P. 420
2 Trailer Stability Assist P. 389
2 Hill start assist system P. 400
●When Trailer Stability Assist Problem
is displayed on the Driver Information
Interface, the VSA ® does not activate.
22 PASSPORT-31TGS6300.book 84 ページ ２０２１年１０月６日　水曜日　午前１０時２分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Suspend
Indicator
-The transmission is in a position
other than
(D.
2 Auto Idle Stop P. 411
-System charging is prioritized.
-Climate control system is
prioritized.
-Engine coolant temperature is
not in operating range.
-The Intelligent Traction
Management is set to Snow,
Mud
*, or Sand*.
-The battery temperature is too
low.
- Auto Idle Stop does not activate
for some reason.
—
• If you press and hold the Auto Idle Stop
OFF button, you can select whether to
display the status messages or not.
* Not available on all models
22 PASSPORT-31TGS6300.book 90 ページ ２０２１年１０月６日　水曜日　午前１０時２分

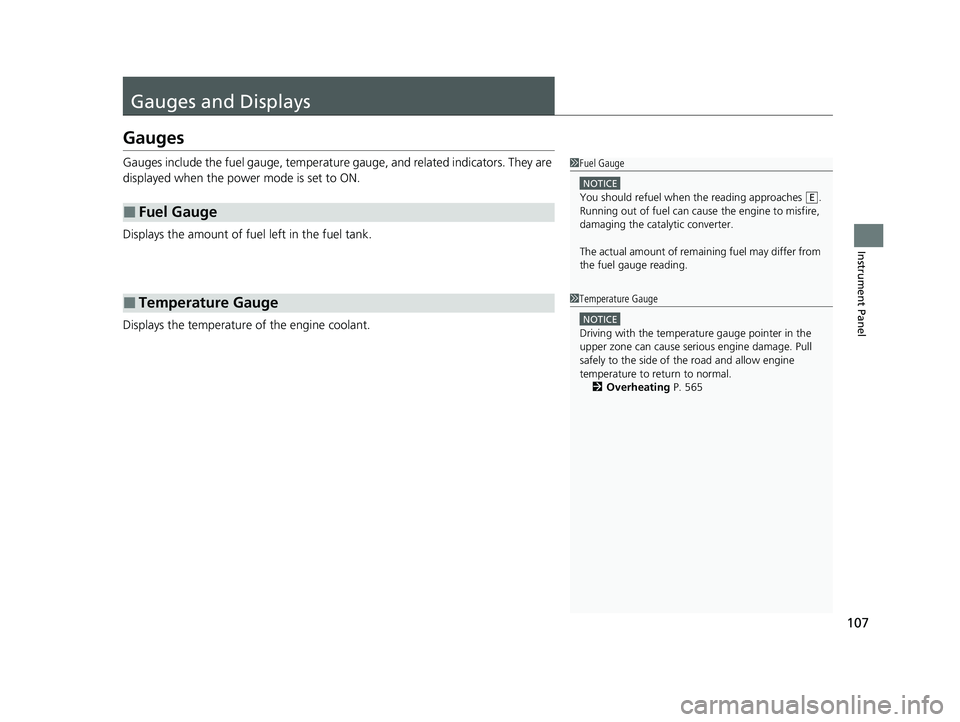

107
Instrument Panel
Gauges and Displays
Gauges
Gauges include the fuel gauge, temperature gauge, and related indicators. They are
displayed when the power mode is set to ON.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
■Fuel Gauge
■Temperature Gauge
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge pointer in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 565
22 PASSPORT-31TGS6300.book 107 ページ ２０２１年１０月６日　水曜日　午前１０時２分

108
uuGauges and Displays uDriver Information Interface
Instrument Panel
Driver Information Interface
The driver information interface displays the speedometer, tachometer, odometer,
trip computer, outside temperature, and ot her gauges. It also displays important
messages such as warnings and other helpful information.
Displays your driving speed in mph or km/h.
Shows the number of engine revolutions per minute.
■Speedometer
■Tachometer
1 Speedometer
You can set the speedometer and the displayed
measurements to read in either mph or km/h.
2 Units P. 117
1Tachometer
You can turn on or off the tachometer display.
2 Show Tachometer P. 121
22 PASSPORT-31TGS6300.book 108 ページ ２０２１年１０月６日　水曜日　午前１０時２分
