2022 HONDA HRV spark plugs replace

527
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder Message
Maintenance
Minder Indicator
Sub Items Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Inspect tie rod ends, steer ing gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
6•Replace rear differential fluid*
* Not available on all models
22 HR-V HDMC-31T7A6600.book 527 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

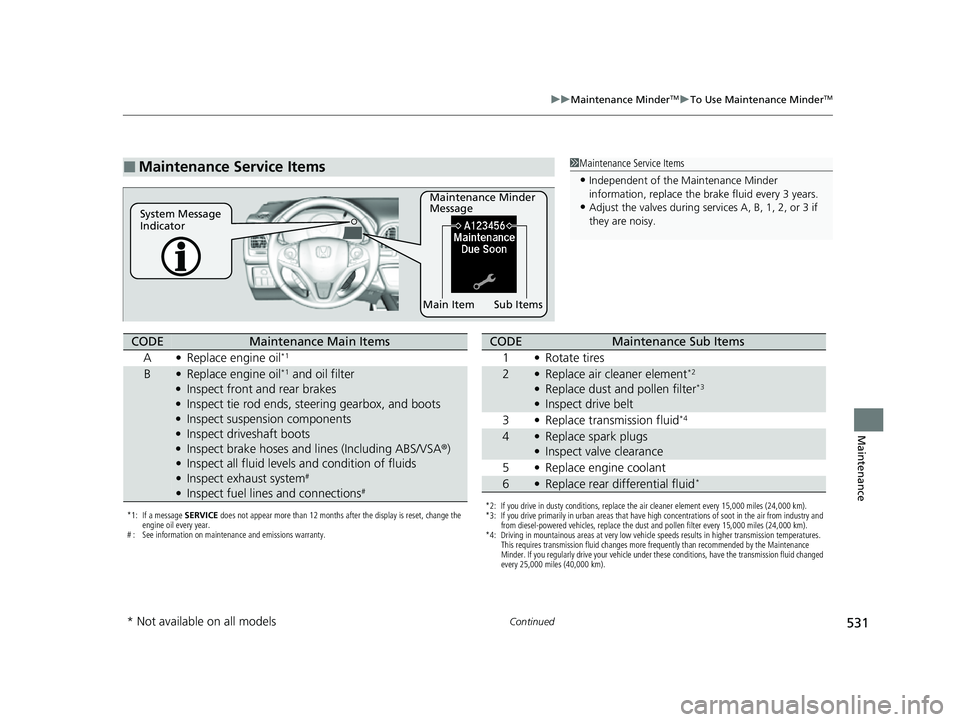

531
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.Maintenance Minder
Message
System Message
Indicator
Sub Items
Main Item
*1: If a message SERVICE does not appear more than 12 months after the display is reset, change the
engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A •Replace engine oil*1
B•Replace engine oil*1 and oil filter
• Inspect front and rear brakes
• Inspect tie rod ends, steering gearbox, and boots
• Inspect suspension components
• Inspect driveshaft boots
• Inspect brake hoses and li nes (Including ABS/VSA®)
• Inspect all fluid levels and condition of fluids
• Inspect exhaust system
#
•Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds results in higher transmission temperatures. This requires transmission fluid changes more frequently than recommended by the Maintenance
Minder. If you regularly drive your vehicle under these conditions, have the transmission fluid changed
every 25,000 miles (40,000 km).
CODEMaintenance Sub Items
1 •Rotate tires
2•Replace air cleaner element*2
•Replace dust and pollen filter*3
•Inspect drive belt
3 •Replace transmission fluid*4
4•Replace spark plugs
• Inspect valve clearance
5 •Replace engine coolant
6•Replace rear differential fluid*
* Not available on all models
22 HR-V HDMC-31T7A6600.book 531 ページ ２０２１年４月１２日　月曜日　午前１０時５０分

637
Index
ReplacementBattery .................................................... 572
Bulbs ...................................................... 545
Fuses .............................................. 608, 610
Tires........................................................ 566
Wiper Blade Rubber ........................ 555, 557
Reporting Safety Defects ......................... 622
Resetting a Trip Meter ..................... 120, 124
Road Departure Mitigation (RDM) Indicator ................................................... 99
S
Safe Driving ................................................ 35
Safety Check ............................................... 40
Safety Labels .............................................. 82
Safety Message ............................................ 2
Seat Belts .................................................... 42
Adjusting the Shoulder Anchor ................. 48
Automatic Seat Belt Tensioners ................. 45
Checking .................................................. 51
Detachable Anchor ................................... 49
Fastening .................................................. 46
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 75
Pregnant Women...................................... 50
Reminder .................................................. 44
Warning Indicator ............................... 44, 90
Seat Heaters ............................................. 215
Seats .......................................................... 194
Adjusting ................................................ 194 Front Seats .............................................. 194
Rear Seats ............................................... 197
Security System ......................................... 163
Immobilizer System Indicator ..................... 96
Security System Alarm Indicator ................. 97
SEL/RESET Button ...................................... 123
Select/Reset Knob ............................. 119, 123
Selecting a Child Seat ................................. 72
Selector Knob (Audio) .............................. 238
Setting the Clock ...................................... 138
Shift Lever ................................... 25, 444, 446
Operation .................................. 25, 445, 447
Releasing ................................................. 600
Won’t Move ............................................ 600
Shift Lever Position Indicator ..... 90, 445, 447
Shifting (Transmission) ..................... 444, 446
Shoulder Anchor ......................................... 48
Side Airbags ................................................ 60
Side Curtain Airbags ................................... 62
Siri Eyes Free ............................................. 315
SiriusXM ® Radio ........................................ 286
Snow Tires ................................................. 568
Spare Tire .......................................... 586, 619
Spark Plugs ................................................ 618
Specifications ............................................ 618
Specified Fuel .................................... 517, 618
Speedometer ............................................ 118
SRS Airbags (Airbags) ................................. 55
Starting the Engine .......................... 436, 439
Does Not Start ......................................... 595
Engine Switch Buzzer ...................... 169, 172 If the Battery Is Dead ............................... 598
Steering Wheel
Adjusting ................................................ 190
Stopping ................................................... 514
Summer Tires ............................................ 568
Supplemental Restraint System (SRS) ........ 55
Switches (Around the Steering Wheel) ............................................. 6, 7, 169
T
Tachometer ............................................... 118
Tailgate ..................................................... 160
Unable to Open....................................... 614
Temperature High Temperature Indicator ....................... 92
Low Temperature Indicator........................ 92
Outside Temperature Display ........... 118, 121
Temperature Sensor ......................... 118, 121
Tie-down Anchors .................................... 213
Time (Setting) ........................................... 138
Tire Pressure Monitoring System (TPMS) ..................................................... 459
Indicator............................................ 94, 607
Tires ........................................................... 559
Air Pressure ..................................... 561, 619
Checking and Maintaining ...................... 559
Inspection ............................................... 560
Labeling .................................................. 561
Puncture (Flat Tire) .................................. 586
Regulations ............................................. 563
22 HR-V HDMC-31T7A6600.book 637 ページ ２０２１年４月１２日　月曜日　午前１０時５０分
