2022 HONDA CRV sensor

566
uuParking Your Vehicle uCross Traffic Monitor*
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 566 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Continued567
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on.
2 Cross Traffic Monitor On and Off P. 569
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may alert for pedest rians, bicycles, or stationary objects.
■How the System Works1Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approach ing vehicle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the sens ors have been improperly
repaired or the rear bum per has been deformed.
Have your vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 567 ページ ２０２１年６月３０日　水曜日　午前１１時６分

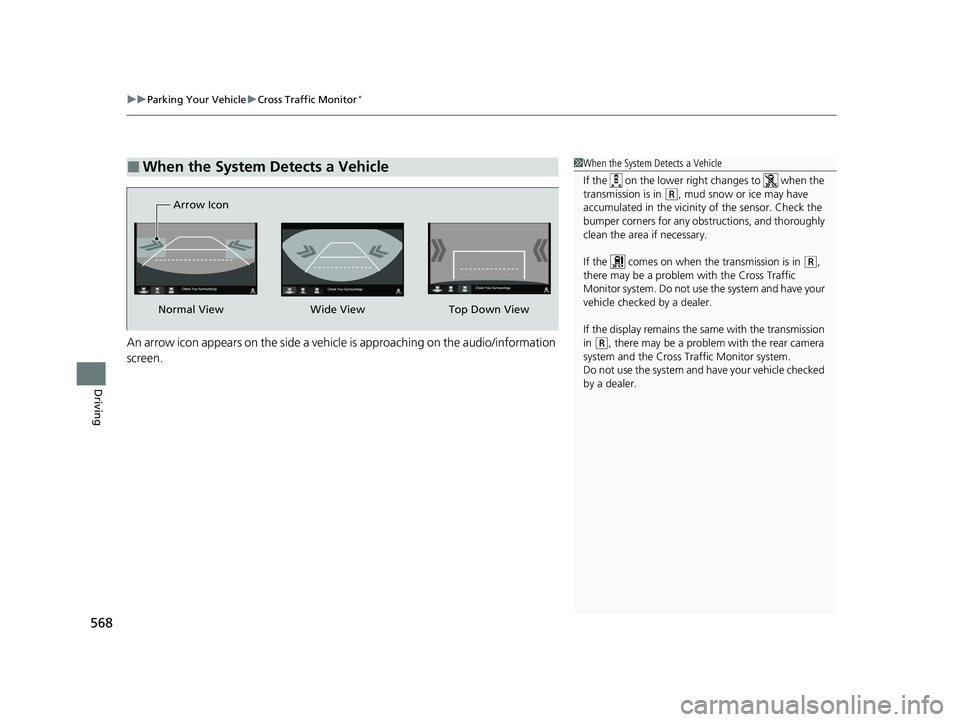

uuParking Your Vehicle uCross Traffic Monitor*
568
Driving
An arrow icon appears on the side a vehicl e is approaching on the audio/information
screen.
■When the System Detects a Vehicle1 When the System Detects a Vehicle
If the on the lower right changes to when the
transmission is in
(R, mud snow or ice may have
accumulated in the vicinity of the sensor. Check the
bumper corners for any obs tructions, and thoroughly
clean the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow IconTop Down View
22 CR-V HEV ELP-31TPG6200.book 568 ページ ２０２１年６月３０日　水曜日　午前１１時６分

615
Maintenance
12-volt Battery
Checking the 12-volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle's battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 247
•The clock resets*.
2 Clock P. 150
112-volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 615 ページ ２０２１年６月３０日　水曜日　午前１１時６分

619Continued
Maintenance
Cleaning
Interior Care
Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemicals, make su re to gently wipe them
away using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill fluids, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
* Not available on all models
22 CR-V HEV ELP-31TPG6200.book 619 ページ ２０２１年６月３０日　水曜日　午前１１時６分

Index
681
Index
Index
Numbers
12-volt Battery......................................... 615
Charging System Indicator ................ 95, 652
Maintenance (Check ing the 12-volt
Battery) ................................................. 615
12-volt Battery Charging System Indicator ........................................... 95, 652
4WD .......................................................... 492
A
AAC................................................... 265, 321
ABS (Anti-lock Brake System) .................. 557
Accessories and Modifications ................ 624
Accessory Power Socket ........................... 229
Adaptive Cruise Control (ACC) with Low
Speed Follow .................................. 105, 517
Additives
Coolant .................................................. 593
Engine Oil ............................................... 588
Washer ................................................... 597
Additives, Engine Oil ............................... 588
Adjusting Armrest .................................................. 217
Front Seats.............................................. 208
Head Restraints ....................................... 215
Mirrors.................................................... 206
Rear Seats ............................................... 212
Steering Wheel ....................................... 205
Temperature ........................................... 138 Adjusting the Sound
........................ 256, 294
Agile Handling Assist ............................... 491
Air Conditioning System (Climate Control System) .................................................... 235
Changing the Mode ................................ 238
Defrosting the Windshield and Windows ............................................... 238
Dust and Pollen Filter ............................... 618
Recirculation/Fresh Air Mode ................... 238
Sensor ..................................................... 241
Synchronized Mode ................................. 240
Using Automatic Climate Control ............ 235
Air Pressure ....................................... 607, 669
Airbags ........................................................ 56
Advanced Airbags ..................................... 62
Airbag Care ............................................... 71
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 59
Indicator .............................................. 68, 97
Passenger Airbag Off Indicator .................. 69
Sensors ...................................................... 56
Side Airbags .............................................. 64
Side Curtain Airbags .................................. 66
All-Wheel Drive (AWD) ............................ 492
AM/FM Radio .................................... 258, 301
Android Auto
TM........................................ 336
Anti-lock Brake System (ABS) .................. 557
Indicator .................................................... 97
Apple CarPlay
TM........................................ 333
Armrest ..................................................... 217
Audio Remote Controls ............................ 248 Audio System
............................ 244, 251, 272
Adjusting the Sound........................ 256, 294
AM/FM Radio .................................. 258, 301
Android Auto
TM....................................... 336
Apple CarPlayTM....................................... 333
Audio/Information Screen................ 252, 273
Changing the Home Screen Icon Layout .. 277
Changing the Screen Interface ................ 291
Closing Apps ........................................... 293
Customizing the Meter............................ 278
Display Setup .................................. 257, 295
Error Messages ........................................ 340
General Information ................................ 345
Home Screen........................................... 284
HondaLink ®........................................... 326
How to use Siri ® Eyes Free .............. 271, 332
iPod ................................................ 260, 312
Limitations for Manual Operation ............ 296
Menu Customize ..................................... 292
MP3/WMA/AAC .............................. 265, 321
Pandora ®....................................... 263, 319
Playing Bluetooth ® Audio ................ 268, 324
Playing SiriusXM ® Radio .......................... 305
Reactivating ............................................ 247
Recommended Devices............................ 346
Remote Controls ..................................... 248
Security Code .......................................... 247
Selecting an Audio Source ....................... 296
Song By Voice
TM (SBV) ............................. 315
Status Area ............................................. 290
22 CR-V HEV ELP-31TPG6200.book 681 ページ ２０２１年６月３０日　水曜日　午前１１時６分

682
Index
Theft Protection ....................................... 247
USB Flash Drives ...................... 265, 321, 346
USB Port(s)............................................... 245
Voice Control Operation .......................... 297
Wallpaper Setup .............................. 254, 282
Wi-Fi Connection ..................................... 331
Audio/Information Screen ................ 252, 273
Authorized Manuals ................................. 678
Auto Door Locking/Unlocking ................. 166
Auto High-Beam ....................................... 195
Indicator .................................................. 101
Automatic Brake Hold .............................. 555
Indicator ............................................ 93, 555
Automatic Brake Hold System
Indicator .................................................... 93
Automatic Intermittent Wipers ............... 199
Automatic Lighting .................................. 191
Average Fuel Economy ............................. 130
Average Fuel Economy Records ............... 131
Average Speed .......................................... 130
AWD (All-Wheel Drive) ............................ 492
B
Battery......................................................... 12
Charging System Indicator ......................... 95
High Voltage ..................................... 12, 502
If the 12-Volt Battery Is Dead ................... 647
Maintenance (Replacing).......................... 617
Belts (Seat) .................................................. 47 Beverage Holders
..................................... 222
Blind spot information System ................ 499
Indicator.................................................. 102
Bluetooth® Audio............................. 268, 324
Bluetooth® HandsFreeLink ®........... 398, 422
Booster Seats (For Children) ...................... 85
Brake System ............................................ 551
Anti-lock Brake System (ABS)................... 557
Automatic Brake Hold ............................. 555
Brake Assist System ................................. 558
Fluid ........................................................ 596
Foot Brake............................................... 554
Indicator.............................................. 91, 92
Indicator (Red) ................................. 654, 655
Parking Brake .......................................... 551
Brightness Control (Instrument Panel) .... 202
Bulb Replacement .................................... 598
Brake/Taillights, Rear Turn Signal Lights and
Rear Side Marker Lights ......................... 598
Front Turn Signal/ Front Side Marker Lights .................................................... 598
Headlights ............................................... 598
High-Mount Brake Light .......................... 600
Parking/Daytime Running Lights .............. 598
Rear License Plate Light ........................... 600
Side Turn Signal/Emergency Indicator Lights .................................................... 598
Taillights and Back-Up Lights ................... 599
Bulb Specifications ................................... 668
C
Carbon Monoxide Gas ............................... 86
Cargo Hook .............................................. 225
Carrying Cargo ................................. 461, 463
Certification Label ................................... 670
Changing Bulbs ........................................ 598
Charging System Indicator ................ 95, 652
Child Safety ................................................ 72
Childproof Door Locks ............................ 165
Child Seat ................................................... 72
Booster Seats ............................................ 85
Child Seat for Infants ................................ 74
Child Seat for Small Children .................... 75
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 80
Larger Children ......................................... 84
Rear-facing Child Seat............................... 74
Selecting a Child Seat ............................... 76
Childproof Door Locks ............................. 165
Cleaning the Exterior ............................... 621
Cleaning the Interior ............................... 619
Climate Control System ........................... 235
Changing the Mode................................ 235
Defrosting the Windshield and Windows .............................................. 238
Dust and Pollen Filter .............................. 618
Recirculation/Fresh Air Mode................... 238
Sensors ................................................... 241
Synchronization Mode ............................ 240
Using Automatic Climate Control............ 235
22 CR-V HEV ELP-31TPG6200.book 682 ページ ２０２１年６月３０日　水曜日　午前１１時６分

684
Index
Exhaust Gas Hazard (Carbon Monoxide).. 86
Exterior Care (Cleaning) ........................... 621
Exterior Mirrors ......................................... 207
F
Features..................................................... 243
Filters Dust and Pollen ....................................... 618
Oil ........................................................... 591
Flat Tire ..................................................... 629
Floor Mats ................................................. 620
Fluids
Brake ....................................................... 596
Engine Coolant ........................................ 593
Windshield Washer .................................. 597
FM/AM Radio .................................... 258, 301
Fog Light Indicator ................................... 101
Folding Down the Rear Seats ................... 213
Foot Brake ................................................. 554
Front Airbags (SRS) ..................................... 59
Front Seats ................................................ 208
Adjusting ................................................. 208
Front Sensor Camera ................................ 548
Fuel ...................................................... 34, 572
Fuel Economy and CO
2 Emissions............. 575
Gauge ..................................................... 126
Instant Fuel Economy ............................... 130
Low Fuel Indicator ..................................... 96
Range ...................................................... 130
Recommendation .................................... 572 Refueling................................................. 572
Fuel Economy and CO
2 Emissions ............ 575
Fuel Fill Door ...................................... 34, 573
Fuses .......................................................... 659
Inspecting and Changing......................... 662
Locations................................. 659, 660, 661
G
Gasoline (Fuel)
Fuel Economy and CO
2 Emissions ............ 575
Information ............................................. 572
Refueling................................................. 572
Gauges ...................................................... 126
Glass (care) ........................................ 619, 622
Glove Box .................................................. 220
H
Handling of the Jack ................................ 643
Handling the Unexpected ........................ 627
HandsFreeLink ® (HFL) ....................... 398, 422
Automatic Import of Ce llular Phonebook and
Call History .................................... 412, 435
Caller’s ID Information............................. 409
Displaying Messages................................ 450
HFL Buttons..................................... 398, 422
HFL Menus ...................................... 400, 425
HFL Status Display ........................... 399, 424
In Case of Emergency .............................. 454
Limitations for Manual Operation .... 399, 424 Making a Call ................................. 416, 443
Options During a Call...................... 421, 447
Phone Setup ................................... 404, 430
Phonebook Phonetic M
odification........... 439
Receiving a Call............................... 420, 446
Receiving a Text/E-mail Message ............. 448
Ring Tone ....................................... 409, 434
Selecting a Text/E-mail Message
Account ................................................ 449
Speed Dial ...................................... 413, 436
To Clear the System ................................ 411
To Set Up Text/E-mail Message Options .. 433
Hazard Warning Button .............................. 6
HD Radio
TM............................................... 303
Head Restraints ........................................ 215
Headlights ................................................ 190
Aiming.................................................... 598
Auto High-Beam ..................................... 195
Automatic Operation .............................. 191
Dimming................................................. 190
Operating ............................................... 190
Heated Door Mirror Button .................... 201
Heated Steering Wheel ........................... 233
Heaters ..................................................... 234
HFL (HandsFreeLink ®) ...................... 398, 422
High Beam Indicator ................................ 100
High Voltage Battery ............................... 502
Hill Start Assist System ............................. 474
HomeLink ® Universal Transceiver ........... 395
Honda App License Agreement .............. 347
Honda Sensing ®................................ 35, 503
22 CR-V HEV ELP-31TPG6200.book 684 ページ ２０２１年６月３０日　水曜日　午前１１時６分
