97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal
and Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 566, 567
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Lights On
Indicator•Comes on when the parking, tail,
and other external lights are on.2 Light Switches P. 195—
Fog Light
Indicator*
•Comes on when the fog lights are
on.2 Fog Lights* P. 197—
* Not available on all models
566

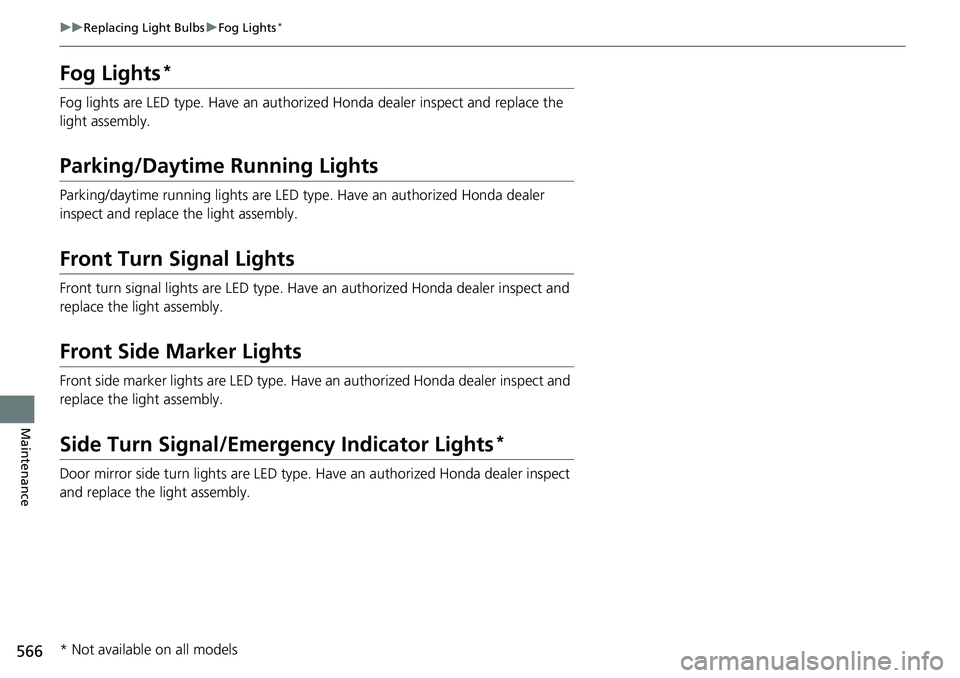

uuReplacing Light Bulbs uFog Lights*
Maintenance
Fog Lights*
Fog lights are LED type. Have an authoriz ed Honda dealer inspect and replace the
light assembly.
Parking/Daytime Running Lights
Parking/daytime running lights are LED type . Have an authorized Honda dealer
inspect and replace the light assembly.
Front Turn Signal Lights
Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.
Side Turn Signal/Emergency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
* Not available on all models
567

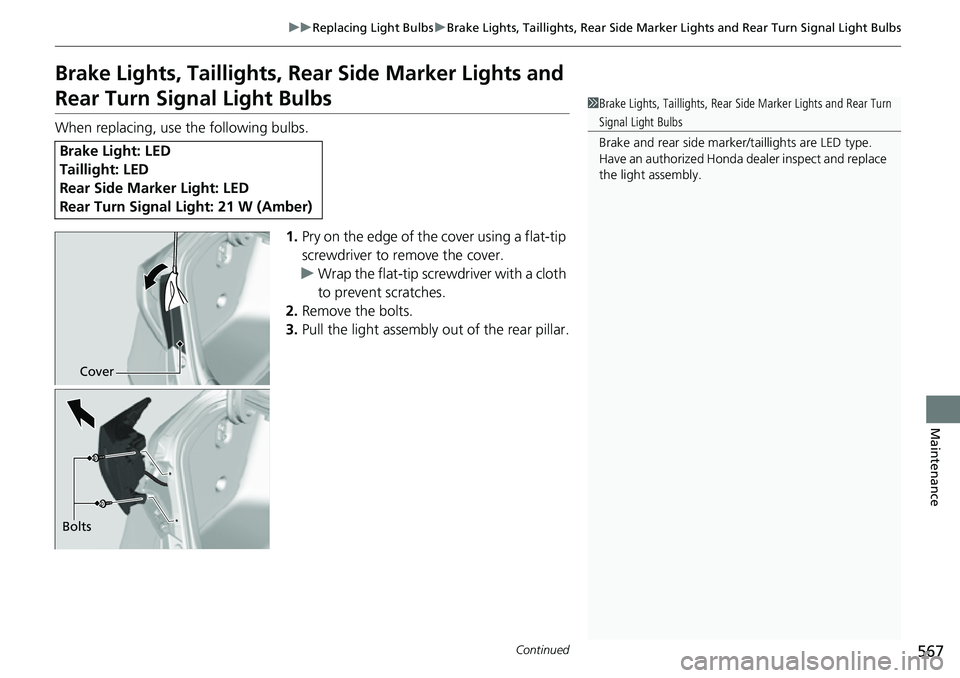

uuReplacing Light Bulbs uBrake Lights, Taillights, Rear Side Marker Lights and Rear Turn Signal Light Bulbs
Continued
Maintenance
Brake Lights, Taillights, Rear Side Marker Lights and
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Pry on the edge of the cover using a flat-tip
screwdriver to remove the cover.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. Remove the bolts.
3. Pull the light assembly out of the rear pillar.
Brake Ligh t: LED
Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)
1 Brake Lights, Taillights, Rear Side Marker Lights and Rear Turn
Signal Light Bulbs
Brake and rear side marker/taillights are LED type.
Have an authorized Honda dealer inspect and replace
the light assembly.
Cover
Bolts
568

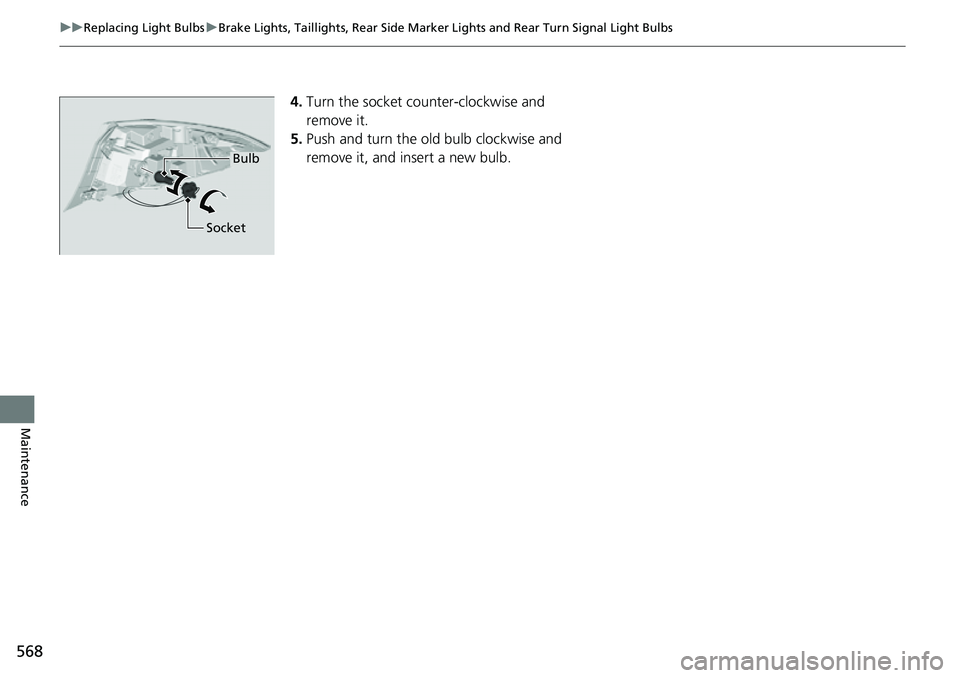

uuReplacing Light Bulbs uBrake Lights, Taillights, Rear Side Marker Lights and Rear Turn Signal Light Bulbs
Maintenance
4.Turn the socket counter-clockwise and
remove it.
5. Push and turn the old bulb clockwise and
remove it, and insert a new bulb.
Bulb
Socket
632
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeND-OIL 14
Quantity 5.6 – 6.5 cu-in (92 – 107 cm3)
1.5 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement91 cu-in (1,498 cm3)
Spark Plugs NGK DILKAR8P8SY
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: Models with halogen high beam headlights
*2: Models with LED high beam headlights
Headlights (Low Beam)LED
Headlights (High Beam) 60W (HB3)*1
LED*2
Fog Lights*LED
Parking/Daytime Running Lights LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 16W
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8WCeiling Light8WAmbient LightsLEDVanity Mirror Lights1.4WCenter Pocket LightLEDDoor Courtesy Lights*2CP (3.8W)Door Inner Handle Lights*LEDTrunk Light5W
* Not available on all models
634
uuSpecifications u
Information
■
Vehicle Specifications
■ Air Conditioning
ModelACCORD
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.9 – 15.7 oz (395 – 445 g)
Lubricant TypeND-OIL 14
Quantity 5.6 – 6.5 cu-in (92 – 107 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement122 cu-in (1,996 cm3)
Spark Plugs NGK DILKAR8P8SY
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 14.8 US gal (56 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog LightsLED
Parking/Daytime Running Lights LED
Front Turn Signal LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights LED
Rear Turn Signal Lights21W (Amber)
Rear Side Marker Lights LED
TaillightsLED
Back-Up Lights 16W
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8WCeiling Light8WAmbient LightsLEDVanity Mirror Lights1.4WCenter Pocket LightLEDDoor Courtesy Lights*2CP (3.8W)Door Inner Handle Lights*LEDTrunk Light5W
* Not available on all models
647
Index
Automatic TransmissionCreeping................................................. 419
Fluid ....................................................... 561
Kickdown ............................................... 419
Shift Operation ....................................... 421
Shifting ................................................... 420
Average Fuel Economy ............................ 145
Average Speed ......................................... 147
B
Battery...................................................... 584
Charging System Indicator ................ 88, 613
Jump Starting ......................................... 606
Maintenance (Checking the Battery) ....... 584
Maintenance (Replacing) ......................... 586
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 227
Blind spot information System ................ 450
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®................... 374
Booster Seats (For Children) ...................... 77
Brake System ............................................ 508
Anti-lock Brake System (ABS) .................. 516
Automatic Brake Hold ............................. 513
Brake Assist System................................. 517
Fluid ....................................................... 562
Foot Brake .............................................. 512
Indicator ............................. 83, 84, 615, 616
Parking Brake.......................................... 508
Brightness Control (Instrument Panel) ... 205Bulb Replacement
.................................... 564
Brake, Taillight, Rear Side Marker Lights and
Rear Turn Signal Light ............................ 567
Fog Lights ................................................ 566
Front Side Marker Lights .......................... 566
Front Turn Signal Lights ........................... 566
Headlights ............................................... 564
High-Mount Brake Light .......................... 571
Parking/Daytime Running Lights .............. 566
Rear License Plate Lights .......................... 571
Side Turn Signal/Em ergency Indicator
Lights .................................................... 566
Taillight, Brake Light and Back-Up Light ... 569
Bulb Specifications ........................... 632, 634
C
Carbon Monoxide Gas ................................ 78
Cargo Hooks ............................................. 229
Carrying Cargo .................................. 403, 405
Center Pocket ........................................... 225
Certification Label .................................... 636
Changing Bulbs ......................................... 564
Charging System Indicator ................. 88, 613
Child Safety ................................................. 64
Childproof Door Locks ............................. 179
Emergency Trunk Opener ........................ 183
Child Seat .................................................... 64
Booster Seats ............................................. 77
Child Seat for Infants ................................. 66
Child Seat for Small Children ..................... 67 Installing a Child Seat wi
th a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 76
Rear-facing Child Seat ............................... 66
Selecting a Child Seat ................................ 68
Using a Tether ........................................... 74
Childproof Door Locks ............................. 179
Cleaning the Exterior ............................... 590
Cleaning the Interior ................................ 588
Climate Control System ............................ 240
Changing the Mode ................................ 240
Defrosting the Windshield and Windows ............................................... 241
Dust and Pollen Filter............................... 587
Recirculation and Fresh Air Mode ............ 240
Sensors ................................................... 243
Synchronized Mode................................. 242
Using Automatic Climate Control ............ 240
Clock .......................................................... 166
CMBS
TM (Collision Mitigation Braking
SystemTM) ................................................. 456
Coat Hook ................................................. 229
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 456
Compact Spare Tire .................. 597, 633, 635
Console Compartment ............................. 226
Continuously Variable Transmission Creeping ................................................. 419
Fluid ........................................................ 561
Kickdown ................................................ 419
Operating the Shift Lever........... 24, 428, 430
651
Index
L
Lane Keeping Assist System (LKAS)........ 486
Language (HFL) ........................................ 376
LATCH (Child Seats) ................................... 69
Lights ................................................ 195, 564
Auto High-Beam ..................................... 199
Automatic............................................... 196
Bulb Replacement ................................... 564
Daytime Running Lights .......................... 198
Fog Lights ............................................... 197
High Beam Indicator ................................. 97
Interior.................................................... 223
Light Switches......................................... 195
Lights On Indicator.................................... 97
Turn Signals ............................................ 194
Load Limits ............................................... 405
Locking/Unlocking ................................... 167
Auto Door Locking/Unlocking ................. 180
Childproof Door Locks ............................ 179
From Inside ............................................. 177
From Outside .......................................... 170
Keys........................................................ 167
Using a Key............................................. 175
Lockout Prevention System ..................... 176
Low Battery Charge ................................. 613
Low Fuel Indicator ..................................... 93
Low Keyless Remote Signal Strength ..... 169
Low Oil Pressure Warning ....................... 613
Low Speed Braking Control .................... 465
Lower Anchors ........................................... 69
Lubricant Specifications Chart ........ 632, 634Luggage (Maximum Load Limit)
............. 405
Lumbar Support Adjustment Switch ....... 213
M
Maintenance..................................... 149, 537
Battery .................................................... 584
Brake Fluid .............................................. 562
Cleaning .................................................. 588
Climate Control System ........................... 587
Coolant ................................................... 559
Maintenance Minder
TM............................ 541
Oil ........................................................... 552
Precautions .............................................. 538
Radiator .................................................. 560
Remote Transmitter ................................. 586
Replacing Light Bulbs ............................... 564
Safety ...................................................... 539
Service Items ........................................... 545
Tires ........................................................ 575
Transmission Fluid ................................... 561
Under the Hood ...................................... 548
Malfunction Indicator Lamp .............. 87, 614
Map Lights ................................................ 224
Maximum Load Limit ............................... 405
Meters, Gauges ......................................... 139
Mirrors ....................................................... 210
Adjusting ................................................. 210
Door ........................................................ 211
Exterior .................................................... 211
Interior Rearview ..................................... 210 Modifications (and Accessories)
.............. 593
Moonroof ................................................. 190
MP3 ........................................................... 296
MP3/WMA/AAC ........................................ 296
Multi-View Rear Camera .......................... 529
N
Navigation........................................ 148, 163
Numbers (Identification) .......................... 636
O
Odometer................................................. 142
Oil (Engine) ............................................... 551
Adding .................................................... 554
Checking................................................. 552
Displaying Oil Life .................................... 542
Low Oil Pressure Warning........................ 613
Recommended Engine Oil ....................... 551
Viscosity .................................................. 551
Open Source Licenses ............................... 345
Opening
Trunk ...................................................... 628
Opening/Closing Hood....................................................... 550
Moonroof ............................................... 190
Power Windows ...................................... 187
Trunk ...................................................... 181
Outside Temperature ............................... 143
Overheating .............................................. 611
