2022 HONDA ACCORD instrument panel

107
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Amber)
●Comes on when RDM, Low Speed
Braking Control* and/or CMBSTM
shuts itself off.
●Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your vehicle
in a safe place and wipe the debris off with
a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed
even after you have cleaned the area
around the camera.
2 Front Sensor Camera P. 504
●Comes on when mud, snow, or ice
accumulates in the vicinity of sonar.
●Remove the obstacle in the vicinity of sonar
sensor.
2Low Speed Braking Control* P. 465
2 Sonar Sensors* P. 507
●Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.
●Comes on while driving - Something may
be interfering with the blind spot
information system sensor. Check the
vicinity of the blind spot information system
sensor and remove any obstacles.
2 Blind spot information System* P. 450
●Indicator may come on temporarily
when the Maximum Load Limit is
exceeded.●Make sure the total load is within the
Maximum Load Limit.
2Maximum Load Limit P. 405
—
Models with Low Speed
Braking Control
Models with blind spot
information system
* Not available on all models

108
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety
Support
Indicator
(Green/Gray)
●Lights up in green when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are on.●Lights up in green and gray when
RDM, Low Speed Braking Control*,
CMBSTM, or the blind spot
information system* is off.●Lights up in gray when RDM, Low
Speed Braking Control*, CMBSTM,
and the blind spot information
system
* are off.
2 RDM On and Off P. 496
2 CMBSTM On and Off P. 459
2 Blind spot information System On and
Off P. 452
2 System On and Off P. 467
* Not available on all models

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver info rmation interface. Press the (home) button, select Warnings, then press the left
selector wheel to see the message agai n with the system message indicator on.
MessageConditionExplanation
●Appears when the vehicle is no longer able to run
due to a malfunction.●Immediately stop in a safe place.
●Appears when there is a ri sk that the vehicle will
move unexpectedly after you have stopped due to a
malfunction with the vehicle.●While the vehicle is stopped, apply the parking brake.
2 Parking Brake P. 508●Have your vehicle checked by a dealer.
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2Starting the Engine P. 412
Automatic transmission models

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if any door or the trunk is not completely
closed.
• Appears if any door or the trunk is opened while
driving. The beeper sounds.•Disappears when all doors and the trunk are closed.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Low Oil Pressure Warning Appears P. 613

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.
•Power output will be reduced , so you may not be able
to accelerate or maintain yo ur current speed. Have your
vehicle checked by a dealer.
●Appears when the washer fluid is low.
●Refill the washer fluid.
2 Refilling Window Washer Fluid P. 563
●Appears when the scheduled maintenance is due
soon.
●Consequently, Maintenance Due Now and
Maintenance Past Due follow.2Maintenance Minder Messages on the Driver
Information Interface P. 543
●Appears when there is a problem with the battery
charging system.●Have your vehicle checked by a dealer.
Models with shutter grille
Canadian models

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the engine coolant temperature gets
abnormally high.
2 Overheating P. 611
●Appears if the automatic brake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automa tic brake hold system is
turned off.
2 Automatic Brake Hold P. 513
●Appears when the automa tic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2 Automatic Brake Hold P. 513

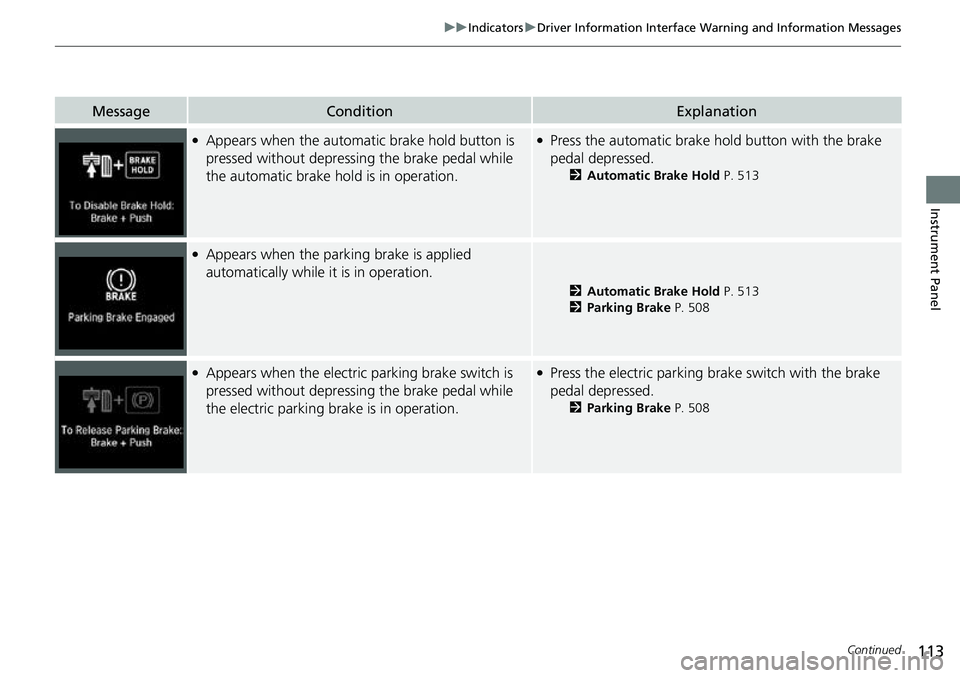

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2Automatic Brake Hold P. 513
●Appears when the parking brake is applied
automatically while it is in operation.
2Automatic Brake Hold P. 513
2 Parking Brake P. 508
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 508

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears after you set the power mode to
ACCESSORY or ON.
●Appears after you unlock and open the driver’s
door.2Starting the Engine P. 412
●Appears when the steering wheel is locked.
●Move the steering wheel left and right while pressing the
ENGINE START/STOP button.
Canadian models
Continuously variable transmission models
for Canadian models
