GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

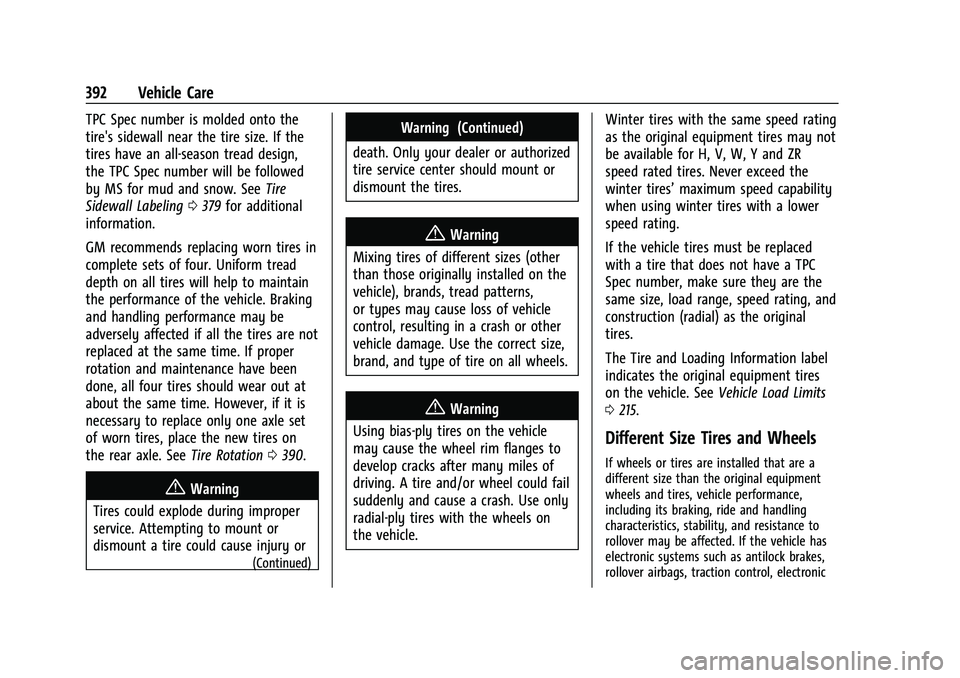

392 Vehicle Care
TPC Spec number is molded onto the
tire's sidewall near the tire size. If the
tires have an all-season tread design,
the TPC Spec number will be followed
by MS for mud and snow. SeeTire
Sidewall Labeling 0379 for additional
information.
GM recommends replacing worn tires in
complete sets of four. Uniform tread
depth on all tires will help to maintain
the performance of the vehicle. Braking
and handling performance may be
adversely affected if all the tires are not
replaced at the same time. If proper
rotation and maintenance have been
done, all four tires should wear out at
about the same time. However, if it is
necessary to replace only one axle set
of worn tires, place the new tires on
the rear axle. See Tire Rotation0390.
{Warning
Tires could explode during improper
service. Attempting to mount or
dismount a tire could cause injury or
(Continued)
Warning (Continued)
death. Only your dealer or authorized
tire service center should mount or
dismount the tires.
{Warning
Mixing tires of different sizes (other
than those originally installed on the
vehicle), brands, tread patterns,
or types may cause loss of vehicle
control, resulting in a crash or other
vehicle damage. Use the correct size,
brand, and type of tire on all wheels.
{Warning
Using bias-ply tires on the vehicle
may cause the wheel rim flanges to
develop cracks after many miles of
driving. A tire and/or wheel could fail
suddenly and cause a crash. Use only
radial-ply tires with the wheels on
the vehicle. Winter tires with the same speed rating
as the original equipment tires may not
be available for H, V, W, Y and ZR
speed rated tires. Never exceed the
winter tires’
maximum speed capability
when using winter tires with a lower
speed rating.
If the vehicle tires must be replaced
with a tire that does not have a TPC
Spec number, make sure they are the
same size, load range, speed rating, and
construction (radial) as the original
tires.
The Tire and Loading Information label
indicates the original equipment tires
on the vehicle. See Vehicle Load Limits
0 215.
Different Size Tires and Wheels
If wheels or tires are installed that are a
different size than the original equipment
wheels and tires, vehicle performance,
including its braking, ride and handling
characteristics, stability, and resistance to
rollover may be affected. If the vehicle has
electronic systems such as antilock brakes,
rollover airbags, traction control, electronic

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

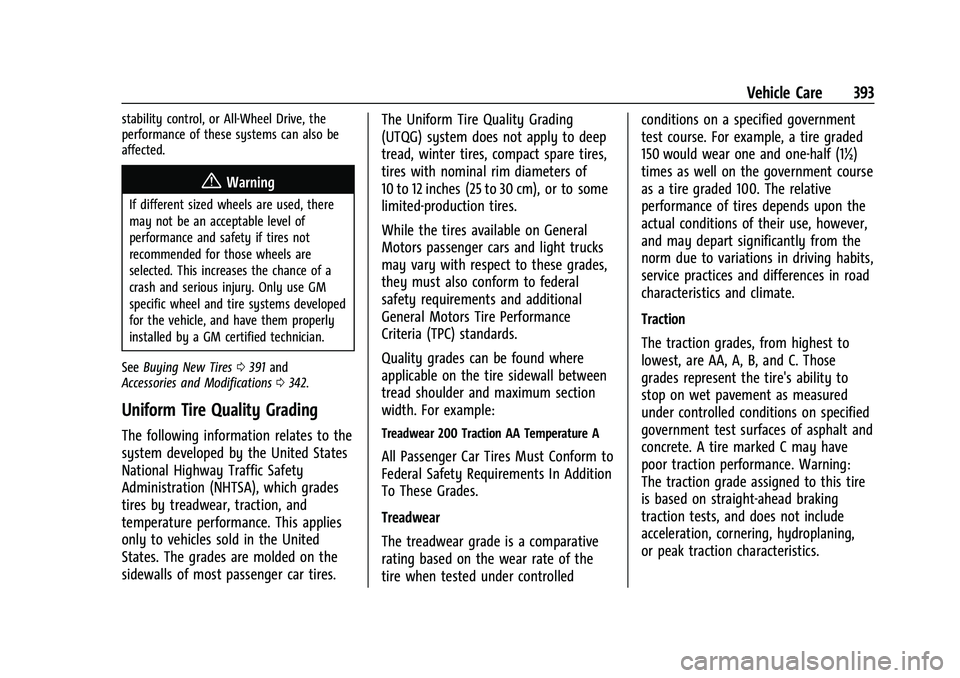

Vehicle Care 393
stability control, or All-Wheel Drive, the
performance of these systems can also be
affected.
{Warning
If different sized wheels are used, there
may not be an acceptable level of
performance and safety if tires not
recommended for those wheels are
selected. This increases the chance of a
crash and serious injury. Only use GM
specific wheel and tire systems developed
for the vehicle, and have them properly
installed by a GM certified technician.
See Buying New Tires 0391 and
Accessories and Modifications 0342.
Uniform Tire Quality Grading
The following information relates to the
system developed by the United States
National Highway Traffic Safety
Administration (NHTSA), which grades
tires by treadwear, traction, and
temperature performance. This applies
only to vehicles sold in the United
States. The grades are molded on the
sidewalls of most passenger car tires. The Uniform Tire Quality Grading
(UTQG) system does not apply to deep
tread, winter tires, compact spare tires,
tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General
Motors passenger cars and light trucks
may vary with respect to these grades,
they must also conform to federal
safety requirements and additional
General Motors Tire Performance
Criteria (TPC) standards.
Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example:Treadwear 200 Traction AA Temperature A
All Passenger Car Tires Must Conform to
Federal Safety Requirements In Addition
To These Grades.
Treadwear
The treadwear grade is a comparative
rating based on the wear rate of the
tire when tested under controlledconditions on a specified government
test course. For example, a tire graded
150 would wear one and one-half (1½)
times as well on the government course
as a tire graded 100. The relative
performance of tires depends upon the
actual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on specified
government test surfaces of asphalt and
concrete. A tire marked C may have
poor traction performance. Warning:
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./
Canada/Mexico-15883563) - 2022 - CRC - 11/19/21

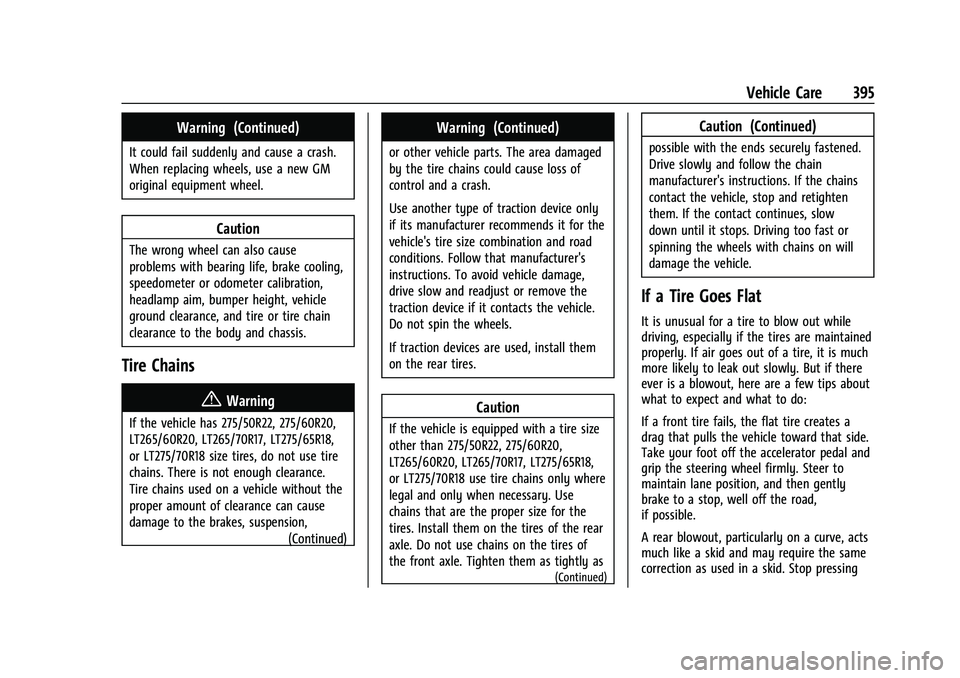

Vehicle Care 395
Warning (Continued)
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Tire Chains
{Warning
If the vehicle has 275/50R22, 275/60R20,
LT265/60R20, LT265/70R17, LT275/65R18,
or LT275/70R18 size tires, do not use tire
chains. There is not enough clearance.
Tire chains used on a vehicle without the
proper amount of clearance can cause
damage to the brakes, suspension,(Continued)
Warning (Continued)
or other vehicle parts. The area damaged
by the tire chains could cause loss of
control and a crash.
Use another type of traction device only
if its manufacturer recommends it for the
vehicle's tire size combination and road
conditions. Follow that manufacturer's
instructions. To avoid vehicle damage,
drive slow and readjust or remove the
traction device if it contacts the vehicle.
Do not spin the wheels.
If traction devices are used, install them
on the rear tires.
Caution
If the vehicle is equipped with a tire size
other than 275/50R22, 275/60R20,
LT265/60R20, LT265/70R17, LT275/65R18,
or LT275/70R18 use tire chains only where
legal and only when necessary. Use
chains that are the proper size for the
tires. Install them on the tires of the rear
axle. Do not use chains on the tires of
the front axle. Tighten them as tightly as
(Continued)
Caution (Continued)
possible with the ends securely fastened.
Drive slowly and follow the chain
manufacturer's instructions. If the chains
contact the vehicle, stop and retighten
them. If the contact continues, slow
down until it stops. Driving too fast or
spinning the wheels with chains on will
damage the vehicle.
If a Tire Goes Flat
It is unusual for a tire to blow out while
driving, especially if the tires are maintained
properly. If air goes out of a tire, it is much
more likely to leak out slowly. But if there
ever is a blowout, here are a few tips about
what to expect and what to do:
If a front tire fails, the flat tire creates a
drag that pulls the vehicle toward that side.
Take your foot off the accelerator pedal and
grip the steering wheel firmly. Steer to
maintain lane position, and then gently
brake to a stop, well off the road,
if possible.
A rear blowout, particularly on a curve, acts
much like a skid and may require the same
correction as used in a skid. Stop pressing

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21
Index 463
Center High-Mounted Stoplamp(CHMSL) and Cargo Lamp . . . . . . . . . . . . . . 367
Center Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Charging System Light . . . . . . . . . . . . . . . . . . . . 119
Check
Engine Light (Malfunction Indicator) . . . . 119
Child Restraints Infants and Young Children . . . . . . . . . . . . . 73
Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Securing . . . . . . . . . . . . . . . . . . . . . . . . 89, 93, 95
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 414
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 419
Climate Control Systems . . . . . . . . . . . . . . . . . 196
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 196
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . 198
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Cluster, Instrument . . . . . . . . . . . . . . . . . . 109, 110
Collision Damage Repair . . . . . . . . . . . . . . . . . 448 Compartments
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 458
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 460
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 458
Connections Connected Services . . . . . . . . . . . . . . . . . . . . 458
Control Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Traction and Electronic Stability . . . . . . . 247
Control Light Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 207
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 158
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 115
Engine Temperature Warning Light . . . . 125
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196, 198
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 352
Courtesy Transportation Program . . . . . . . . 447
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 254 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Cruise Control, Adaptive . . . . . . . . . . . . . . . . . 256
Cruise Control, Super . . . . . . . . . . . . . . . . . . . . 267 Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 444
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 444
Text Telephone (TTY) Users . . . . . . . . . . . . 444
Customer Information Publications Ordering Information . . . . . 449
Customer Satisfaction Procedure . . . . . . . . . 442
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . .451
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 448
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection
Infotainment System . . . . . . . . . . . . . . . . . . 452
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 452
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 452
Daytime Running Lamps (DRL) . . . . . . . . . . . .147
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . 206
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 460
Differential, Limited-Slip . . . . . . . . . . . . . . . . . 252
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 206
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 22

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21
Index 467
Lights (cont'd)Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 126
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Four-Wheel-Drive . . . . . . . . . . . . . . . . . . . . . . 122
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 127
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 127
High/Low Beam Changer . . . . . . . . . . . . . . 147
Hill Descent Control . . . . . . . . . . . . . . . . . . . 122
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . 123
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 126
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 117
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Service Electric Parking Brake . . . . . . . . . . . 121
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . 124
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . 122
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . 124
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Limited-Slip Differential . . . . . . . . . . . . . . . . . . 252
Lock Steering Column . . . . . . . . . . . . . . . . . . . . . . . . 32
Locking Front Axle . . . . . . . . . . . . . . . . . . . . . . . 253
Locking Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . 253
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . 22
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 22
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Locks (cont'd)
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 22
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Low Fuel Warning Light . . . . . . . . . . . . . . . . . 126
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 78
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 48 Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 431
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 425
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 434
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 119
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Manual Mode . . . . . . . . . . . . . . . . . . . . . . .237, 239
Manual Windows . . . . . . . . . . . . . . . . . . . . . . . . . 40
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Massage Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Media Avoiding Untrusted Devices . . . . . . . . . . . . 166 Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Messages
Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Mirror Rear Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . . . . . 36
Automatic Dimming Rearview . . . . . . . . . . 37
Blind Spot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 37
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Trailer Tow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . .37
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249 Driver Control . . . . . . . . . . . . . . . . . . . . . . . . . 249
Monitor System, Tire Pressure . . . . . . . . . . . 385
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 166
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 458

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21
Index 469
Publication Ordering Information . . . . . . . . 449
R
Radio Data System (RDS) . . . . . . . . . . . . . . . . 164
Radio Frequency Statement . . . . . . . . . . . . . . 450
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . . . 166
RadiosAM-FM Radio . . . . . . . . . . . . . . . . . . . . . . 161, 163
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Rear Axle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363 Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253
Rear Camera Mirror . . . . . . . . . . . . . . . . . . . . . . . .37
Rear Cross Traffic Alert System . . . . . . . . . . 293
Rear Pedestrian Alert . . . . . . . . . . . . . . . . . . . . 292
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53 Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Rear Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Rear Vision Camera (RVC) . . . . . . . . . . . . . . . . 283
Rear Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . .37 Automatic Dimming . . . . . . . . . . . . . . . . . . . . 37
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . 47
Recognition Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Recommended
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304, 305
Recommended Fluids and Lubricants . . . . . 434 Records
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 437
Recreational Vehicle Towing . . . . . . . . . . . . . . 411
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 445
Remote Keyless Entry (RKE) System . . . . . . .14
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . . . 20
Replacement Glass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Replacement Parts Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 435
Replacing Airbag System . . . . . . . . . . . . . . . . . . . 71
Replacing LATCH System Parts after a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Replacing Seat Belt System Parts after
a Crash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
Reporting Safety Defects Canadian Government . . . . . . . . . . . . . . . . . 450
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 451
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 450
Restraints Where to Put . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Retained Accessory Power (RAP) . . . . . . . . . 227
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . . . .37
Ride Control Systems Enhanced Traction System (ETS) . . . . . . . 252 Roads
Driving, Wet . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Roadside Assistance Program . . . . . . . . . . . . 445
Roof Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Rotation, Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Routing, Engine Drive Belt . . . . . . . . . . . . . . . 441
Running the Vehicle While Parked . . . . . . . . 231
S
Safety Defects Reporting Canadian Government . . . . . . . . . . . . . . . . . 450
General Motors . . . . . . . . . . . . . . . . . . . . . . . . 451
U.S. Government . . . . . . . . . . . . . . . . . . . . . . . 450
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Safety System Check . . . . . . . . . . . . . . . . . . . . . .61
Satellite Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Scheduling Appointments . . . . . . . . . . . . . . . . 447
Seat Belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . 55
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Extender . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
How to Wear Seat Belts Properly . . . . . . . 56
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . 58
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Replacing after a Crash . . . . . . . . . . . . . . . . . 61
Use During Pregnancy . . . . . . . . . . . . . . . . . . 60

GMC Sierra/Sierra Denali 1500 Owner Manual (GMNA-Localizing-U.S./Cana-
da/Mexico-15883563) - 2022 - CRC - 11/19/21
Index 471
System (cont'd)Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 293
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 284
Systems Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 282
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TaillampsBulb Replacement . . . . . . . . . . . . . . . . . . . . . . 367
Task Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Text Telephone (TTY) Users . . . . . . . . . . . . . . 444
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . .32
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 377
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 391
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 395
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 397
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 380
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 392
Full-Size Spare . . . . . . . . . . . . . . . . . . . . . . . . . 406
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 395
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389 Tires (cont'd)
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 126
Pressure Monitor Operation . . . . . . . . . . . 385
Pressure Monitor System . . . . . . . . . . . . . . 385
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 390
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 379
Terminology and Definitions . . . . . . . . . . . 382
Uniform Tire Quality Grading . . . . . . . . . . 393
Wheel Alignment and Tire Balance . . . . 394
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 394
When It Is Time for New Tires . . . . . . . . . 391
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 378
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . 240
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . . 122
Towing Driving Characteristics . . . . . . . . . . . . . . . . . 309
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 317
General Information . . . . . . . . . . . . . . . . . . . 309
Recreational Vehicle . . . . . . . . . . . . . . . . . . . . 411
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Trailer Sway Control (TSC) . . . . . . . . . . . . . 327
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 409
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Limited-Slip Differential . . . . . . . . . . . . . . . . 252 Traction (cont'd)
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247
Trademarks and License Agreements . . . . . 194
Trailer Sway Control (TSC) . . . . . . . . . . . . . . . . . . . . 327
Tow Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 313
Trailer Towing App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Trailering App . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Transfer Case
Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 240
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 231, 233
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 350
Temperature Gauge . . . . . . . . . . . . . . . . . . . . . 116
Transportation Program, Courtesy . . . . . . . 447
Transporting Items That Can Catch Fire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Truck-Camper Loading Information . . . . . . . 220
Turn and Lane-Change Signals . . . . . . . . . . . 149
Turn Signal Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 367
