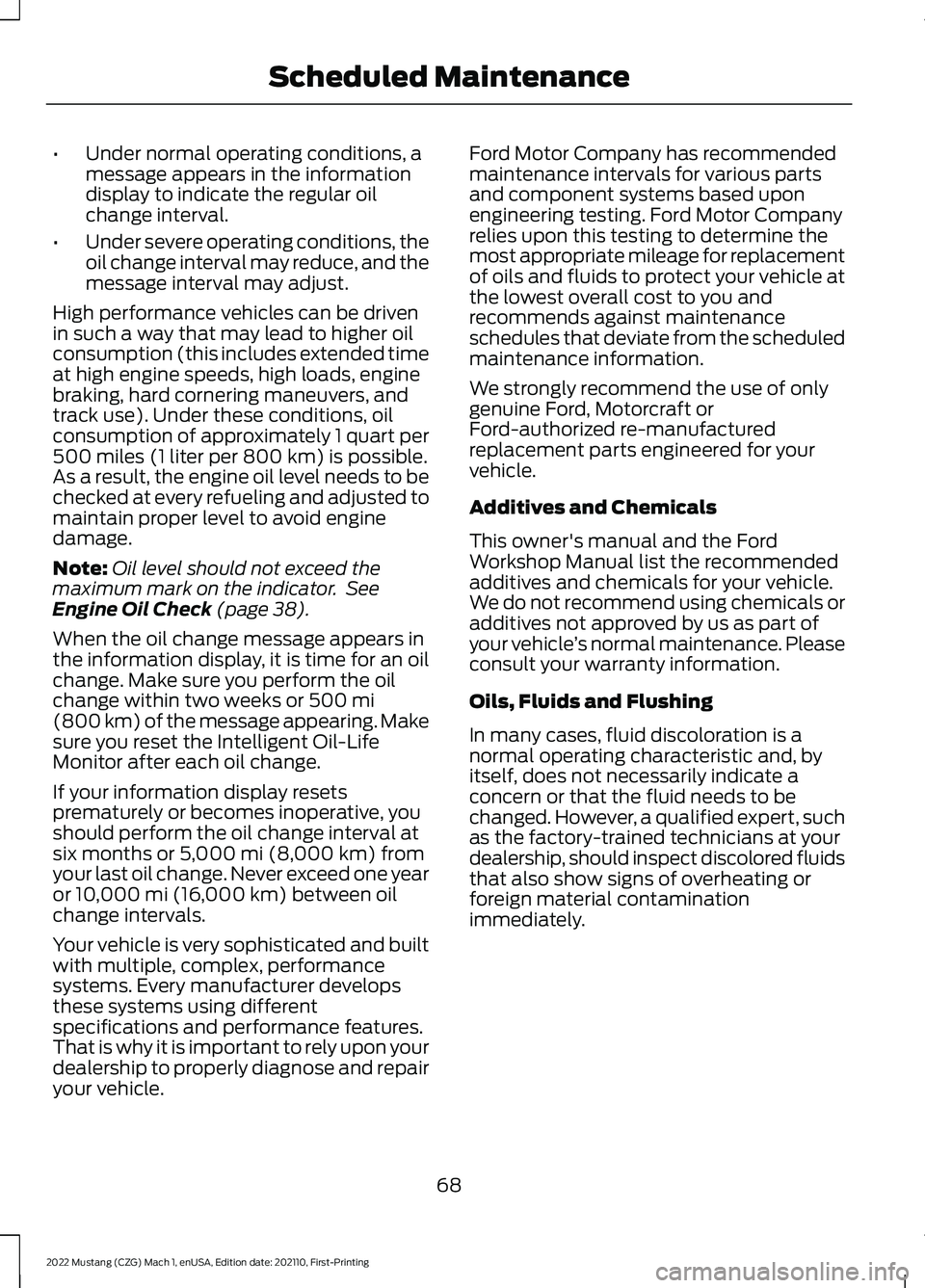

2022 FORD MUSTANG check engine

•
Under normal operating conditions, a
message appears in the information
display to indicate the regular oil
change interval.
• Under severe operating conditions, the
oil change interval may reduce, and the
message interval may adjust.
High performance vehicles can be driven
in such a way that may lead to higher oil
consumption (this includes extended time
at high engine speeds, high loads, engine
braking, hard cornering maneuvers, and
track use). Under these conditions, oil
consumption of approximately 1 quart per
500 miles (1 liter per 800 km) is possible.
As a result, the engine oil level needs to be
checked at every refueling and adjusted to
maintain proper level to avoid engine
damage.
Note: Oil level should not exceed the
maximum mark on the indicator. See
Engine Oil Check (page 38).
When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or
500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change.
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals.
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle. Ford Motor Company has recommended
maintenance intervals for various parts
and component systems based upon
engineering testing. Ford Motor Company
relies upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle.
Additives and Chemicals
This owner's manual and the Ford
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
68
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Scheduled Maintenance

Make sure to change your vehicle
’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals.Check every month
Engine oil level.
For severe use, high engine speed and engine loads, engine braking and track use, check engine oil level every fuel fill-up.
Function of all interior and exterior lights.
Tires, including spare, for wear and proper pressure. Windshield washer fluid level. Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps operation for brake, ABS, airbag and seatbelt.
Washer spray and wiper operation. Clean or replace blades as necessary.
69
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Scheduled Maintenance

Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great.Multi-Point inspection
Hazard warning system operation.
Accessory drive belts.
Horn operation.
Battery performance.
Radiator, cooler, heater and air conditioninghoses.
Engine air filter.
Suspension components for leaks ordamage.
Exhaust system.
Steering and linkage.
Exterior lamps operation.
Tires, including spare, for wear and properpressure.2
Fluid levels; fill if necessary. 1
Windshield for cracks, chips or pits.
For oil and fluid leaks.
Washer spray and wiper operation.
Half-shaft dust boots.
1 Brake, coolant recovery reservoir, automatic transmission and window washer.
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle. NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time.
70
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Scheduled Maintenance

A
About This Supplement.................................3
ABS See: Brakes............................................................. 25
Air Filter See: Changing the Engine Air Filter...............39
At a Glance..........................................................7
Audio Control
.....................................................11
Automatic Transmission.............................20
B
Base Warranty
................................................66
Brakes.................................................................25 General Information............................................ 25
Brake System Specifications.....................57
Breaking-In.......................................................35
C
Capacities and Specifications..................60
Car Wash See: Cleaning the Exterior.................................. 51
Changing the Engine Air Filter...................39
Child Safety
.........................................................9
Cleaning the Engine.......................................51
Cleaning the Exterior......................................51
Coolant Check See: Engine Coolant Check.............................. 40
D
Drive Control
....................................................26
Driving Aids.......................................................26
Driving Hints.....................................................35
Driving Through Water.................................35
E
Engine Coolant Check
.................................40
Engine Oil Check............................................38
Engine Specifications
...................................56
F
Fuel and Refueling..........................................18
Fuel Quality
.......................................................18 Fuses...................................................................37
Fuse Specification Chart.............................37
G
Gauges.................................................................12
Gearbox
See: Transmission................................................. 19
General Maintenance Information..........67
I
Information Display Control.........................11
Information Displays......................................13 General Information............................................. 13
Installing Child Restraints.............................9
Instrument Cluster..........................................12
Introduction........................................................3
M
Maintenance....................................................38
Manual Transmission
....................................19
Message Center See: Information Displays.................................. 13
Motorcraft Parts.............................................59
N
Normal Scheduled Maintenance
.............70
O
Oil Check See: Engine Oil Check......................................... 38
R
Roadside Emergencies
................................36
Running-In See: Breaking-In.................................................... 35
S
Scheduled Maintenance
..............................67
Special Operating Conditions Scheduled Maintenance..................................................73
Steering Wheel
..................................................11
77
2022 Mustang (CZG) Mach 1, enUSA, Edition date: 202110, First-Printing Index
