2022 FORD F-550 headlamp

4. To install, reverse the removal
procedure.
Note: Handle a halogen headlamp bulb
carefully and keep out of children ’s reach.
Grasp the bulb only by its plastic base and
do not touch the glass. The oil from your
hand could cause the bulb to break the next
time you operate the headlamps.
CHANGING A FRONT TURN
SIGNAL LAMP BULB WARNING: Make sure the bulbs
have cooled down before removing
them. Failure to follow this warning could
result in serious personal injury.
Note: To access the right-hand side bulbs,
remove the air intake pipe. See
Changing
the Engine Air Filter (page 405).
To access the left-hand side bulbs, remove
the washer reservoir filler tube. Vehicles with
diesel engine only. 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector.
3. Turn the bulb holder counterclockwise
and remove it. Note:
You cannot separate the bulb from
the bulb holder.
4. To install, reverse the removal procedure.
CHANGING A FRONT FOG LAMP
BULB 1. Make sure the fog lamps are off.
2. Disconnect the electrical connector
from the fog lamp bulb.
3. Turn the bulb counterclockwise and remove it from the fog lamp.
4. To install, reverse the removal procedure.
415
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing MaintenanceE224990 E163826

CLEANING PRODUCTS
Materials
For best results, use the following products
or products of equivalent quality:
For additional information and assistance,
we recommend that you contact an
authorized dealer. Specification
Name
Motorcraft® Bug and Tar Remover, ZC-42 (U.S. & Canada) ESR-M5B194-B
Motorcraft® Custom Bright Metal Cleaner, ZC-15 (U.S. & Canada)
ESR-M14P4-A
Motorcraft® Detail Wash, ZC-3-A (U.S. & Canada)
ESR-M14P3-A
Motorcraft® Engine Shampoo and Degreaser, ZC-20 (U.S.)
Motorcraft® Engine Shampoo, CXC-66-A (Canada)
Motorcraft® Premium Leather and Vinyl Cleaner, ZC-56 (U.S. &
Canada)
Motorcraft® Multi-Purpose Cleaner, CXC-101 (Canada)
WSS-M14P19-A
Motorcraft® Premium Windshield Wash Concentrate with
Bitterant, ZC-32-B2 (U.S.)
WSS-M14P19-A
Motorcraft® Premium Quality Windshield Washer Fluid, CXC-37-
F/M (Canada)
Motorcraft® Professional Strength Carpet & Upholstery Cleaner,
ZC-54 (U.S. & Canada)
ESR-M14P5-A
Motorcraft® Premium Glass Cleaner, CXC-100 (Canada)
Motorcraft® Spot and Stain Remover, ZC-14 (U.S.)
ESR-M14P5-A
Motorcraft® Ultra-Clear Spray Glass Cleaner, ZC-23 (U.S.)
Motorcraft® Wheel and Tire Cleaner, ZC-37-A (U.S. & Canada)
CLEANING THE EXTERIOR
CLEANING THE EXTERIOR
PRECAUTIONS
Immediately remove fuel spillages, AdBlue
residuals, bird droppings, insect deposits
and road tar. These may cause damage to
your vehicle ’s paintwork or trim over time. Remove any exterior accessories, for
example antennas, before entering a car
wash.
CLEANING HEADLAMPS AND
REAR LAMPS
We recommend that you only use cold or
lukewarm water containing car shampoo
to clean the headlamps and the rear
lamps.
421
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Vehicle Care

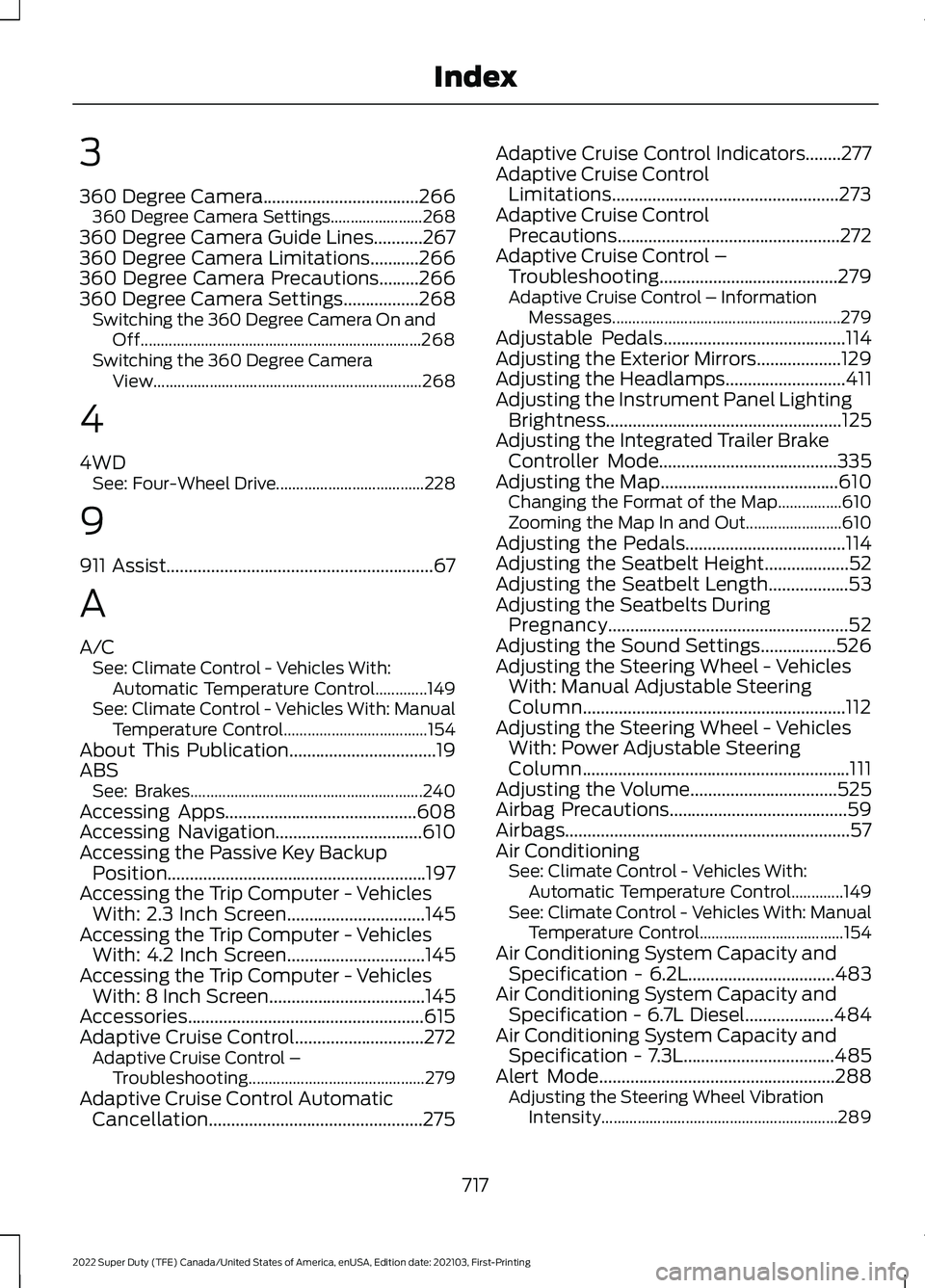

3
360 Degree Camera...................................266
360 Degree Camera Settings....................... 268
360 Degree Camera Guide Lines...........267
360 Degree Camera Limitations...........266
360 Degree Camera Precautions.........266
360 Degree Camera Settings.................268 Switching the 360 Degree Camera On and
Off...................................................................... 268
Switching the 360 Degree Camera View................................................................... 268
4
4WD See: Four-Wheel Drive..................................... 228
9
911 Assist............................................................67
A
A/C See: Climate Control - Vehicles With:
Automatic Temperature Control.............149
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 154
About This Publication.................................19
ABS See: Brakes.......................................................... 240
Accessing Apps...........................................608
Accessing Navigation
.................................610
Accessing the Passive Key Backup Position..........................................................197
Accessing the Trip Computer - Vehicles With: 2.3 Inch Screen...............................145
Accessing the Trip Computer - Vehicles With: 4.2 Inch Screen
...............................145
Accessing the Trip Computer - Vehicles With: 8 Inch Screen
...................................145
Accessories.....................................................615
Adaptive Cruise Control.............................272 Adaptive Cruise Control –
Troubleshooting............................................ 279
Adaptive Cruise Control Automatic Cancellation................................................275 Adaptive Cruise Control Indicators........277
Adaptive Cruise Control
Limitations...................................................273
Adaptive Cruise Control Precautions..................................................272
Adaptive Cruise Control – Troubleshooting........................................
279
Adaptive Cruise Control – Information
Messages......................................................... 279
Adjustable Pedals
.........................................114
Adjusting the Exterior Mirrors...................129
Adjusting the Headlamps...........................411
Adjusting the Instrument Panel Lighting Brightness.....................................................125
Adjusting the Integrated Trailer Brake Controller Mode
........................................335
Adjusting the Map........................................610
Changing the Format of the Map................610
Zooming the Map In and Out........................ 610
Adjusting the Pedals....................................114
Adjusting the Seatbelt Height
...................52
Adjusting the Seatbelt Length..................53
Adjusting the Seatbelts During Pregnancy......................................................52
Adjusting the Sound Settings.................526
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column...........................................................112
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column............................................................111
Adjusting the Volume
.................................525
Airbag Precautions........................................59
Airbags................................................................57
Air Conditioning See: Climate Control - Vehicles With:
Automatic Temperature Control.............149
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 154
Air Conditioning System Capacity and Specification - 6.2L.................................483
Air Conditioning System Capacity and Specification - 6.7L Diesel....................484
Air Conditioning System Capacity and Specification - 7.3L
..................................485
Alert Mode.....................................................288 Adjusting the Steering Wheel Vibration
Intensity........................................................... 289
717
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

C
Calculating Payload.....................................314
Calculating the Load Limit........................314
Canceling the Set Speed..........................252
Capacities and Specifications................467
Catalytic Converter
......................................223
Catalytic Converter –
Troubleshooting............................................ 223
Catalytic Converter Precautions............223
Catalytic Converter – Troubleshooting........................................223
Catalytic Converter – Warning Lamps................................................................ 223
Center Console.............................................188 Opening the Center Console......................... 188
Center Display Limitations.......................597
Center Display Overview...........................597
Center Display Precautions......................597
Changing a Flat Tire...................................455
Changing a Road Wheel...........................455
Changing the 12V Battery........................409
Changing the Fuel Filter - Diesel...........408
Changing the Fuel Filter - Gasoline
.......................................................409
Changing the Remote Control Battery..............................................................71
Changing the Remote Control Battery - Vehicles With: Flip Key...............................72
Changing the Vehicle Wi-Fi Hotspot Name or Password
..................................506
Charging a Device..........................................181
Charging a Wireless Device......................185
Checking MyKey System Status..............80
Checking the Brake Fluid..........................240
Checking the Coolant................................402
Checking the Seatbelts
................................55
Checking the Selective Catalytic Reduction System Status.......................221
Checking the Tire Pressures
.....................441
Checking the Wiper Blades.......................116
Children and Airbags....................................64
Child Restraint Anchor Points
...................36
Locating the Child Restraint Lower Anchor
Points................................................................... 36
Locating the Child Restraint Top Tether Anchor Points.................................................... 37What Are the Child Restraint Anchor
Points................................................................... 36
Child Restraints
...............................................38
Child Restraint Position Information............38
Child Restraints Recommendation...............39
Child Safety
......................................................35
Child Restraint Anchor Points......................... 36
Child Restraints..................................................... 38
Installing Child Restraints................................. 39
Child Safety Locks.........................................48
Child Safety Precautions.............................35
Cleaning Products
........................................421
Cleaning the Exterior...................................421 Cleaning Camera Lenses and
Sensors............................................................. 423
Cleaning Chrome, Aluminium or Stainless Steel................................................................... 422
Cleaning Headlamps and Rear Lamps................................................................ 421
Cleaning Stripes or Graphics......................... 423
Cleaning the Engine Compartment............422
Cleaning the Exhaust....................................... 423
Cleaning the Exterior Precautions................421
Cleaning the Underbody................................. 423
Cleaning Wheels................................................ 422
Cleaning Windows and Wiper Blades............................................................... 422
Cleaning the Interior
...................................424
Cleaning Carpets and Floor Mats................425
Cleaning Displays and Screens.................... 424
Cleaning Moonroof Tracks............................. 426
Cleaning Plastic.................................................. 424
Cleaning Seatbelts............................................ 426
Cleaning Seats and the Headliner..............424
Cleaning the Instrument Panel.................... 424
Clearing All MyKeys
.......................................79
Clearing the Garage Door Opener..........178
Climate............................................................570
Climate Control
.............................................149
Auto Mode.............................................................. 151
Climate Control Hints..................................152
Cold Weather Precautions
........................373
Configuring the Trip Computer................145
Connected Vehicle
.....................................498
Connected Vehicle –
Troubleshooting............................................ 503
Connecting the Vehicle to a Mobile Network........................................................... 498
720
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

E
Easy Entry and Exit........................................93
Electromagnetic Compatibility................713
Electronic Locking Differential................237
Electronic Locking Differential –
Troubleshooting............................................ 239
Electronic Locking Differential Indicators.....................................................239
Electronic Locking Differential Precautions..................................................237
Electronic Locking Differential – Troubleshooting........................................
239
Electronic Locking Differential –
Information Messages................................ 239
Emergency Call Limitations.......................68
Emergency Call Requirements..................67
Emergency Call System Data....................28
Emergency Towing
.....................................386
Emission Law.................................................710
Enabling Apps on an Android Device...........................................................608
Enabling Apps on an iOS Device..........608
Enabling Remote Start
..............................146
End User License Agreement.................685
Engine Air Filter............................................405 Changing the Engine Air Filter...................... 405
Engine Air Filter - Information Messages........................................................ 406
Engine Block Heater
....................................194
Engine Block Heater Precautions.................194
How Does the Engine Block Heater
Work................................................................... 195
Using the Engine Block Heater...................... 195
Engine Oil Capacity and Specification - 6.2L
.................................................................473
Engine Oil Capacity and Specification - 6.7L Diesel
....................................................474
Engine Oil Capacity and Specification - 7.3L..................................................................477
Engine Oil
.......................................................400
Adding Engine Oil............................................... 401
Checking the Engine Oil Level...................... 400
Engine Oil Capacity and Specification................................................... 401
Engine Oil Dipstick Overview....................... 400
Resetting the Engine Oil Change Reminder.......................................................... 401Engine Specifications - 6.2L....................467
Engine Specifications - 6.7L Diesel.......467
Engine Specifications - 7.3L....................468
Entertainment..............................................560
Event Data
........................................................25
Export Unique Options................................711
Extending the Exterior Mirrors
.................130
Extending the Remote Start Duration.........................................................147
Exterior Bulbs.................................................412 Changing a Front Fog Lamp Bulb................415
Changing a Front Turn Signal Lamp
Bulb..................................................................... 415
Changing a Headlamp Bulb........................... 414
Changing a High Mounted Stoplamp Bulb.................................................................... 418
Changing a License Plate Lamp Bulb.........418
Changing a Rear Lamp Bulb.......................... 416
Changing a Rear Turn Signal Lamp Bulb..................................................................... 417
Changing a Reversing Lamp Bulb.................417
Changing a Stoplamp Bulb............................ 416
Exterior Bulb Specification Chart.................412
Removing a Rear Lamp Assembly...............414
Exterior Lamps
...............................................119
Exterior Lamp Audible Warning...................... 121
Exterior Lamp Indicators................................... 121
Switching the Cargo Lamps On.................... 120
Switching the Daytime Running Lamps On and Off.............................................................. 120
Switching the Front Fog Lamps On and Off....................................................................... 120
Switching the Spot Lamps On and Off........................................................................\
. 121
Switching the Turn Signal Lamps On and Off........................................................................\
119
Exterior Lighting Control.............................118
Exterior Lighting
.............................................118
Autolamps.............................................................. 119
Automatic High Beam Control....................... 121
Automatic High Beam Control – Troubleshooting............................................. 123
Exterior Lamps..................................................... 119
Headlamps............................................................ 118
Headlamps – Troubleshooting...................... 118
Exterior Mirrors...............................................129 Auto-Dimming Exterior Mirror....................... 130
723
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index

Garage Door Opener Precautions..........176
Garage Door Opener Radio Frequencies..................................................179
General Maintenance Information
........622
Glasses Holder..............................................190
Locating the Glasses Holder.......................... 190
Glossary of Tire Terminology..................435
Glove Compartment
....................................187
Locking the Glove Compartment.................187
Opening the Glove Compartment................187
H
Headlamp Adjusting See: Adjusting the Headlamps....................... 411
Headlamps
......................................................118
Headlamp Indicators......................................... 118
Using the High Beam Headlamps.................118
Headlamps – Troubleshooting
................118
Headlamps – Frequently Asked
Questions.......................................................... 118
Heated Seats
.................................................165
Heated Seat Precautions................................ 165
Switching the Heated Seats On and Off....................................................................... 165
Heating See: Climate Control - Vehicles With:
Automatic Temperature Control.............149
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 154
Hill Descent Control...................................254 Hill Descent Control –
Troubleshooting............................................ 255
Hill Descent Control Indicator.................254
Hill Descent Control Precautions..........254
Hill Descent Control – Troubleshooting........................................255
Hill Descent Control – Information Messages......................................................... 255
Hill Start Assist
.............................................246
Hill Start Assist – Troubleshooting.............246
Hill Start Assist Precautions...................246
Hill Start Assist – Troubleshooting........................................246
Hill Start Assist – Information Messages......................................................... 246
Hitches.............................................................323 Fifth-Wheel Trailer Hitch................................. 325Hooking Up a Trailer Using a
Weight-Distributing Hitch.......................... 324
Installing a Hitch................................................ 323
Hood Lock See: Opening and Closing the Hood..........396
Horn....................................................................112
How Does 911 Assist Work
..........................67
How Does Adaptive Cruise Control Work...............................................................272
How Does Blind Spot Information System Work
..............................................293
How Does Cross Traffic Alert Work..............................................................298
How Does Drive Mode Control Work...............................................................281
How Does Driver Alert Work...................309
How Does Easy Entry and Exit Work.................................................................93
How Does Four-Wheel Drive Work
.......228
How Does Hill Descent Control Work..............................................................254
How Does Hill Start Assist Work
...........246
How Does Pre-Collision Assist Work...............................................................301
How Does Stability Control Work
.........249
How Does the 360 Degree Camera Work..............................................................266
How Does the Diesel Particulate Filter Work................................................................212
How Does the Electronic Locking Differential Work
.......................................237
How Does the Garage Door Opener Work................................................................176
How Does the Lane Keeping System Work..............................................................286
How Does the Rear Occupant Alert System Work.................................................171
How Does the Safety Canopy ™
Work.................................................................58
How Does the Selective Catalytic Reduction System Work
..........................217
How Does Traction Control Work..........247
How Does Trailer Backup Assistance Work..............................................................339
How Does Trailer Reverse Guidance Work...............................................................357
How Does Trailer Sway Control Work..............................................................338
725
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Index
