2022 FORD BRONCO SPORT warning light

Check the tire pressure
periodically (at least monthly)
using an accurate tire gauge. See
When Inflating Your Tires in this
chapter.
Understanding Your Tire
Pressure Monitoring System
The tire pressure monitoring
system measures pressure in your
road tires and sends the tire
pressure readings to your vehicle.
You can view the tire pressure
readings through the information
display. See General
Information (page 102). The low
tire pressure warning light will turn
on if the tire pressure is
significantly low. Once the light is
illuminated, your tires are under-inflated and need to be
inflated to the manufacturer
’s
recommended tire pressure. Even
if the light turns on and a short
time later turns off, your tire
pressure still needs to be checked.
When Your Temporary Spare
Tire is Installed
When one of your road tires needs
to be replaced with the temporary
spare, the system will continue to
identify an issue to remind you
that the damaged road wheel and
tire assembly needs to be repaired
and put back on your vehicle.
To restore the full function of the
tire pressure monitoring system,
have the damaged road wheel
and tire assembly repaired and
remounted on your vehicle.
When You Believe Your System
is Not Operating Properly
The main function of the tire
pressure monitoring system is to
warn you when your tires need air.
It can also warn you in the event
the system is no longer capable
of functioning as intended. See
the following chart for information
concerning your tire pressure
monitoring system:
326
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Wheels and TiresE250820

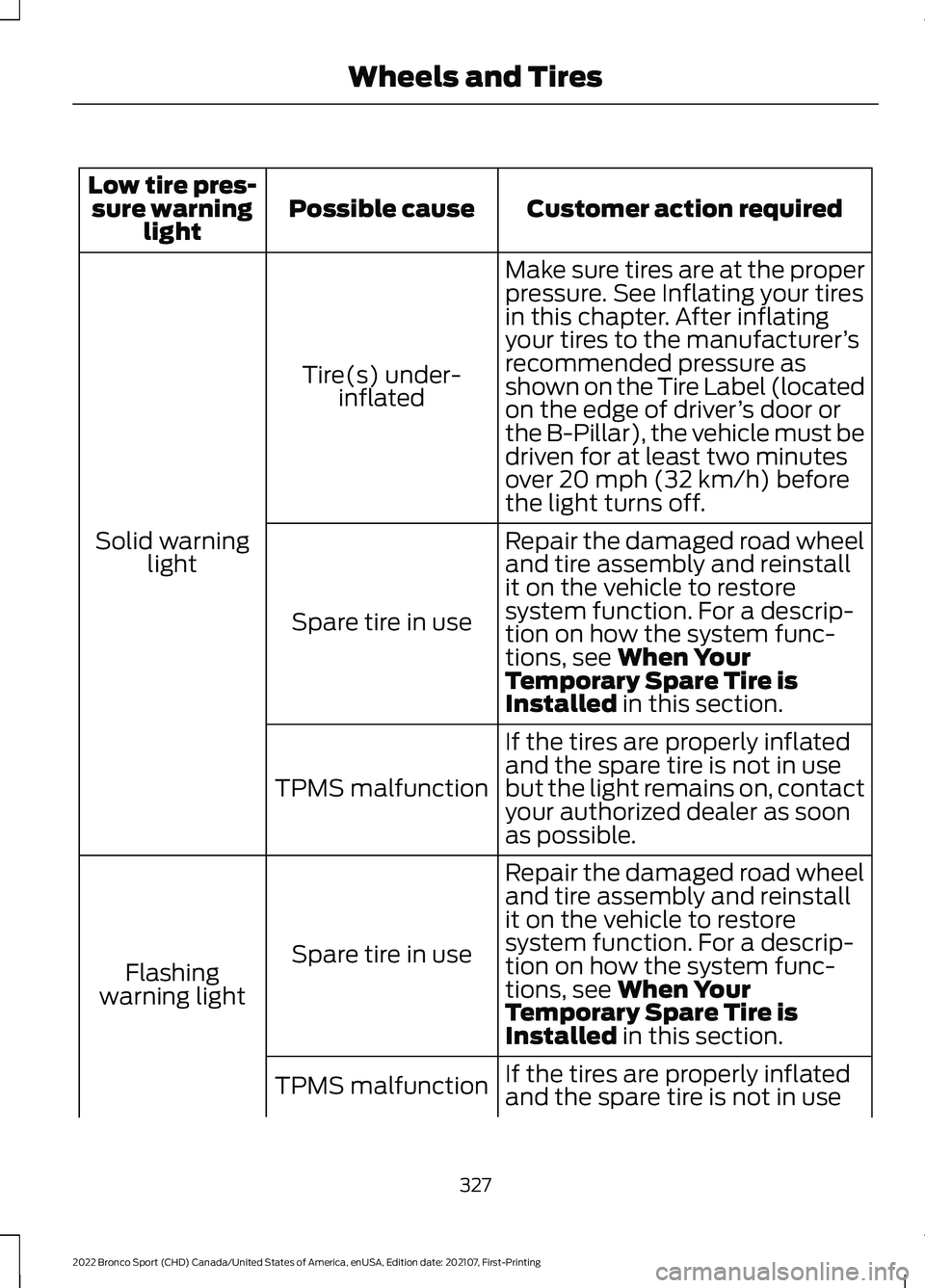

Customer action required
Possible cause
Low tire pres-
sure warning light
Make sure tires are at the proper
pressure. See Inflating your tires
in this chapter. After inflating
your tires to the manufacturer’s
recommended pressure as
shown on the Tire Label (located
on the edge of driver ’s door or
the B-Pillar), the vehicle must be
driven for at least two minutes
over 20 mph (32 km/h) before
the light turns off.
Tire(s) under-
inflated
Solid warning light Repair the damaged road wheel
and tire assembly and reinstall
it on the vehicle to restore
system function. For a descrip-
tion on how the system func-
tions, see
When Your
Temporary Spare Tire is
Installed
in this section.
Spare tire in use
If the tires are properly inflated
and the spare tire is not in use
but the light remains on, contact
your authorized dealer as soon
as possible.
TPMS malfunction
Repair the damaged road wheel
and tire assembly and reinstall
it on the vehicle to restore
system function. For a descrip-
tion on how the system func-
tions, see
When Your
Temporary Spare Tire is
Installed
in this section.
Spare tire in use
Flashing
warning light
If the tires are properly inflated
and the spare tire is not in use
TPMS malfunction
327
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Wheels and Tires

Customer action required
Possible cause
Low tire pres-
sure warning light
but the light remains on, contact
your authorized dealer as soon
as possible.
When Inflating Your Tires WARNING: Do not use the
tire pressure displayed in the
information display as a tire
pressure gauge. Failure to follow
this instruction could result in
personal injury or death.
When putting air into your tires
(such as at a gas station or in your
garage), the tire pressure
monitoring system may not
respond immediately to the air
added to your tires.
It may take up to two minutes of
driving over
20 mph (32 km/h) for
the light to turn off after you have
filled your tires to the
recommended inflation pressure.
How Temperature Affects Your
Tire Pressure
The tire pressure monitoring
system monitors tire pressure in
each pneumatic tire. While driving
in a normal manner, a typical
passenger tire inflation pressure
may increase about
2 –4 psi
(14– 28 kPa) from a cold start
situation. If the vehicle is stationary overnight with the
outside temperature significantly
lower than the daytime
temperature, the tire pressure may
decrease about
3 psi (21 kPa) for
a drop of 30°F (17°C) in ambient
temperature. This lower pressure
value may be detected by the tire
pressure monitoring system as
being significantly lower than the
recommended inflation pressure
and activate the system warning
light for low tire pressure. If the
low tire pressure warning light is
on, visually check each tire to
verify that no tire is flat. If one or
more tires are flat, repair as
necessary. Check the air pressure
in the road tires. If any tire is
under-inflated, carefully drive the
vehicle to the nearest location
where air can be added to the
tires. Inflate all the tires to the
recommended inflation pressure.
328
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Wheels and Tires

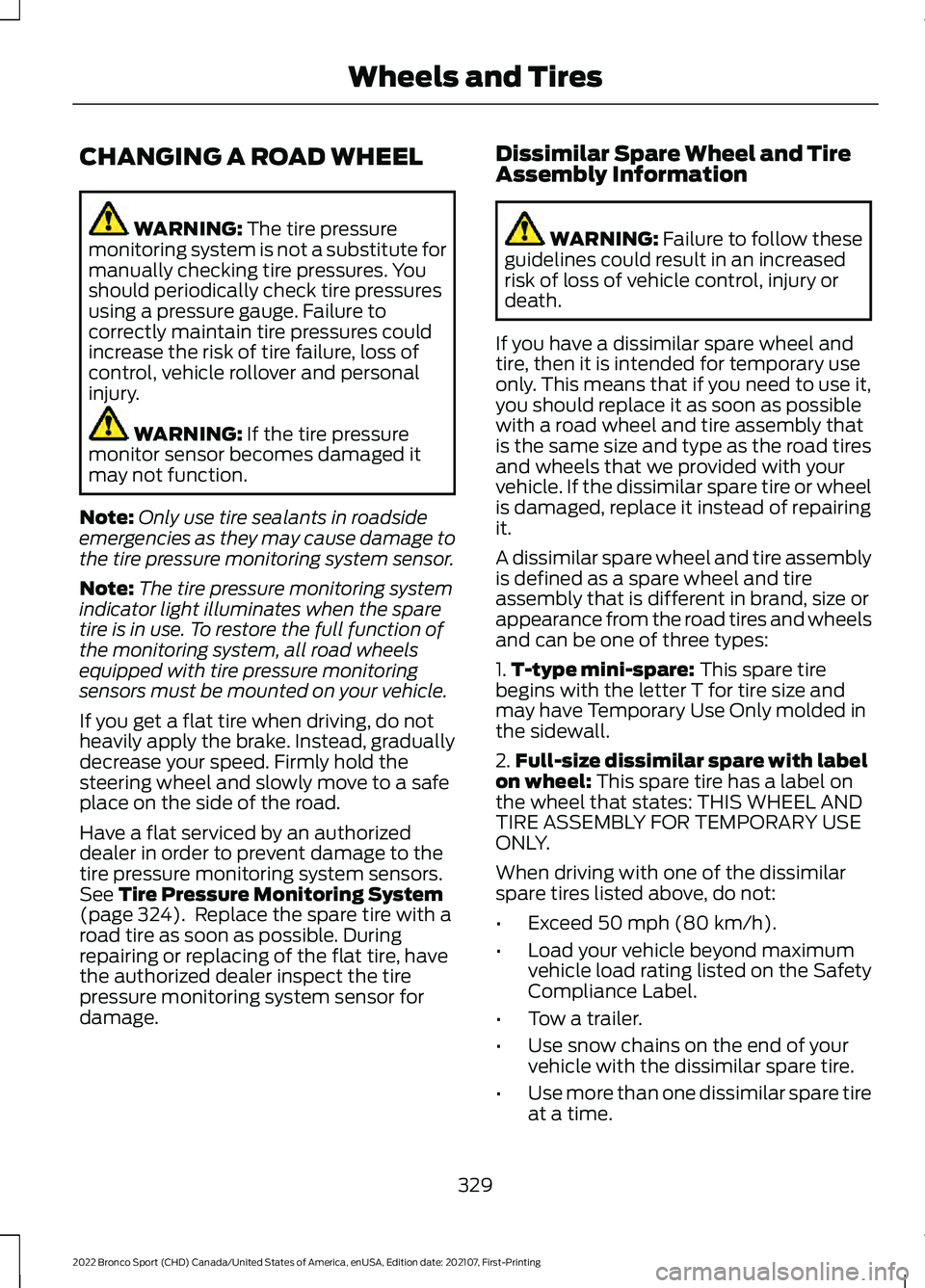

CHANGING A ROAD WHEEL
WARNING: The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury. WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: Only use tire sealants in roadside
emergencies as they may cause damage to
the tire pressure monitoring system sensor.
Note: The tire pressure monitoring system
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on your vehicle.
If you get a flat tire when driving, do not
heavily apply the brake. Instead, gradually
decrease your speed. Firmly hold the
steering wheel and slowly move to a safe
place on the side of the road.
Have a flat serviced by an authorized
dealer in order to prevent damage to the
tire pressure monitoring system sensors.
See
Tire Pressure Monitoring System
(page 324). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the tire
pressure monitoring system sensor for
damage. Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that we provided with your
vehicle. If the dissimilar spare tire or wheel
is damaged, replace it instead of repairing
it.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1. T-type mini-spare:
This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load your vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use snow chains on the end of your
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
329
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Wheels and Tires

1
180 Degree Camera.....................................199
4
4WD See: Four-Wheel Drive...................................... 178
9
911 Assist...........................................................55
A
A/C See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)............................................................... 126
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC) ................................................................. 131
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 135
About This Manual...........................................9
ABS See: Brakes............................................................ 182
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 182
Accessories...................................................406
Accessories See: Replacement Parts
Recommendation............................................ 16
Adaptive Cruise Control
............................203
Adaptive Cruise Control –
Troubleshooting............................................. 212
Adaptive Cruise Control Indicators.....................................................209
Adaptive Cruise Control Limitations..................................................204
Adaptive Cruise Control Precautions.................................................203
Adaptive Cruise Control – Troubleshooting.........................................212
Adaptive Cruise Control – Information Messages.......................................................... 212
Adjusting the Headlamps........................295 Adjusting the Luggage Compartment
Divider...........................................................243
Adjusting the Luggage Compartment Load Floor
....................................................243
Adjusting the Set Speed Tolerance........212
Adjusting the Steering Wheel....................77
Airbag Disposal...............................................54
Air Conditioning See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)............................................................... 126
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC) ................................................................. 131
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 135
Air Conditioning System Capacity and Specification - 1.5L EcoBoost™.........346
Air Conditioning System Capacity and Specification - 2.0L EcoBoost™........345
Air Filter See: Changing the Engine Air Filter............286
Alarm See: Anti-Theft Alarm......................................... 75
Ambient Lighting
............................................87
Anti-Theft Alarm............................................75
Appendices....................................................454
Apps.................................................................389
Audible Warnings and Indicators............101
Audio Control
...................................................77
Audio System................................................354 General Information......................................... 354
Audio Unit
.......................................................354
Auto Hold........................................................185
Autolamps........................................................84
Automatic High Beam Control.................89
Automatic High Beam Control Indicators.......................................................89
Automatic Transmission
............................172
Automatic Transmission Fluid Check.............................................................291
Auto Mode.......................................................128 Auto Mode Indicators........................................ 128
Switching Auto Mode On and Off................128
Switching Dual Mode On and Off................129
Auto-Start-Stop...........................................160
Autowipers.......................................................80
483
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Index

G
G.O.A.T. Mode Control................................232
G.O.A.T. Mode Control –
Troubleshooting............................................ 235
G.O.A.T. Modes.................................................... 233
G.O.A.T. Mode Control – Troubleshooting........................................235
G.O.A.T. Mode Control – Frequently Asked Questions........................................................ 236
G.O.A.T. Mode Control – Information Messages......................................................... 235
G.O.A.T. Mode Control – Warning Lamps............................................................... 235
G.O.A.T. Modes..............................................233 Eco........................................................................\
... 233
Mud/Ruts.............................................................. 233
Normal................................................................... 233
Rock Crawl............................................................ 233
Sand....................................................................... 234
Slippery.................................................................. 234
Sport....................................................................... 235
Gauges - Vehicles With: 4.2 Inch Instrument Cluster Display
Screen.............................................................95
Gauges - Vehicles With: 6.5 Inch Instrument Cluster Display
Screen.............................................................96
Gearbox See: Transmission............................................... 172
General Information on Radio Frequencies...................................................57
General Maintenance Information.......409
Getting Assistance Outside the U.S. and Canada.........................................................269
Getting the Services You Need..............266
Glasses Holder..............................................154 Locating the Glasses Holder.......................... 154
Global Opening and Closing......................92
Glove Compartment
....................................153
Opening the Glove Compartment................153
H
Hazard Flashers
............................................261
Headlamp Adjusting See: Adjusting the Headlamps..................... 295
Headlamp Exit Delay
....................................85 Headrest
See: Head Restraints......................................... 139
Head Restraints
............................................139
Heated Seats..................................................145
Heating See: Climate Control - Vehicles With: Dual
Automatic Temperature Control
(DATC)............................................................... 126
See: Climate Control - Vehicles With: Electronic Automatic Temperature Control
(EATC) ................................................................. 131
See: Climate Control - Vehicles With: Manual Temperature Control.................................... 135
Hill Start Assist..............................................184
Hints on Driving With Anti-Lock Brakes............................................................182
Hood Lock See: Opening and Closing the Hood..........282
Horn.....................................................................78
How Does Adaptive Cruise Control With Stop and Go Work....................................203
How Does G.O.A.T. Mode Control Work...............................................................232
How Does the Rear Occupant Alert System Work
................................................147
I
Identifying the Climate Control Unit..................................................................126
Ignition Switch...............................................155
In California (U.S. Only).............................267
Information Display Control
.......................78
Information Displays...................................102 General Information.......................................... 102
Information Messages................................107
Installing Child Restraints............................27
Instrument Cluster
........................................95
Instrument Lighting Dimmer.....................84
Instrument Panel
.............................................21
Interior Air Quality........................................138
Interior Lamps
.................................................87
Interior Mirror...................................................93
Introduction........................................................9
J
Jump Starting the Vehicle........................262
486
2022 Bronco Sport (CHD) Canada/United States of America, enUSA, Edition date: 202107, First-Printing Index
