161
Practical information07
Petrol engine

Diesel engine

1. Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
10. Priming pump*
11. Degassing screw*
* Depending on engine .
Diesel fuel system
This system is under very high pressure.
All work must be carried out only by a dealer or
a qualified workshop.
Checking levels
Check all of the following levels regularly in
accordance with the Manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a dealer or a
qualified workshop.
The fluids must comply with the
Manufacturer's requirements and with
the vehicle's engine.
Take care when working under the
bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and the
cooling fan could start at any time (even with
the ignition off).
Used products
Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to health and
very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Empty used oil into the containers reserved
for this purpose at a dealer or a qualified
workshop.
Engine oil
The level is checked, with the engine
having been switched off for at least 30
minutes and on level ground, either using the oil
level indicator in the instrument panel when the
ignition is switched on (for vehicles equipped with
an electric gauge), or using the dipstick.
It is normal to top up the oil level between two
services (or oil changes). It is recommended that
you check the level, and top up if necessary, every
3,000 miles (5,000 km).
In order to maintain the reliability of the
engine and emissions control system,
never use additives in the engine oil.

181
In the event of a breakdown08
12 V battery/Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Dispose of used batteries at a designated
collection point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units/LED technology
headlamps
Never connect the negative jump lead to the
metal part of the electronic control units or at
the back of the headlamps.
Risk of destroying the electronic control units
and/or headlamps!
Connect to the remote earth point provided for
this purpose.
Frozen battery
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by
a dealer or by a qualified workshop, who will
verify that the internal components have not
been damaged and that the case has not
cracked, which could lead to a risk of leakage
of toxic and corrosive acid.
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases
can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric
acid which can make you go blind or cause
severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol/Diesel engines
Procedure for starting the engine using another
battery or for charging a discharged battery.
Accessing the battery
The battery is located under the bonnet.

For access to the (+) terminal:
►  Release the bonnet by pulling the internal
release lever, then the external safety catch.
►  Raise the bonnet.
(+) Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Starting using another battery
If the vehicle's battery is flat, the engine can be
started using a backup battery (either external or
from another vehicle) and jump leads or using a
battery booster.
Never start the engine by connecting a
battery charger.
Never use a 24 V or higher battery booster.

184
In the event of a breakdown08
Jump-starting another vehicle
Do not start or jump-start another vehicle
using the vehicle’s accessory batteries.
Accessing the accessory batteries
Front
The front battery is located under the bonnet.

For access to the (+) terminal:
►  Release the bonnet by pulling the internal
release lever, then the external safety catch.
►  Raise the bonnet.
(+) Positive terminal with a quick-release
terminal.
(-) Negative terminal.
As the battery's negative terminal is not
accessible, a remote earth point is located near
the battery.
Rear
The rear battery is located in the boot.
To reach the battery:


►  Lift the boot floor.
(+) Positive terminal, protected by a red plastic
cover (not accessible).
(-) Negative terminal with a black quick-release
connector.
Charging the front battery using a battery
charger
For optimum service life of the front battery, it
is essential to maintain an adequate state of
charge.
In some circumstances, it may be necessary to
charge the front battery:
–

When using the v
ehicle mainly for short
journeys.
–

If the v
ehicle is to be taken off the road for
several weeks.
Contact a dealer or a qualified workshop.
To charge the vehicle's front battery
yourself, use only a charger compatible
with lead-acid batteries with a nominal voltage
of 12 V.
Follow the instructions provided by the
manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.
►  Switch the ignition off.
►  Switch off all electrical consumers (audio
system, lighting, wipers, etc.).

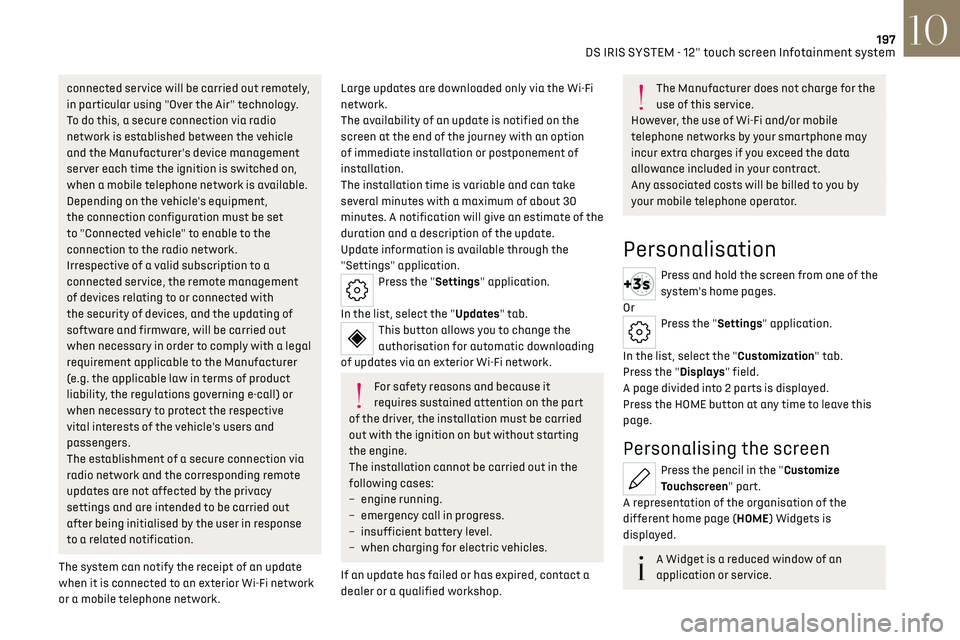

197DS IRIS SYSTEM - 12" touch screen Infotainment system10
connected service will be carried out remotely,
in particular using "Over the Air" technology.
To do this, a secure connection via radio
network is established between the vehicle
and the Manufacturer's device management
server each time the ignition is switched on,
when a mobile telephone network is available.
Depending on the vehicle's equipment,
the connection configuration must be set
to "Connected vehicle" to enable to the
connection to the radio network.
Irrespective of a valid subscription to a
connected service, the remote management
of devices relating to or connected with
the security of devices, and the updating of
software and firmware, will be carried out
when necessary in order to comply with a legal
requirement applicable to the Manufacturer
(e.g. the applicable law in terms of product
liability, the regulations governing e-call) or
when necessary to protect the respective
vital interests of the vehicle's users and
passengers.
The establishment of a secure connection via
radio network and the corresponding remote
updates are not affected by the privacy
settings and are intended to be carried out
after being initialised by the user in response
to a related notification.
The system can notify the receipt of an update
when it is connected to an exterior Wi-Fi network
or a mobile telephone network.Large updates are downloaded only via the Wi-Fi
network.
The availability of an update is notified on the
screen at the end of the journey with an option
of immediate installation or postponement of
installation.
The installation time is variable and can take
several minutes with a maximum of about 30
minutes. A notification will give an estimate of the
duration and a description of the update.
Update information is available through the
"Settings" application.
Press the "Settings" application.
In the list, select the "Updates" tab.
This button allows you to change the
authorisation for automatic downloading
of updates via an exterior Wi-Fi network.
For safety reasons and because it
requires sustained attention on the part
of the driver, the installation must be carried
out with the ignition on but without starting
the engine.
The installation cannot be carried out in the
following cases:
–

engine running.
–


emergenc
y call in progress.
–

insufficien
t battery level.
–

when charging for electric v
ehicles.
If an update has failed or has expired, contact a
dealer or a qualified workshop.
The Manufacturer does not charge for the
use of this service.
However, the use of Wi-Fi and/or mobile
telephone networks by your smartphone may
incur extra charges if you exceed the data
allowance included in your contract.
Any associated costs will be billed to you by
your mobile telephone operator.
Personalisation
Press and hold the screen from one of the
system's home pages.
Or
Press the "Settings" application.
In the list, select the "Customization" tab.
Press the "Displays" field.
A page divided into 2 parts is displayed.
Press the HOME button at any time to leave this
page.
Personalising the screen
Press the pencil in the "Customize
Touchscreen" part.
A representation of the organisation of the
different home page (HOME) Widgets is
displayed.
A Widget is a reduced window of an
application or service.

216Alphabetical index
Indicator, AdBlue® range 19
Indicator, coolant temperature
19
Indicator, engine oil level

18
Indicators, direction

64
Indicator, service

17
Inflating tyres

164, 193
Inflating tyres and accessories
(using the kit)

172, 174
Information, vehicle

10, 210
Infrared camera

70, 112
Instrument panel

10, 22, 113
ISOFIX mountings

90
J
Jack 171–172, 175
Jump starting
181
K
Key 26–27, 30–31
Key, electronic
28–29
Keyless Entry and Starting

26, 28–29, 97–98
Key not recognised

99
Key with remote control

26, 97
Kit, hands-free

202
Kit, puncture repair

171–172
Kit, temporary puncture repair

171–174
Klaxon

77
L
Labels, identification 193
Lamps, parking
64
Lamps, rear

179
Lane assist

120, 124–126
Lane keeping assist

133
Leather (care)

169
LEDs - Light-emitting diodes

64, 178–179
Level, AdBlue®

163
Level, brake fluid

162
Level, Diesel additive

163
Level, engine coolant

19, 162
Level, engine oil

18, 161
Levels and checks

161–162
Level, screenwash fluid

73, 162
Light-emitting diodes - LEDs

64, 178–179
Lighting, boot

62
Lighting dimmer

21
Lighting, directional

69
Lighting, exterior

63, 66
Lighting, guide-me home

65–66
Lighting, interior

59
Lighting, mood

59
Lighting, welcome

65–66
Loading

61, 157–158
Load reduction mode

159
Load space cover

60
Locating your vehicle

27
Locking

27, 29
Locking from the inside

30
Locking the doors 30
Log, alerts
21
Long objects, transporting

60
M
Mains socket (domestic network) 147–148
Maintenance (advice)
146, 167
Maintenance, routine

113, 163–165
Manoeuvring aids (recommendations)

112
Map reading lamps

59
Markings, identification

193
Massage function

46
Massage, multi-point

46
Mat

59, 113
Menu, shortcuts

24
Mirror, rear view

47
Mirrors, door

47, 54, 135
Mirror, vanity

56
Misfuel prevention

144
Mobile application

24–25, 54, 153, 155
Motor, electric

107, 145, 192
Motorised tailgate

33–34
Mountings, ISOFIX

90
N
Net, high load retaining 61
Night vision
70

218Alphabetical index
S
Safety, children 84, 86–91, 94
Saturation of the particle filter (Diesel)
163
Screens, very cold conditions

158
Screenwash

73
Screenwash, front

73
Screenwash, rear

73
SCR (Selective Catalytic Reduction)

20, 165
Seat angle

44, 48
Seat belts

81–83, 88
Seat belts, rear

82
Seats, electric

44–45
Seats, front

43–45
Seats, heated

45–46
Seats, rear

48–49, 86
Selector, gear

101–105
Sensors (warnings)

113
Serial number, vehicle

193
Servicing

17, 163–165
Settings, equipment

10, 24
Shield, snow

158
Sidelamps

64, 179
Silent vehicle warning sound
(Rechargeable hybrid)

77
Smartphone

24–25, 57
Snow chains

111, 158–159
Snow screen

158
Socket, 12 V accessory

56, 61
Speakers

58
Speed limiter

116–118
Speed limit recognition

114–115
Speedometer

113
Sport mode 106–107
Spotlamps, side
66
Stability control (ESC)

79, 81
Starting a Diesel engine

143
Starting/Stopping the vehicle

97
Starting the engine

97–98
Starting the vehicle

98, 101–104
Starting using another battery

99, 181
State of charge, battery

24
Station, radio

204–205
Steering wheel (adjustment)

46
Stickers, customising

168
Stopping the vehicle

98, 101–104
Stop & Start

22, 50, 53, 109–110, 143, 159, 163, 183
Storage

56–57, 58, 60
Storage box

62
Storage compartments

55
Storage wells

60, 62
Storing driving positions

45
Stowing rings

60
Sunroof, panoramic

40–41
Sunshine sensor

50
Sun visor

56
Suspension

164
Suspension with variable
vibration reduction

105
Switching off the engine

97
Synchronising the remote control

32T
Tables of engines 190–192
Tailgate
32
Tank, fuel

143–144
Technical data

190–192
Telephone

202, 206–207
Temperature, coolant

19
Ticket holder

55
Time (setting)

23, 208
Tool box

62
Tools

170–172
Topping-up AdBlue®

166
Top Tether (fixing)

90
Total distance recorder

21
Touch screen

23–24, 54
Towbar

81, 155
Towed loads

189–192
Towing

186–187
Towing another vehicle

186–187
Towing the vehicle

186–187
Traction battery charge

149
Traction battery
(Rechargeable hybrid)

21, 145–146, 153
Traction control (ASR)

80
Trailer

81, 155
Trailer stability assist (TSA)

81
Trajectory control systems

79
Triangle, warning

170
Trip computer

22
Tyres

164, 193
Tyre under-inflation detection

110, 174
