– The system does not detect spaces that
are much larger than the vehicle itself or that
are delimited by obstacles that are too low
(pavements, studs, etc.) or too thin (trees, posts,
wire fences, etc.).
–

The s
ystem may be impaired by incorrect
inflation of the vehicle’s tyres.
–

The tilting o
f the vehicle if the boot is heavily
loaded can affect the distance measurements.
Do not use the function under the
following exterior conditions:
–

Alongside a so
ft shoulder (ditch) or quay or
on the edge of a drop.
–

When the road surfac
e is slippery (ice).
Do not use the function in the presence of
one of the following malfunctions:
–

If a tyre is under-in
flated.
–

If one o
f the bumpers is damaged.
–

If one o
f the cameras is faulty.
–

If the brak
e lamps are not working.
Do not use the function if the vehicle has
been subject to one of the following
modifications:
–

When c
arrying an object extending beyond
the dimensions of the vehicle (ladder on the
roof bars, bicycle carrier on the tailgate, etc.).
–

With a non-appro
ved towball in place.
–

With sno
w chains fitted.
–

When driving on a small-diamet
er or "space-
saver" type spare wheel.
– When the wheels fitt ed are a different size
from the original ones.
–

A
fter modifying one or both bumpers (added
protection).
–

If the sensors ha
ve been repainted outside
the dealer network.
–

With sensors no
t approved for the vehicle.
Malfunctions
When the function is not activated, the
temporary flashing of this warning lamp
and an audible signal indicate a DS PARK PILOT
malfunction.
If the malfunction occurs while the system is in
use, the warning lamp goes off.
If a parking sensor malfunction, indicated
by this warning lamp coming on, occurs
during DS PARK PILOT use, the function is
deactivated.
Contact a dealer or a qualified workshop.
In the event of a power steering
malfunction, this warning lamp is
displayed on the instrument panel, accompanied
by a message.
You must stop as soon as it is safe to do so.
Contact a dealer or a qualified workshop.

148In the event of a breakdown08
Warning triangle
As a safety precaution, before leaving your
vehicle to set up and install the triangle, switch
on the hazard warning lamps and put on your high
visibility vest.
Storage

Use the straps on the boot sill trim to stow the
folded triangle or its storage box.
Assembling and placing the
triangle


For versions supplied with a triangle as original
equipment, refer to the illustration above.
For other versions, refer to the assembly
instructions provided with the triangle.
► Put the triangle in place behind the vehicle, as
required by local legislation.
Running out of fuel
(Diesel)
With Diesel engines, the fuel system must be
primed if you run out of fuel.
Before starting to prime the system, it is essential
to put at least 5 litres of Diesel into the fuel tank.
For more information on Refuelling and on
Misfuel prevention (Diesel), please refer
to the corresponding section. ► 
Switch on the ignition (without starting the
engine).
►  Wait around 1 minute and switch off the
ignition.
►  Operate the starter motor to start the engine.
If the engine does not start at the first attempt,
do not keep trying, but restart the procedure.
Tool kit
Set of tools supplied with the vehicle.
Its content depends on your vehicle's equipment:
–

T
emporary puncture repair kit.
–

Spare wheel.
Access to the tools
Depending on version, the tool kit is stored in a
bag or in a storage box in the boot.


On the boot carpet

Under the boot carpet
►  Raise the boot carpet by pulling the strap to
access the tools.
With temporary puncture repair kit

149In the event of a breakdown08

Under the boot carpet
► Raise the boot carpet by pulling the strap to
access the tools.
With temporary puncture repair kit

With spare wheel

These tools are specific to the vehicle and
may vary according to the level of
equipment.
Do not use them for any other purpose.
The jack must only be used to change a
wheel with a damaged or punctured tyre.
Do not use any jack other than the one
supplied with the vehicle.
If the vehicle does not have its original jack,
contact a dealer or a qualified workshop
to obtain the one that was intended by the
manufacturer.
The jack meets European standards, as
defined in the Machinery Directive 2006/42/
CE.
The jack does not require any maintenance.
List of tools

1. Chock to immobilise the vehicle (depending on
equipment)
2. Socket for the wheel security bolts (depending
on equipment)
For adapting the wheelbrace to the special
‘security’ bolts.
3. Removable towing eye
For more information on Towing the vehicle and
using the removable towing eye, refer to the
corresponding section.
With temporary puncture repair kit

4.12 V compressor with a cartridge of sealant and
a speed limit sticker.
For temporary repair of a tyre and to adjust the
tyre pressure.

152In the event of a breakdown08
Checking / adjusting tyre
pressures
The compressor can be used, without injecting
sealant, to check and, if necessary, adjust the
tyre pressures.
► Remove the valve cap from the tyre and keep it
in a clean place.
►  Uncoil the pipe stowed under the compressor.
►  Screw the pipe onto the valve and tighten
firmly.
►  Check that the compressor switch is in
position "O".
►  Fully uncoil the electric cable stowed under
the compressor.
►  Connect the compressor's electric plug to the
vehicle's 12 V socket.
►  Switch on the ignition.
The tyre inflation pressures are given on
this label.


► Start the compressor by placing the switch
at position "I" and adjust the pressure to the
value shown on the vehicle's tyre pressure label.
To deflate: press the black button located on the
compressor pipe, near the valve connection.
If after 7 minutes the pressure of 2 bar is
not reached, the tyre is damaged; contact
a dealer or a qualified workshop for
assistance.
►  Once the correct pressure is reached, put the
switch in position "O".
►  Remove the kit and stow it.
Should the pressure of one or more tyres
be adjusted, it is necessary to reinitialise
the under-inflation detection system.
For more information on Tyre under-inflation
detection, refer to the corresponding section.
Spare wheel
Scan the QR Code on page 3 to view
explanatory videos.
For more information on the Tool kit, refer
to the corresponding section.
Access to the spare wheel

The spare wheel is stored under the boot carpet.
The spare wheel is a ‘space-saver’ wheel.
Removing the spare wheel

►  Slacken the central nut.
►  Remove the fastening device (nut and bolt).
►  Lift the spare wheel towards you from the rear.
►  Take the wheel out of the boot.
Putting the spare wheel back in place
The punctured wheel cannot be placed in
the boot under the floor.


► Put the spare wheel back in place in its
housing.
►  Slacken the nut on the bolt by a few turns.
►  Position the fastening device (nut and bolt) in
the middle of the wheel.
►  Tighten the central nut sufficiently to retain
the wheel correctly.
►  Depending on version, put the tool box back
in place in the middle of the wheel and clip it in
place.
Removing a wheel
Parking the vehicle
Immobilise the vehicle where it does not
obstruct traffic: the ground must be level,
stable and non-slippery.
With a manual gearbox, engage first gear
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.
With an automatic gearbox, select mode P
to lock the wheels, apply the parking brake,
unless it is programmed to be in automatic
mode, and switch off the ignition.

157In the event of a breakdown08

► Turn the connector a quarter turn
anti-clockwise.
►  Pull the bulb connector.
►  Remove the bulb and change it.
Amber-coloured bulbs must be replaced
by bulbs with identical specifications and
colour.
Rear lamps
Model with "Full LED" technology lamps
1. Sidelamps / Daytime running lamps (LED)
2.Reversing lamps (W16W)
3. Direction indicators with sequential effect
(LED)
4. Brake lamps (LED)
Model with halogen lamps
1.Brake lamps/sidelamps (W21/5W)
2. Direction indicators (WY16W amber)
3. Reversing lamps (W16W)
Direction indicators and brake lamps/
sidelamps
Rapid flashing of a direction indicator
warning lamp (left or right) indicates that
one of the bulbs on the corresponding side has
failed.
Amber coloured bulbs, such as the
direction indicators, must be replaced by
bulbs with identical specifications and colour.
These bulbs are changed from inside the boot. ► 
Open the boot.


► Remove the access flap on the corresponding
side trim, so that the lamp unit fixing screw can
be accessed.
►  Slacken the lamp unit fixing using a socket
wrench.
►  Finish slackening it by hand to recover the nut,
making sure not to let it drop.
►  Remove the lamp unit.
►  Unclip the lamp unit connector.


► Squeeze and pull the connector.

164In the event of a breakdown08
► At the end of the charging operation, switch
off charger B before disconnecting the cables
from battery A.

24v 12v
If this label is present, use only a 12 V
charger to avoid causing irreversible
damage to the electrical components related
to the Stop & Start system.
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by
a dealer or by a qualified workshop who will
verify that the internal components have not
been damaged and that the case has not
cracked, which would mean a risk of toxic and
corrosive acid leaking.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.
Disconnecting the battery
In order to maintain an adequate state of charge
for starting the engine, it is recommended that
the battery be disconnected if the vehicle is taken
out of service for a long period. Before disconnecting the battery:
► 
Close all openings (doors, boot, windows,
roof).
►  Switch off all electrical consumers (audio
system, wipers, lighting, etc.).
►  Switch off the ignition and wait for 4 minutes.
At the battery, it is only necessary to disconnect
the (+) terminal.
Quick-release terminal clamp
Disconnecting the (+) terminal

►  Depending on equipment, lift the plastic cover
on the (+) terminal.
►  Raise lever A fully to release clamp B.
►  Remove clamp B by lifting it off.
Reconnecting the (+) terminal

► Raise lever A fully.
►  Refit the open clamp B on the (+) terminal.
►  Push clamp B fully down.
►  Lower lever A to lock clamp B.
►  Depending on equipment, lower the plastic
cover on the (+) terminal.
Do not force the lever as locking will be
impossible if the clamp is not positioned
correctly; start the procedure again.
After reconnection
After reconnecting the battery, turn on the
ignition and wait 1 minute before starting the
engine, to enable the electronic systems to
initialise.
If minor problems nevertheless persist following
this operation, contact a dealer or a qualified
workshop.
Referring to the relevant section, reset certain
equipment:
– Electronic key.
– Electric windows.
– Date and time.
– Preset radio stations.
After reconnection of the battery, the
“Collision risk detection system fault”
message is displayed on the instrument panel
when the ignition is switched on. This
operation is perfectly normal. The message
will disappear while driving.
The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous period of
immobilisation of the vehicle, a period which
depends on the exterior temperature and the
Towing constraints
Type of vehicle
(engine / gearbox)gearbox Font wheels on the ground Rear wheels on the ground Flatbed
4 wheels on the ground with
towbar
Internal combustion /
Manual


Internal combustion /
Automatic

166In the event of a breakdown08
Towing constraints
Type of vehicle
(engine / gearbox)gearbox Font wheels on the ground Rear wheels on the ground Flatbed
4 wheels on the ground with
towbar
Electric


In case of battery or electric parking brake failure, it is essential to call a professional using flatbed recovery vehicles (excluding manual gearbox).

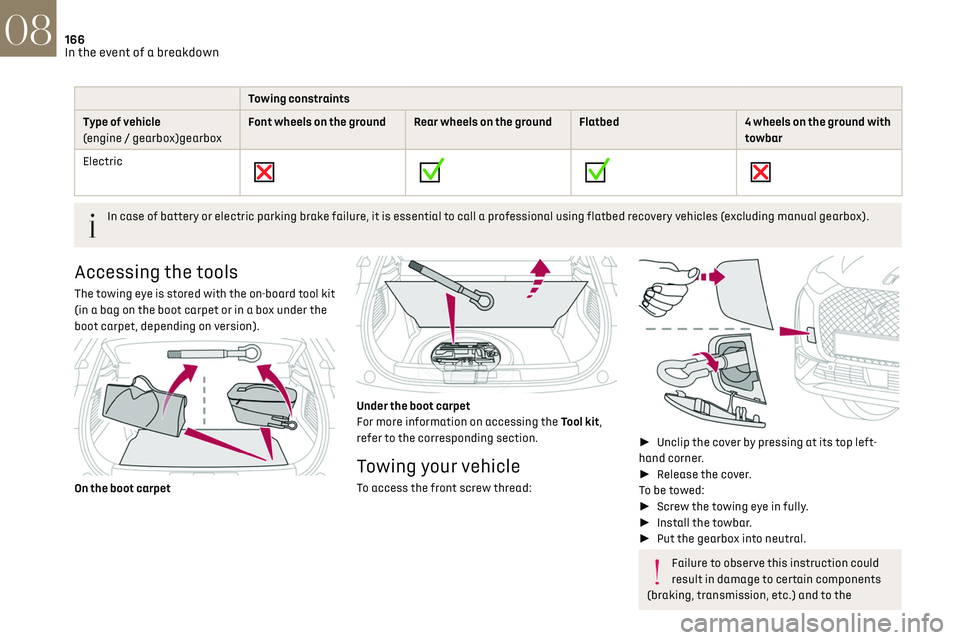

Accessing the tools
The towing eye is stored with the on-board tool kit
(in a bag on the boot carpet or in a box under the
boot carpet, depending on version).


On the boot carpet

Under the boot carpet
For more information on accessing the Tool kit,
refer to the corresponding section.
Towing your vehicle
To access the front screw thread:

► 
Unclip the cover by pressing at its top left-
hand corner.
►  Release the cover.
To be towed:
►  Screw the towing eye in fully.
►  Install the towbar.
►  Put the gearbox into neutral.
Failure to observe this instruction could
result in damage to certain components
(braking, transmission, etc.) and to the
absence of braking assistance the next time
the engine is started.
Automatic gearbox: never tow the vehicle
with the driving wheels on the ground and
the engine off.
►  Unlock the steering and release the parking
brake.
►  Switch on the hazard warning lamps on both
vehicles.
►  Move off gently, drive slowly and only for a
short distance.
Towing another vehicle
To access the rear screw thread:

►  Unclip the cover by pressing at its left-hand
section.
►  Pull the cover downwards.
To tow:
►  Screw the towing eye in fully.

220
Alphabetical index
A
ABS 66
Accessories
63
Active Safety Brake

115–117
AdBlue®

18, 144
AdBlue® tank

145
Additive, Diesel

143
Adjusting headlamps

56
Adjusting head restraints

39
Adjusting seat

38–39
Adjusting the air distribution

44, 46
Adjusting the air flow

44–45
Adjusting the date

193, 215
Adjusting the height and reach of
the steering wheel

40
Adjusting the lumbar support

39
Adjusting the seat angle

38
Adjusting the temperature

44–45
Adjusting the time

180, 193, 216
Advanced Traction Control

67
Advice on care and maintenance

131, 146
Advice on driving

7, 80–81
Airbags

70–72, 74
Airbags, curtain

71–72
Airbags, front

70–71, 74
Airbags, lateral

71–72
Air conditioning

43, 46
Air conditioning, automatic

45
Air conditioning, manual

44
Air intake

47
Air vents

43
Alarm

34–36
Amplifier, audio

50
Android Auto connection

207
Anti-lock braking system (ABS)

66
Antitheft / Immobiliser 31, 81
Apple CarPlay connection
189, 206
Applications

207
Armrest, front

49
Assistance call

64
Assistance, emergency braking

66, 116
Audible warning

64
Audio streaming (Bluetooth)

177–178, 187, 211
B
Battery 138
Battery, 12 V
142, 161–164
Battery, ancillaries

161–162
Battery, charging

130, 134, 163–164
Battery, remote control

32–33
Blind spot monitoring system, active

114
Blind spot sensors

113–114
BlueHDi

18, 142, 148
Bluetooth (hands-free)

178, 190, 212
Bluetooth (telephone)

178, 190, 212–213
Bodywork

147
Bonnet

139
Boot

34, 53
Brake discs

143
Brake lamps

157–158
Brakes

143
Braking

90
Braking assistance system

66
Braking, automatic emergency

115–117
Braking, dynamic emergency

84–85
Brightness

179, 192
Bulbs

156
Bulbs (changing)

155–158
C
Cable, audio 211
Cable, Jack
211
Capacity, fuel tank

129
Cap, fuel filler

129
Care of the bodywork

147
CD

177, 187
CD, MP3

177, 187
Central locking

30
Changing a bulb

155–158
Changing a fuse

159–161
Changing a wheel

149, 152
Changing a wiper blade

61
Changing the remote control battery

32
Charger, induction

50
Charger, wireless

50
CHECK

21
Checking the levels

140–142
Checking tyre pressures
(using the kit)

150, 152
Checks

140, 142–144
Checks, routine

142–143
Child lock

79
Children

69, 75–76
Children (safety)

79
Child seats

69, 72–74
Child seats, conventional

74
Child seats, i-Size

76
Child seats, ISOFIX

75–76
Cleaning (advice)

131, 146–147
Closing the boot

30, 34
Closing the doors

29–30, 33
Collision Risk Alert

115–116
Configuration, vehicle

24
Connected applications

207
