Practical information
The control unit can be reset by simultaneously disconnecting the chargi\
ng connector and the wall socket.
Then, reconnect the wall socket first. For more information, refer to the handbook.
Charging the traction
battery (Rechargeable
hybrid)
For a full charge, follow the charging procedure
without interrupting it, until it stops automatically.
Charging may be performed either immediately
(by default) or deferred.
Deferred charging is set via the touch
screen or the MyCitroën App application.
When the vehicle is connected, the following
information is displayed on the instrument panel:
–

T

raction battery charge status (%).
–

Remaining range (miles or km).
–


Estimated charging time (calculation may take
a few seconds).
–


Charging speed (miles or km gained per hour).
After the instrument panel has been put into
standby mode, this information can be displayed
again by unlocking the vehicle or opening a door

.
It is also possible to monitor the charging
progress using the MyCitroën App
application.
For more information on Remote functions,
refer to the corresponding section.
Lounge mode
When the vehicle is connected, it is
possible to switch on the ignition and use
certain functions such as the audio and
telematics system and the air conditioning
system for several hours.
Low load / Driving
Driving when the charge level of the
traction battery is too low can lead to the
vehicle breaking down and can lead to
accidents or serious injuries. ALWAYS make
sure the traction battery has a sufficient
charge level.
Low load / Parking
If the outside temperature is negative,
it is recommended not to park your vehicle
outside for several hours at a low load (less
than 20%).
Vehicle in storage for more than 1
month
In the event of a long period of non-use of
the vehicle (beyond 4 weeks) without the
possibility of charging when restarting, the
self-discharge may make it impossible to
restart if the traction battery charge level
is a low or very low, especially at negative
ambient temperatures. ALWAYS make sure
that the traction battery has a charge between
20% and 40% if you do not plan to use your
vehicle for several weeks.
Do not connect the charging cable.
Always park the vehicle in a place with
temperatures between -10°C and 30°C
(parking in a place with extreme temperatures
can damage the traction battery).
Refer to the Accessory battery
(Rechargeable hybrid) section for the
battery disconnection procedure.
Precautions
Rechargeable hybrid vehicles have
been developed in accordance with the
recommendations for maximum electromagnetic
field limits established by the ICNIRP
(International Commission on Non-Ionizing
Radiation Protection - 1998 Guidelines).
Wearers of pacemakers or equivalent
devices should consult a doctor to
enquire about any applicable precautionary
measures, or contact the manufacturer of their
implanted electronic medical device to check that
it is guaranteed to operate in an environment
compliant with the ICNIRP guidelines.

150
Practical information
► Follow the accelerated charging unit
(W allbox) user instructions.
►

Remove the protective cover from the
charging nozzle.
►


Insert the nozzle into the vehicle's charging
connector

.
The start of charging is confirmed by the flashing
of the green light guides in the flap.
If this is not the case, charging has not
started; restart the procedure ensuring that all
connections are properly established.
The red indicator lamp in the flap comes on to
indicate that the nozzle is locked.
Disconnection

Before disconnecting the nozzle from the
charging connector:
►

If the vehicle is locked, unlock it.
►


If the vehicle is unlocked, lock it and then
unlock it .
If selective unlocking of the doors is
activated, press the unlocking button on
the remote control twice to disconnect the
nozzle.
The red indicator lamp in the flap goes out to
confirm that the nozzle is unlocked. ►

Within
30 seconds, remove the charging
nozzle.
Domestic charging (mode 2)
The end of charging is confirmed when the
green CHARGE indicator lamp on the control
unit comes on fixed and the green light guides in
the flap come on fixed.
►

After disconnection, replace the protective
cover over the nozzle and close the charging
flap.
►


Disconnect the control unit's charging cable
from the domestic socket.
Accelerated charging (mode 3)
The end of charging is confirmed by the
accelerated charging unit (Wallbox) and when
the green light guides in the flap come on fixed.
►

After disconnection, replace the nozzle on to
the charging unit and close the charging flap.
Deferred charging
Settings
► In the Energy touch screen
application, select the Charging tab.
►

Set the charging start time.
►


Press
OK.
The setting is saved in the system.
You can also programme the deferred charging function using a smartphone, via
the MyCitroën App application.
For more information on Remote functions,
refer to the corresponding section.
Activation
► Connect the vehicle to the desired charging
equipment.
► Press this button in the flap within one
minute to activate deferred charging
(confirmed by the light guides coming on in
blue).
Towing device
Load distribution
► Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle, and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus reducing
engine performance.
The maximum towable load
must be reduced by 10% per 1,000
metres of
altitude.
Use genuine towing devices and their
wiring harnesses approved by CITROËN.
We recommend having them fitted by a
CITROËN dealer or a qualified workshop.
If not fitted by a CITROËN dealer, they must
still be fitted in accordance with the vehicle
manufacturer's instructions.
Important: with a motorised tailgate and its
Hands-Free Tailgate Access function, if a
towing device is fitted outside the CITROËN
dealer network, it is essential to visit a
CITROËN dealer or a qualified workshop
to recalibrate the detection system. Risk

158
Practical information
Engine compartment
The engine shown here is an example for
illustrative purposes only.
The locations of the following elements may
vary:
–
Air filter
.
–

Engine oil dipstick.
–


Engine oil filler cap.
Petrol engine

1. Screenwash fluid reservoir
2. Engine coolant reservoir
3. Brake fluid reservoir
4. Battery/Fuses
5. Remote earth point (-)
6. Fusebox
7. Air filter
8. Engine oil filler cap
9. Engine oil dipstick
Checking levels
Check all of the following levels regularly in
accordance with the manufacturer's service
schedule. Top them up if required, unless
otherwise indicated.
If a level drops significantly, have the
corresponding system checked by a CITROËN
dealer or a qualified workshop.
The fluids must comply with the
manufacturer's requirements and with
the vehicle's engine.
Take care when working under the bonnet, as certain areas of the engine
may be extremely hot (risk of burns) and the
cooling fan could start at any time (even with
the ignition off).
Used products
Avoid prolonged contact of used oil or fluids with the skin.
Most of these fluids are harmful to health and
very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Empty used oil into the containers reserved
for this purpose at a CITROËN dealer or a
qualified workshop.
Engine oil
The level is checked, with the engine having been switched off for at least 30
minutes and on level ground, either using the oil
level indicator in the instrument panel when the
ignition is switched on (for vehicles equipped
with an electric gauge), or using the dipstick.
It is normal to top up the oil level between two
services (or oil changes). It is recommended
that you check the level, and top up if necessary,
every 3,000 miles (5,000 km).
In order to maintain the reliability of the
engine and emissions control system,
never use additives in the engine oil.
Checking using the dipstick
For the location of the dipstick, please refer
to the illustration of the corresponding engine
compartment.
►

Grasp the dipstick by its coloured grip and
pull it out completely

.
►

Wipe the end of the dipstick using a clean,
lint-free cloth.


► Reinsert the dipstick and push fully down,
then pull it out again to visually check the oil

173

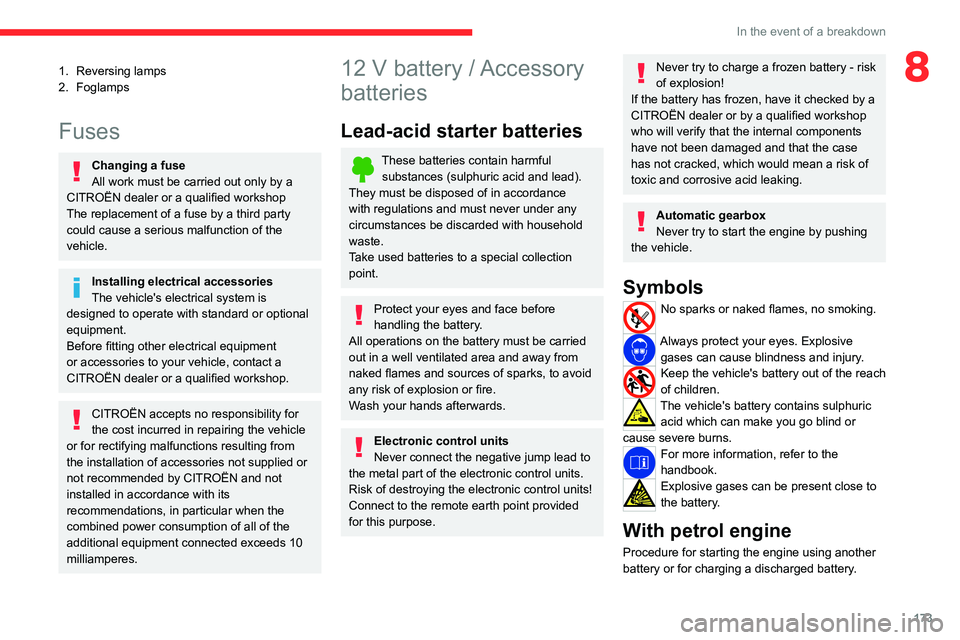

In the event of a breakdown
81. Reversing lamps
2. Foglamps
Fuses
Changing a fuse
All work must be carried out only by a
CITROËN dealer or a qualified workshop
The replacement of a fuse by a third party
could cause a serious malfunction of the
vehicle.
Installing electrical accessories
The vehicle's electrical system is
designed to operate with standard or optional
equipment.
Before fitting other electrical equipment
or accessories to your vehicle, contact a
CITROËN dealer or a qualified workshop.
CITROËN accepts no responsibility for
the cost incurred in repairing the vehicle
or for rectifying malfunctions resulting from
the installation of accessories not supplied or
not recommended by CITROËN and not
installed in accordance with its
recommendations, in particular when the
combined power consumption of all of the
additional equipment connected exceeds 10
milliamperes.
12 V battery / Accessory
batteries
Lead-acid starter batteries
These batteries contain harmful
substances (sulphuric acid and lead).
They must be disposed of in accordance
with regulations and must never under any
circumstances be discarded with household
waste.
Take used batteries to a special collection
point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be carried
out in a well ventilated area and away from
naked flames and sources of sparks, to avoid
any risk of explosion or fire.
Wash your hands afterwards.
Electronic control units
Never connect the negative jump lead to
the metal part of the electronic control units.
Risk of destroying the electronic control units!
Connect to the remote earth point provided
for this purpose.
Never try to charge a frozen battery - risk
of explosion!
If the battery has frozen, have it checked by a
CITROËN dealer or by a qualified workshop
who will verify that the internal components
have not been damaged and that the case
has not cracked, which would mean a risk of
toxic and corrosive acid leaking.
Automatic gearbox
Never try to start the engine by pushing
the vehicle.
Symbols
No sparks or naked flames, no smoking.
Always protect your eyes. Explosive gases can cause blindness and injury.
Keep the vehicle's battery out of the reach
of children.
The vehicle's battery contains sulphuric acid which can make you go blind or
cause severe burns.
For more information, refer to the
handbook.
Explosive gases can be present close to
the battery.
With petrol engine
Procedure for starting the engine using another
battery or for charging a discharged battery.

204
Alphabetical index
360 Vision 135
A
ABS 72
Accelerated charging unit (Wallbox)
143–144
Accessories

69
Active Safety Brake

124–127
Adjusting headlamps

63
Adjusting head restraints

42
Adjusting seat

42–43
Adjusting the height and reach of
the steering wheel

45
Adjusting the lumbar support

43
Adjusting the seat angle

43
Adjusting the time

198
Advice on care and maintenance

142, 162
Advice on driving

8, 88–89
Airbags

77–79, 81
Airbags, curtain

78–79
Airbags, front

77–78, 81
Airbags, lateral

78–79
Air conditioning

49
Air conditioning, automatic

50
Air intake

51–52
Air vents

49
Alarm

35, 37
Amplifier, audio

55
Anti-lock braking system (ABS)

72
Antitheft / Immobiliser

26
Applications

22
Armrest, front

56
Armrest, rear 58
Assistance call
70–71
Assistance, emergency braking

73, 126
Audible warning

69
Audio streaming (Bluetooth)

196
B
Battery, 12 V 156, 160, 173–177
Battery, ancillaries
173
Battery, charging

173–174, 176
Battery, remote control

30–31
Blanking screen (snow shield)

155
Blind

39
Blind spot sensors

131
Bluetooth (hands-free)

193
Bluetooth (telephone)

193–194
Bodywork

162
Bonnet

157
Bonnet, active

79
Boot

32–33, 60
Brake discs

160
Brakes

160
Braking

95
Braking assistance system

72–73
Braking, automatic emergency

124–127
Braking, dynamic emergency

92–93
Bulbs (changing)

171–172
C
Capacity, fuel tank 140
Care of the bodywork
162
Central locking

28–29
Changing a bulb

171–172
Changing a fuse

173
Changing a wheel

165, 169
Changing a wiper blade

67–68
Changing the remote control battery

30
Changing to free-wheeling

161
Charge level indicator (Rechargeable
hybrid)

19
Charger, induction

55
Charger, wireless

55
Charging cable

145
Charging cable (Rechargeable
hybrid)

143–144, 149
Charging connector (Rechargeable
hybrid)

143, 148–150
Charging flap (Rechargeable
hybrid)

143, 148–150
Charging the traction battery
(Rechargeable hybrid)

19, 141, 148–150
CHECK

20
Checking the engine oil level

18
Checking the levels

158–159
Checking tyre pressures
(using the kit)

166, 168
Checks

158–161
Checks, routine

159–160
Child lock

87
Children

76, 82–84

206
Alphabetical index
Fitting a wheel 169–170
Fitting roof bars
154–155
Fittings, boot

59
Fittings, interior

54
Fittings, rear

58
Flap, charging

150
Flap, fuel filler

140
Flashing indicators

62
Flat bed (recovery)

178
Fluid, brake

159
Fluid, engine coolant

159
Foglamps, rear

61, 172
Folding the rear seats

47–48
Folding/unfolding the door mirrors

46
Frequency (radio)

196
Fuel

8, 140
Fuel consumption

8, 19
Fuel tank

140
Fusebox, dashboard

173
Fusebox, engine compartment

173
Fuses

173
G
Gauge, fuel 140
Gearbox, automatic
93–96, 98, 160, 173
Gearbox, manual

98
Gear shift indicator ~ Gear efficiency
indicator

98
Glove box

54
H
Hands-free access 34–35
Hands-free tailgate
34–35
Hazard warning lamps

69, 165
Headlamp adjustment

63
Headlamps, automatic dipping

64–65
Headlamps, automatic illumination

63
Headlamps, halogen

63
Headlamps, main beam

64
Head restraints, front

42
Head restraints, rear

47–48
Head-up display

11
Heating

49
Heating, programmable

23, 53
Hi-Fi system

55
Highway Driver Assist

111
Hill start assist

98
Histogramme, fuel consumption

23
Horn

69
I
Ignition 90, 198
Ignition on
90
Immobiliser, electronic

89
Indicator, coolant temperature

19
Indicator, engine oil level

18
Indicators, direction

62
Inflating tyres

160, 184
Inflating tyres and accessories
(using the kit)

166, 168
Information, vehicle 10
Infrared camera
102
Instrument panel

10, 20–21, 103
Instrument panel (Rechargeable hybrid)

10
ISOFIX mountings

82, 85–86
J
Jack 165–166, 169
Jump starting
174
K
Key 25–26, 29–30
Key, electronic
27–28
Keyless Entry and Starting

25, 27–28, 89–90
Key not recognised

90–91
Key with remote control

25, 89
Kit, hands-free

193
Kit, puncture repair

165–166
Kit, temporary puncture repair

165–168
L
Labels, identification 184
Lamp, boot
60
Lamps, parking

62
Lamps, rear

172
Lams with Full LED technology

65
Lane assist

111, 116–117

208
Alphabetical index
Rear screen, demisting 52
Rear traffic alert
137
Rechargeable hybrid engine

8, 22, 157, 178, 183
Rechargeable hybrid system

6, 8, 22,
90, 97, 141
Recharging the battery

173–174, 176
Recharging the traction battery

145
Recharging the traction battery
(Rechargeable hybrid)

141, 148–150
Recirculation, air

51–52
Recovery

178–180
Recovery of the vehicle

178–179
Reduction of electrical load

156
Regenerative braking (deceleration
by engine braking)

95
Reinitialisation of the under-inflation
detection system

101
Reinitialising the remote control

31
Reminder, lighting on

61–62
Remote control

25–29
Remote functions

150
Remotely operable functions (Rechargeable
hybrid)

23, 53
Removing a wheel

170–171
Removing the mat

57
Replacing bulbs

171–172
Replacing fuses

173
Replacing the air filter

160
Replacing the oil filter

160
Replacing the passenger compartment
filter

160
Reservoir, screenwash

159Reset trip 20–21
Reversing camera
102, 134–135
Reversing lamps

172
Roof bars

154–155
Roof, opening

39
S
Safety, children 77, 79–84
Screens, very cold conditions
155
Screenwash

66
Screenwash, front

66
Seat angle

43
Seat belts

75–76, 82
Seat belts, rear

75
Seat, rear bench

47
Seats, electric

43–44
Seats, front

42–44
Seats, heated

44
Seats, rear

47–48, 80
Selector, gear

93, 95–96
Semi-automatic lane changing

120
Sensors (warnings)

102
Serial number, vehicle

184
Service indicator

17
Servicing

17, 159, 161
Settings, equipment

11, 22
Sidelamps

62
Silent vehicle warning sound (Rechargeable
hybrid)

70
Ski flap

58
Smartphone

23–24, 55
Snow chains 101, 155–156
Snow screen
155
Socket, 12 V accessory

54, 60
Speakers

55
Speed adjustment during cornering

119
Speed limiter

106–108
Speed limit recognition

104–105
Speedometer

103
Sport mode

96–97
Spotlamps, side

64
Stability control (ESC)

72, 74
Starting the engine

90
Starting the vehicle

89–90, 95
Starting using another battery

90, 174
State of charge, battery

22
Station, radio

195–196
Steering wheel

45, 103
Steering wheel, adjustment

45
Stickers, customising ~ Stickers,
expressive

162
Stopping the vehicle

89–90, 95
Stop & Start

21, 50, 52, 99–100,
140, 156, 160, 176
Storage

54, 56, 58
Storage box

60
Storage wells

60
Storing driving positions

44
Stowing rings

59
Sunshine sensor

49
Sun visor

54
Suspension

161
Synchronising the remote control

31
