2022 CHRYSLER VOYAGER Control panel

IN CASE OF EMERGENCY219
(Continued)
SOS Call System Limitations
Vehicles sold in Mexico
DO NOT have SOS Call
system capabilities.
SOS or other emergency line operators in Mexico
may not answer or respond to SOS system calls.
If the SOS Call system detects a malfunction, any
of the following may occur at the time the
malfunction is detected, and at the beginning of
each ignition cycle:
The Rearview Mirror light located between the
SOS and ASSIST buttons will continuously illumi -
nate red.
The Device Screen will display the following
message “Vehicle device requires service.
Please contact an authorized dealer.”
An In-Vehicle Audio message will state “Vehicle
device requires service. Please contact an
authorized dealer.” Even if the SOS Call system is fully functional,
factors beyond FCA US LLC’s control may prevent
or stop the SOS Call system operation. These
include, but are not limited to, the following
factors:
The ignition is in the OFF position
The vehicle’s electrical systems are not intact
The SOS Call system software and/or hardware
are damaged during a crash
The vehicle battery loses power or becomes
disconnected during a vehicle crash
Never place anything on or near the vehicle’s
operable network and GPS antennas. You
could prevent operable network and GPS
signal reception, which can prevent your
vehicle from placing an emergency call. An
operable network and GPS signal reception is
required for the SOS Call system to function
properly.
The SOS Call system is embedded into the
vehicle’s electrical system. Do not add after
-
market electrical equipment to the vehicle’s
electrical system. This may prevent your
vehicle from sending a signal to initiate an
emergency call. To avoid interference that can
cause the SOS Call system to fail, never add
aftermarket equipment (e.g., two-way mobile
radio, CB radio, data recorder, etc.) to your
vehicle’s electrical system or modify the
antennas on your vehicle. IF YOUR VEHICLE
LOSES BATTERY POWER FOR ANY REASON
(INCLUDING DURING OR AFTER AN ACCI -
DENT), THE UCONNECT FEATURES, APPS AND
SERVICES, AMONG OTHERS, WILL NOT
OPERATE.
Modifications to any part of the SOS Call
system could cause the air bag system to fail
when you need it. You could be injured if the
air bag system is not there to help protect you.
WARNING!
WARNING!
Ignoring the Rearview Mirror light could mean
you will not have SOS Call services. If the Rear -
view Mirror light is illuminated, have an autho -
rized dealer service the SOS Call system
immediately.
The Occupant Restraint Control module turns
on the air bag Warning Light on the instrument
panel if a malfunction in any part of the
system is detected. If the Air Bag Warning
Light is illuminated, have an authorized dealer
service the Occupant Restraint Control system
immediately.
WARNING!
7

22_RUVG_OM_EN_USC_t.book Page 219

238IN CASE OF EMERGENCY
MANUAL PARK RELEASE
To move the vehicle in cases where the
transmission will not shift out of PARK (P) (such as
a depleted battery), a Manual Park Release is
available.

Manual Park Release Access Cover
Follow These Steps To Activate The Manual Park
Release:

1. Apply firm pressure to the brake pedal while
seated in the driver’s seat.

2. Apply the parking brake, if possible.
3. Using a small screwdriver or similar tool, remove the Manual Park Release access
cover, which is to the lower left of the steering
column.
4. The Manual Park Release access cover is connected to a red tether strap. Pull the tether
strap out as far as it will go, then release it. The
transmission should now be in NEUTRAL (N),
allowing the vehicle to be moved.

Tether Strap

NOTE:When the lever is locked in the released position,
the tether will remain outside of the trim panel and
the access cover cannot be reinstalled.
5. Release the parking brake only when the vehicle is securely connected to a tow vehicle.
To Reset The Manual Park Release:

1. Apply firm pressure to the brake pedal while seated in the driver’s seat.

2. Pull the tether strap out again, then release it.
3. Allow the tether to retract with the lever back to its original position.
4. Verify that the transmission is in PARK (P).
5. Confirm that the tether has retracted fully and re-install the access cover. If the access
cover cannot be re-installed, repeat steps 1
through 4.
WARNING!
You should be seated in the driver’s seat with
your foot firmly placed on the brake pedal to
maintain control of the vehicle before activating
the Manual Park Release. If possible, you should
apply the parking brake. Activating the Manual
Park Release will allow your vehicle to roll away if
it is not secured or properly connected to a tow
vehicle. Activating the Manual Park Release on
an unsecured vehicle could lead to serious
injury or death for those in or around the vehicle.

22_RUVG_OM_EN_USC_t.book Page 238

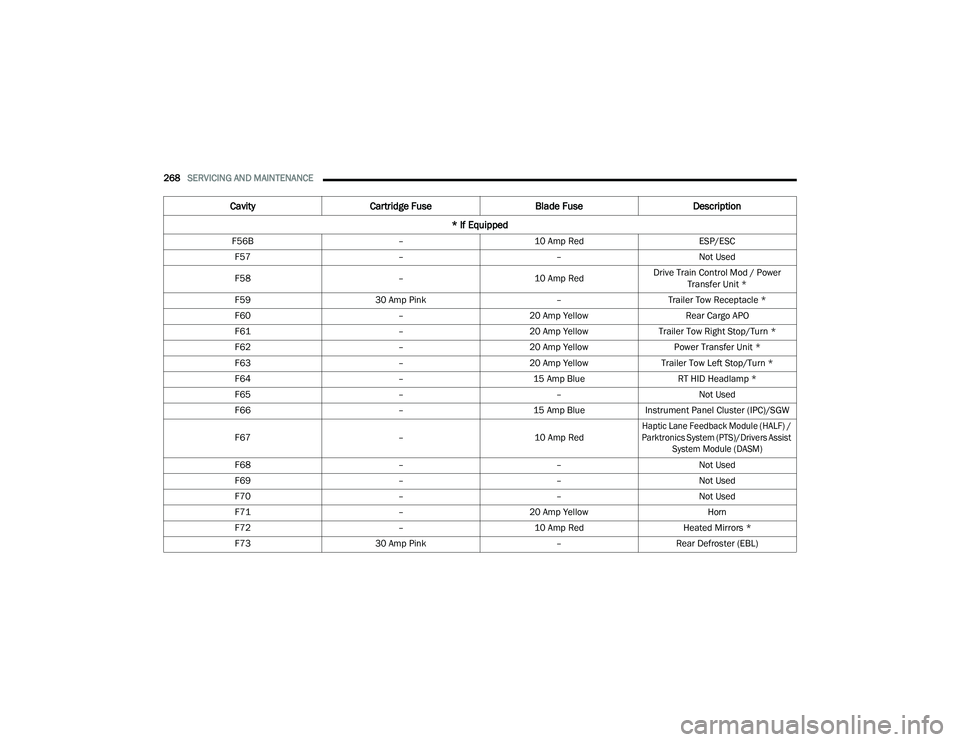

268SERVICING AND MAINTENANCE
F56B –10 Amp Red ESP/ESC
F57 ––Not Used
F58 –10 Amp RedDrive Train Control Mod / Power
Transfer Unit *
F59 30 Amp Pink –Trailer Tow Receptacle *
F60 –20 Amp Yellow Rear Cargo APO
F61 –20 Amp YellowTrailer Tow Right Stop/Turn *
F62 –20 Amp Yellow Power Transfer Unit *
F63 –20 Amp Yellow Trailer Tow Left Stop/Turn *
F64 –15 Amp Blue RT HID Headlamp *
F65 ––Not Used
F66 –15 Amp BlueInstrument Panel Cluster (IPC)/SGW
F67 –10 Amp Red
Haptic Lane Feedback Module (HALF) /
Parktronics System (PTS)/Drivers Assist System Module (DASM)

F68 ––Not Used
F69 ––Not Used
F70 ––Not Used
F71 –20 Amp Yellow Horn
F72 –10 Amp Red Heated Mirrors *
F73 30 Amp Pink –Rear Defroster (EBL)
Cavity Cartridge Fuse Blade FuseDescription
* If Equipped

22_RUVG_OM_EN_USC_t.book Page 268

308

Tank Capacity
............................................. 299Fuses..............................................................263
G
Garage Door Opener (HomeLink)...................... 50Gas Cap (Fuel Filler Cap)................................. 127Gasoline, (Fuel)............................................... 296Gasoline, Clean Air..........................................296Gasoline, Reformulated..................................296Gear Ranges................................................... 113Glass Cleaning................................................294Gross Axle Weight Rating................................130Gross Vehicle Weight Rating...........................130GVWR..............................................................128
H
Hazard Driving Through Flowing, Rising, Or Shallow Standing Water
.....................138Hazard Warning Flashers................................217Head Restraints................................................ 44Headlights......................................................... 54Cleaning......................................................292High Beam/Low Beam Select Switch............ 54Lights On Reminder............................... 54, 56Passing.................................................. 54, 55Switch........................................................... 54Time Delay.................................................... 54Heated Mirrors.................................................. 48Heated Seats.................................................... 43
Heater, Engine Block...................................... 108Hill Start Assist............................................... 162HitchesTrailer Towing............................................. 131HomeLink (Garage Door Opener).......................50Hood Prop..........................................................74Hood Release....................................................74
I
Ignition...............................................................15Switch...........................................................15Inside Rearview Mirror............................. 48, 217Instrument Cluster......................................83, 85Descriptions............................................... 101Display..........................................................85Display Controls............................................86KeySense Message.......................................87Menu Items...................................................88Instrument Panel Lens Cleaning..................... 294Interior And Instrument Lights...........................57Interior Appearance Care................................ 293Interior Lights....................................................57Intermittent Wipers (Delay Wipers)....................58
J
Jack Location.................................................. 221Jack Operation................................................ 220Jump Starting................................................. 234
K
Key Fob............................................................. 12Arm The System............................................ 19Disarm The Alarm......................................... 19Programming Additional Key Fobs................ 14Key Fob Battery Service
(Remote Keyless Entry)..................................... 13Key Fob Programming
(Remote Keyless Entry)..................................... 14Keyless Enter 'n Go™........................................ 21Passive Entry................................................ 21Keys.................................................................. 12
L
Lane Change And Turn Signals......................... 54Lane Change Assist.................................... 54, 57Lap/Shoulder Belts.........................................176Latches...........................................................215Hood............................................................. 74Lead Free Gasoline.........................................296Leaks, Fluid.....................................................215Life Of Tires.....................................................285Liftgate.............................................................. 75Power............................................................ 76Light Bulbs............................................ 215, 274Lights.............................................................. 215Air Bag........................................95, 185, 214Battery Saver................................................ 57Brake Assist Warning..................................162Brake Warning.............................................. 95

22_RUVG_OM_EN_USC_t.book Page 308
