Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Service and Maintenance 239
Maintenance Schedule Additional
Required Services - Severe12 000 km/7,500 mi
24 000 km/15,000 mi
36 000 km/22,500 mi
48 000 km/30,000 mi 60 000 km/37,500 mi
72 000 km/45,000 mi84 000 km/52,500 mi
96 000 km/60,000 mi
108 000 km/67,500 mi 120 000 km/75,000 mi 132 000 km/82,500 mi
144 000 km/90,000 mi 156 000 km/97,500 mi
168 000 km/105,000 mi 180 000 km/112,500 mi
192 000 km/120,000 mi 204 000 km/127,500 mi 216 000 km/135,000 mi
228 000 km/142,500 mi
240 000 km/150,000 mi
Rotate tires and perform Required Services. Check engine oil
level and oil life percentage. Change engine oil and filter,
if needed.@ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @ @
Replace passenger compartment air filter. (1)@ @@@@@
Replace engine air cleaner filter. (2)@ @@
Change automatic transmission fluid.@@@
Replace spark plugs. Inspect spark plug wires and/or boots.@ @
Change rear axle fluid, if equipped with AWD. (3)@ @
Drain and fill engine cooling system. (4)@
Visually inspect accessory drive belts. (5)@
Replace brake fluid. (6)
Replace front and rear wiper blades. (7)
@ @ @ @ @ @ @ @ @ @
Replace hood and/or body lift support gas struts. (8)@@
Replace air conditioning desiccant. (9)
Footnotes—Maintenance Schedule
Additional Required Services - Severe
(1) Or every two years, whichever comes
first. More frequent passenger compartment
air filter replacement may be needed if
driving in areas with heavy traffic, poor air
quality, high dust levels, or environmental allergens. Passenger compartment air filter
replacement may also be needed if there is
reduced airflow, window fogging, or odors.
Your GM dealer can help determine when to
replace the filter.
(2)
Or every four years, whichever comes
first. If driving in dusty conditions, inspect
the filter at each oil change or more often
as needed. See Engine Air Cleaner/Filter
0 175.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Service and Maintenance 241
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. SeeRecommended Fluids and
Lubricants 0243 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed.
Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed.
Tires
Tires need to be properly inflated, rotated,
and balanced. Maintaining the tires can save
money and fuel, and can reduce the risk of
tire failure.
.Signs that the tires need to be replaced
include three or more visible treadwear
indicators; cord or fabric showing through
the rubber; cracks or cuts in the tread or
sidewall; or a bulge or split in the tire.
.Trained dealer technicians can inspect and
recommend the right tires. Your dealer
can also provide tire/wheel balancing services to ensure smooth vehicle
operation at all speeds. Your dealer sells
and services name brand tires.
Vehicle Care
To help keep the vehicle looking like new,
vehicle care products are available from your
dealer. For information on how to clean and
protect the vehicle’s interior and exterior,
see Interior Care 0230 and
Exterior Care 0226.
Wheel Alignment
Wheel alignment is critical for ensuring that
the tires deliver optimal wear and
performance.
.Signs that the alignment may need to be
adjusted include pulling, improper vehicle
handling, or unusual tire wear.
.Your dealer has the required equipment
to ensure proper wheel alignment.
Windshield
For safety, appearance, and the best
viewing, keep the windshield clean and
clear.
.Signs of damage include scratches, cracks,
and chips.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Technical Data 247
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and Lubricants0243 for more
information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under the hood. See yourdealer for more information.
Engine Cooling System* 7.3 L 7.7 qt
Engine Oil with Filter 4.0 L 4.2 qt
Fuel Tank 53 L 14 gal
Wheel Nut Torque 140 Y100 lb ft
Transfer Case 0.35 L 0.36 qt
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this manual. Recheck fluid level
after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21

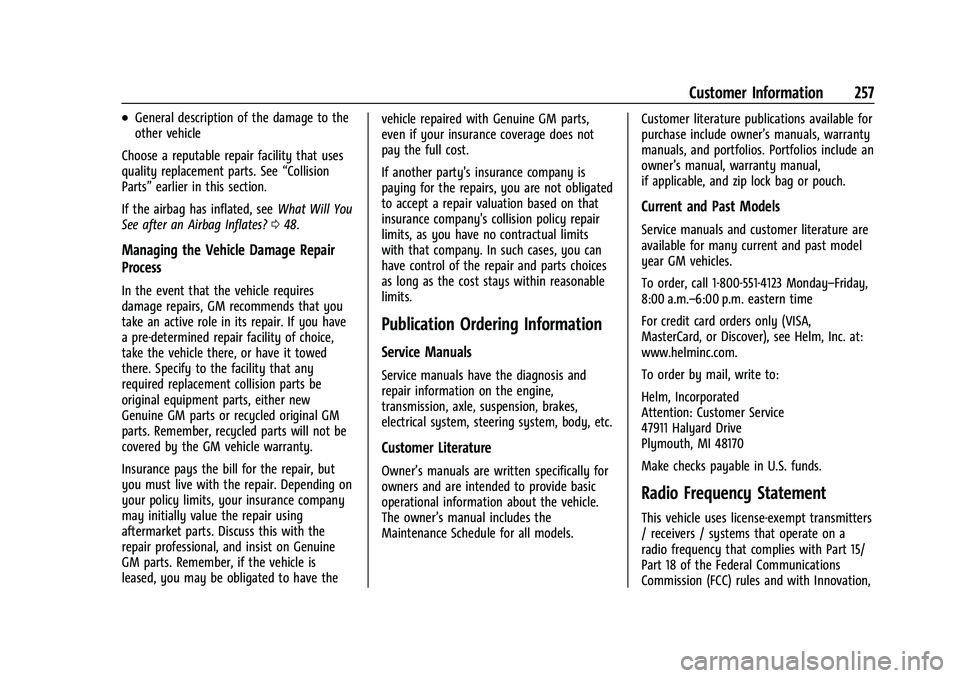

Customer Information 257
.General description of the damage to the
other vehicle
Choose a reputable repair facility that uses
quality replacement parts. See “Collision
Parts” earlier in this section.
If the airbag has inflated, see What Will You
See after an Airbag Inflates? 048.
Managing the Vehicle Damage Repair
Process
In the event that the vehicle requires
damage repairs, GM recommends that you
take an active role in its repair. If you have
a pre-determined repair facility of choice,
take the vehicle there, or have it towed
there. Specify to the facility that any
required replacement collision parts be
original equipment parts, either new
Genuine GM parts or recycled original GM
parts. Remember, recycled parts will not be
covered by the GM vehicle warranty.
Insurance pays the bill for the repair, but
you must live with the repair. Depending on
your policy limits, your insurance company
may initially value the repair using
aftermarket parts. Discuss this with the
repair professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have the vehicle repaired with Genuine GM parts,
even if your insurance coverage does not
pay the full cost.
If another party's insurance company is
paying for the repairs, you are not obligated
to accept a repair valuation based on that
insurance company's collision policy repair
limits, as you have no contractual limits
with that company. In such cases, you can
have control of the repair and parts choices
as long as the cost stays within reasonable
limits.
Publication Ordering Information
Service Manuals
Service manuals have the diagnosis and
repair information on the engine,
transmission, axle, suspension, brakes,
electrical system, steering system, body, etc.
Customer Literature
Owner’s manuals are written specifically for
owners and are intended to provide basic
operational information about the vehicle.
The owner’s manual includes the
Maintenance Schedule for all models.
Customer literature publications available for
purchase include owner’s manuals, warranty
manuals, and portfolios. Portfolios include an
owner’s manual, warranty manual,
if applicable, and zip lock bag or pouch.
Current and Past Models
Service manuals and customer literature are
available for many current and past model
year GM vehicles.
To order, call 1-800-551-4123 Monday–Friday,
8:00 a.m.–6:00 p.m. eastern time
For credit card orders only (VISA,
MasterCard, or Discover), see Helm, Inc. at:
www.helminc.com.
To order by mail, write to:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
Make checks payable in U.S. funds.
Radio Frequency Statement
This vehicle uses license-exempt transmitters
/ receivers / systems that operate on a
radio frequency that complies with Part 15/
Part 18 of the Federal Communications
Commission (FCC) rules and with Innovation,

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
262 OnStar
.Give OnStar Turn-by-Turn Navigation voice
commands.
.Obtain and customize the Wi-Fi hotspot
name or SSID and password, if equipped.
Press
Qto connect to an Advisor to:
.Verify account information or update
contact information.
.Get driving directions.
.Receive a Diagnostic check of the vehicle's
key operating systems.
.Receive Roadside Assistance.
.Manage Wi-Fi Settings, if equipped.
Press
>to get a priority connection to an
OnStar Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or respond to an
AMBER Alert.
.Get assistance in severe weather or other
crisis situations and find evacuation
routes.
OnStar Services
Emergency
Emergency Services require an active safety
and security plan. With Automatic Crash
Response, built-in sensors can automatically
alert a specially trained OnStar Advisor who
is immediately connected in to the vehicle
to help.
Press
>for a priority connection to an
OnStar Advisor who can contact emergency
service providers, direct them to your exact
location, and relay important information.
With OnStar Crisis Assist, specially trained
Advisors are available 24 hours a day, 7 days
a week, to provide a central point of
contact, assistance, and information during a
crisis.
With Roadside Assistance, Advisors can
locate a nearby service provider to help with
a flat tire, a battery jump, or an empty
gas tank.
Security
If equipped, OnStar provides these services:
.With Stolen Vehicle Assistance, OnStar
Advisors can use GPS to pinpoint the
vehicle and help authorities quickly
recover it.
.With Remote Ignition Block, if equipped,
OnStar can block the engine from being
restarted.
.With Stolen Vehicle Slowdown,
if equipped, OnStar can work with law
enforcement to gradually slow the
vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked and the
vehicle alarm sounds, a notification by text,
e-mail, or phone call will be sent. If the
vehicle is stolen, an OnStar Advisor can work
with authorities to recover the vehicle.

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
Index 269
IndexA
About Driving the Vehicle . . . . . . . . . . . . . . . . . .2
Accessories and Modifications . . . . . . . . . . . 168
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . .147
Add-On Electrical Equipment . . . . . . . . . . . . . 165
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 263
Additional Maintenance and Care . . . . . . . . 240
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 33
Agreements Trademarks and License . . . . . . . . . . . . . . . 123
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . . 175
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Air Filter, Passenger Compartment . . . . . . . . 127
Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
How Does an Airbag Restrain? . . . . . . . . . . 48
Passenger Sensing System . . . . . . . . . . . . . . 49
What Makes an Airbag Inflate? . . . . . . . . . 48
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
When Should an Airbag Inflate? . . . . . . . . 47
Where Are the Airbags? . . . . . . . . . . . . . . . . 46
Airbags Adding Equipment to the Vehicle . . . . . . . 53 Airbags (cont'd)
Passenger Status Indicator . . . . . . . . . . . . . . 82
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 82
Servicing Airbag-Equipped Vehicles . . . . . . 52
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 22
Alert Side Blind Zone (SBZA) . . . . . . . . . . . . . . . . . . 161
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 200
All-Wheel Drive System . . . . . . . . . . . . . . . . . . . . . . . . . . 152
All-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . . . . . .182
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Antilock Brake System (ABS) . . . . . . . . . . . . . . 153 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Apple CarPlay and Android Auto . . . . . . . . . . 117
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Assistance Program, Roadside . . . . . . . . . . . . 253
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
270 Index
AutomaticDoor Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 97
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 174
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 152
Shift Lock Control Function Check . . . . . . 183
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Avoiding Untrusted Media Devices . . . . . . . 109
B
Battery Exterior Lighting Battery Saver . . . . . . . . 101
Load Management . . . . . . . . . . . . . . . . . . . . . 100
Power Protection . . . . . . . . . . . . . . . . . . . . . . 101
Battery - North America . . . . . . . . . . . . .182, 220
Blade Replacement, Wiper . . . . . . . . . . . . . . . 184
Bluetooth
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Brake
System Warning Light . . . . . . . . . . . . . . . . . . 85
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153 Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 139
Bulb Replacement
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 186
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 186
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Headlamps, Front Turn Signal, andParking Lamps . . . . . . . . . . . . . . . . . . . . . . . 186
License Plate Lamps . . . . . . . . . . . . . . . . . . . . 191
Taillamps, Turn Signal, Sidemarker, Stoplamps, and Backup Lamps . . . . . . . 189
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . . 211
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
California Perchlorate Materials Requirements . . . 168
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . . . . . . .182, 220, Back Cover
Camera
Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 159
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 247
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 149
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 135 Cargo
Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Management System . . . . . . . . . . . . . . . . . . . 73
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .214
Charging System Light . . . . . . . . . . . . . . . . . . . . 83
Check Engine Light (Malfunction Indicator) . . . . 83
Child Restraints Infants and Young Children . . . . . . . . . . . . . 55
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67, 69
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Cleaning
Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Climate Control Systems . . . . . . . . . . . . . . . . . . 125 Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 125
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . 80
Collision Damage Repair . . . . . . . . . . . . . . . . . 255
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 220
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Chevrolet TRAX Owner Manual (GMNA-Localizing-U.S./Canada-15498927) -
2022 - CRC - 5/27/21
272 Index
EmergencyOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Engine Air Cleaner/Filter . . . . . . . . . . . . . . . . . . . . . . . 175
Check Light (Malfunction Indicator) . . . . . 83
Compartment Overview . . . . . . . . . . . . . . . . . 171
Coolant Temperature Warning Light . . . . 87
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . 176
Drive Belt Routing . . . . . . . . . . . . . . . . . . . . . 249
Exhaust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Oil Life System . . . . . . . . . . . . . . . . . . . . . . . . 174
Oil Pressure Light . . . . . . . . . . . . . . . . . . . . . . . 88
Overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Power Messages . . . . . . . . . . . . . . . . . . . . . . . . 92
Reduced Power Light . . . . . . . . . . . . . . . . . . . 89
Running While Parked . . . . . . . . . . . . . . . . . 150
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 259
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . 149
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . 43
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 96
Exterior Lighting Battery Saver . . . . . . . . . . .101F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . . 175
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 98
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215 Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233
Fluid Automatic Transmission . . . . . . . . . . . . . . . 174
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Front Seat Armrest . . . . . . . . . . . . . . . . . . . . . . . .33
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Economy, Driving for Better . . . . . . . . . . . 130
Filling a Portable Fuel Container . . . . . . . 165
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 164
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 163
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Low Fuel Warning Light . . . . . . . . . . . . . . . . 88
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 163 Fuel (cont'd)
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 163
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Fuses Engine Compartment Fuse Block . . . . . . . 193
Fuses and Circuit Breakers . . . . . . . . . . . . . 193
Instrument Panel Fuse Block . . . . . . . . . . . 196
Rear Compartment Fuse Block . . . . . . . . . 198
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185
GaugesFuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Warning Lights and Indicators . . . . . . . . . . 79
General Information Service and Maintenance . . . . . . . . . . . . . . 234
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
