2022 CHEVROLET EQUINOX steering

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22

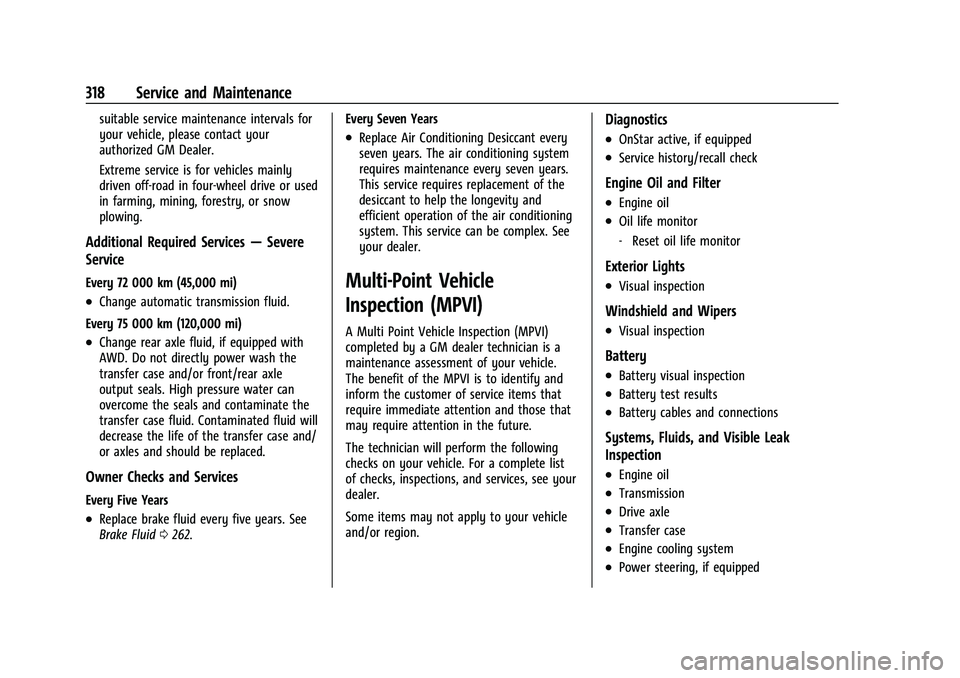

318 Service and Maintenance
suitable service maintenance intervals for
your vehicle, please contact your
authorized GM Dealer.
Extreme service is for vehicles mainly
driven off-road in four-wheel drive or used
in farming, mining, forestry, or snow
plowing.
Additional Required Services—Severe
Service
Every 72 000 km (45,000 mi)
.Change automatic transmission fluid.
Every 75 000 km (120,000 mi)
.Change rear axle fluid, if equipped with
AWD. Do not directly power wash the
transfer case and/or front/rear axle
output seals. High pressure water can
overcome the seals and contaminate the
transfer case fluid. Contaminated fluid will
decrease the life of the transfer case and/
or axles and should be replaced.
Owner Checks and Services
Every Five Years
.Replace brake fluid every five years. See
Brake Fluid 0262. Every Seven Years
.Replace Air Conditioning Desiccant every
seven years. The air conditioning system
requires maintenance every seven years.
This service requires replacement of the
desiccant to help the longevity and
efficient operation of the air conditioning
system. This service can be complex. See
your dealer.
Multi-Point Vehicle
Inspection (MPVI)
A Multi Point Vehicle Inspection (MPVI)
completed by a GM dealer technician is a
maintenance assessment of your vehicle.
The benefit of the MPVI is to identify and
inform the customer of service items that
require immediate attention and those that
may require attention in the future.
The technician will perform the following
checks on your vehicle. For a complete list
of checks, inspections, and services, see your
dealer.
Some items may not apply to your vehicle
and/or region.
Diagnostics
.OnStar active, if equipped
.Service history/recall check
Engine Oil and Filter
.Engine oil
.Oil life monitor
‐
Reset oil life monitor
Exterior Lights
.Visual inspection
Windshield and Wipers
.Visual inspection
Battery
.Battery visual inspection
.Battery test results
.Battery cables and connections
Systems, Fluids, and Visible Leak
Inspection
.Engine oil
.Transmission
.Drive axle
.Transfer case
.Engine cooling system
.Power steering, if equipped

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Service and Maintenance 319
.Fuel system
.Windshield washer fluid
Tire Inspection
.Tire pressure, tread depth, and wear
.Rotation, if applicable
.Alignment check, optional
.Reset tire pressure monitor
.Check tire sealant expiration date,
if equipped
.Check spare tire, if equipped
Brakes
.Check brake system
Visible and Functional Inspections
.Seat belt components
.Exhaust system
.Accelerator pedal
.Passenger compartment air filter,
if equipped
.Engine air filter
.Hoses
.Belts
.Shocks and struts
.Steering components
.Axle boots or driveshaft and u-joints
.Compartment lift struts, if equipped
.Floor mats secured, no interference with
pedals
.Horn
.Ignition lock, if equipped
.Starter switch
.Evaporative control system
Lubricate
.Chassis components
Special Application Services
.Severe Commercial Use Vehicles Only:
Lubricate chassis components every oil
change.
.Have underbody flushing service
performed. See "Underbody Maintenance"
in Exterior Care 0306.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
334 Customer Information
coverage is not available from your current
insurance carrier, consider switching to
another insurance carrier.
If the vehicle is leased, the leasing company
may require you to have insurance that
ensures repairs with Genuine GM Original
Equipment Manufacturer (OEM) parts or
Genuine Manufacturer replacement parts.
Read the lease carefully, as you may be
charged at the end of the lease for poor
quality repairs.
If a Crash Occurs
If there has been an injury, call emergency
services for help. Do not leave the scene of
a crash until all matters have been taken
care of. Move the vehicle only if its position
puts you in danger, or you are instructed to
move it by a police officer.
Give only the necessary information to
police and other parties involved in the
crash.
For emergency towing seeRoadside
Assistance Program 0330.
Gather the following information:
.Driver name, address, and telephone
number
.Driver license number
.Owner name, address, and telephone
number
.Vehicle license plate number
.Vehicle make, model, and model year
.Vehicle Identification Number (VIN)
.Insurance company and policy number
.General description of the damage to the
other vehicle
Choose a reputable repair facility that uses
quality replacement parts. See “Collision
Parts” earlier in this section.
If the airbag has inflated, see What Will You
See after an Airbag Inflates? 052.
Managing the Vehicle Damage Repair
Process
In the event that the vehicle requires
damage repairs, GM recommends that you
take an active role in its repair. If you have
a pre-determined repair facility of choice,
take the vehicle there, or have it towed
there. Specify to the facility that any
required replacement collision parts be
original equipment parts, either new
Genuine GM parts or recycled original GM
parts. Remember, recycled parts will not be
covered by the GM vehicle warranty. Insurance pays the bill for the repair, but
you must live with the repair. Depending on
your policy limits, your insurance company
may initially value the repair using
aftermarket parts. Discuss this with the
repair professional, and insist on Genuine
GM parts. Remember, if the vehicle is
leased, you may be obligated to have the
vehicle repaired with Genuine GM parts,
even if your insurance coverage does not
pay the full cost.
If another party's insurance company is
paying for the repairs, you are not obligated
to accept a repair valuation based on that
insurance company's collision policy repair
limits, as you have no contractual limits
with that company. In such cases, you can
have control of the repair and parts choices
as long as the cost stays within reasonable
limits.
Publication Ordering Information
Service Manuals
Service manuals have the diagnosis and
repair information on the engine/propulsion,
transmission, axle, suspension, brakes,
electrical system, steering system, body, etc.

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Index 349
Child RestraintsInfants and Young Children . . . . . . . . . . . . . 59
Lower Anchors and Tethers for
Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70, 71
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Child Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . .18
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 310
Climate Control Systems . . . . . . . . . . . . . . . . . 169 Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 169
Dual Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 171
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Cluster, Instrument . . . . . . . . . . . . . . . . . . . 87, 90
Collision Damage Repair . . . . . . . . . . . . . . . . . 333
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 299
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 346
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344 Connections
Connected Services . . . . . . . . . . . . . . . . . . . . 344
Control Traction and Electronic Stability . . . . . . . 204
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 179
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . 123
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 93
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169, 171
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Courtesy Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Courtesy Transportation Program . . . . . . . . 332
Cover Cargo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Coverage Explanations . . . . . . . . . . . . . . . . . . . 144
Covers Rear Compartment/Storage Panel . . . . . . . 76
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 207 Adaptive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
Customer Assistance
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Text Telephone (TTY) Users . . . . . . . . . . . . 329 Customer Information
Publications Ordering Information . . . . . 334
Customer Satisfaction Procedure . . . . . . . . . 327
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 333
Danger, Warning, and Caution . . . . . . . . . . . . . .3
Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 338
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Data Recorders, Event . . . . . . . . . . . . . . . . . . . 337
Database Coverage Explanations . . . . . . . . . 144
Daytime Running Lamps (DRL) . . . . . . . . . . . . 116
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . .178
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .138
Diagnostics Connected Services . . . . . . . . . . . . . . . . . . . . 346
Disabled Vehicle
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . .178
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Door Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Index 351
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ForwardCollision Alert (FCA) System . . . . . . . . . . . 227
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Front
Heated and Ventilated Seats . . . . . . . . . . . . 37
Pedestrian Braking (FPB) System . . . . . . . 230
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Economy, Driving for Better . . . . . . . . . . . 178
Filling a Portable Fuel Container . . . . . . . 238
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 236
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 236
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Low Fuel Warning Light . . . . . . . . . . . . . . . 101
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . 236
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . 235
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Fuses Engine Compartment Fuse Block . . . . . . . . 271
Fuses and Circuit Breakers . . . . . . . . . . . . . . 271
Instrument Panel Fuse Block . . . . . . . . . . . 273
Rear Compartment Fuse Block . . . . . . . . . 275G
Garage Door Opener . . . . . . . . . . . . . . . . . . . . . . 111Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Gauges Engine Coolant Temperature . . . . . . . . . . . . 93
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Warning Lights and Indicators . . . . . . . . . . 86
General Information Service and Maintenance . . . . . . . . . . . . . . 315
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Global Positioning System (GPS) . . . . . . . . . .143
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
Guidance Problems with the Route . . . . . . . . . . . . . . 144
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 117
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267 Headlamps (cont'd)
Aiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 266
Daytime Running Lamps (DRL) . . . . . . . . . . 116
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
High-Beam On Light . . . . . . . . . . . . . . . . . . . 102
High/Low Beam Changer . . . . . . . . . . . . . . . 115
Lamps On Reminder . . . . . . . . . . . . . . . . . . . 102
Heated
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 80
Ventilated Front Seats . . . . . . . . . . . . . . . . . . 37
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169, 171
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . 102
Hill and Mountain Roads . . . . . . . . . . . . . . . . 184
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 203
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
How to Wear Seat Belts Properly . . . . . . . . . 42
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169, 171

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
356 Index
Spare TireCompact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Special Application Services . . . . . . . . . . . . . . 319
Specifications and Capacities . . . . . . . . . . . . . 324
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . .14
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 192
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179 Heated Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 80
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . 123
Stop/Start System . . . . . . . . . . . . . . . . . . . . . . . 192
Storage Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 76
Compartments . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Convenience Net . . . . . . . . . . . . . . . . . . . . . . . . 77
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Rear Compartment/Storage PanelCover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 77
Sunglasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 Struts
Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Sunglass Storage . . . . . . . . . . . . . . . . . . . . . . . . . .75
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Surround Vision System . . . . . . . . . . . . . . . . . . 221
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
System Airbag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 218
Engine Air Filter Life . . . . . . . . . . . . . . . . . . . 255
Forward Collision Alert (FCA) . . . . . . . . . . . 227
Global Positioning . . . . . . . . . . . . . . . . . . . . . 143
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Rear Cross Traffic Alert . . . . . . . . . . . . . . . . 226
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 221
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Text Telephone (TTY) Users . . . . . . . . . . . . . . 329
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 24
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 289
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 299
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 280
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 290
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 293
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 100
Pressure Monitor Operation . . . . . . . . . . . 284
Pressure Monitor System . . . . . . . . . . . . . . 283
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 278
Terminology and Definitions . . . . . . . . . . . 280
Uniform Tire Quality Grading . . . . . . . . . . 290
Wheel Alignment and Tire Balance . . . . 292
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 292
When It Is Time for New Tires . . . . . . . . . 288
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . . 200
Tow/Haul Mode Light . . . . . . . . . . . . . . . . . . . . 99
Towing Driving Characteristics . . . . . . . . . . . . . . . . . 238
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
