Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Driving and Operating 233
When the vehicle is started, both outside
mirror LCA displays will briefly come on to
indicate the system is operating. When the
vehicle is in a forward gear, the left or right
side mirror display will light up if a moving
vehicle is detected in the next lane over in
that blind zone or rapidly approaching that
zone. If the turn signal is activated in the
same direction as a detected vehicle, this
display will flash as an extra warning not to
change lanes.
LCA can be disabled through settings. To
view available settings from the
infotainment screen, touch Settings >
Vehicle > Collision/Detection Systems. If LCA
is disabled by the driver, the LCA mirror
displays will not light up.
When the System Does Not Seem to
Work Properly
The LCA system requires some driving for
the system to calibrate to maximum
performance. This calibration may occur
more quickly if the vehicle is driving on a
straight highway road with traffic and
roadside objects (e.g., guardrails, barriers).
LCA displays may not come on when
passing a vehicle quickly, for a stopped
vehicle, or when towing a trailer. The LCAdetection zones that extend back from the
side of the vehicle do not move further back
when a trailer is towed. Use caution while
changing lanes when towing a trailer. LCA
may alert to objects attached to the vehicle,
such as a trailer, bicycle, or object extending
out to either side of the vehicle. Attached
objects may also interfere with the
detection of vehicles. This is normal system
operation; the vehicle does not need service.
LCA may not always alert the driver to
vehicles in the next lane over, especially in
wet conditions or when driving on sharp
curves. The system does not need to be
serviced. The system may light up due to
guardrails, signs, trees, shrubs, and other
non-moving objects. This is normal system
operation; the vehicle does not need service.
LCA may not operate when the LCA sensors
in the left or right corners of the rear
bumper are covered with mud, dirt, snow,
ice, or slush, or in heavy rainstorms. For
cleaning instructions, see "Washing the
Vehicle" under
Exterior Care0306. If the
DIC still displays the system unavailable
message after cleaning both sides of the
vehicle toward the rear corners of the
vehicle, see your dealer. If the LCA displays do not light up when
moving vehicles are in the side blind zone or
are rapidly approaching this zone and the
system is clean, the system may need
service. Take the vehicle to your dealer.
Radio Frequency Information
See
Radio Frequency Statement 0335.
Lane Keep Assist (LKA)
If equipped, LKA may help avoid crashes due
to unintentional lane departures. This
system uses a camera to detect lane
markings. The LKA may be ready to assist at
speeds between 60 km/h (37 mph) and 180
km/h (112 mph). On some vehicles, the
system will instead operate above 50 km/h
(31 mph). LKA may assist by gently turning
the steering wheel if the vehicle approaches
a detected lane marking. It may also provide
a Lane Departure Warning (LDW) alert if the
vehicle crosses a detected lane marking. This
system is not intended to keep the vehicle
centered in the lane. LKA will not assist and
alert if the turn signal is active in the
direction of lane departure, or if it detects
that you are accelerating, braking or actively
steering. LKA can be overridden by turning
the steering wheel. If the system detects
you are steering intentionally across a lane

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
234 Driving and Operating
marker, the LDW will not be given. Do not
expect the LDW to occur when you are
intentionally crossing a lane marker.
{Warning
The LKA system does not continuously
steer the vehicle. It may not keep the
vehicle in the lane or give a Lane
Departure Warning (LDW) alert, even if a
lane marking is detected.
The LKA and LDW systems may not:
.Provide an alert or enough steering
assist to avoid a lane departure or
crash.
.Detect lane markings under poor
weather or visibility conditions. This
can occur if the windshield or
headlamps are blocked by dirt, snow,
or ice; if they are not in proper
condition; or if the sun shines directly
into the camera.
.Detect road edges.
.Detect lanes on winding or hilly roads.
If LKA only detects lane markings on one
side of the road, it will only assist or
provide an LDW alert when approaching (Continued)
Warning (Continued)
the lane on the side where it has
detected a lane marking. Even with LKA
and LDW, you must steer the vehicle.
Always keep your attention on the road
and maintain proper vehicle position
within the lane, or vehicle damage,
injury, or death could occur. Always keep
the windshield, headlamps, and camera
sensors clean and in good repair. Do not
use LKA in bad weather conditions or on
roads with unclear lane markings, such as
construction zones.
{Warning
Using LKA on slippery roads could cause
loss of control of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver if a towed
trailer crosses into an adjacent lane of
travel. Serious injury or property damage
may occur if the trailer moves into(Continued)
Warning (Continued)
another lane. Always monitor the trailer
position while towing to make sure it is
within the same lane as the tow vehicle.
How the System Works
LKA uses a camera sensor installed on the
windshield ahead of the rearview mirror to
detect lane markings. It may provide brief
steering assist if it detects an unintended
lane departure. It may further provide an
audible alert or the driver seat may pulse
indicating that a lane marking has been
crossed. The system does not provide a Lane
Departure Warning (LDW) when
intentionally steering across a lane marker.
To turn LKA on and off, press
Aon the
steering wheel. If equipped, the indicator
light on the button comes on when LKA is
on and turns off when LKA is disabled. In
some vehicles, a long press of over
three seconds is required to turn LKA off.
When on,
Ais white, if equipped,
indicating that the system is not ready to
assist.
Ais green if LKA is ready to
assist. LKA may assist by gently turning the
steering wheel if the vehicle approaches a

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Driving and Operating 235
detected lane marking.Ais amber when
assisting. It may also provide a Lane
Departure Warning (LDW) alert by flashing
Aamber if the vehicle crosses a
detected lane marking. Additionally, there
may be three beeps, or the driver seat may
pulse three times, on the right or left,
depending on the lane departure direction.
Take Steering
The LKA system does not continuously steer
the vehicle. If LKA does not detect active
driver steering, an alert and chime may be
provided. Steer the vehicle to dismiss. LKA
may become temporarily unavailable after
repeated take steering alerts.
When the System Does Not Seem to
Work Properly
The system performance may be
affected by:
.Close vehicles ahead.
.Sudden lighting changes, such as when
driving through tunnels.
.Banked roads.
.Roads with poor lane markings, such as
two-lane roads. If the LKA system is not functioning
properly when lane markings are clearly
visible, cleaning the windshield may help.
A camera blocked message may display if
the camera is blocked. Some driver
assistance systems may have reduced
performance or not work at all. An LKA or
LDW unavailable message may display if the
systems are temporarily unavailable. This
message could be due to a blocked camera.
The LKA system does not need service. Clean
the outside of the windshield behind the
rearview mirror.
LKA assistance and/or LDW alerts may occur
due to tar marks, shadows, cracks in the
road, temporary or construction lane
markings, or other road imperfections. This
is normal system operation; the vehicle does
not need service. Turn LKA off if these
conditions continue.
Fuel
Top Tier Fuel
GM recommends the use of TOP TIER
Detergent Gasoline to keep the engine clean,
reduce engine deposits, and maintain
optimal vehicle performance. Look for the TOP TIER Logo or see www.toptiergas.com
for a list of TOP TIER Detergent Gasoline
marketers and applicable countries.
Recommended Fuel
Regular unleaded gasoline meeting ASTM
specification D4814 with a posted octane
rating (R+M)/2 of 87 or greater is
recommended. Do not use gasoline with a
posted octane rating of less than 87, as this
will result in reduced performance and

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22

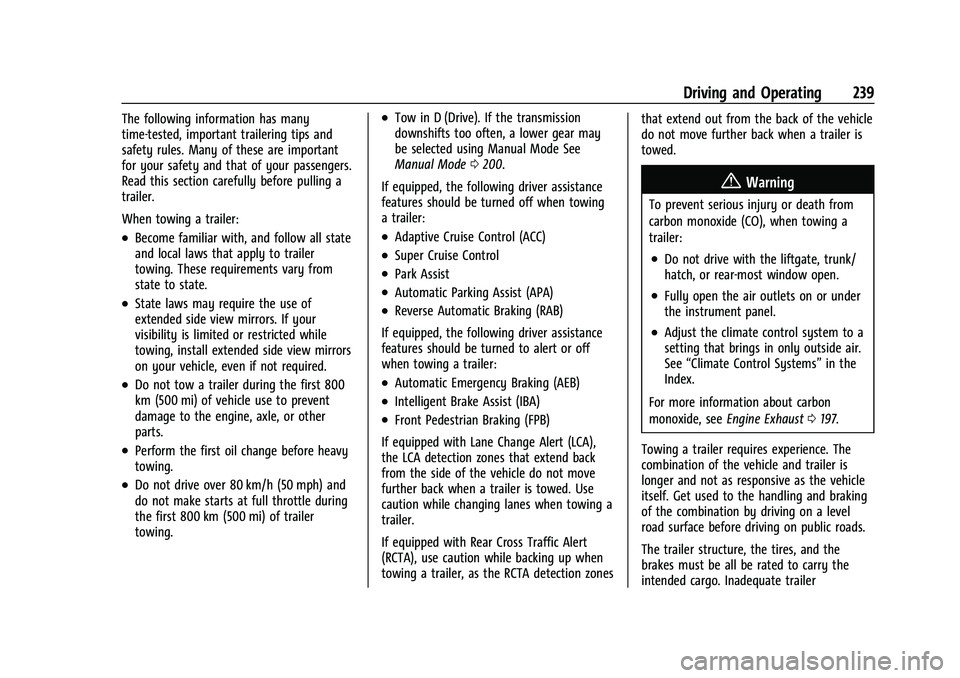

Driving and Operating 239
The following information has many
time-tested, important trailering tips and
safety rules. Many of these are important
for your safety and that of your passengers.
Read this section carefully before pulling a
trailer.
When towing a trailer:
.Become familiar with, and follow all state
and local laws that apply to trailer
towing. These requirements vary from
state to state.
.State laws may require the use of
extended side view mirrors. If your
visibility is limited or restricted while
towing, install extended side view mirrors
on your vehicle, even if not required.
.Do not tow a trailer during the first 800
km (500 mi) of vehicle use to prevent
damage to the engine, axle, or other
parts.
.Perform the first oil change before heavy
towing.
.Do not drive over 80 km/h (50 mph) and
do not make starts at full throttle during
the first 800 km (500 mi) of trailer
towing.
.Tow in D (Drive). If the transmission
downshifts too often, a lower gear may
be selected using Manual Mode See
Manual Mode0200.
If equipped, the following driver assistance
features should be turned off when towing
a trailer:
.Adaptive Cruise Control (ACC)
.Super Cruise Control
.Park Assist
.Automatic Parking Assist (APA)
.Reverse Automatic Braking (RAB)
If equipped, the following driver assistance
features should be turned to alert or off
when towing a trailer:
.Automatic Emergency Braking (AEB)
.Intelligent Brake Assist (IBA)
.Front Pedestrian Braking (FPB)
If equipped with Lane Change Alert (LCA),
the LCA detection zones that extend back
from the side of the vehicle do not move
further back when a trailer is towed. Use
caution while changing lanes when towing a
trailer.
If equipped with Rear Cross Traffic Alert
(RCTA), use caution while backing up when
towing a trailer, as the RCTA detection zones that extend out from the back of the vehicle
do not move further back when a trailer is
towed.
{Warning
To prevent serious injury or death from
carbon monoxide (CO), when towing a
trailer:
.Do not drive with the liftgate, trunk/
hatch, or rear-most window open.
.Fully open the air outlets on or under
the instrument panel.
.Adjust the climate control system to a
setting that brings in only outside air.
See
“Climate Control Systems” in the
Index.
For more information about carbon
monoxide, see Engine Exhaust 0197.
Towing a trailer requires experience. The
combination of the vehicle and trailer is
longer and not as responsive as the vehicle
itself. Get used to the handling and braking
of the combination by driving on a level
road surface before driving on public roads.
The trailer structure, the tires, and the
brakes must be all be rated to carry the
intended cargo. Inadequate trailer

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Vehicle Care 273
FusesUsage
F33 –
F34 Horn F35 –
F36 Headlamps/Daytime Running Lamps Right
F37 –
F38 Automatic Headlamp Leveling
F39 –
F40 –
F41 Transmission Range Control Module
F42 Motorized Headlamp
F43 –
F44 Interior Rearview Mirror F45 Passenger Side Ventilated Seat
F46 Driver Side Ventilated Seat
F47 Steering Column Lock Assembly
F48 Rear Wiper Fuses
Usage
F49 –
F50 Heated Steering Wheel F51 –
F52 Engine Control Module/ Transmission Control
F53 –
F54 –
F55 Front Wiper Speed/ Control
F56 –
F57 Headlamps/Daytime Running Lamps Left
Relays Usage
K01 Starter Solenoid
K02 Air Conditioning Control
K03 Engine Control Module
K04 Front Wiper Control K05 Starter Solenoid 2
K06 –
K07 – Relays
Usage
K08 –
K09 Front Wiper Speed K10 –
K11 –
K12 Headlamps/Daytime Running Lamps Right
K13 Headlamps/Daytime Running Lamps Left
K14 Run/Crank K15 Rear Window Defogger
Instrument Panel Fuse Block

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
348 Index
Assistance SystemsDriving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Parking and Backing . . . . . . . . . . . . . . . . . . . 220
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . . . . . . 25
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Emergency Braking (AEB) . . . . . . . . . . . . . . 228
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 116
Parking Assist (APA) . . . . . . . . . . . . . . . . . . . 224
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 255
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . 200
Auxiliary
Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Avoiding Untrusted Media Devices . . . . . . . 130
B
Battery Exterior Lighting Battery Saver . . . . . . . . 120
Load Management . . . . . . . . . . . . . . . . . . . . . . 119
Power Protection . . . . . . . . . . . . . . . . . . . . . . 120
Battery - North America . . . . . . . . . . . . 263, 300
Blade Replacement, Wiper . . . . . . . . . . . . . . . 264
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133 Bluetooth (cont'd)
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 150, 151
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
System Warning Light . . . . . . . . . . . . . . . . . . 97
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Brake Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Electric Brake Boost . . . . . . . . . . . . . . . . . . . . 201
Electric Parking Brake . . . . . . . . . . . . . . . . . . 202
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179 Automatic Emergency (AEB) . . . . . . . . . . . 228
Braking System Front Pedestrian (FPB) . . . . . . . . . . . . . . . . . 230
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . 190
Buckle To Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . 266 Front Turn Signal and Fog Lamps . . . . . . 268
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . 266
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . 266
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
High Intensity Discharge (HID)Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
License Plate Lamps . . . . . . . . . . . . . . . . . . . 268
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 289
C
Calibration
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
California Perchlorate Materials
Requirements . . . . . . . . . . . . . . . . . . . . . . . . 248
California Proposition 65 Warning . . . . .1, 300
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 220
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . .2
Capacities and Specifications . . . . . . . . . . . . . 324
Carbon Monoxide
Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 197
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 185
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Caution, Danger, and Warning . . . . . . . . . . . . . .3
Center Console
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Charging System Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Check Engine Light (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
352 Index
I
If the System Needs Service . . . . . . . . . . . . . 144
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 190
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
IndicatorPedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 99
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Indicators Warning Lights and Gauges . . . . . . . . . . . . . 86
Infants and Young Children, Restraints . . . . 59
Information
Publication Ordering . . . . . . . . . . . . . . . . . . . 334
Infotainment Using the System . . . . . . . . . . . . . . . . . . . . . . 124
Infotainment System . . . . . . . . . . . . . . . . . . . . 338
Inspection Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 318
Instrument Cluster . . . . . . . . . . . . . . . . . . . . 87, 90
Instrument Panel Overview . . . . . . . . . . . . . . . . .5
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 26
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 121
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Jump Starting - North America . . . . . . . . . . . . . . . 300
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 8
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 278
LampsCourtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 116
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . . 114
Exterior Lighting Battery Saver . . . . . . . . 120
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Front Turn Signal and Fog Lamps . . . . . . 268
High/Low Beam Changer . . . . . . . . . . . . . . . 115
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Taillamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 268
Lane
Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 232
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 233
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . . 99
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . 44 LATCH System
Replacing Parts after a Crash . . . . . . . . . . . 69
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Illumination Control . . . . . . . . . . . . . . . . . . . . 118
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 267
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 94
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Brake System Warning . . . . . . . . . . . . . . . . . 97
Charging System . . . . . . . . . . . . . . . . . . . . . . . 95
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Cruise Control Light . . . . . . . . . . . . . . . . . . . . 103
Electric Parking Brake . . . . . . . . . . . . . . . . . . . 98
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . 101
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . 102
Gauges and Indicators . . . . . . . . . . . . . . . . . . 86
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . 102
Lane Keep Assist . . . . . . . . . . . . . . . . . . . . . . . . 99
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . 101
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 94

Chevrolet Equinox Owner Manual (GMNA-Localizing-U.S./Canada-
16540728) - 2023 - crc - 6/16/22
Index 353
Lights (cont'd)Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Service Electric Parking Brake . . . . . . . . . . . 98
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Tow/Haul Mode . . . . . . . . . . . . . . . . . . . . . . . . 99
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . 100
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 17
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 18
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Low Fuel Warning Light . . . . . . . . . . . . . . . . . .101
Lower Anchors and Tethers for Children (LATCH System) . . . . . . . . . . . . . . . . 64
Lumbar Adjustment . . . . . . . . . . . . . . . . . . . . . . . 34
Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 316 Maintenance Schedule (cont'd)
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Malfunction Indicator Lamp . . . . . . . . . . . . . . . 96
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Map Data Updates . . . . . . . . . . . . . . . . . . . . . . . 144
Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Media
Avoiding Untrusted Devices . . . . . . . . . . . . 130
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Mirrors
Automatic Dimming . . . . . . . . . . . . . . . . . . . . 25
Automatic Dimming Rearview . . . . . . . . . . 26
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interior Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . 26
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Monitor System, Tire Pressure . . . . . . . . . . . 283
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 130
Multi-Point Vehicle Inspection (MPVI) . . . . .318
N
Navigation
Connected Services . . . . . . . . . . . . . . . . . . . . 344
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Using the System . . . . . . . . . . . . . . . . . . . . . . 133
Net, Convenience . . . . . . . . . . . . . . . . . . . . . . . . . .77
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . 190
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Off-Road Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Engine Oil Life System . . . . . . . . . . . . . . . . . 254
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . 101
Older Children, Restraints . . . . . . . . . . . . . . . . . 58
Online Account . . . . . . . . . . . . . . . . . . . . . . . . . . 329
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338
Additional Information . . . . . . . . . . . . . . . . . 341
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 340
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 340
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
