Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21

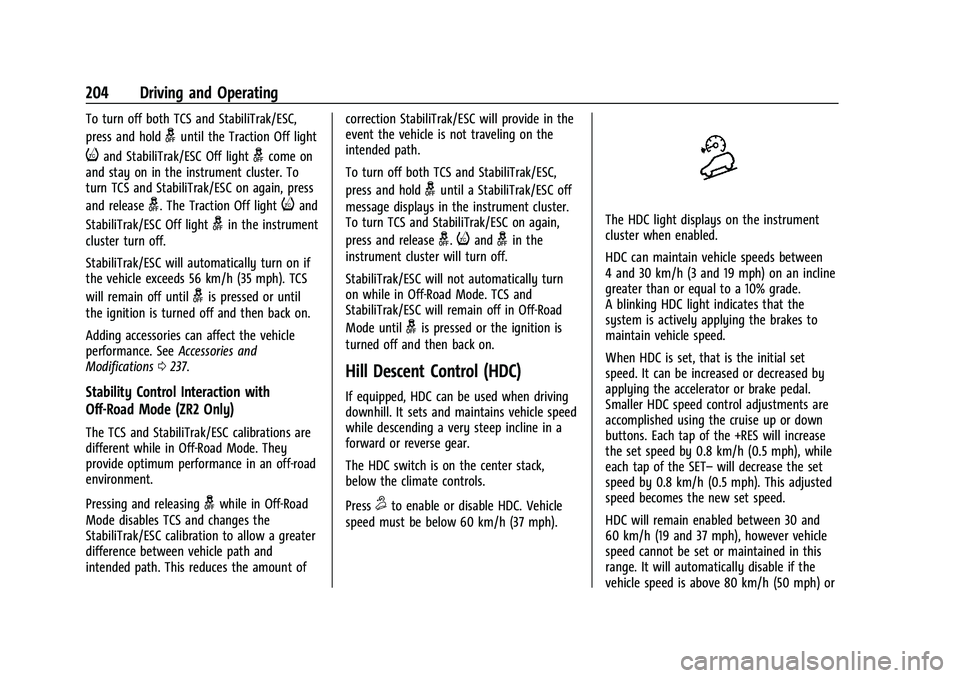

204 Driving and Operating
To turn off both TCS and StabiliTrak/ESC,
press and hold
guntil the Traction Off light
iand StabiliTrak/ESC Off lightgcome on
and stay on in the instrument cluster. To
turn TCS and StabiliTrak/ESC on again, press
and release
g. The Traction Off lightiand
StabiliTrak/ESC Off light
gin the instrument
cluster turn off.
StabiliTrak/ESC will automatically turn on if
the vehicle exceeds 56 km/h (35 mph). TCS
will remain off until
gis pressed or until
the ignition is turned off and then back on.
Adding accessories can affect the vehicle
performance. See Accessories and
Modifications 0237.
Stability Control Interaction with
Off-Road Mode (ZR2 Only)
The TCS and StabiliTrak/ESC calibrations are
different while in Off-Road Mode. They
provide optimum performance in an off-road
environment.
Pressing and releasing
gwhile in Off-Road
Mode disables TCS and changes the
StabiliTrak/ESC calibration to allow a greater
difference between vehicle path and
intended path. This reduces the amount of correction StabiliTrak/ESC will provide in the
event the vehicle is not traveling on the
intended path.
To turn off both TCS and StabiliTrak/ESC,
press and hold
guntil a StabiliTrak/ESC off
message displays in the instrument cluster.
To turn TCS and StabiliTrak/ESC on again,
press and release
g.iandgin the
instrument cluster will turn off.
StabiliTrak/ESC will not automatically turn
on while in Off-Road Mode. TCS and
StabiliTrak/ESC will remain off in Off-Road
Mode until
gis pressed or the ignition is
turned off and then back on.
Hill Descent Control (HDC)
If equipped, HDC can be used when driving
downhill. It sets and maintains vehicle speed
while descending a very steep incline in a
forward or reverse gear.
The HDC switch is on the center stack,
below the climate controls.
Press
5to enable or disable HDC. Vehicle
speed must be below 60 km/h (37 mph).
The HDC light displays on the instrument
cluster when enabled.
HDC can maintain vehicle speeds between
4 and 30 km/h (3 and 19 mph) on an incline
greater than or equal to a 10% grade.
A blinking HDC light indicates that the
system is actively applying the brakes to
maintain vehicle speed.
When HDC is set, that is the initial set
speed. It can be increased or decreased by
applying the accelerator or brake pedal.
Smaller HDC speed control adjustments are
accomplished using the cruise up or down
buttons. Each tap of the +RES will increase
the set speed by 0.8 km/h (0.5 mph), while
each tap of the SET– will decrease the set
speed by 0.8 km/h (0.5 mph). This adjusted
speed becomes the new set speed.
HDC will remain enabled between 30 and
60 km/h (19 and 37 mph), however vehicle
speed cannot be set or maintained in this
range. It will automatically disable if the
vehicle speed is above 80 km/h (50 mph) or

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21

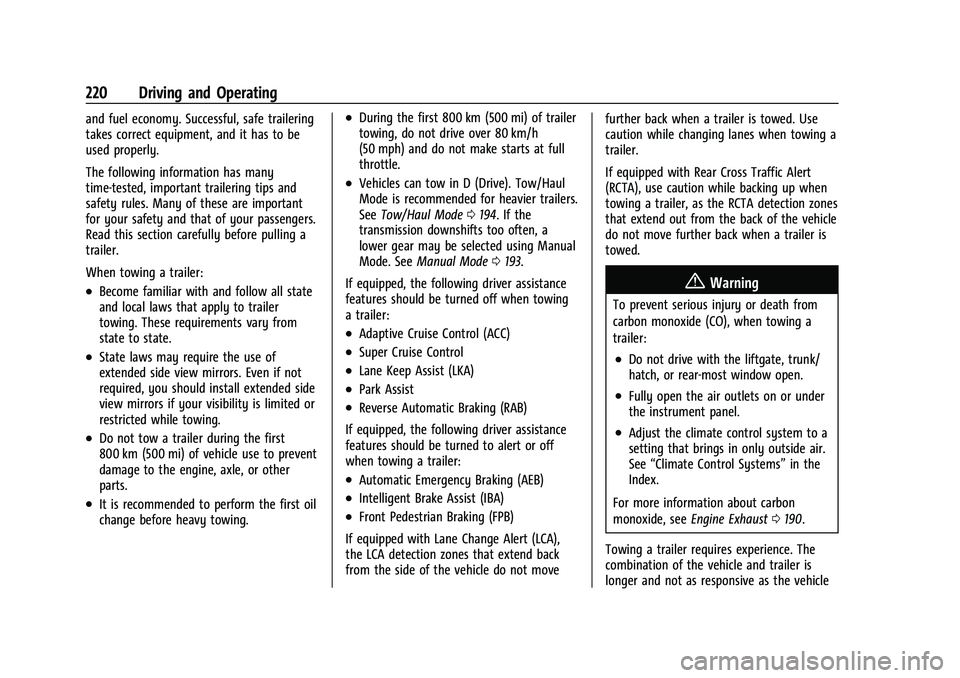

220 Driving and Operating
and fuel economy. Successful, safe trailering
takes correct equipment, and it has to be
used properly.
The following information has many
time-tested, important trailering tips and
safety rules. Many of these are important
for your safety and that of your passengers.
Read this section carefully before pulling a
trailer.
When towing a trailer:
.Become familiar with and follow all state
and local laws that apply to trailer
towing. These requirements vary from
state to state.
.State laws may require the use of
extended side view mirrors. Even if not
required, you should install extended side
view mirrors if your visibility is limited or
restricted while towing.
.Do not tow a trailer during the first
800 km (500 mi) of vehicle use to prevent
damage to the engine, axle, or other
parts.
.It is recommended to perform the first oil
change before heavy towing.
.During the first 800 km (500 mi) of trailer
towing, do not drive over 80 km/h
(50 mph) and do not make starts at full
throttle.
.Vehicles can tow in D (Drive). Tow/Haul
Mode is recommended for heavier trailers.
SeeTow/Haul Mode 0194. If the
transmission downshifts too often, a
lower gear may be selected using Manual
Mode. See Manual Mode 0193.
If equipped, the following driver assistance
features should be turned off when towing
a trailer:
.Adaptive Cruise Control (ACC)
.Super Cruise Control
.Lane Keep Assist (LKA)
.Park Assist
.Reverse Automatic Braking (RAB)
If equipped, the following driver assistance
features should be turned to alert or off
when towing a trailer:
.Automatic Emergency Braking (AEB)
.Intelligent Brake Assist (IBA)
.Front Pedestrian Braking (FPB)
If equipped with Lane Change Alert (LCA),
the LCA detection zones that extend back
from the side of the vehicle do not move further back when a trailer is towed. Use
caution while changing lanes when towing a
trailer.
If equipped with Rear Cross Traffic Alert
(RCTA), use caution while backing up when
towing a trailer, as the RCTA detection zones
that extend out from the back of the vehicle
do not move further back when a trailer is
towed.
{Warning
To prevent serious injury or death from
carbon monoxide (CO), when towing a
trailer:
.Do not drive with the liftgate, trunk/
hatch, or rear-most window open.
.Fully open the air outlets on or under
the instrument panel.
.Adjust the climate control system to a
setting that brings in only outside air.
See
“Climate Control Systems” in the
Index.
For more information about carbon
monoxide, see Engine Exhaust 0190.
Towing a trailer requires experience. The
combination of the vehicle and trailer is
longer and not as responsive as the vehicle

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
284 Vehicle Care
conditions on a specified government
test course. For example, a tire graded
150 would wear one and one-half (1½)
times as well on the government course
as a tire graded 100. The relative
performance of tires depends upon the
actual conditions of their use, however,
and may depart significantly from the
norm due to variations in driving habits,
service practices and differences in road
characteristics and climate.
Traction
The traction grades, from highest to
lowest, are AA, A, B, and C. Those
grades represent the tire's ability to
stop on wet pavement as measured
under controlled conditions on specified
government test surfaces of asphalt and
concrete. A tire marked C may have
poor traction performance. Warning:
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.Temperature
The temperature grades are A (the
highest), B, and C, representing the
tire's resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled conditions
on a specified indoor laboratory test
wheel. Sustained high temperature can
cause the material of the tire to
degenerate and reduce tire life, and
excessive temperature can lead to
sudden tire failure. The grade C
corresponds to a level of performance
which all passenger car tires must meet
under the Federal Motor Safety
Standard No. 109. Grades B and A
represent higher levels of performance
on the laboratory test wheel than the
minimum required by law. Warning:
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, underinflation, or excessive
loading, either separately or in
combination, can cause heat buildup
and possible tire failure.Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider an
alignment check if there is unusual tire wear
or the vehicle is significantly pulling to one
side or the other. Some slight pull to the
left or right, depending on the crown of the
road and/or other road surface variations
such as troughs or ruts, is normal. If the
vehicle is vibrating when driving on a
smooth road, the tires and wheels may
need to be rebalanced. See your dealer for
proper diagnosis.
Wheel Replacement
Replace any wheel that is bent, cracked,
or badly rusted or corroded. If wheel nuts
keep coming loose, the wheel, wheel bolts,
and wheel nuts should be replaced. If the
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
350 Index
IndexA
Accessories and Modifications . . . . . . . . . . . 237
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 188
Active Fuel Management . . . . . . . . . . . . . . . . 190
Add-On Electrical Equipment . . . . . . . . . . . . . 234
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344
Additional Maintenance and Care . . . . . . . . 320
Adjustments Lumbar, Front Seats . . . . . . . . . . . . . . . . . . . . 24
Agreements Trademarks and License . . . . . . . . . . . . . . . 154
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . 245
Air Conditioning . . . . . . . . . . . . . . . . . . . . .162, 164
Air Filter, Passenger Compartment . . . . . . . 167
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
How Does an Airbag Restrain? . . . . . . . . . . 38
Passenger Sensing System . . . . . . . . . . . . . . 39
What Makes an Airbag Inflate? . . . . . . . . . 37
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
When Should an Airbag Inflate? . . . . . . . . 37
Where Are the Airbags? . . . . . . . . . . . . . . . . 36
Airbags Adding Equipment to the Vehicle . . . . . . . 43
Passenger Status Indicator . . . . . . . . . . . . . . 86 Airbags (cont'd)
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 86
Servicing Airbag-Equipped Vehicles . . . . . . 42
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 14
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 270
All-Terrain Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 271
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Antenna
Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Antilock Brake System (ABS) . . . . . . . . . . . . . 200
Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Apple CarPlay and Android Auto . . . . . . . . . 144
Assistance Program, Roadside . . . . . . . . . . . . 334
Assistance Systems for Parking and Backing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210
Audio
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Automatic Climate Control System . . . . . . . . . . . . . . . . 164
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Emergency Braking (AEB) . . . . . . . . . . . . . . 214
Headlamp System . . . . . . . . . . . . . . . . . . . . . 103
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
352 Index
Climate Control Systems . . . . . . . . . . . . . . . . . 162Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . 162
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . .81
Collision Damage Repair . . . . . . . . . . . . . . . . . 337
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 296
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Connected Services
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Connections
Connected Services . . . . . . . . . . . . . . . . . . . . 347
Control Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Traction and Electronic Stability . . . . . . . 202
Control Light
Hill Descent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Control of a Vehicle . . . . . . . . . . . . . . . . . . . . . 170
Controls Steering Wheel . . . . . . . . . . . . . . . . . . . . . . . . . 112
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Coolant Engine Temperature Gauge . . . . . . . . . . . . . 85 Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .162, 164
Cooling System . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Courtesy Transportation Program . . . . . . . . 336
Coverage Explanations . . . . . . . . . . . . . . . . . . . .134
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Cupholders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Customer Assistance . . . . . . . . . . . . . . . . . . . . . 333
Offices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 333
Text Telephone (TTY) Users . . . . . . . . . . . . 333
Customer Information
Publications Ordering Information . . . . . 338
Customer Satisfaction Procedure . . . . . . . . . . 331
Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340
D
Damage Repair, Collision . . . . . . . . . . . . . . . . . 337
Danger, Warning, and Caution . . . . . . . . . . . . . .2
Data Collection Infotainment System . . . . . . . . . . . . . . . . . . 341
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Data Recorders, Event . . . . . . . . . . . . . . . . . . . .341
Database Coverage Explanations . . . . . . . . . .134
Daytime Running Lamps (DRL) . . . . . . . . . . . 103
Defensive Driving . . . . . . . . . . . . . . . . . . . . . . . . 169
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127 Diagnostics
Connected Services . . . . . . . . . . . . . . . . . . . . 349
Differential, Limited-Slip . . . . . . . . . . . . . . . . . 205
Distracted Driving . . . . . . . . . . . . . . . . . . . . . . . . 169
Dome Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Door Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 12
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Power Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Drive Belt Routing, Engine . . . . . . . . . . . . . . . 330
Driver
Teen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Driver Assistance Systems . . . . . . . . . . . . . . . 209
Driver Information Center (DIC) . . . . . . . 93, 96
Driver Mode Control . . . . . . . . . . . . . . . . . . . . . 205
Driving Better Fuel Economy . . . . . . . . . . . . . . . . . . . 169
Characteristics and Towing Tips . . . . . . . . 219
Defensive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Hill and Mountain Roads . . . . . . . . . . . . . . 176
If the Vehicle is Stuck . . . . . . . . . . . . . . . . . . 177
Impaired . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . 171
Off-Road . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . . 171
Vehicle Load Limits . . . . . . . . . . . . . . . . . . . . 178
Wet Roads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Chevrolet Colorado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15274222) - 2022 - CRC - 11/2/21
358 Index
Seat Belts (cont'd)Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . 30
Reminders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Replacing after a Crash . . . . . . . . . . . . . . . . . 34
Use During Pregnancy . . . . . . . . . . . . . . . . . . 33
Seats Adjustment, Front . . . . . . . . . . . . . . . . . . . . . . 23
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Heated Front . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lumbar Adjustment, Front . . . . . . . . . . . . . . 24
Power Adjustment, Front . . . . . . . . . . . . . . . 23
Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . 23
Underseat Storage . . . . . . . . . . . . . . . . . . . . . . 74
Securing Child Restraints . . . . . . . . . . . . . . 64, 69
Security Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Vehicle Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Accessories and Modifications . . . . . . . . . 237
Climate Control System . . . . . . . . . . . . . . . . 162
Doing Your Own Work . . . . . . . . . . . . . . . . . 237
Maintenance Records . . . . . . . . . . . . . . . . . . 326
Maintenance, General Information . . . . . 313
Parts Identification . . . . . . . . . . . . . . . . . . . . . 327
Scheduling Appointments . . . . . . . . . . . . . . 336 Services
Special Application . . . . . . . . . . . . . . . . . . . . . 320
Servicing System . . . . . . . . . . . . . . . . . . . . . . . . .134
Servicing the Airbag . . . . . . . . . . . . . . . . . . . . . . 42
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Shift Lock Control Function Check, Automatic Transmission . . . . . . . . . . . . . . . . 255
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Out of Park . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Signals, Turn and Lane-Change . . . . . . . . . . . 104
Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . 116
Spare Tire
Compact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
Special Application Services . . . . . . . . . . . . . . 320
Specifications and Capacities . . . . . . . . . . . . . 328
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Start Assist, Hill . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Start Vehicle, Remote . . . . . . . . . . . . . . . . . . . . . . 11
Starter Switch Check . . . . . . . . . . . . . . . . . . . . . 255
Starting the Engine . . . . . . . . . . . . . . . . . . . . . . 186
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 Heated Wheel . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 76
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 76
Steering Wheel Controls . . . . . . . . . . . . . . . . . . 112 Stoplamps and Back-up Lamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 258
Storage Areas Center Console . . . . . . . . . . . . . . . . . . . . . . . . . 74
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Sunglasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Underseat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Storage Compartments . . . . . . . . . . . . . . . . . . . .73
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 256
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sunglass Storage . . . . . . . . . . . . . . . . . . . . . . . . . .73
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
System
Forward Collision Alert (FCA) . . . . . . . . . . . 212
Global Positioning . . . . . . . . . . . . . . . . . . . . . 133
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Systems Driver Assistance . . . . . . . . . . . . . . . . . . . . . . 209
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Tailgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 258
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
