Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20

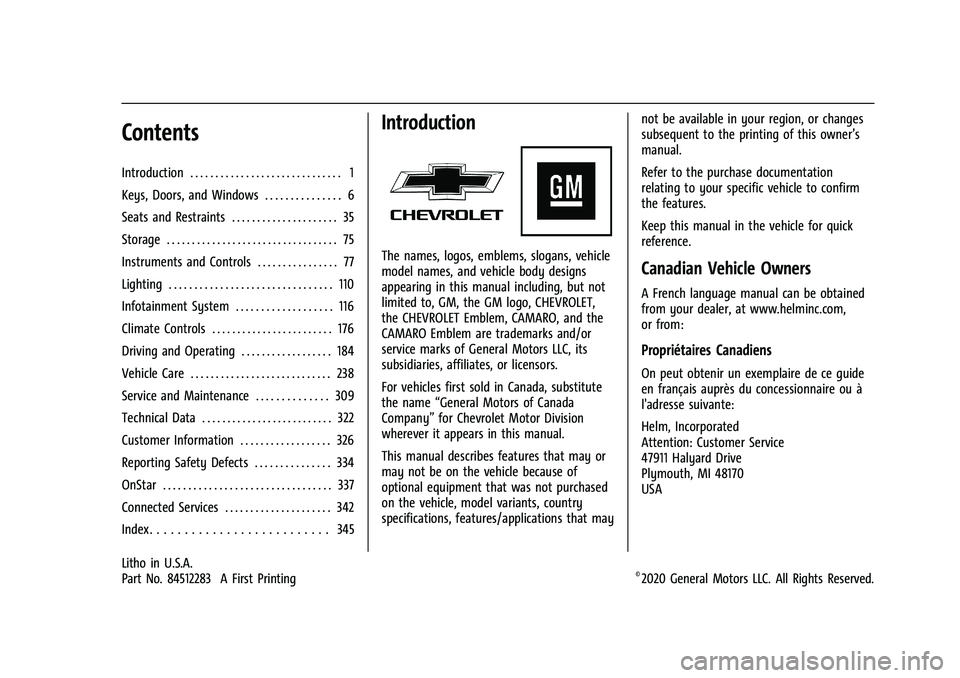

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Keys, Doors, and Windows . . . . . . . . . . . . . . . 6
Seats and Restraints . . . . . . . . . . . . . . . . . . . . . 35
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Instruments and Controls . . . . . . . . . . . . . . . . 77
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Infotainment System . . . . . . . . . . . . . . . . . . . 116
Climate Controls . . . . . . . . . . . . . . . . . . . . . . . . 176
Driving and Operating . . . . . . . . . . . . . . . . . . 184
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238
Service and Maintenance . . . . . . . . . . . . . . 309
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Customer Information . . . . . . . . . . . . . . . . . . 326
Reporting Safety Defects . . . . . . . . . . . . . . . 334
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337
Connected Services . . . . . . . . . . . . . . . . . . . . . 342
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Introduction
The names, logos, emblems, slogans, vehicle
model names, and vehicle body designs
appearing in this manual including, but not
limited to, GM, the GM logo, CHEVROLET,
the CHEVROLET Emblem, CAMARO, and the
CAMARO Emblem are trademarks and/or
service marks of General Motors LLC, its
subsidiaries, affiliates, or licensors.
For vehicles first sold in Canada, substitute
the name“General Motors of Canada
Company” for Chevrolet Motor Division
wherever it appears in this manual.
This manual describes features that may or
may not be on the vehicle because of
optional equipment that was not purchased
on the vehicle, model variants, country
specifications, features/applications that may not be available in your region, or changes
subsequent to the printing of this owner’s
manual.
Refer to the purchase documentation
relating to your specific vehicle to confirm
the features.
Keep this manual in the vehicle for quick
reference.Canadian Vehicle Owners
A French language manual can be obtained
from your dealer, at www.helminc.com,
or from:
Propriétaires Canadiens
On peut obtenir un exemplaire de ce guide
en français auprès du concessionnaire ou à
l'adresse suivante:
Helm, Incorporated
Attention: Customer Service
47911 Halyard Drive
Plymouth, MI 48170
USA
Litho in U.S.A.
Part No. 84512283 A First Printing©2020 General Motors LLC. All Rights Reserved.
Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
322 Technical Data
Technical Data
Vehicle Identification
Vehicle Identification Number (VIN) . . . 322
Service Parts Identification . . . . . . . . . . . . . 322
Vehicle Data
Capacities and Specifications . . . . . . . . . . . 323
Engine Drive Belt Routing . . . . . . . . . . . . . 325
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front corner of
the instrument panel, on the driver side of
the vehicle. It can be seen through the
windshield from outside. The Vehicle
Identification Number (VIN) also appears on
the Vehicle Certification label and certificates
of title and registration.
Engine Identification
The eighth character in the VIN is the
engine code. This code identifies the
vehicle's engine, specifications, and
replacement parts. See“Engine
Specifications” underCapacities and
Specifications 0323 for the vehicle's
engine code.
Service Parts Identification
There may be a large barcode on the
certification label on the center pillar that
you can scan for the following information:
.Vehicle Identification Number (VIN)
.Model designation
.Paint information
.Production options
If there is not a large barcode on this label,
then you will find this same information on
a label inside of the trunk.
Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
Technical Data 323
Vehicle Data
Capacities and Specifications
For Camaro High Performance models, see the Camaro High Performance supplement.Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge
amount, see the refrigerant label under the hood. See your
dealer for more information.
Engine Cooling System* I2.0L L4 Engine (LTG) 7.8 L8.2 qt
I3.6L V6 Engine (LGX) 9.6 L10.1 qt
I3.6L V6 Engine (LGX) with Engine Oil Cooler, without Auxiliary Cooler 10.1 L10.7 qt
I3.6L V6 Engine (LGX) with Auxiliary Cooler 13.7 L14.5 qt
I6.2L V8 Engine (LT1) without Auxiliary Cooler 11.6 L12.3 qt
I6.2L V8 Engine (LT1) with Auxiliary Cooler 13.2 L13.9 qt
Engine Oil with Filter I2.0L L4 Engine (LTG) with Integrated Engine Oil Cooler 4.7 L5.0 qt
I2.0L L4 Engine (LTG) with External Engine Oil Cooler 5.2 L5.5 qt
I3.6L V6 Engine (LGX) without Auxiliary Cooler 5.2 L5.5 qt
Chevrolet Camaro Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
14583589) - 2021 - CRC - 3/24/20
Technical Data 325
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
2.0L L4 Engine (LTG) XAutomatic
Manual 0.75–0.90 mm (0.030–0.035 in)
3.6L V6 Engine (LGX) SAutomatic
Manual 0.80–0.90 mm (0.031–0.035 in)
6.2L V8 Engine (LT1) 7Automatic
Manual 0.95–1.10 mm (0.037–0.043 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage the spark plug.
Engine Drive Belt Routing
2.0L L4 Engine (LTG)
3.6L V6 Engine (LGX)6.2L V8 Engine (LT1)
For Camaro High Performance models, see
the Camaro High Performance supplement.
