2022 CADILLAC XT6 headlamp

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
VEHICLE CARE 341
Trunk
Liftgate
Headlamp Aiming
Front Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.
Bulb Replacement
LED Lighting
This vehicle has all LED lamps. For
replacement of any LED lighting
assembly, contact your dealer.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is too
heavy, the circuit breaker opens and
closes, protecting the circuit until the
current load returns to normal or theproblem is fixed. This greatly reduces
the chance of circuit overload and fire
caused by electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be borrowed.
Choose some feature of the vehicle
that is not needed to use and replace
it as soon as possible.
To check a fuse, look at the band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure to
replace a bad fuse with a fuse of the
identical size and rating.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
342 VEHICLE CARE
Replacing a Blown Fuse
1. Turn off the vehicle.
2. Locate the fuse puller in the enginecompartment fuse block.
3. Use the fuse puller to remove thefuse from the top or side, as shown
above. 4. If the fuse must be replaced
immediately, borrow a replacement
fuse with the same amperage from
the fuse block. Choose a vehicle
feature that is not needed to safely
operate the vehicle. Repeat
Steps 2-3.
5. Insert the replacement fuse into the empty slot of the blown fuse.
At the next opportunity, see your
dealer to replace the blown fuse.
Headlamp Wiring
An electrical overload may cause the
lamps to go on and off, or in some
cases to remain off. Have the
headlamp wiring checked right away if
the lamps go on and off or remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected from
electrical overload, overload due to
heavy snow or ice may cause wiper

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
VEHICLE CARE 345
FusesUsage
F4 –
F5 DC DC Transformer 2
F6 Amplifier 1
F7 Front Blower
F8 Starter 3
F9 –
F10 –
F11 –
F12 Front Wiper
F13 Starter 2
F14 –
F15 Rear Wiper 1
F16 –
F17 –
F18 Automatic Headlamp Leveling Module
F19 –
F20 –
F21 – Fuses
Usage
F22 Electronic Brake Control Module
F23 Parking/Trailer Lamps
F24 Right Trailer Stoplamp/Turnlamp
F25 Steering Column Lock
F26 –
F27 Left Trailer Stoplamp/ Turnlamp
F28 –
F29 –
F30 Washer Pump
F31 –
F32 Headlamp Left
F33 –
F34 Horn
F35 –
F36 –
F37 Headlamp Right
F38 Not Used/Spare Fuses
Usage
F39 Transmission Control Module 1
F40 Left Rear Bus Electrical Center/DC
DC Ignition
F41 Instrument Cluster
F42 Heating, Ventilation, and Air Conditioning/
Central Gateway
Module/Run/Crank
F43 Head-up Display/ Reflective Light
Auxiliary
F44 Electronic Brake Control Module
Electric Brake
Booster/Run/Crank
F45 –
F46 –
F47 –
F48 Rear Wiper 2

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
370 VEHICLE CARE
loading, either separately or in
combination, can cause heat
buildup and possible tire failure.
Wheel Alignment and Tire
Balance
The tires and wheels were aligned and
balanced at the factory to provide the
longest tire life and best overall
performance. Adjustments to wheel
alignment and tire balancing are not
necessary on a regular basis. Consider
an alignment check if there is unusual
tire wear or the vehicle is significantly
pulling to one side or the other. Some
slight pull to the left or right,
depending on the crown of the road
and/or other road surface variations
such as troughs or ruts, is normal.
If the vehicle is vibrating when driving
on a smooth road, the tires and
wheels may need to be rebalanced.
See your dealer for proper diagnosis.
Wheel Replacement
Replace any wheel that is bent,
cracked, or badly rusted or corroded.
If wheel nuts keep coming loose, the
wheel, wheel bolts, and wheel nutsshould be replaced. If the wheel leaks
air, replace it. Some aluminum wheels
can be repaired. See your dealer if any
of these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the same
load-carrying capacity, diameter,
width, offset, and be mounted the
same way as the one it replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor System
(TPMS) sensors with new GM original
equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air and cause
loss of control, resulting in a crash.
Always use the correct wheel, wheel
bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
If the vehicle has 265/45R21 size
tires, do not use tire chains. There
is not enough clearance. Tire chains
(Continued)

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

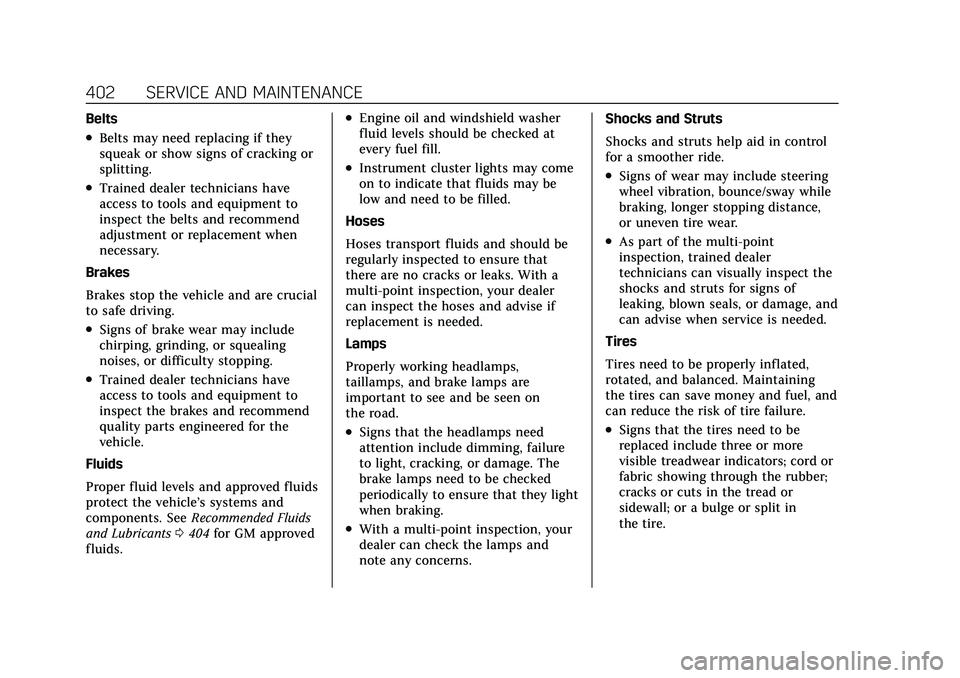

402 SERVICE AND MAINTENANCE
Belts
.Belts may need replacing if they
squeak or show signs of cracking or
splitting.
.Trained dealer technicians have
access to tools and equipment to
inspect the belts and recommend
adjustment or replacement when
necessary.
Brakes
Brakes stop the vehicle and are crucial
to safe driving.
.Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping.
.Trained dealer technicians have
access to tools and equipment to
inspect the brakes and recommend
quality parts engineered for the
vehicle.
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See Recommended Fluids
and Lubricants 0404 for GM approved
fluids.
.Engine oil and windshield washer
fluid levels should be checked at
every fuel fill.
.Instrument cluster lights may come
on to indicate that fluids may be
low and need to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that
there are no cracks or leaks. With a
multi-point inspection, your dealer
can inspect the hoses and advise if
replacement is needed.
Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage. The
brake lamps need to be checked
periodically to ensure that they light
when braking.
.With a multi-point inspection, your
dealer can check the lamps and
note any concerns. Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
.Signs of wear may include steering
wheel vibration, bounce/sway while
braking, longer stopping distance,
or uneven tire wear.
.As part of the multi-point
inspection, trained dealer
technicians can visually inspect the
shocks and struts for signs of
leaking, blown seals, or damage, and
can advise when service is needed.
Tires
Tires need to be properly inflated,
rotated, and balanced. Maintaining
the tires can save money and fuel, and
can reduce the risk of tire failure.
.Signs that the tires need to be
replaced include three or more
visible treadwear indicators; cord or
fabric showing through the rubber;
cracks or cuts in the tread or
sidewall; or a bulge or split in
the tire.

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21
INDEX 435
AntennaMulti-band . . . . . . . . . . . . . . . . . . . . . . . . 156
Antilock Brake System (ABS) . . . . . . 244 Warning Light . . . . . . . . . . . . . . . . . . . . 118
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 389
Apple CarPlay and Android Auto . . . . . . . . . . . . . . . . . . . . . . 184
Assistance Systems for Driving . . . . 287
Assistance Systems for Parking and Backing . . . . . . . . . . . . . . . . . . . . . . . 278
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Auto Stop Stop/Start System . . . . . . . . . . . . . . . . 233
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . . . 32
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . 19
Emergency Braking (AEB) . . . . . . . . 290
Headlamp System . . . . . . . . . . . . . . . . 141
Parking Assist (APA) . . . . . . . . . . . . . 282
Transmission . . . . . . . . . . . . . . . . . . . . . . 238
Transmission Fluid . . . . . . . . . . . . . . . 328
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . . . . . 243
Avoiding Untrusted Media Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156B
BatteryExterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Power Protection . . . . . . . . . . . . . . . . . . 145
Battery - North America . . . . . .337, 379
Blade Replacement, Wiper . . . . . . . . . 338
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . 179, 180
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . 159
Brake
Electric Boost . . . . . . . . . . . . . . . . . . . . . 244
Parking, Electric . . . . . . . . . . . . . . . . . . 245
System Warning Light . . . . . . . . . . . . 117
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Automatic Emergency (AEB) . . . . . 290
Reverse Automatic . . . . . . . . . . . . . . . . 285
Braking System Front Pedestrian (FPB) . . . . . . . . . . . 291
Break-In, New Vehicle . . . . . . . . . . . . . . 230
Bulb Replacement
Headlamp Aiming . . . . . . . . . . . . . . . . 341
Buying New Tires . . . . . . . . . . . . . . . . . . . 367
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . 105
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 319
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . .337, 379, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . 278
Canadian Vehicle Owners . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . 409
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . 238
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Winter Driving . . . . . . . . . . . . . . . . . . . . 225
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Management System . . . . . . . . . . . . . . 97
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Caution, Danger, and Warning . . . . . . . . 2
Center Console Storage . . . . . . . . . . . . . . 93
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . 370
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Charging System Light . . . . . . . . . . . . . 115

Cadillac XT6 Owner Manual (GMNA-Localizing-U.S./Canada-15218998) -
2022 - CRC - 10/22/21

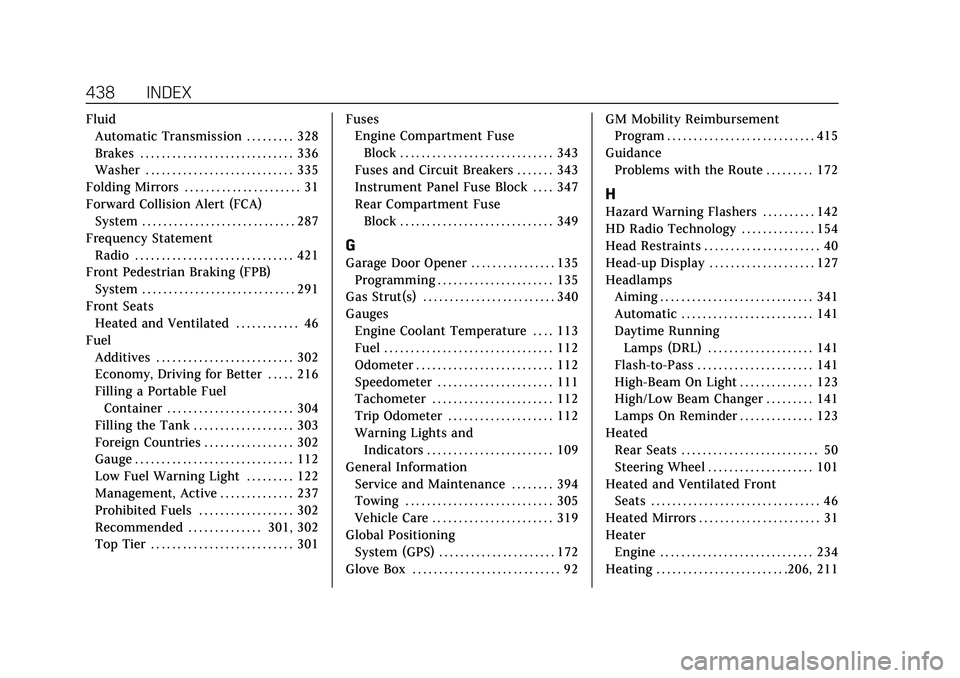

438 INDEX
FluidAutomatic Transmission . . . . . . . . . 328
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . 31
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 287
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 421
Front Pedestrian Braking (FPB) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Front Seats Heated and Ventilated . . . . . . . . . . . . 46
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . 302
Economy, Driving for Better . . . . . 216
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . . . . . . 304
Filling the Tank . . . . . . . . . . . . . . . . . . . 303
Foreign Countries . . . . . . . . . . . . . . . . . 302
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Low Fuel Warning Light . . . . . . . . . 122
Management, Active . . . . . . . . . . . . . . 237
Prohibited Fuels . . . . . . . . . . . . . . . . . . 302
Recommended . . . . . . . . . . . . . . 301, 302
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . 301 Fuses
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 343
Fuses and Circuit Breakers . . . . . . . 343
Instrument Panel Fuse Block . . . . 347
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
G
Garage Door Opener . . . . . . . . . . . . . . . . 135
Programming . . . . . . . . . . . . . . . . . . . . . . 135
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 340
Gauges
Engine Coolant Temperature . . . . 113
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Speedometer . . . . . . . . . . . . . . . . . . . . . . 111
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 112
Trip Odometer . . . . . . . . . . . . . . . . . . . . 112
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 109
General Information Service and Maintenance . . . . . . . . 394
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 305
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 319
Global Positioning
System (GPS) . . . . . . . . . . . . . . . . . . . . . . 172
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415
Guidance Problems with the Route . . . . . . . . . 172
H
Hazard Warning Flashers . . . . . . . . . . 142
HD Radio Technology . . . . . . . . . . . . . . 154
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 40
Head-up Display . . . . . . . . . . . . . . . . . . . . 127
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 141
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . . . . . 141
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 141
High-Beam On Light . . . . . . . . . . . . . . 123
High/Low Beam Changer . . . . . . . . . 141
Lamps On Reminder . . . . . . . . . . . . . . 123
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Steering Wheel . . . . . . . . . . . . . . . . . . . . 101
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 31
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Heating . . . . . . . . . . . . . . . . . . . . . . . . .206, 211
