296 VEHICLE CARE
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 297
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 297
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 297
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 298
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 300
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 303
Engine Oil Life System . . . . . . . . . . . 305
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
Engine Air Filter Life System . . . . 306
Engine Air Cleaner/Filter . . . . . . . . . 307
Cooling System . . . . . . . . . . . . . . . . . . . 308
Engine Overheating . . . . . . . . . . . . . . 312
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 313
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 315
Battery - North America . . . . . . . . . 316
All-Wheel Drive . . . . . . . . . . . . . . . . . . 316
Park Brake and P (Park) Mechanism Check . . . . . . . . . . . . . . 316 Wiper Blade Replacement . . . . . . . 317
Windshield Replacement . . . . . . . . 318
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 318
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . 319
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . . . . . 319
LED Lighting . . . . . . . . . . . . . . . . . . . . . 319
Electrical System
Electrical System Overload . . . . . . 319
Fuses and Circuit Breakers . . . . . . 321
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 322
Instrument Panel Fuse Block . . . . 325
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 328
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
All-Season Tires . . . . . . . . . . . . . . . . . . 331
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 331
Summer Tires . . . . . . . . . . . . . . . . . . . . 331
Tire Sidewall Labeling . . . . . . . . . . . 332
Tire Designations . . . . . . . . . . . . . . . . . 334
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . . . . . 334
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 337
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 338 Tire Pressure Monitor System . . . 339
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . . . . . . . . 340
Tire Inspection . . . . . . . . . . . . . . . . . . . 343
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 344
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Buying New Tires . . . . . . . . . . . . . . . . 346
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 347
Uniform Tire Quality Grading . . . 347
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Wheel Replacement . . . . . . . . . . . . . . 349
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 349
If a Tire Goes Flat . . . . . . . . . . . . . . . . 350
Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 352
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 357
Tire Changing . . . . . . . . . . . . . . . . . . . . . 358
Compact Spare Tire . . . . . . . . . . . . . . 363
Jump Starting
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . . . 364
Towing the Vehicle
Towing the Vehicle . . . . . . . . . . . . . . . 366
Recreational Vehicle Towing . . . . 368

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
VEHICLE CARE 301
1.Engine Air Cleaner/Filter 0307.
2. Engine Oil Fill Cap. See Engine Oil
0 303.
3. Engine Oil Dipstick. See Engine Oil
0 303.
4. Engine Cooling Fan (Out of View). See Cooling System 0308.
5. Brake Fluid Reservoir. See Brake
Fluid 0315.
6. Battery - North America 0316.
7. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 308.
8. Positive (+) Battery Terminal (Under Cover). See Jump Starting -
North America 0364.
9. Windshield Washer Fluid Reservoir. See Washer Fluid 0313.
10. Engine Compartment Fuse Block
0322.
11. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0364.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
302 VEHICLE CARE

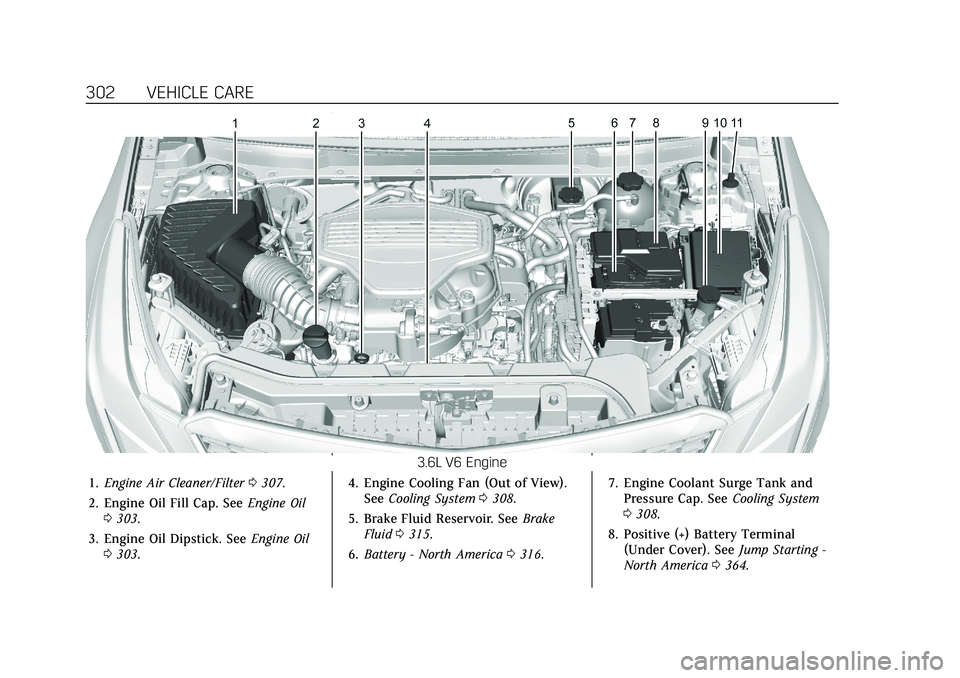

3.6L V6 Engine
1. Engine Air Cleaner/Filter 0307.
2. Engine Oil Fill Cap. See Engine Oil
0 303.
3. Engine Oil Dipstick. See Engine Oil
0 303. 4. Engine Cooling Fan (Out of View).
See Cooling System 0308.
5. Brake Fluid Reservoir. See Brake
Fluid 0315.
6. Battery - North America 0316. 7. Engine Coolant Surge Tank and
Pressure Cap. See Cooling System
0 308.
8. Positive (+) Battery Terminal (Under Cover). See Jump Starting -
North America 0364.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
VEHICLE CARE 303
9. Windshield Washer Fluid Reservoir.See Washer Fluid 0313.
10. Engine Compartment Fuse Block
0322.
11. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0364.
Engine Oil
To ensure proper engine performance
and long life, careful attention must
be paid to engine oil. Following these
simple, but important steps will help
protect your investment:
.Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil” in
this section.
.Check the engine oil level regularly
and maintain the proper oil level.
See “Checking Engine Oil” and
“When to Add Engine Oil” in this
section.
.Change the engine oil at the
appropriate time. See Engine Oil Life
System 0305.
.Always dispose of engine oil
properly. See “What to Do with Used
Oil” in this section.
Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially prior
to a long trip. The engine oil dipstick
handle is a loop. See Engine
Compartment Overview 0300 for the
location.
{Warning
The engine oil dipstick handle may
be hot; it could burn you. Use a
towel or glove to touch the dipstick
handle.
If a low oil Driver Information Center
(DIC) message displays, check the oil
level.
Follow these guidelines:
.To get an accurate reading, park the
vehicle on level ground. Check the
engine oil level after the engine has
been off for at least two hours.
Checking the engine oil level on
steep grades or too soon after
engine shutoff can result in incorrect readings. Accuracy
improves when checking a cold
engine prior to starting. Remove the
dipstick and check the level.
.If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is warm,
or at least 30 minutes if the engine
is not warm. Pull out the dipstick,
wipe it with a clean paper towel or
cloth, then push it back in all the
way. Remove it again, keeping the
tip down, and check the level.
When to Add Engine Oil
2.0L L4 Engine
3.6L V6 Engine

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
316 VEHICLE CARE
Battery - North America
The original equipment battery is
maintenance free. Do not remove the
cap and do not add fluid.
Refer to the replacement number on
the original battery label when a new
battery is needed. For replacement of
the battery, see your dealer.
The vehicle has an Absorbed Glass
Mat (AGM) 12-volt battery.
Installation of a standard 12-volt
battery will result in reduced 12-volt
battery life.
When using a 12-volt battery charger
on the 12-volt AGM battery, some
chargers have an AGM battery setting
on the charger. If available, use the
AGM setting on the charger, to limit
charge voltage to 14.8 volts.
Stop/Start System
This vehicle has a Stop/Start system
to shut off the engine to help
conserve fuel. SeeStop/Start System
0 227.{Warning
WARNING: Battery posts,
terminals and related accessories
can expose you to chemicals
including lead and lead compounds,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See the warning on the back cover.
Vehicle Storage
{Warning
Batteries have acid that can burn
you and gas that can explode. You
can be badly hurt if you are not
careful. Always wear eye protection.
See Jump Starting - North America
0 364 for tips on working around a
battery without getting hurt.
Infrequent Usage: Remove the black,
negative (−) cable from the battery to
keep the battery from running down. Extended Storage: Remove the black,
negative (−) cable from the battery or
use a battery trickle charger.
All-Wheel Drive
Transfer Case
Under normal driving conditions,
transfer case fluid does not require
maintenance unless there is a fluid
leak or unusual noise. If required,
have the transfer case serviced by
your dealer.
Park Brake and P (Park)
Mechanism Check
{Warning
When you are doing this check, the
vehicle could begin to move. You or
others could be injured and
property could be damaged. Make
sure there is room in front of the
vehicle in case it begins to roll. Be
ready to apply the regular brake at
once should the vehicle begin
to move.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
364 VEHICLE CARE
When using a compact spare tire, the
AWD (if equipped), ABS, and Traction
Control systems may engage until the
spare tire is recognized by the vehicle,
especially on slippery roads. Adjust
driving to reduce possible wheel slip.
Caution
When the compact spare is
installed, do not take the vehicle
through an automatic car wash
with guide rails. The compact spare
can get caught on the rails which
can damage the tire, wheel, and
other parts of the vehicle.
Do not use the compact spare on
other vehicles.
Do not mix the compact spare tire or
wheel with other wheels or tires. They
will not fit. Keep the spare tire and its
wheel together.
Caution
Tire chains will not fit the compact
spare. Using them can damage the
vehicle and the chains. Do not use
tire chains on the compact spare.
Jump Starting
Jump Starting - North
America
For more information about the
vehicle battery, see Battery - North
America 0316.
If the battery has run down, try to use
another vehicle and some jumper
cables to start your vehicle. Be sure to
use the following steps to do it safely.
{Warning
WARNING: Battery posts,
terminals and related accessories
can expose you to chemicals
including lead and lead compounds,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See the warning on the back cover.
{Warning
Batteries can hurt you. They can be
dangerous because:
.They contain acid that can
burn you.
.They contain gas that can
explode or ignite.
.They contain enough electricity
to burn you.
If you do not follow these steps
exactly, some or all of these things
can hurt you.
Caution
Ignoring these steps could result in
costly damage to the vehicle that
would not be covered by the vehicle
warranty. Trying to start the vehicle
by pushing or pulling it will not
work, and it could damage the
vehicle.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
VEHICLE CARE 365
3.6L V6 Shown, 2.0L L4 Similar
1. Discharged Battery Positive (+)Terminal
2. Discharged Battery Negative (–) Grounding Point
3. Good Battery Negative (–) Terminal
4. Good Battery Positive (+) Terminal
The discharged battery positive (+)
terminal and the discharged battery
negative (–) grounding point are on
the driver side of the vehicle. The good battery negative (–) terminal
and the good battery positive (+)
terminal are on the battery of the
vehicle providing the jump start.
The discharged battery positive (+)
terminal is under a cover. Remove the
cover to expose the terminal.
1. Check the other vehicle. It must have a 12-volt battery with a
negative ground system.
Caution
If the other vehicle does not have a
12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the transmission in P (Park).
See Shifting Into Park 0230.
Caution
If any accessories are left on or
plugged in during the jump starting
procedure, they could be damaged.
The repairs would not be covered
by the vehicle warranty. Whenever
possible, turn off or unplug all
accessories on either vehicle when
jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both
vehicles, except the hazard warning
flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running and
can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.

Cadillac XT5 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15227431) - 2022 - CRC - 8/11/21
366 VEHICLE CARE
{Warning
Using a match near a battery can
cause battery gas to explode. People
have been hurt doing this, and
some have been blinded. Use a
flashlight if you need more light.
Battery fluid contains acid that can
burn you. Do not get it on you.
If you accidentally get it in your
eyes or on your skin, flush the place
with water and get medical help
immediately.
{Warning
Fans or other moving engine parts
can injure you badly. Keep your
hands away from moving parts
once the engine is running.
5. Connect one end of the red positive (+) cable to the discharged
battery positive (+) terminal.
6. Connect the other end of the red positive (+) cable to the good
battery positive (+) terminal. 7. Connect one end of the black
negative (–) cable to the good
battery negative (–) terminal.
8. Connect the other end of the black negative (–) cable to the discharged
battery negative (–) grounding
point.
9. Start the engine in the vehicle with the good battery and run the
engine at idle speed for at least
four minutes.
10. Try to start the vehicle that had the dead battery. If it will not start
after a few tries, it probably needs
service.Caution
If the jumper cables are connected
or removed in the wrong order,
electrical shorting may occur and
damage the vehicle. The repairs
would not be covered by the vehicle
warranty. Always connect and
remove the jumper cables in the
correct order, making sure that the
cables do not touch each other or
other metal. Jumper Cable Removal
Reverse the sequence exactly when
removing the jumper cables.
After starting the disabled vehicle and
removing the jumper cables, allow it
to idle for several minutes.
Towing the Vehicle
Caution
Incorrectly transporting a disabled
vehicle may cause damage to the
vehicle. Use proper tire straps to
secure the vehicle to the flatbed
tow truck. Do not strap or hook to
any frame, underbody,
or suspension component not
specified below. Do not move
vehicles with drive axle tires on the
ground. Damage is not covered by
the vehicle warranty.
Caution
The vehicle may be equipped with
an electric parking brake and/or an
electronic shifter. In the event of a
(Continued)
