2022 CADILLAC XT4 fuse

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 309
{Warning
Installation or use of fuses that do
not meet GM’s original fuse
specifications is dangerous. The
fuses could fail, and result in a fire.
You or others could be injured or
killed, and the vehicle could be
damaged.
See Accessories and Modifications
0 286 and
General Information 0286.
To check or replace a blown fuse, see
Electrical System Overload 0307.

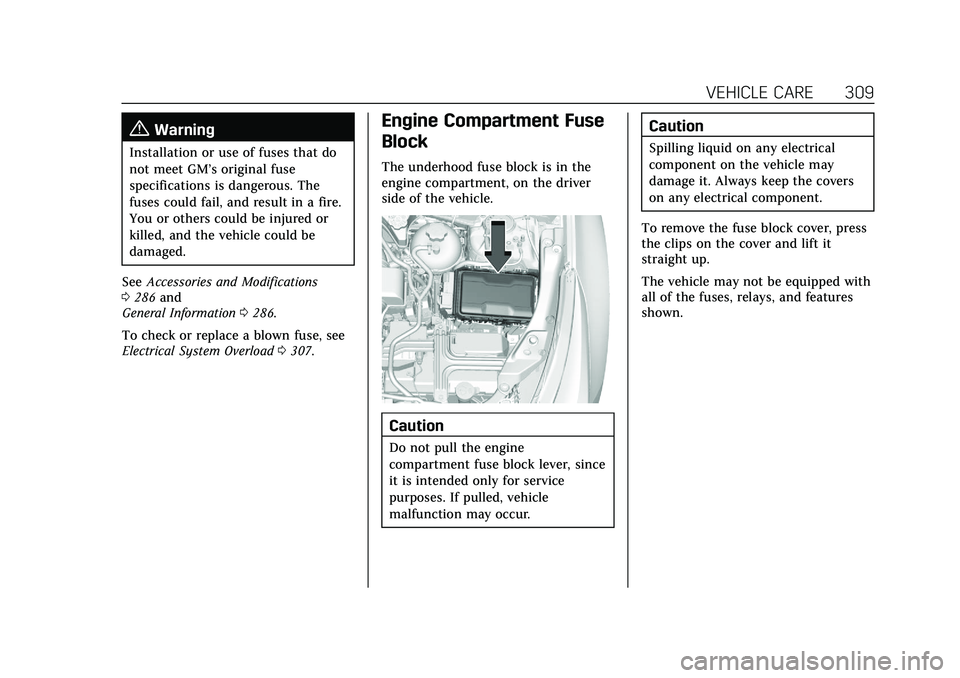

Engine Compartment Fuse
Block
The underhood fuse block is in the
engine compartment, on the driver
side of the vehicle.
Caution
Do not pull the engine
compartment fuse block lever, since
it is intended only for service
purposes. If pulled, vehicle
malfunction may occur.
Caution
Spilling liquid on any electrical
component on the vehicle may
damage it. Always keep the covers
on any electrical component.
To remove the fuse block cover, press
the clips on the cover and lift it
straight up.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
310 VEHICLE CARE
FusesUsage
3 EBCM –Electronic
Brake Control Module Fuses
Usage
5 Trailer Brake –
Not Used Fuses
Usage
6 REAR CLOSR –Spare
7 TRLR ST/TRN LT –
Left Trailer Stop/
Turn Lamp
–
8 MSM –Memory Seat
Module –Driver and
Passenger
9 PFAF –Not Used
10 SADS –Semi-active
Damping System/
Spare
–
11 DC DC BAT 1/2 –
Direct Current to
Direct Current
Converter 1
12 REAR DEFOG –Rear
Window Defogger
13 HTD MIR –Outside
Rear View Mirrors
Defogger
14 –

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 311
FusesUsage
15 PEPS –Passive Entry
Passive Start Module
16 FRT/WPR –Front
Wiper
17 PASS/PWR/SEAT –
Passenger Power Seat
–
18 LGM MTR –Power
Liftgate
19 DRVR/PWR/SEAT –
Driver Power Seat/
Memory Seat Module/
Driver Seat Massage
Control
21 S/ROOF –Power
Sunroof
–
22 –
23 TIM 2 –Not Used
26 TCM IGN –
Transmission Control
Module/Ignition Fuses
Usage
27 IP BODY IGN –Inside
Rear View Mirror –
Shifter Interface
Board Module Run/
Crank –Central
Gateway Module Run/
Crank –Heating
Ventilation and Air
Conditioning Control
Module Run/Crank
ignition 3
28 RR/WPR –Rear
Wiper
29 TRAILER IGN –
Not Used
30 MIL SS/TIM IGN –
Fuel Tank Zone
Module Run/Crank –
Direct Current to
Direct Current
Transformer Run/
Crank –Electronic
Brake Control Module
Run/Crank –
Instrument Panel
Cluster Run/Crank Fuses
Usage
32 RDCM 1 –Rear Drive
Control Module 1
–
33 FRT HTD ST 2/Spare –Front Heated Seat
Power 2/Spare
–
34 HANDSFREE/WDO SW–Liftgate
Module/Front
Window Switches
35 DEFC 2/NOT USED –
/Not Used
36 FUEL MODULE –Fuel
Tank Zone Module
39 MASGE –Driver Seat
Massage/Passenger
Seat Massage
–
40 STR/COL/LCK –Spare
41 –

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
312 VEHICLE CARE
FusesUsage
43 HTD/STR/WHL –
Heated Steering
Wheel/Spare
–
44 FRT HTD 1 & VENT ST–Front Heated
Seat Power Feed 1/
Front Vented Seats/
Rear Heated Seats/
Spare
–
46 ECM IGN –Engine
Control Module
Ignition
48 RDCM 2 –Rear Drive
Control Module 2/
Spare
–
49 HVAC BLOWR MTR –
Heating Ventilation
and Air Conditioning
Control Blower Motor
50 Spare
51 Spare Fuses
Usage
54 Spare
55 Spare
56 STRTR MTR –Starter
Motor
57 –
58 –
59 HDLP HI BEAM LT/ RT–High Beam
Headlamps
60 TIM 1 –Not Used
61 Spare
62 Spare
63 Spare
65 A/C CLUTCH –Air
Conditioning Clutch
67 Spare
68 Spare
69 –
70 TRLR PRK LAMP –
Trailer Park Lamp
– Fuses
Usage
72 STRTR PINION –
Starter Pinion
75 ECM MAIN –Engine
Control Module Main
76 PT OFF ENG –
Powertrain Off Engine
– Engine Control
Module Power Train
Ignition 1
78 Horn
79 WASH PMP –Front
and Rear
Washer Pump
81 TCM/ECM/COOL PUMP–Engine
Control Module
Battery/Spare
82 NOx SNSR –
Not Used
83 IGN COIL –Ignition
Coils

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 313
FusesUsage
84 PT ON ENG –
Canister Purge
Solenoid/Step Cam
Exhaust Solenoid
Cylinder 2 and 3/
Step Cam Intake
Cylinder Solenoids/
Turbo Bypass
Solenoid/Oxygen
Sensor (Pre)/O2
Heater/Oxygen
Heated Sensor/Mass
Airflow/Inlet Air
Temperature/Throttle
Inlet Absolute
Pressure/Coolant Flow
Control Valve
85 Shunt
86 Shunt
87 DIESEL FUEL HTR 1 –
Not Used
88 AERO SH –
Aeroshutter
–
89 SCR MODULE –
Not Used Fuses
Usage
92 TRLR ST/TRN RT –
Spare
93 AHL/CVS –Canister
Vent Solenoid
95 SMART SENSORS –
Not Used
96 DIESEL FUEL HTR 2 –
Not Used
99 –
Relays Usage
20 REAR DEFOG –Rear
Defogger/Outside Rear
View Mirrors Defogger
25 FRT WPR CNTRL –
Front Wiper Control
31 RUN/CRNK –Run/
Crank
37 FRT WPR SPD –
Front Wiper Speed
42 –
64 STRTR MTR –Starter
Motor Relays
Usage
66 PWRTRN –
Powertrain
71 TRLR PRK LAMP –
Trailer Park Lamps
–
73 A/C CNTRL –Air
Conditioning Controls
80 STRTR PINION –
Starter Pinion
90 PWRTRN SNSR –
Not Used
94 DEFC –Not Used
98 DIESEL FUEL HTR –
Not Used

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
314 VEHICLE CARE
Instrument Panel Fuse
Block
The instrument panel fuse block is on
the driver side of the instrument
panel, between the steering wheel and
the door. To access the fuses, remove
the panel, starting at the top. Once
clips are disengaged, the tabs along
the bottom of the door can be
disengaged from the instrument panel
to remove the door.To reinstall the door, place the bottom
tabs into the slots, and rotate the door
into position, engaging the clips.
The vehicle may not be equipped with
all of the fuses, relays, and features
shown.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
VEHICLE CARE 315
FusesUsage
F1 WNDW LT –Left
Power Window
F2 WNDW RT –Right
Power Window
F3 –
F4 DC-DC BAT 2/1 –Direct
Current to Direct
Current Converter 2 Fuses
Usage
F5 APO CARGO –
Auxiliary Power Outlet
– Cargo
F6 HTD SEAT BATT 1 –
Heated Seat Battery 1
–
F7 HTD SEAT BATT 2 –
Heated Seat Battery 2
– Fuses
Usage
F8 BCM 3 –Body Control
Module 3 –LED
Headlamp Low Beam
Right Control Signal,
Right Front Turn Lamp
Control Signal, Left
Front Side Marker and
Auxiliary Park, Left
Rear Tail/Side Marker
Control Signal, Left
Daytime Running
Lamps Control Signal
F9 ELEC PRK/BRK –
Electric Park Brake

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
15440907) - 2022 - CRC - 12/17/21
316 VEHICLE CARE
FusesUsage
F10 BCM 2 SS –Body
Control Module 2
(Stop/Start) –Interior
Lamps Control Signal,
Door Handle Puddle
Lamp (LED), Left
Cornering Lamp, Right
Cornering Lamp,
Interior Lamps Control
Signal, Backup Lamp
Supply Voltage, License
Plate Lamp Control
Signal, Rear Closure
Cargo Lamp Control
Signal, Center High
Mounted Stop Lamp
LED Lamp Control
Signal
F11 –
F12 –
F13 –
F14 –
F15 TCM SS –Transmission
Control Module (Stop/
Start)
F16 AMP –Amplifier Fuses
Usage
F17 –
F18 VPM –Video
Processing Module
–
F19 PWR STR COL –Power
Steering Column
–
F20 BCM 6 –Body Control
Module 6 –LED
Backlight Control,
Interior Lighting
Inadvertent Load
Control Signal, Fuel
Door Lock Control
Signal, LED Backlight
Control Signal Fuses
Usage
F21 BCM 4 –Body Control
Module 4 –LED
Headlamp Low Beam
Left Control Signal,
Right Front Side
Marker and Auxiliary
Park, Right Rear Tail/
Side Marker Control
Signal, Left Rear Stop
Lamp Control Signal,
Left Rear Stop/Turn
Lamp Control Signal,
Right DRL Control
Signal
F22 BCM 7 –Body Control
Module 7 –Right Rear
Stop Lamp Control
Signal, Right Rear Stop/
Turn Lamp Control
Signal, Left Front Turn
Lamp Control Signal,
Right Rear Turn
Control Signal
F23 ESCL –Not Used
F24 Airbag
F25 DLC –Data Link
Connector
