2022 CADILLAC CT5 jump start

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
VEHICLE CARE 327
Vehicle Care
General Information
General Information . . . . . . . . . . . . . 328
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . . . . . 328
Accessories and Modifications . . . . . . . . . . . . . . . . . . . 328
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . . . . . . 329
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . . . . . . 331
Engine Oil . . . . . . . . . . . . . . . . . . . . . . . . . 336
Engine Oil Life System . . . . . . . . . . . 338
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 339
Manual Transmission Fluid . . . . . 339
Hydraulic Clutch . . . . . . . . . . . . . . . . . 340
Engine Air Filter Life System . . . . 340
Engine Air Cleaner/Filter . . . . . . . . . 341
Cooling System . . . . . . . . . . . . . . . . . . . 343
Engine Overheating . . . . . . . . . . . . . . 347
Washer Fluid . . . . . . . . . . . . . . . . . . . . . 348
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 349
Brake Pad Life System (If Equipped) . . . . . . . . . . . . . . . . . . . . . . . 351
Brake Fluid . . . . . . . . . . . . . . . . . . . . . . . 352 Battery - North America . . . . . . . . . 353
All-Wheel Drive . . . . . . . . . . . . . . . . . . 354
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . . . . . 354
Wiper Blade Replacement . . . . . . . 355
Windshield Replacement . . . . . . . . 355
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . 356
Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . 357
Bulb Replacement
LED Lighting . . . . . . . . . . . . . . . . . . . . . 357
Electrical System
Electrical System Overload . . . . . . 357
Fuses and Circuit Breakers . . . . . . 359
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360
Instrument Panel Fuse Block . . . . 362
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367
All-Season Tires . . . . . . . . . . . . . . . . . . 367
Winter Tires . . . . . . . . . . . . . . . . . . . . . . 368
Run-Flat Tires . . . . . . . . . . . . . . . . . . . . 368
Self-Sealing Tires . . . . . . . . . . . . . . . . . 369
Low-Profile Tires . . . . . . . . . . . . . . . . . 369
Summer Tires . . . . . . . . . . . . . . . . . . . . 369
Tire Sidewall Labeling . . . . . . . . . . . 370 Tire Designations . . . . . . . . . . . . . . . . . 371
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . . . . . 372
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 374
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . . . . . . 375
Tire Pressure Monitor System . . . 376
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . . . . . . . 377
Tire Inspection . . . . . . . . . . . . . . . . . . . 380
Tire Rotation . . . . . . . . . . . . . . . . . . . . . 380
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 382
Buying New Tires . . . . . . . . . . . . . . . . 382
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . 384
Uniform Tire Quality Grading . . . 384
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 385
Wheel Replacement . . . . . . . . . . . . . . 386
Tire Chains . . . . . . . . . . . . . . . . . . . . . . . 386
If a Tire Goes Flat . . . . . . . . . . . . . . . . 387
Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 388
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . . . 394
Jump Starting
Jump Starting - NorthAmerica . . . . . . . . . . . . . . . . . . . . . . . . . 394

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
332 VEHICLE CARE
1. Windshield Washer Fluid Reservoir.See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Air Cleaner/Filter 0341.
4. Engine Cooling Fan (Out of View). See Cooling System 0343.
5. Engine Oil Fill Cap. See Engine Oil
0 336.
6. Engine Oil Dipstick. See Engine Oil
0 336.
7. Remote Positive (+) Battery Terminal. See Jump Starting - North
America 0394.
8. Brake Fluid Reservoir. See Brake
Fluid 0352.
9. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0394.
10. Engine Compartment Fuse Block
0360.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
334 VEHICLE CARE
1. Windshield Washer Fluid Reservoir.See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Oil Dipstick. See Engine Oil
0 336.
4. Engine Air Cleaner/Filter 0341.
5. Engine Cooling Fan (Out of View). See Cooling System 0343.
6. Engine Oil Fill Cap. See Engine Oil
0 336.
7. Remote Positive (+) Battery Terminal. See Jump Starting - North
America 0394.
8. Brake Fluid Reservoir. See Brake
Fluid 0352.
9. Remote Negative (-) Battery Terminal. See Jump Starting - North
America 0394.
10. Engine Compartment Fuse Block
0360.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
VEHICLE CARE 335
6.2L V8 Engine
1. Windshield Washer Fluid Reservoir. See Washer Fluid 0348.
2. Engine Coolant Surge Tank and Pressure Cap. See Cooling System
0 343.
3. Engine Air Cleaner/Filter 0341. 4. Engine Oil Dipstick. See
Engine Oil
0 336.
5. Engine Cooling Fan (Out of View). See Cooling System 0343.
6. Engine Oil Fill Cap. See Engine Oil
0 336. 7. Remote Positive (+) Battery
Terminal. See Jump Starting - North
America 0394.
8. Brake/Clutch Fluid Reservoir. See Brake Fluid 0352.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
336 VEHICLE CARE
9. Remote Negative (-) BatteryTerminal. See Jump Starting - North
America 0394.
10. Engine Compartment Fuse Block
0360.
Engine Oil
To ensure proper engine performance
and long life, careful attention must
be paid to engine oil. Following these
simple, but important steps will help
protect your investment:
.Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“Selecting the Right Engine Oil” in
this section.
.Check the engine oil level regularly
and maintain the proper oil level.
See “Checking Engine Oil” and
“When to Add Engine Oil” in this
section.
.Change the engine oil at the
appropriate time. See Engine Oil Life
System 0338.
.Always dispose of engine oil
properly. See “What to Do with Used
Oil” in this section.
Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially prior
to a long trip. The engine oil dipstick
handle is a loop. See Engine
Compartment Overview 0331 for the
location.
{Warning
The engine oil dipstick handle may
be hot; it could burn you. Use a
towel or glove to touch the dipstick
handle.
If a low oil Driver Information Center
(DIC) message displays, check the oil
level.
Follow these guidelines:
.To get an accurate reading, park the
vehicle on level ground. Check the
engine oil level after the engine has
been off for at least two hours.
Checking the engine oil level on
steep grades or too soon after
engine shutoff can result in
incorrect readings. Accuracy improves when checking a cold
engine prior to starting. Remove the
dipstick and check the level.
.If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is warm,
or at least 30 minutes if the engine
is not warm. Pull out the dipstick,
wipe it with a clean paper towel or
cloth, then push it back in all the
way. Remove it again, keeping the
tip down, and check the level.
When to Add Engine Oil
2.0L L4 Turbo (LSY) Engine
3.0L V6 Twin Turbo (LGY) and 6.2L V8
(LT4) Engines

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
354 VEHICLE CARE
The vehicle has an Absorbed Glass
Mat (AGM) 12-volt battery.
Installation of a standard 12-volt
battery will result in reduced 12-volt
battery life.
When using a 12-volt battery charger
on the 12-volt AGM battery, some
chargers have an AGM battery setting
on the charger. If available, use the
AGM setting on the charger, to limit
charge voltage to 14.8 volts. Follow
the charger manufacturer's
instructions.
For replacement of the battery, see
your dealer.
Stop/Start System
This vehicle has a Stop/Start system
to shut off the engine to help
conserve fuel. SeeStop/Start System
0 241.
{Warning
WARNING: Battery posts,
terminals and related accessories
can expose you to chemicals
including lead and lead compounds,
which are known to the State of (Continued)
Warning (Continued)
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See the warning on the back cover.
Vehicle Storage
{Warning
Batteries have acid that can burn
you and gas that can explode. You
can be badly hurt if you are not
careful. See Jump Starting - North
America 0394 for tips on working
around a battery without
getting hurt.
Infrequent Usage: Remove the black,
negative (−) cable from the battery to
keep the battery from running down.
Extended Storage: Remove the black,
negative (−) cable from the battery or
use a battery trickle charger.
All-Wheel Drive
If the vehicle is equipped with
All-Wheel-Drive (AWD), this is an
additional system that needs
lubrication.
Transfer Case
Under normal driving conditions,
transfer case fluid does not require
maintenance unless there is a fluid
leak or unusual noise. If required,
have the transfer case serviced by
your dealer.
Park Brake and P (Park)
Mechanism Check
{Warning
When you are doing this check, the
vehicle could begin to move. You or
others could be injured and
property could be damaged. Make
sure there is room in front of the
vehicle in case it begins to roll. Be
ready to apply the regular brake at
once should the vehicle begin
to move.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21

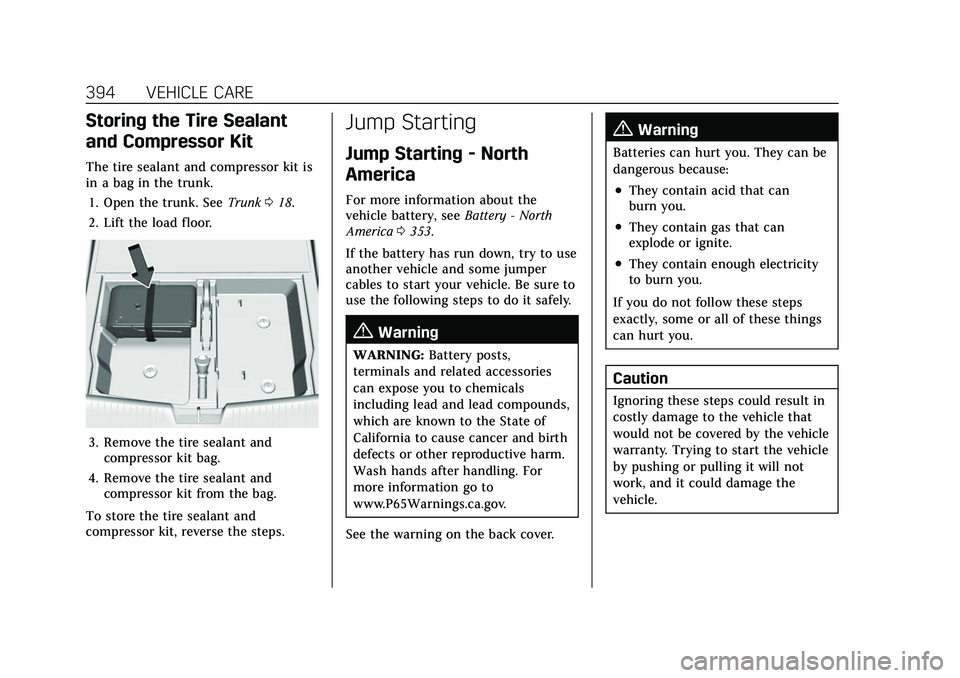

394 VEHICLE CARE
Storing the Tire Sealant
and Compressor Kit
The tire sealant and compressor kit is
in a bag in the trunk.1. Open the trunk. See Trunk018.
2. Lift the load floor.
3. Remove the tire sealant and compressor kit bag.
4. Remove the tire sealant and compressor kit from the bag.
To store the tire sealant and
compressor kit, reverse the steps.
Jump Starting
Jump Starting - North
America
For more information about the
vehicle battery, see Battery - North
America 0353.
If the battery has run down, try to use
another vehicle and some jumper
cables to start your vehicle. Be sure to
use the following steps to do it safely.
{Warning
WARNING: Battery posts,
terminals and related accessories
can expose you to chemicals
including lead and lead compounds,
which are known to the State of
California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling. For
more information go to
www.P65Warnings.ca.gov.
See the warning on the back cover.
{Warning
Batteries can hurt you. They can be
dangerous because:
.They contain acid that can
burn you.
.They contain gas that can
explode or ignite.
.They contain enough electricity
to burn you.
If you do not follow these steps
exactly, some or all of these things
can hurt you.
Caution
Ignoring these steps could result in
costly damage to the vehicle that
would not be covered by the vehicle
warranty. Trying to start the vehicle
by pushing or pulling it will not
work, and it could damage the
vehicle.

Cadillac CT5 Owner Manual (GMNA-Localizing-U.S./Canada-15268585) -
2022 - CRC - 10/11/21
VEHICLE CARE 395
1. Discharged Battery RemotePositive Terminal
2. Discharged Battery Negative Grounding Point
3. Good Battery Negative Terminal
4. Good Battery Positive Terminal
The jump start positive terminal (4)
and negative post (3) are on the
battery of the vehicle providing the
jump start.
The jump start remote positive
terminal (1) and the remote negative
grounding point (2) for the discharged
battery are on the passenger side of
the vehicle. The positive jump start connection for
the discharged battery is under a
cover. Lift the cover to expose the
terminal.
1. Check the other vehicle. It must have a 12-volt battery with a
negative ground system.
Caution
If the other vehicle does not have a
12-volt system with a negative
ground, both vehicles can be
damaged. Only use a vehicle that
has a 12-volt system with a
negative ground for jump starting.
2. Position the two vehicles so that they are not touching.
3. Set the parking brake firmly and put the vehicle in P (Park) with an
automatic transmission, or Neutral
with a manual transmission.
Caution
If any accessories are left on or
plugged in during the jump starting
procedure, they could be damaged.
The repairs would not be covered
(Continued)
Caution (Continued)
by the vehicle warranty. Whenever
possible, turn off or unplug all
accessories on either vehicle when
jump starting.
4. Turn the ignition off. Turn off all lights and accessories in both
vehicles, except the hazard warning
flashers if needed.
{Warning
An electric fan can start up even
when the engine is not running and
can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode. People
have been hurt doing this, and
some have been blinded. Use a
flashlight if you need more light.
(Continued)
