2022 ACURA TLX spark plugs replace

529

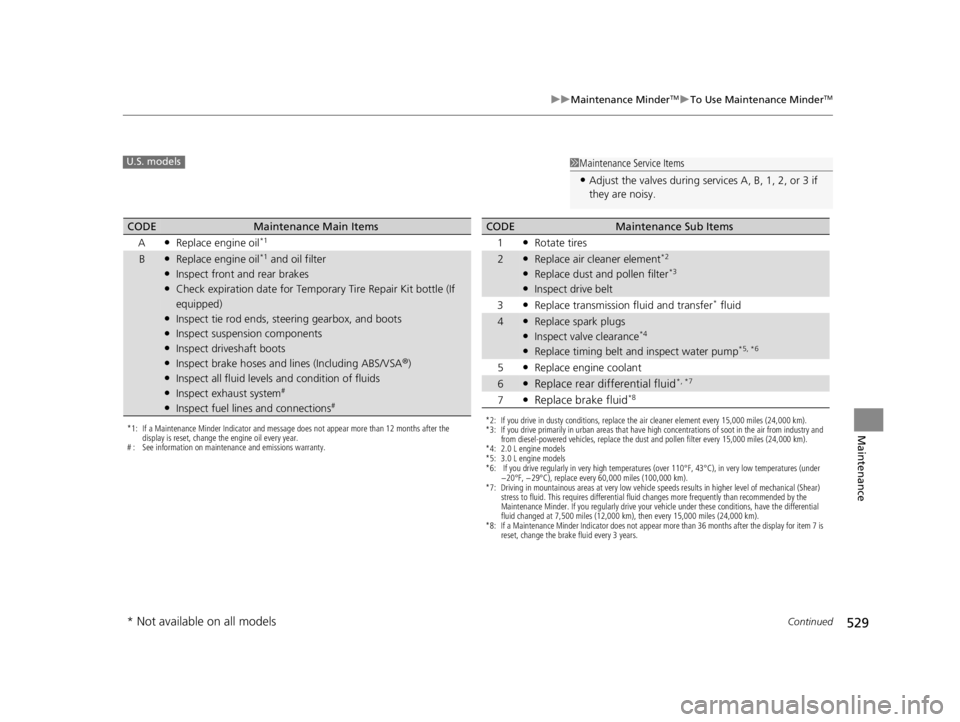

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
U.S. models
*1: If a Maintenance Minder Indicator and message does not appear more than 12 months after the
display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit bottle (If
equipped)
●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lin es (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: 2.0 L engine models
*5: 3.0 L engine models
*6: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under
−20°F, −29°C), replace every 60,000 miles (100,000 km).
*7: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the
Maintenance Minder. If you regularly drive your vehicle under these conditions, have the differential
fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*8: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer* fluid
4●Replace spark plugs●Inspect valve clearance*4
●Replace timing belt an d inspect water pump*5, *6
5●Replace engine coolant
6●Replace rear differential fluid*, *7
7●Replace brake fluid*8
* Not available on all models
22 ACURA TLX-31TGV6100.book 529 \b

530
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
1Maintenance Service Items
•Adjust the valves during services A, 0, 9, 1, 2, or 3
if they are noisy.
$BOBEJBO
NPEFMT
*1: If a Maintenance Minder Indicator and message does not appear more than 12 months after the
display is reset, change the engine oil every year.
*2: If you drive in dusty conditions, replace the air cleaner element every 24,000 km (15,000 miles).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 24,000 km (15,000 miles).
*4: 2.0 L engine models
*5: 3.0 L engine models
*6: If you drive regularly in very high temperatures (over 43°C, 110°F), in very low temperatures (under −29°C, −20°F), replace every 100,000 km (60,000 miles).
*7: Driving in mountainous areas at very low vehicle speeds results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than recommended by the
Maintenance Minder.
If you regularly drive your vehicle under these conditions, have the differential fluid changed at 12,000
km (7,500 miles), then every 24,000 km (15,000 miles).
*8: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
# : See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A
●Replace engine oil*1
0●Replace engine oil*1 and oil filter
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fl uid and transfer fluid
4●Replace spark plugs●Inspect valve clearance*4
●Replace timing belt an d inspect water pump*5, *6
5●Replace engine coolant
6●Replace rear differential fluid*7
7●Replace brake fluid*8
9●Service front and rear brakes●Check expiration date for Tempor ary Tire Repair Kit bottle (If
equipped)
●Inspect these items:
•Tie rod ends, steeri ng gearbox, and boots
•Suspension components
•Driveshaft boots
•Brake hoses and lines (including ABS/VSA®)
•All fluid levels and condition of fluids
•Exhaust system#
•Fuel lines and connections#
22 ACURA TLX-31TGV6100.book 530 \b

651
Index
Readiness Codes (Emissions Testing)...... 637
Rear Defogger/Heated Door Mirror
Button ..................................................... 161
Rear Seats ................................................. 178
Seat Heaters ........................................... 195
Rearview Mirror ....................................... 165
Refueling .................................................. 515
Fuel Gauge ............................................... 97
Gasoline ......................................... 515, 632
Low Fuel Indicator..................................... 87
Regulations .............................. 411, 558, 635
Remote Engine Start with Vehicle Feedback ................................................. 376
Remote Transmitter ................................. 128
Maintenance (Replacing) ......................... 568
Replacement Battery ............................................ 568, 569
Bulbs ...................................................... 550
Fuses ...................................... 620, 622, 623
Tires........................................................ 561
Wiper Blade Rubber ................................ 552
Reporting Safety Defects ......................... 636
Resetting a Trip Meter ............................. 102
Reverse Tilt Door Mirror .......................... 167
Road Departure Mitigation (RDM) ......... 471
On and Off ............................................. 473
S
Safe Driving ................................................ 31
Safety Labels .............................................. 76 Safety Message
............................................. 3
Safety Support .......................................... 111
Seat Belts ..................................................... 36
Adjusting the Shoulder Anchor .................. 40
Automatic Seat Belt Tensioners .................. 38
Checking ................................................... 42
Fastening ................................................... 39
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 69
Pregnant Women ...................................... 41
Reminder ................................................... 37
Warning Indicator ................................ 37, 87
Seat Heaters ...................................... 194, 195
Seat Ventilators ........................................ 194
Seats .......................................................... 168
Adjusting ................................................. 168
Front Seats .............................................. 168
Lumbar Support ...................................... 168
Rear Seats ............................................... 178
Seat Control Interface .............................. 170
Seat Heaters .................................... 194, 195
Ventilators ............................................... 194
Security System ......................................... 139
Immobilizer System Indicator ..................... 91
Security System Alarm Indicator ................. 91
Select Button ............................................ 382
Operation ................................................ 384
Selecting a Child Seat ................................. 65
Sequential Mode ...................................... 389
Sequential Mode Operation .................... 390
Setting the Clock ...................................... 118 SH-AWD
® (Super Handling-All Wheel
Drive
TM) ................................................... 408
Shift Button ........................................ 20, 382
Shift Position Indicator ...................... 83, 384
Shift Positions
Automatic Transmission .......................... 382
Shifting (Transmission) ....................... 20, 382
Shoulder Anchor ........................................ 40
Side Airbags ................................................ 54
Side Curtain Airbags .................................. 56
Siri Eyes Free ............................................. 267
SiriusXM ® Radio ........................................ 242
Snow Tires ................................................. 563
Spare Tire (Optional) ........................ 596, 633
Spark Plugs ............................................... 632
Specifications ............................................ 632
Specified Fuel ................................... 515, 632
Speed Limit Information ............................ 99
Speed/Distance Units ................................ 104
Speedometer .............................................. 97
Sport Gauge Settings ............................... 105
SRS Airbags (Airbags) ................................. 46
Starting Assist Brake Function ................. 404
Starting the Engine .................................. 374
Does Not Start......................................... 603
Engine Switch Buzzer .............................. 148
If the Battery Is Dead ............................... 606
Remote Engine Start................................ 376
Steering Wheel ......................................... 164
Adjusting ................................................ 164
Stopping ................................................... 494
22 ACURA TLX-31TGV6100.book 651 \b
