2022 ACURA NSX headlights

144
Controls
Adjusting the Mirrors
Interior Rearview Mirror
Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.
When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you, based
in inputs from the mirror sensor. This feature
is always active.
■Automatic Dimming Rearview Mirror
1Adjusting the Mirrors
Keep the inside and out side mirrors clean and
adjusted for best visibility.
Adjust the mirrors before you start driving. 2 Adjusting the Seat Positions P. 146
1Automatic Dimming Rearview Mirror
The auto dimming function cancels when the
transmission is in
(R.
22 ACURA NSX PMC-31T6N6500.book 144 ページ ２０２１年９月２８日　火曜日　午後４時７分

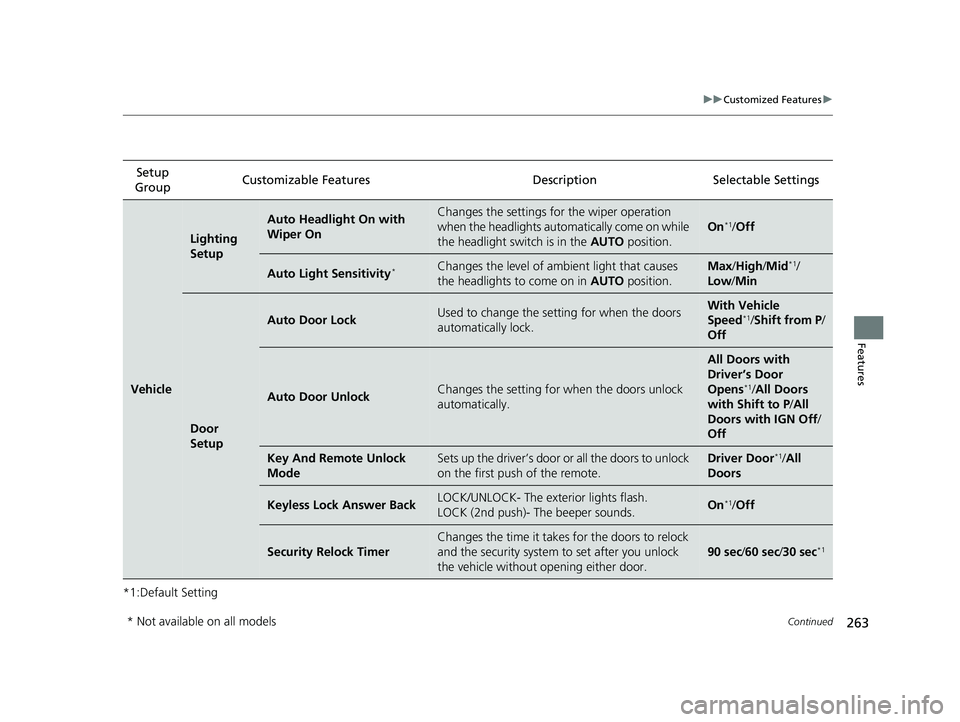

263
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Description Selectable Settings
Vehicle
Lighting
Setup
Auto Headlight On with
Wiper OnChanges the settings for the wiper operation
when the headlights automatically come on while
the headlight switch is in the
AUTO position.
On*1/Off
Auto Light Sensitivity*Changes the level of ambient light that causes
the headlights to come on in AUTO position.Max/High /Mid*1/
Low/ Min
Door
Setup
Auto Door LockUsed to change the sett ing for when the doors
automatically lock.With Vehicle
Speed*1/ Shift from P /
Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors with
Driver’s Door
Opens
*1/ All Doors
with Shift to P /All
Doors with IGN Off /
Off
Key And Remote Unlock
ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door*1/ All
Doors
Keyless Lock Answer BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening either door.
90 sec /60 sec /30 sec*1
* Not available on all models
22 ACURA NSX PMC-31T6N6500.book 263 ページ ２０２１年９月２８日　火曜日　午後４時７分

401
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura NSX dealer inspect and replace
the light assembly.
Front Turn Signal/Parking Lights
Front turn signal/parking lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Front Side Marker Lights
Front side marker lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights
Door mirror side turn lights are LED type . Have an authorized Acura NSX dealer
inspect and replace the light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura NSX dealer inspect
and replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at an authorized Acura NS X dealer or by a qualified
technician.
22 ACURA NSX PMC-31T6N6500.book 401 ページ ２０２１年９月２８日　火曜日　午後４時７分

464
uuFuses uInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the hood.
u If the fuse is blown, use a Phillips-head
screwdriver to remo ve the screw and
replace it with a new one.
4. Inspect the small fuses in the hood and the
vehicle interior.
u If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Use the charts to locate the fuse in question and
confirm the specified amperage on the fuse labelM 2 Fuse Locations P. 460
Replace a fuse with a spare fuse of the same specified
amperage.
There is a fuse puller on the back of the hood fuse
box A cover.
Combined
Fuse Blown Fuse
Fuse Puller
22 ACURA NSX PMC-31T6N6500.book 464 ページ ２０２１年９月２８日　火曜日　午後４時７分

470
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura NSX
No. of Passengers:
Front 2
Rear 0
Total 2
Weights:Gross Vehicle Weight
RatingSee the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 14.3 - 16.0 oz (405 - 455 g)
Lubricant TypeND-OIL 11
Quantity 6.1 - 7.0 cu-in (100 - 115 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement213 cu-in (3,493 cm3)
Spark Plugs NGK SILZKAR8F7S
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 15.6 US gal (59.0 L)
Tank Capacity2.6 US qt (2.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking LightsLED
Front Side Marker Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Daytime Running Lights LED
Rear Turn Signal LightsLED
Brake/Taillights LED
Rear Side Marker LightsLED
Taillights LED
Back-Up LightsLED
Rear License Plate Lights LED
High-Mount Brake LightLEDInterior LightsMap LightsLEDAmbient LightsLEDDoor Courtesy LightsLEDGlove Box LightLEDTrunk LightLED
22 ACURA NSX PMC-31T6N6500.book 470 ページ ２０２１年９月２８日　火曜日　午後４時７分

483
Index
Maintenance (Checking the 12-Volt Battery) ................................................. 417
Maintenance (Replacing) ......................... 418
Battery Types .............................................. 14
Belts (Seat) .................................................. 38
Beverage Holders ..................................... 153
Bluetooth ® Audio ..................................... 211
Bluetooth ® HandsFreeLink ®................... 269
Booster Seats (For Children) ...................... 69
Brake System ............................................ 355
Anti-lock Brake System (ABS) .................. 360
Automatic Brake Hold ............................. 358
Brake Assist System................................. 361
Fluid ....................................................... 400
Foot Brake .............................................. 357
Parking Brake.......................................... 355
Brake System (Amber)
Indicator ................................................... 77
Brake System (Red)
Indicator ........................................... 74, 455
Brake Wear Indicator ................................................... 78
Bulb Replacement .................................... 401
Back-Up Lights ........................................ 402
Daytime Running Lights .......................... 401
Front Side Marker Lights ......................... 401
Front Turn Signal/Parking Lights .............. 401
Headlights .............................................. 401
High-Mount Brake Light.......................... 403
Rear License Plate Lights ......................... 403
Rear Side Marker Lights .......................... 402 Rear Turn Signal Lights ............................ 402
Side Turn Signal/Em
ergency Indicator
Lights .................................................... 401
Taillights .................................................. 402
Bulb Specifications ................................... 470
C
Carbon Monoxide Gas ................................ 70
Carrying Cargo .................................. 309, 311
Certification Label .................................... 472
Changing Bulbs ......................................... 401
Charging System Indicator ................. 79, 454
Child Safety ................................................. 61
Emergency Hatch Opener ........................ 124
Child Seat .................................................... 61
Booster Seats ............................................. 69
Child Seat for Infants ................................. 63
Child Seat for Small Children ..................... 64
Installing a Child Seat ................................ 66
Larger Children .......................................... 68
Selecting a Forward-facing Child Seat ........ 65
Using a Tether ........................................... 67
Cleaning the Exterior ............................... 422
Cleaning the Interior ................................ 420
Client Service Information ....................... 481
Climate Control System ............................ 156
Defrosting the Windshield and Windows ............................................... 158
Dust and Pollen Filters ............................. 419
Recirculation/Fresh Air Mode ................... 157 Sensors ................................................... 160
Using Automatic Climate Control ............ 156
Clock .......................................................... 108
Cold Weather ........................................... 416
Console Compartment ............................. 152
Controls ..................................................... 107
Coolant (Engine) ...................................... 396
Adding the Coolant................................. 397
Checking the Coolant ............................. 396
Overheating ............................................ 452
Coolant (Inverter) ..................................... 398
Creeping (Dual Clutch Transmission) ...... 323
Cruise Control ........................................... 341
CRUISE CONTROL Indicator ....................... 86
CRUISE MAIN Indicator .............................. 86
Cup Holders .............................................. 153
Customized Features ................................ 243
D
Daytime Running Lights .......................... 137
Dead Battery (12-Volt) ............................. 450
Defrosting the Windshield and Windows ................................................. 158
Devices that Emit Radio Waves ............... 473
Dimming Headlights ............................................... 134
Rearview Mirror....................................... 144
Dipstick (Engine Oil) ......................... 386, 393
Directional Signals (Turn Signal) ............. 133
Door Mirrors ............................................. 145
22 ACURA NSX PMC-31T6N6500.book 483 ページ ２０２１年９月２８日　火曜日　午後４時７分

485
Index
Fuel Economy........................................... 372
Fuel Fill Door ...................................... 27, 370
Fuses ......................................................... 460
Inspecting and Changing ........................ 464
Locations ................................ 460, 462, 463
G
Gasoline (Fuel) Economy................................................. 372
Gauge ...................................................... 99
Information............................................. 369
Instant Fuel Economy .............................. 105
Low Fuel Indicator..................................... 81
Refueling ................................................ 369
Gauges ........................................................ 99
Gear Position Indicator ...................... 80, 326
Gear Shift Positions
Dual Clutch Transmission ........................ 324
Glass (care) ....................................... 420, 425
Glove Box ................................................. 152
H
Handling of the Jack ................................ 446
Handling the Unexpected ....................... 433
HandsFreeLink ® (HFL) .............................. 269
Automatic Import of Ce llular Phonebook and
Call History ........................................... 282
Displaying Messages ............................... 298
HFL Buttons ............................................ 269 HFL Menus .............................................. 272
HFL Status Display ................................... 271
Limitations for Manua
l Operation ............ 271
Making a Call .......................................... 291
Options During a Call .............................. 295
Phone Setup ............................................ 277
Phonebook Phonetic M odification ........... 286
Receiving a Call ....................................... 295
Receiving a Text/E-mail Message .............. 296
Ring Tone ................................................ 281
Roadside Assistance ................................. 302
Selecting a Mail Account ......................... 297
Speed Dial ............................................... 283
To Set Up Text/E-mail Message Options ... 280
Hatch ......................................................... 122
Unable to Open ....................................... 467
Hazard Warning Button ............................... 6
Headlights ................................................. 134
Aiming .................................................... 401
Automatic Operation (automatic lighting control).................................................. 135
Dimming ......................................... 134, 137
Operating ................................................ 134
Heaters (Seat) ........................................... 155
HFL (HandsFreeLink ®)............................... 269
High Beam Indicator .................................. 85
High Voltage Battery ............................... 354
High-Performance Driving ....................... 313
Hill Start Assist System ............................. 321
HomeLink® Universal Transceiver ............ 266
Honda App License Agreement ............... 227Hybrid Vehicle
SPORT HYBRID Super Handling All-Wheel-
Drive
TM (SPORT HYBRID SH-AWD ®).......... 11
I
Identification Numbers
Engine, Motor, and Transmission............. 472
Vehicle Identification ............................... 472
If the 12-Volt Battery Is Dead .................. 450
Immobilizer System .................................. 125
Indicator.................................................... 85
Indicators .................................................... 74
12-Volt Battery Charging System ....... 79, 454
Active Damper System............................... 78
Anti-lock Brake System (ABS)..................... 82
Automatic Brake Hold ....................... 76, 358
Automatic Brake Hold System ........... 76, 358
Brake System (Amber) ............................... 77
Brake System (Red) ............................ 74, 455
Brake Wear ............................................... 78
CRUISE CONTROL ............................. 86, 342
CRUISE MAIN .................................... 86, 341
Door and Trunk (Hatch) Open ............. 37, 92
Electric Parking Brake ................................ 75
Electric Parking Brake System ............ 75, 456
Electric Power Steering (EPS) System .. 82, 455
Gear Position............................................. 80
High Beam ................................................ 85
Immobilizer System ................................... 85
Keyless Access System ............................... 86
22 ACURA NSX PMC-31T6N6500.book 485 ページ ２０２１年９月２８日　火曜日　午後４時７分
