uuEngine Does Not Start uEmergency Engine Stop
Handling the Unexpected
Emergency Engine Stop
The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button about for two seconds.
• Firmly press the ENGINE START/STOP button three times.
The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort an d time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.
The gear position automatically changes to
(P after the vehicle comes to a complete
stop. Then, the power mode changes to VEHICLE OFF.
1 Emergency Engine Stop
Do not press the ENGINE START/STOP button while
driving unless it is absolute ly necessary for the engine
to be turned off.
If you press the ENGINE START/STOP button while
driving, the beeper sounds.
22 ACURA MDX-31TYA6000_02.book 665 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

669
uuOverheating uHow to Handle Overheating
Handling the Unexpected
■Next thing to do
1.Check that the cooling fan is operating and
stop the engine once the temperature
gauge goes down.
u If the cooling fan is not operating,
immediately stop the engine.
2. Once the engine has cooled down, inspect
the coolant level and check the cooling
system components for leaks.
u If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.
u If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.
■Last thing to do
Once the engine has cooled sufficiently, re start it and check the temperature gauge.
If the temperature gauge has gone down, resu me driving. If it has not gone down,
contact a dealer for repairs.
1 How to Handle Overheating
If the coolant is leaking, contact a dealer for repairs.
Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.
3WARNING
Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.
Always let the engine and radiator cool
down before removing the radiator cap.
MIN
MAX
Reserve Tank
22 ACURA MDX-31TYA6000_02.book 669 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

670
Handling the Unexpected
Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears
■Reasons for the warning to appear
Appears when the engine oil pressure is low.
■What to do as soon as the warning
appears
1. Immediately park the vehicle on level
ground in a safe place.
2. If necessary, turn the hazard warning lights
on.
■What to do after parking the vehicle
1. Stop the engine and let it sit for
approximately three minutes.
2. Open the hood and check the oil level.
u Add oil as necessary.
2 Oil Check P. 600
3.Start the engine and check the low oil
pressure warning.
u The warning disappears: Start driving
again.
u The warning does not disappear within
10 seconds: Immediately stop the engine
and contact a dealer for repairs.
1If the Low Oil Pressure Warning Appears
NOTICE
Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.
22 ACURA MDX-31TYA6000_02.book 670 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

671
uuIndicator, Comi ng On/BlinkinguIf the Charging System Indicator Comes On
Handling the Unexpected
If the Charging System Indicator Comes On
■Reasons for the indicator to come on
Comes on when there is a prob lem with the charging system.
■What to do when the indicator comes on
Stop in a safe place and have yo ur vehicle checked by a dealer
immediately.
If the Malfunction Indica tor Lamp Comes On or
Blinks
■Reasons for the indicator la mp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.
■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.
■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.
1 If the Charging System Indicator Comes On
If you need to stop temporarily, do not turn off the
engine. Restarting the engi ne may rapidly discharge
the battery.
1 If the Malfunction Indicato r Lamp Comes On or Blinks
NOTICE
If you drive with the malf unction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.
22 ACURA MDX-31TYA6000_02.book 671 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

674
uuIndicator, Coming On/Blinking uIf the Electric Power Steering (EPS) System Indicator Comes On
Handling the Unexpected
If the Electric Power Steeri ng (EPS) System Indicator
Comes On
■Reasons for the indicator to come on
• Comes on when there is a problem with the EPS system.
■What to do when the indicator comes on
Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
22 ACURA MDX-31TYA6000_02.book 674 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

677Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the brake fluid reservoir. Push
the tabs to open the box.
Replacement of fuses No.1-5 should be
done by a dealer.
■Engine Compartment Fuse
Box
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Battery225 A
2
Idle Stop 130 A
Idle Stop 230 A
EPS80 A
Power Module 170 A
Fuse Box Main 160 A
Fuse Box Option 160 A
Rear Blower30 A
3
Active Control Mount30 A
Starter Motor30 A
Radiator Fan30 A
Heater Motor40 A
Power Module ACC40 A
Rear Defogger40 A
Fuse Box Option 260 A
4
AC Power Outlet*(30 A)
Brake Booster40 A
Rear Fuse Box Main 260 A
VSA F/S RLY40 A
Rear Fuse Box Main 160 A
−60 A
Fuse Box Main 260 A
Circuit ProtectedAmps
5
Power Module 230 A
VSA Pump Motor40 A
IG Main 230 A
Relay Module 230 A
Relay Module 130 A
−30 A
IG Main 130 A
6 Conditioner Fan 30 A
7Wiper30 A
8− −
9FI Main15 A
10 − −
11Injector20 A
12 − −
13Trailer E-Brake*(20 A)
14 Horn 15 A
15−−
16 FI-ECU 10 A
17−−
18 DBW 15 A
19Audio15 A
20Back Up7.5 A
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 677 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

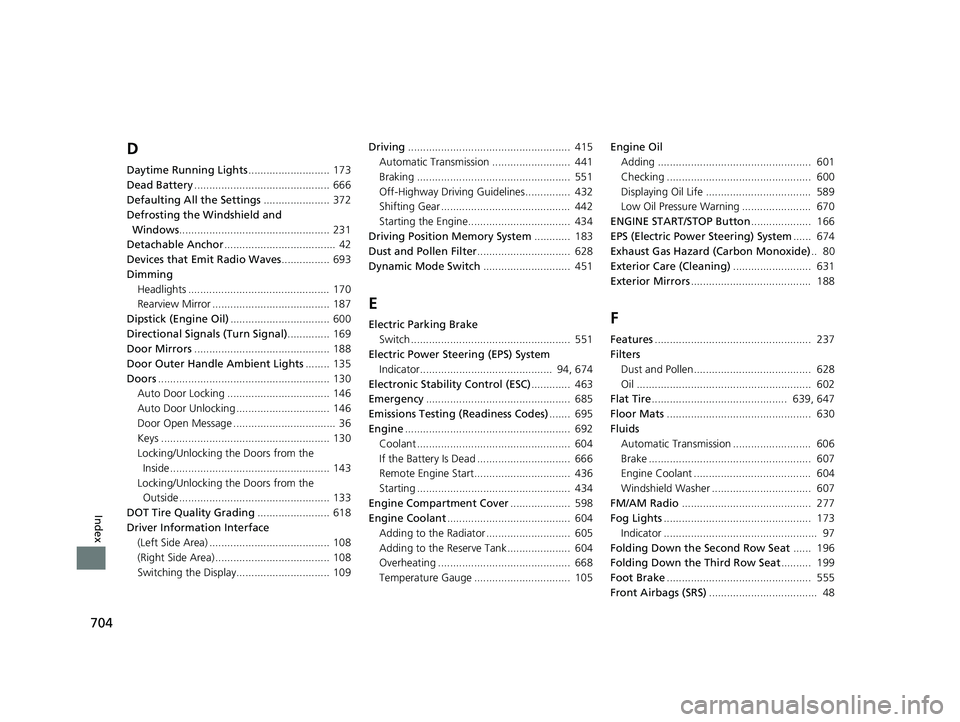

704
Index
D
Daytime Running Lights........................... 173
Dead Battery ............................................. 666
Defaulting All the Settings ...................... 372
Defrosting the Windshield and
Windows .................................................. 231
Detachable Anchor ..................................... 42
Devices that Emit Radio Waves ................ 693
Dimming Headlights ............................................... 170
Rearview Mirror ....................................... 187
Dipstick (Engine Oil) ................................. 600
Directional Signals (Turn Signal) .............. 169
Door Mirrors ............................................. 188
Door Outer Handle Ambient Lights ........ 135
Doors ......................................................... 130
Auto Door Locking .................................. 146
Auto Door Unlocking ............................... 146
Door Open Message .................................. 36
Keys ........................................................ 130
Locking/Unlocking the Doors from the Inside ..................................................... 143
Locking/Unlocking the Doors from the Outside .................................................. 133
DOT Tire Quality Grading ........................ 618
Driver Information Interface (Left Side Area) ........................................ 108
(Right Side Area) ...................................... 108
Switching the Display............................... 109 Driving
...................................................... 415
Automatic Transmission .......................... 441
Braking ................................................... 551
Off-Highway Driving Guidelines............... 432
Shifting Gear ........................................... 442
Starting the Engine.................................. 434
Driving Position Memory System ............ 183
Dust and Pollen Filter ............................... 628
Dynamic Mode Switch ............................. 451
E
Electric Parking Brake
Switch ..................................................... 551
Electric Power Steering (EPS) System Indicator............................................ 94, 674
Electronic Stability Control (ESC) ............. 463
Emergency ................................................ 685
Emissions Testing (Readiness Codes) ....... 695
Engine ....................................................... 692
Coolant ................................................... 604
If the Battery Is Dead ............................... 666
Remote Engine Start................................ 436
Starting ................................................... 434
Engine Compartment Cover .................... 598
Engine Coolant ......................................... 604
Adding to the Radiator ............................ 605
Adding to the Reserve Tank..................... 604
Overheating ............................................ 668
Temperature Gauge ................................ 105 Engine Oil
Adding ................................................... 601
Checking ................................................ 600
Displaying Oil Life ................................... 589
Low Oil Pressure Warning ....................... 670
ENGINE START/STOP Button .................... 166
EPS (Electric Power Steering) System ...... 674
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) .......................... 631
Exterior Mirrors ........................................ 188F
Features.................................................... 237
Filters Dust and Pollen....................................... 628
Oil .......................................................... 602
Flat Tire ............................................. 639, 647
Floor Mats ................................................ 630
Fluids Automatic Transmission .......................... 606
Brake ...................................................... 607
Engine Coolant ....................................... 604
Windshield Washer ................................. 607
FM/AM Radio ........................................... 277
Fog Lights ................................................. 173
Indicator ................................................... 97
Folding Down the Second Row Seat ...... 196
Folding Down the Third Row Seat .......... 199
Foot Brake ................................................ 555
Front Airbags (SRS) .................................... 48
22 ACURA MDX-31TYA6000_02.book 704 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

709
Index
Side Curtain Airbags.................................. 58
SiriusXM ® Radio ....................................... 281
Smart Shortcuts ........................................ 262
Snow Tires ................................................ 623
Social Playlist ............................................ 303
Sonar Sensors ........................................... 550
Spare Tire ......................................... 639, 691
Spark Plugs ............................................... 690
Specifications ........................................... 690
Specified Fuel ................................... 581, 690
Speed Limit Information ......................... 106
Speedometer ............................................ 104
SRS Airbags (Airbags) ................................ 48
Starting Assist Brake Function ................ 462
Starting the Engine .................................. 434
Does Not Start ........................................ 662
If the Battery Is Dead............................... 666
Remote Engine Start ............................... 436
Steering Wheel ........................................ 186
Adjusting ................................................ 186
Heater .................................................... 226
Stopping ................................................... 560
Summer Tires ............................................ 623
Sunglasses Holder .................................... 216
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 466
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 573
Switches (Around the Steering Wheel) ............................................ 6, 7, 166
Synchronized Mode ................................. 232 System Message Indicator
.......................... 99
System Updates ........................................ 265
T
Tailgate..................................................... 147
Unable to Open ....................................... 687
Temperature Gauge ..................................................... 105
Outside Temperature Display ................... 105
Temperature Sensor ................................. 105
Temporary Tire Repair Kit ........................ 648
Third Row Seat (Folding Down) .............. 199
Third Row Seat Access .............................. 197
Tie-down Anchors .................................... 215
Time (Setting) ........................................... 128
Tire Fill Assist .................................... 467, 675
Tire Pressure Moni toring System (TPMS)
Indicator .................................................... 96
Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist .................................. 467
Indicator .................................................. 675
Tire Repair Kit ........................................... 647
Tires ........................................................... 615
Air Pressure ..................................... 616, 691
Checking and Maintaining ....................... 615
Inspection ................................................ 615
Labeling .................................................. 616
Puncture (Flat Tire) ........................... 639, 647
Regulations ............................................. 618
Rotation .................................................. 622 Spare Tire ........................................ 639, 691
Summer .................................................. 623
Temporary Tire Repair Kit ........................ 648
Tire Chains .............................................. 623
Tire Repair Kit.......................................... 647
Wear Indicators ....................................... 620
Winter..................................................... 623
Tools .......................................................... 638
Towing a Trailer ....................................... 422
Equipment and Accessories ..................... 425
Load Limits .............................................. 422
Towing Behind a Motorhome ................. 431
Towing Your Vehicle Emergency .............................................. 685
TPMS (Tire Pressure Monitoring System) Indicator.................................................... 96
TPMS (Tire Pressure Monitoring System)
with Tire Fill Assist .................................. 467
Indicator.................................................. 675
Traffic Jam Assist ...................................... 523
Traffic Sign Recognition System .............. 541
Trailer Stability Assist ............................... 429
Transmission ....................................... 21, 442
Automatic ......................................... 21, 442
Fluid ........................................................ 606
Gear Position Indicator ...................... 89, 444
Indicator.................................................. 676
Number................................................... 692
Sequential Mode ..................................... 448
Transmission System Indicator.................................................... 90
22 ACURA MDX-31TYA6000_02.book 709 ページ ２０２０年１１月５日　木曜日　午前１１時３９分
