2022 ACURA MDX ESP

441
uuWhen Driving uAutomatic Transmission
Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Automatic Transmission
When the engine runs at higher idle speeds, the creeping force increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator peda l while driving uphill may cause the
transmission to drop to a lo wer gear, unexpectedly increa sing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
■Other Precautions
■Creeping
■Kickdown
1Driving Guidelines for Your Utility Vehicle
Failure to operate your vehi cle correctly might result
in a crash or a rollover. 2 Important Handling Information P. 34
2 Precautions While Driving P. 440
22 ACURA MDX-31TYA6000_02.book 441 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

452
uuWhen Driving uAcura Integrated Dynamics System
Driving

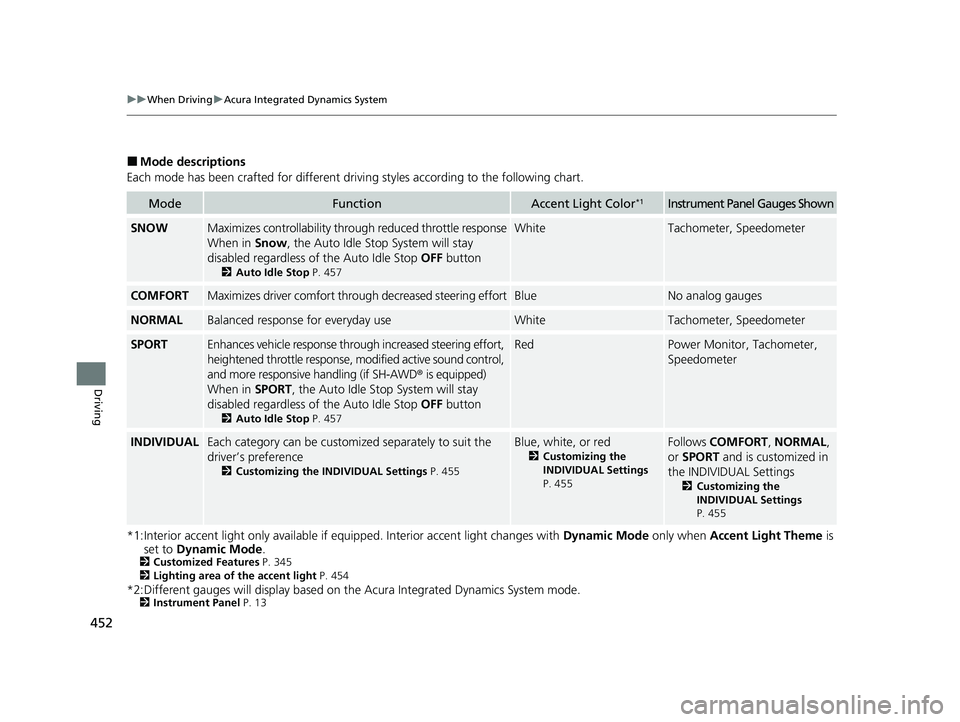

■Mode descriptions
Each mode has been crafted for different driving styles according to the following chart.
*1:Interior accent light only available if equipped. Interior accent light changes with Dynamic Mode only when Accent Light Theme is
set to Dynamic Mode .
2Customized Features P. 345
2 Lighting area of the accent light P. 454
*2:Different gauges will display based on th e Acura Integrated Dynamics System mode.2Instrument Panel P. 13
ModeFunctionAccent Light Color*1Instrument Panel Gauges Shown
SNOWMaximizes controllability thr ough reduced throttle response
When in Snow, the Auto Idle Stop System will stay
disabled regardless of the Auto Idle Stop OFF button
2Auto Idle Stop P. 457
WhiteTachometer, Speedometer
COMFORTMaximizes driver comfort through decreased steering effortBlueNo analog gauges
NORMALBalanced response for everyday useWhiteTachometer, Speedometer
SPORTEnhances vehicle response thro ugh increased steering effort,
heightened throttle response, mo dified active sound control,
and more responsive handling (if SH-AWD® is equipped)
When in SPORT, the Auto Idle Stop System will stay
disabled regardless of the Auto Idle Stop OFF button
2Auto Idle Stop P. 457
RedPower Monitor, Tachometer,
Speedometer
INDIVIDUALEach category can be customized separately to suit the
driver’s preference
2Customizing the INDIVIDUAL Settings P. 455
Blue, white, or red
2Customizing the
INDIVIDUAL Settings
P. 455
Follows COMFORT , NORMAL ,
or SPORT and is customized in
the INDIVIDUAL Settings
2 Customizing the
INDIVIDUAL Settings
P. 455
22 ACURA MDX-31TYA6000_02.book 452 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

456
uuWhen Driving uAcura Integrated Dynamics System
Driving
*1:Interior accent light only available if equipped. Interior accent light changes with Dynamic Mode only when Accent Light Theme is
set to Dynamic Mode .
2Customized Features P. 345
2 Lighting area of the accent light P. 454
*2:Suspension category only available if SH-AWD ® is equipped.

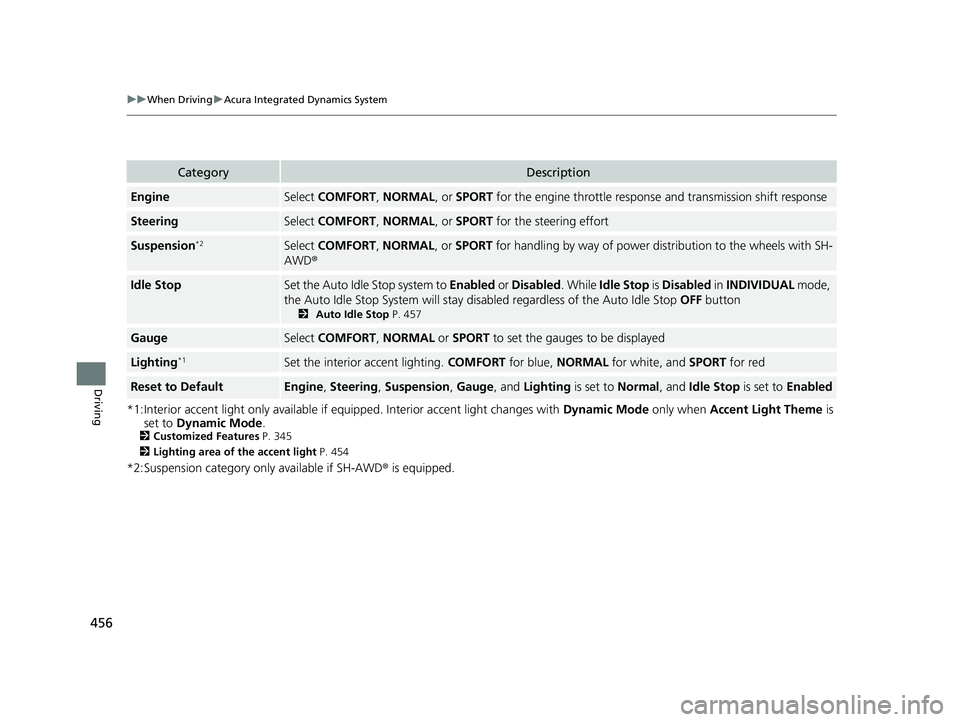

CategoryDescription
EngineSelect COMFORT , NORMAL , or SPORT for the engine throttle respons e and transmission shift response
SteeringSelect COMFORT , NORMAL , or SPORT for the steering effort
Suspension*2Select COMFORT , NORMAL , or SPORT for handling by way of power distribution to the wheels with SH-
AWD ®
Idle StopSet the Auto Idle Stop system to Enabled or Disabled. While Idle Stop is Disabled in INDIVIDUAL mode,
the Auto Idle Stop System will stay disa bled regardless of the Auto Idle Stop OFF button
2 Auto Idle Stop P. 457
GaugeSelect COMFORT , NORMAL or SPORT to set the gauges to be displayed
Lighting*1Set the interior accent lighting. COMFORT for blue, NORMAL for white, and SPORT for red
Reset to DefaultEngine , Steering, Suspension , Gauge, and Lighting is set to Normal, and Idle Stop is set to Enabled
22 ACURA MDX-31TYA6000_02.book 456 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

463
uuWhen Driving uVehicle Stability AssistTM (VSA ®), aka Electronic Stability Control (ESC), System
Continued
Driving
Vehicle Stability AssistTM (VSA ®), aka Electronic
Stability Control (ESC), System
VSA ® helps to stabilize the vehicle during corn ering if the vehicle turns more or less
than what was intended. It also assists in maintaining traction on slippery surfaces.
It does so by regulating engine outp ut and selectively applying the brakes.
When VSA ® activates, you may notice that the
engine does not respond to the accelerator.
You may also notice some noise from the
hydraulic brake system. You will also see the
indicator blink.
■VSA ® Operation
1 Vehicle Stability AssistTM (VSA® ), aka Electronic Stability Control
(ESC), System
The VSA ® may not function properl y if tire type and
size are mixed. Make sure to use the same size and
type of tire, and the air pressures as specified.
When the VSA ® system indicator comes on and stays
on while driving, there may be a problem with the
system. While this may not interfere with normal
driving, have your vehi cle checked by a dealer
immediately.
VSA ® cannot enhance stability in all driving situations
and does not control the entire braking system. You
still need to drive and corner at speeds appropriate
for the conditions and alwa ys leave a sufficient
margin of safety.
The main function of the VSA ® system is generally
known as Electronic Stability Control (ESC). The
system also includes a traction control function.
The vehicle stability assist
TM (VSA ®) system, adaptive
cruise control (ACC) with low speed follow, safety
support and low tire pressu re/TPMS indicators may
come on in amber along with a message in the driver
information interface when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph (20 km/h).
Each indicator should go off. If any do not, have your
vehicle checked by a dealer.
VSA ® System
Indicator
22 ACURA MDX-31TYA6000_02.book 463 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

466
uuWhen Driving uSuper Handling-All Wheel DriveTM (SH-AWD ®)*
Driving
Super Handling-All Wheel DriveTM (SH-AWD® )*
The system controls and transfers varying amounts of engine torque to each wheel
in accordance with the driving conditions.
SH-AWD ® helps to enhance driving stability, and lets you handle situations like
sli ppe r y sur f a c es , suc h a s o n w e t, i cy , o r sno wy r oa ds , b e tt e r t ha n wh e n dr iv ing wi t h
two wheel drive. However, the system do es not help to enhance braking. Be
precautious about the following:
• It is still your responsibility to drive safely when you steer, accelerate, and apply
brakes.
• Leave a sufficient margin when braking on slippery surfaces.1Super Handling-All Wheel DriveTM (SH-AWD ®)*
The SH-AWD ® system may not function properly if
tire type and size are mixed.
Make sure to use the same size and type of tire, and
the air pressures as specified. 2 Tire and Wheel Replacement P. 621
Do not continuously spin the front tires of your
vehicle. Continuously spinning the front tires can
cause damage to the transmission and SH-AWD ®
unit.
If AWD temperature too hot. Do not drive. Idle
engine to allow system to cool . message appears
on the driver information in terface while driving, it
indicates the differential te mperature is too high. If
this happens, pull to the side of the road when it is
safe, change the shift position to
( P, and idle the
engine until the indicator goes out.
* Not available on all models
22 ACURA MDX-31TYA6000_02.book 466 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

470
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
22 ACURA MDX-31TYA6000_02.book 470 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

479
uuAcuraWatchTMuCollision Mitigation Braking SystemTM (CMBSTM)
Continued
Driving
Collision Mitigation Braking SystemTM (CMBSTM)
Can assist you when there is a possibility of your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The CMBSTM is designed to alert you when the
potential for a collision is determined, as well as to reduce your vehicle speed to help
minimize collision severity when a collision is deemed unavoidable.
1 Collision Mitigation Braking SystemTM (CMBSTM)
For directions on the prop er handling of the radar
sensor, refer to the following page. 2 Radar Sensor P. 549
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 547
Important Safety Reminder
The CMBS
TM is designed to reduce the severity of an
unavoidable collision. It do es not prevent a collision
nor stop the vehicle automati cally. It is still your
responsibility to operate the brake pedal and steering
wheel appropriately acco rding to the driving
conditions.
The CMBS
TM may not activate or may not detect a
vehicle in front of y our vehicle under certain
conditions: 2 CMBS
TM Conditions and Limitations P. 484
The CMBS
TM is not activated for about 15 seconds
after the power system is turned on.
22 ACURA MDX-31TYA6000_02.book 479 ページ ２０２０年１１月５日　木曜日　午前１１時３９分

482
uuAcuraWatchTMuCollision Mitigation Braking SystemTM (CMBSTM)
Driving
The system has three alert stages for a possible collision. However, depending on circumstances, the CMBSTM may not go through all of
the stages before initiating the last stage.
■Collision Alert Stages
Distance between vehicles
CMBSTM
The sensors detect a vehicleAudible & Visual WARNINGSBraking
Stage oneThere is a risk of a collision
with the vehicle ahead of you.
When in Long, visual and
audible alerts come on at a
longer distance from a vehicle
ahead than in Normal
setting, and in Short, at a
shorter distance than in
Normal .
—
Stage two
The risk of a collision has
increased, time to respond is
reduced.
Visual and audible alerts.
Lightly applied
Stage three The CMBSTM determines that
a collision is unavoidable.Forcefully applied
Your Vehicle Vehicle
Ahead
Normal
Short
Long
Your
Vehicle Vehicle
Ahead
Your
VehicleVehicle
Ahead
22 ACURA MDX-31TYA6000_02.book 482 ページ ２０２０年１１月５日　木曜日　午前１１時３９分
